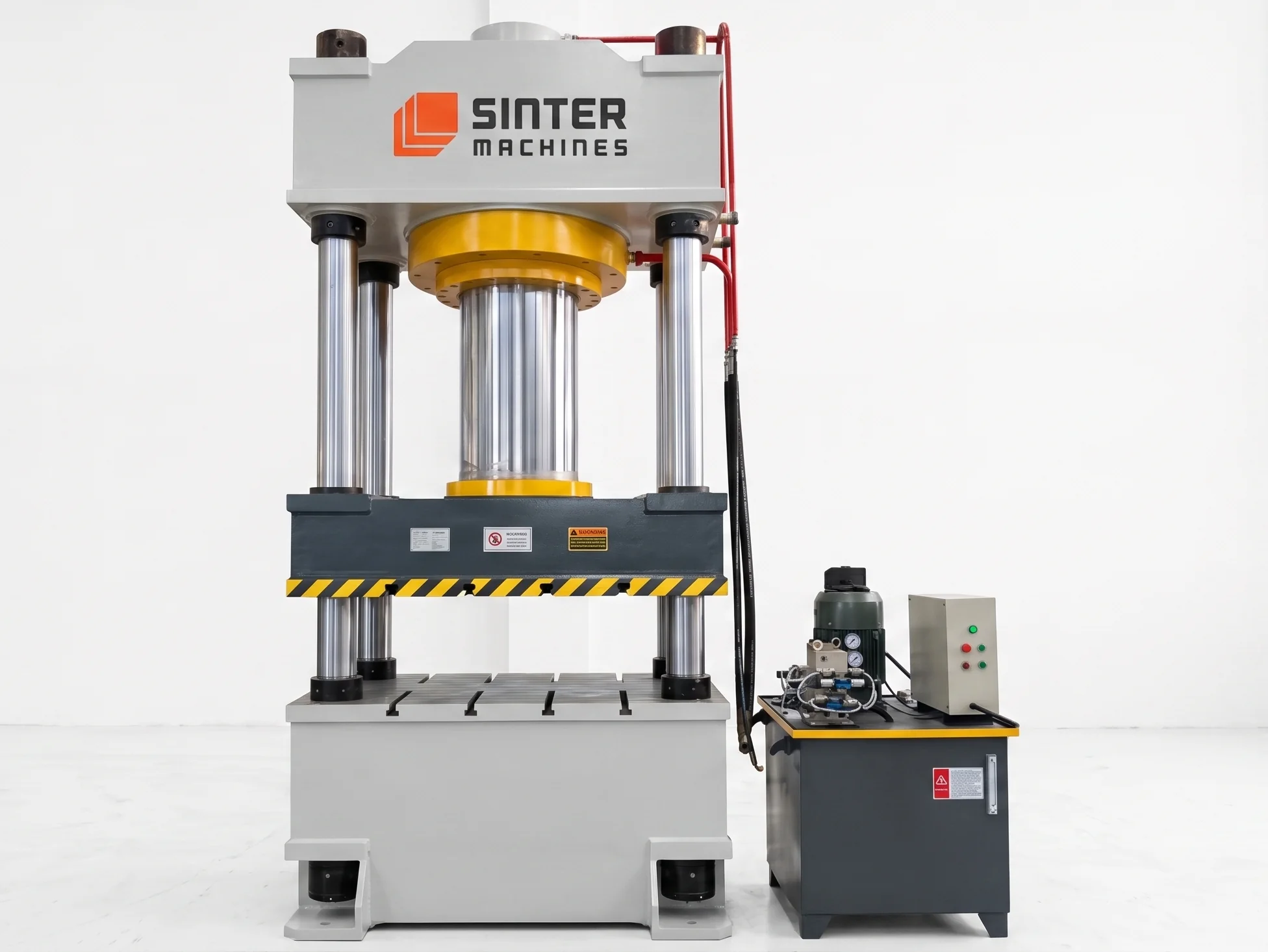

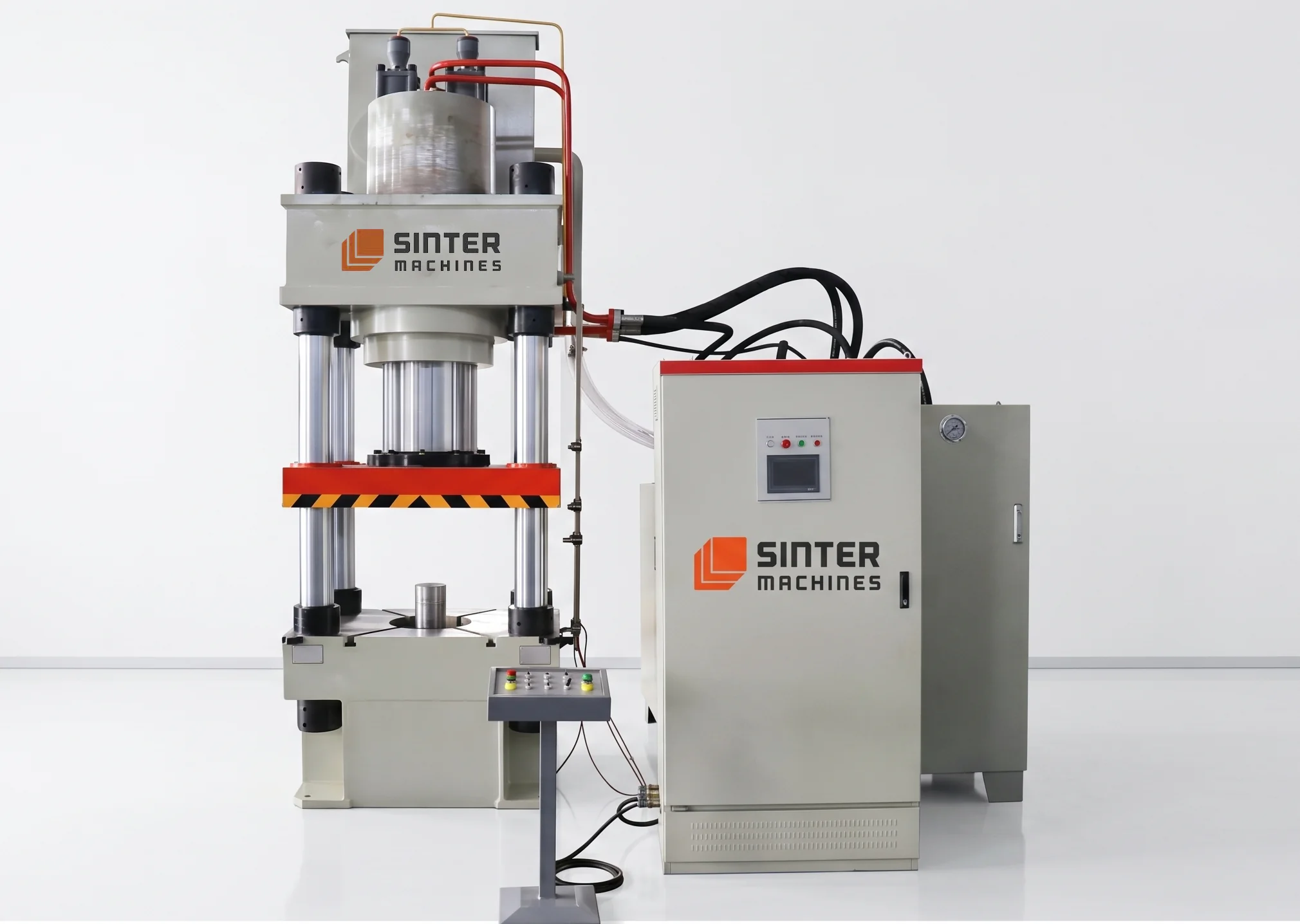

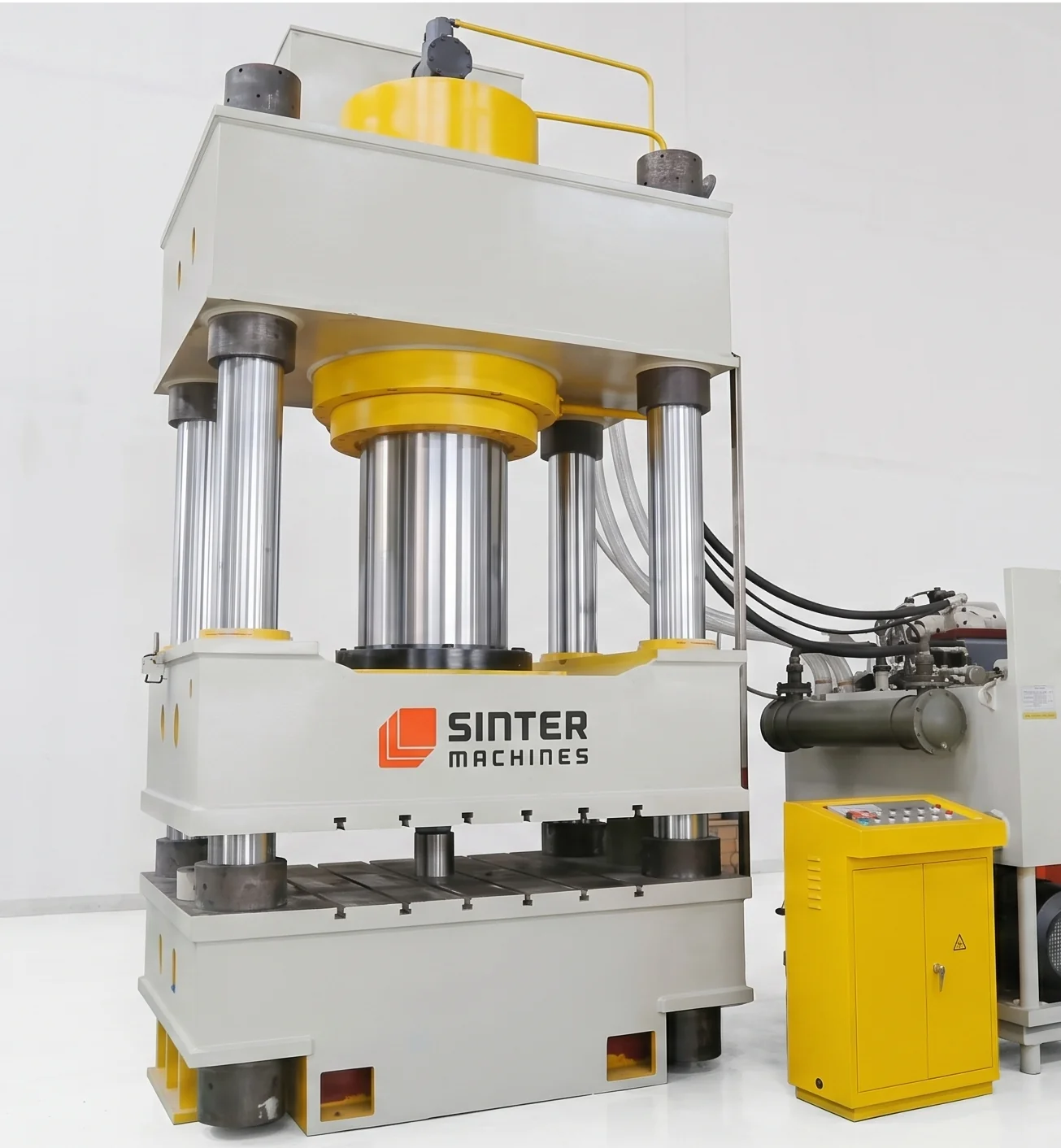

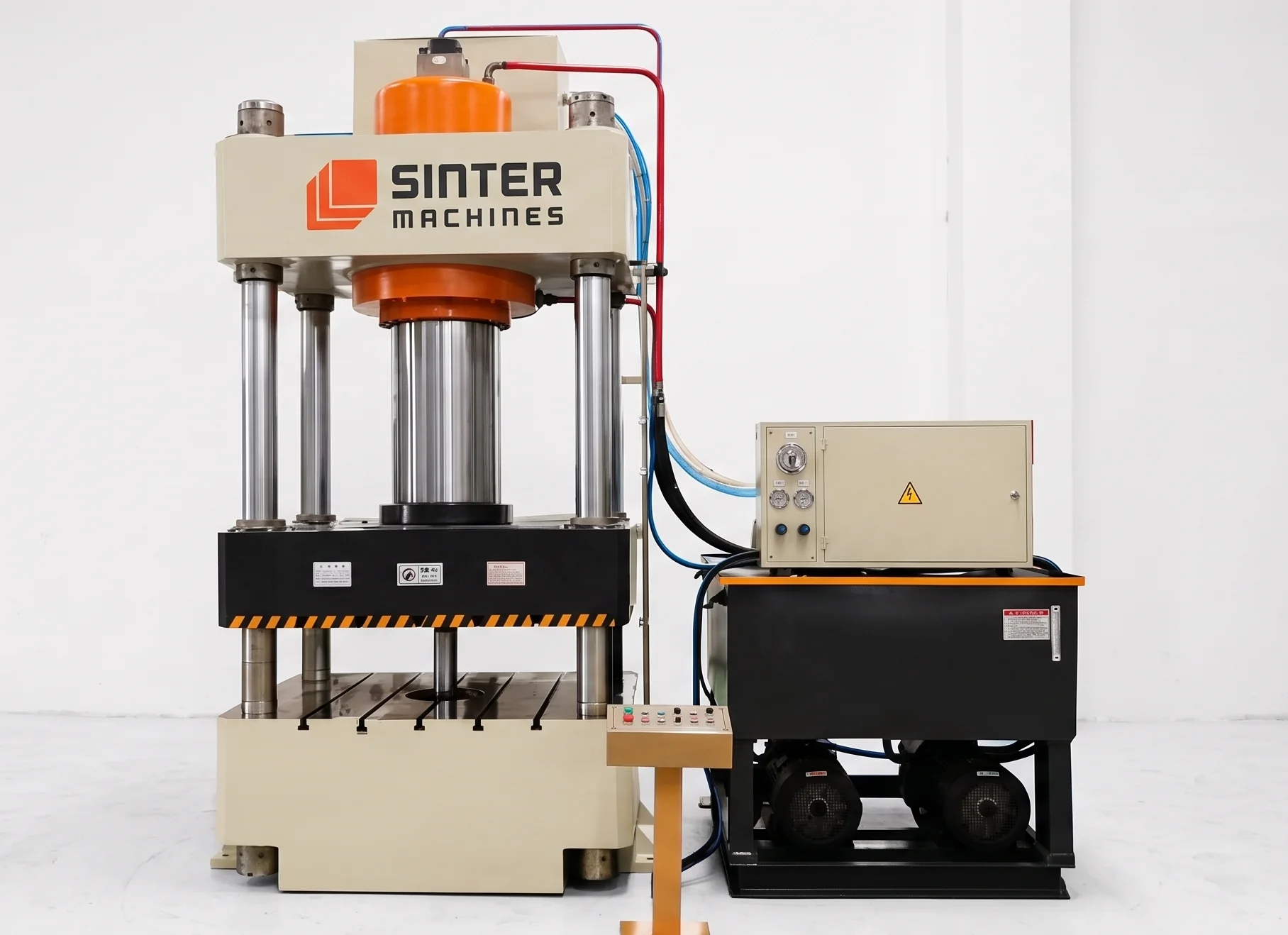

800T Four Column Hydraulic Press for Scheelite Powder Block
A Scheelite Powder Block Compression 4-Column Hydraulic Press Machine is a specialized heavy-duty industrial compaction system engineered to compress fine scheelite powder (calcium tungstate, CaWO4, which serves as a major ore of tungsten) into dense, uniform solid blocks, briquettes, or charge preforms.
These machines are utilized in extractive metallurgy, tungsten processing, and specialty alloy manufacturing, where loose, high-density metal-bearing mineral powders must be consolidated to minimize airborne dusting, prevent material loss, and optimize furnace or reactor feed rates.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
High-Precision Guidance & Parallelism: Tungsten-bearing mineral concentrates require strict control over compaction uniformity to prevent structural weak points or density gradients. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Rigid Load Distribution: Compacting dense mineral powders into high-strength blocks requires continuous high tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity over long operational lifespans.
Abrasion Resistance & Tooling: Because scheelite and tungsten-bearing mineral powders can be highly abrasive during high-pressure compaction, press tooling, die walls, and punches are engineered with hardened alloy tool steels or specialized wear-resistant carbide inserts to prevent rapid tooling degradation and material contamination.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 50 Tons to 600+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | Hardened alloy tool steel or specialized wear-resistant carbide inserts designed to handle abrasive mineral powders |
Hydraulic Drive | Variable displacement piston pumps or servo-hydraulic systems with smooth proportional pressure control |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Enclosed Volumetric Feeding: An automated, sealed feed shoe slides precisely over the die cavity to deposit a measured volume of loose scheelite powder, minimizing airborne dust and ensuring uniform fill density.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate and the dense mineral particles to firmly settle, minimizing internal stress or cracking.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent surface cracking from elastic springback. A bottom ejection cylinder then cleanly pushes the solid scheelite block out of the die cavity for downstream roasting, smelting, or secure transport.
- The consolidated scheelite blocks are then ready for advanced high-temperature processing, chemical digestion, or direct furnace feeding in industrial tungsten production lines.

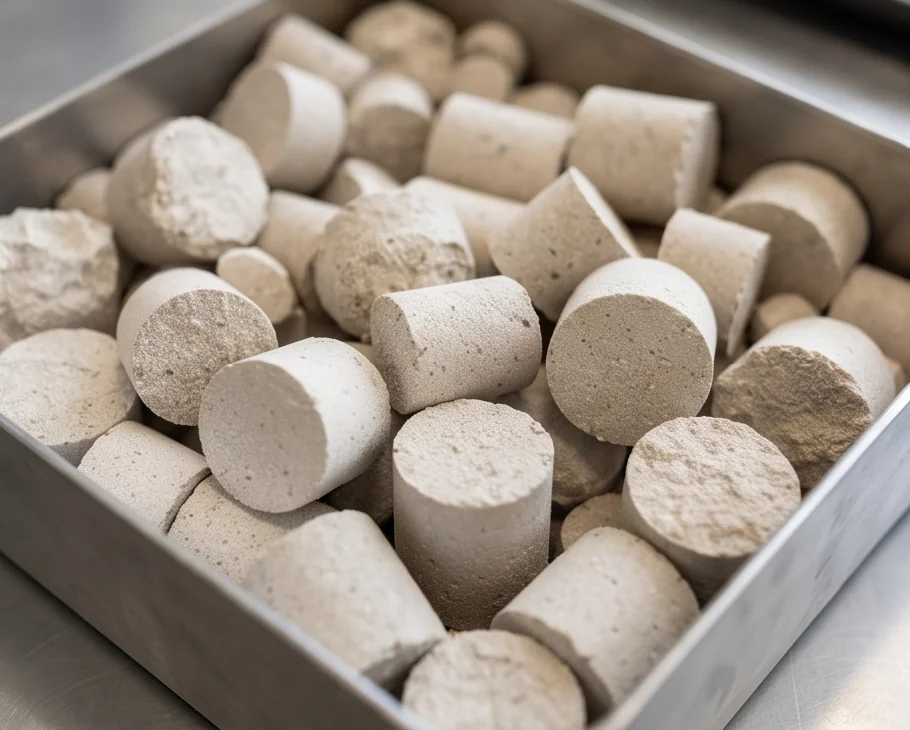

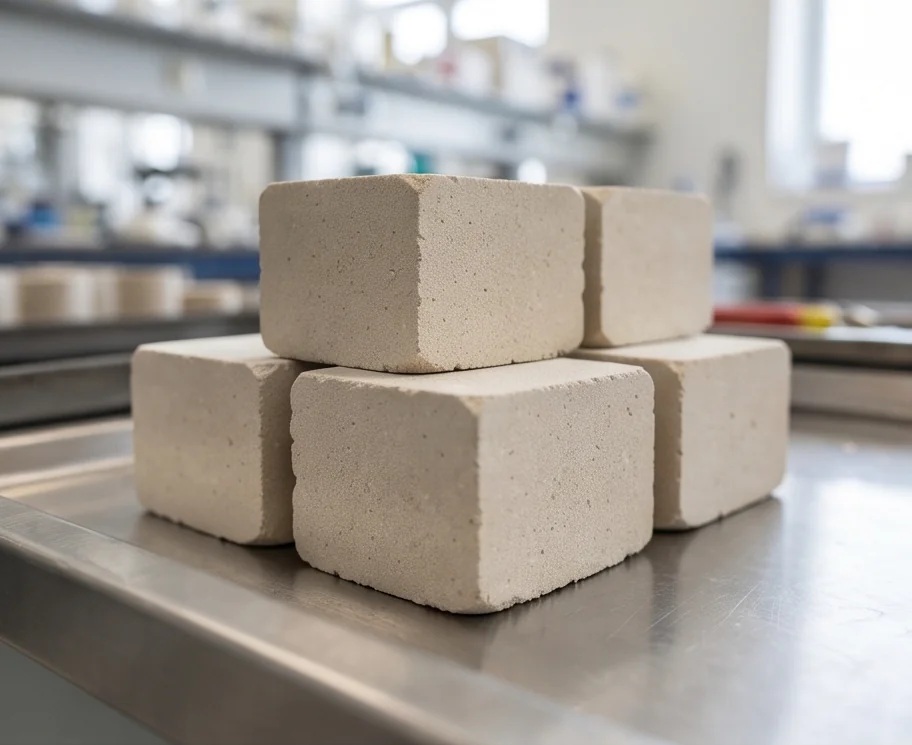

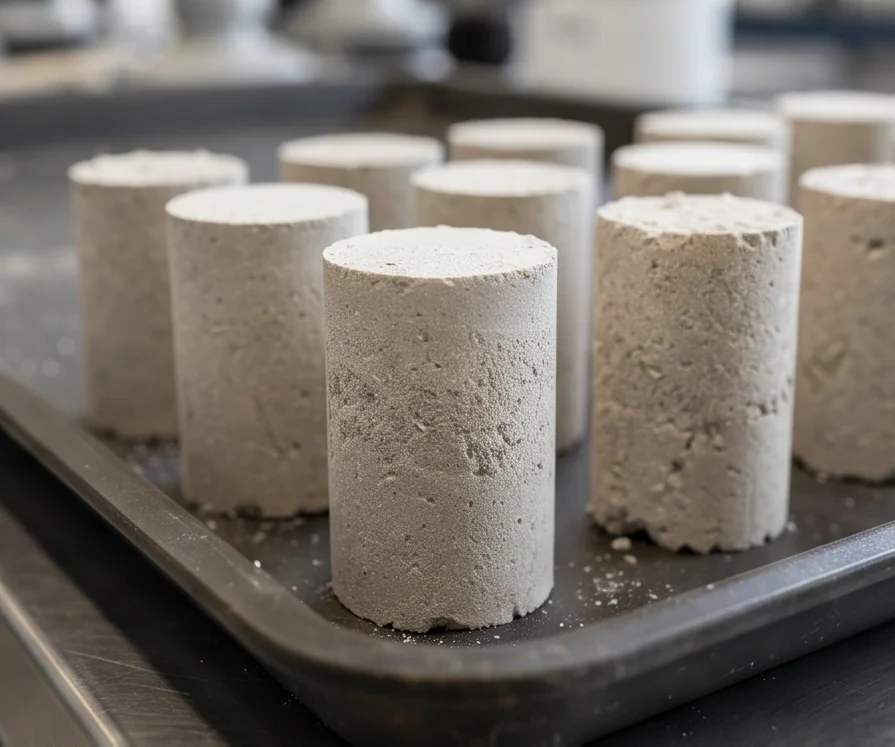

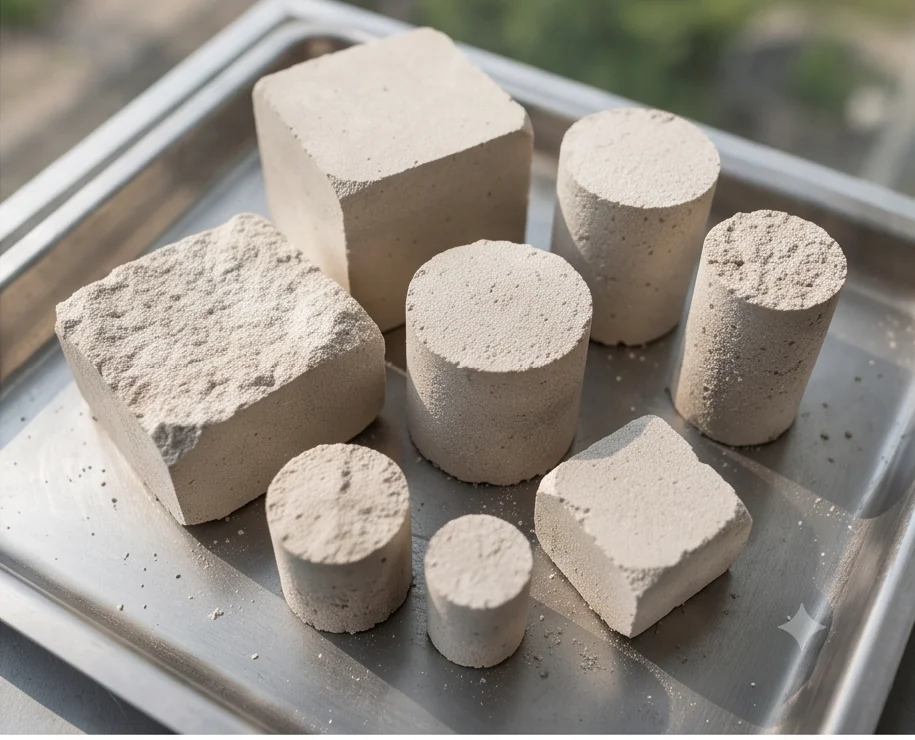

Finished Product Gallery
