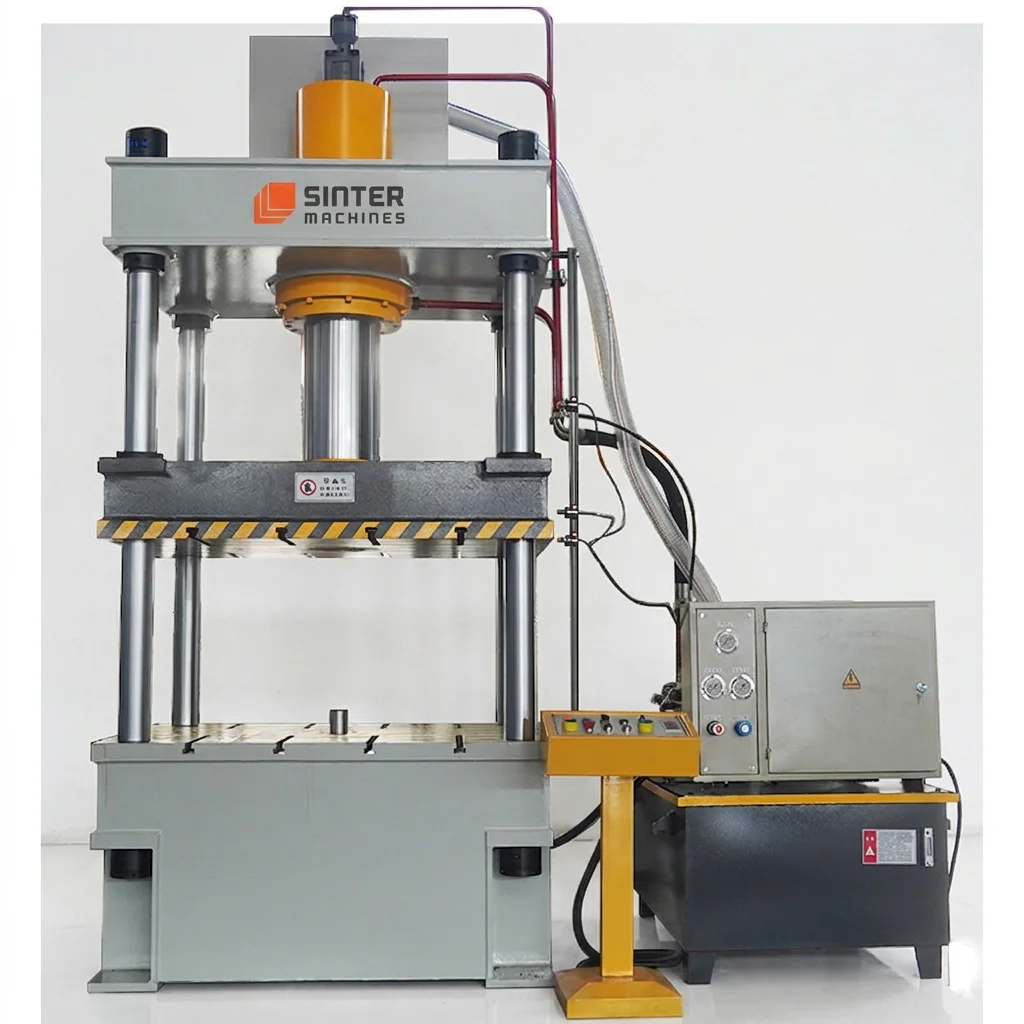

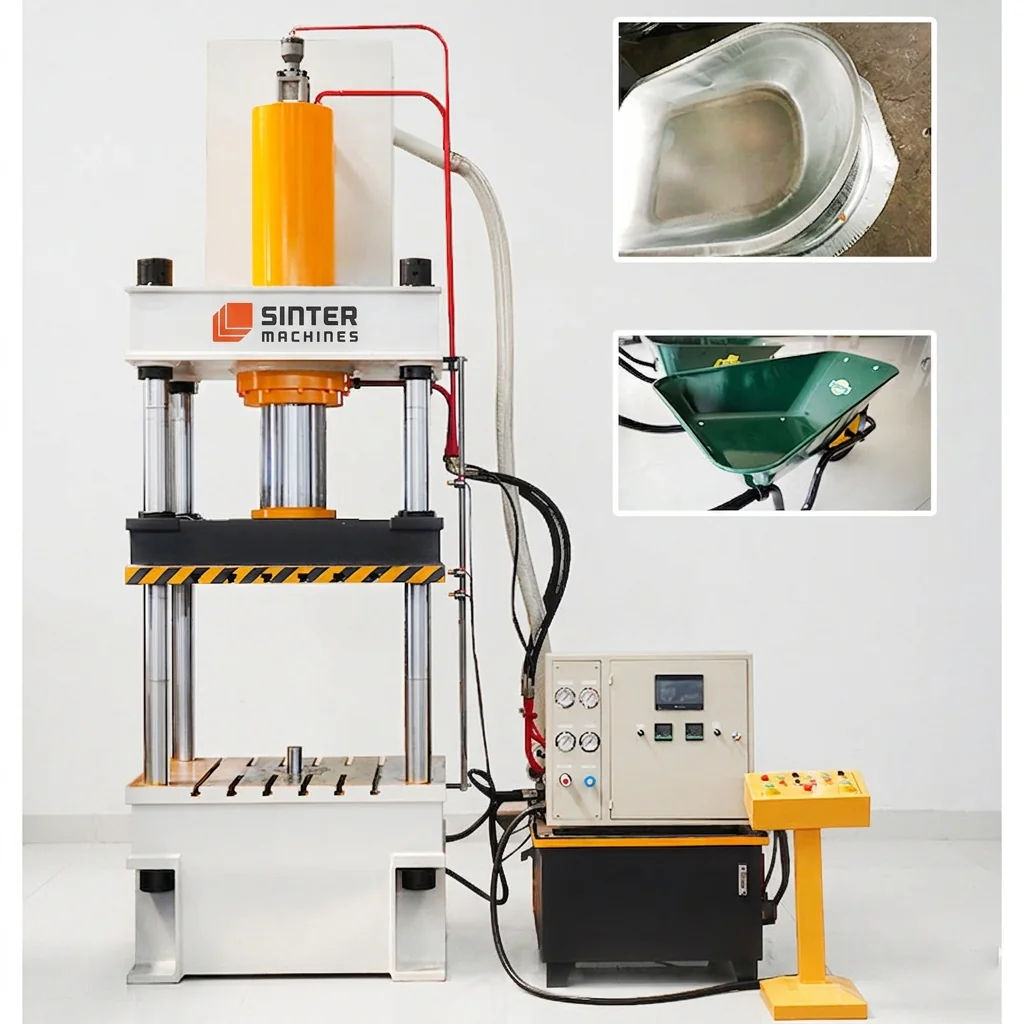

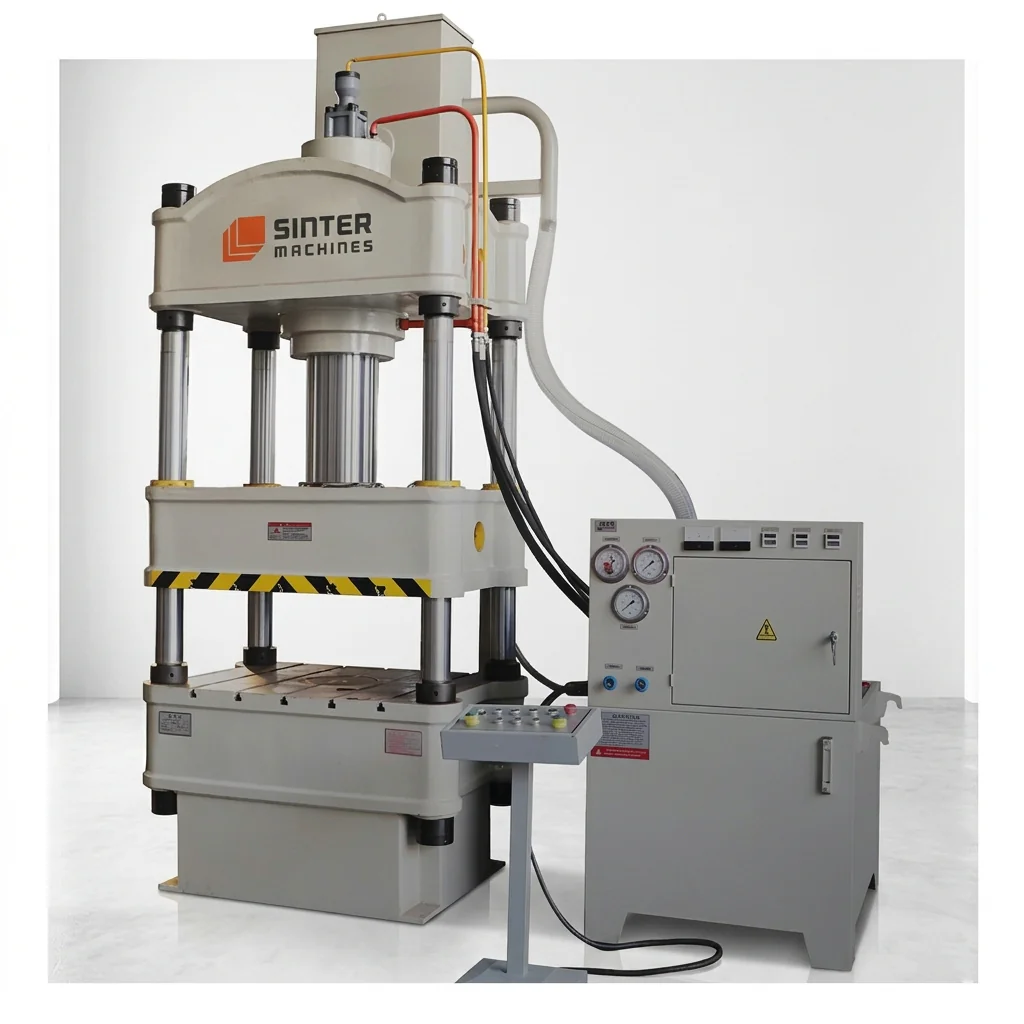

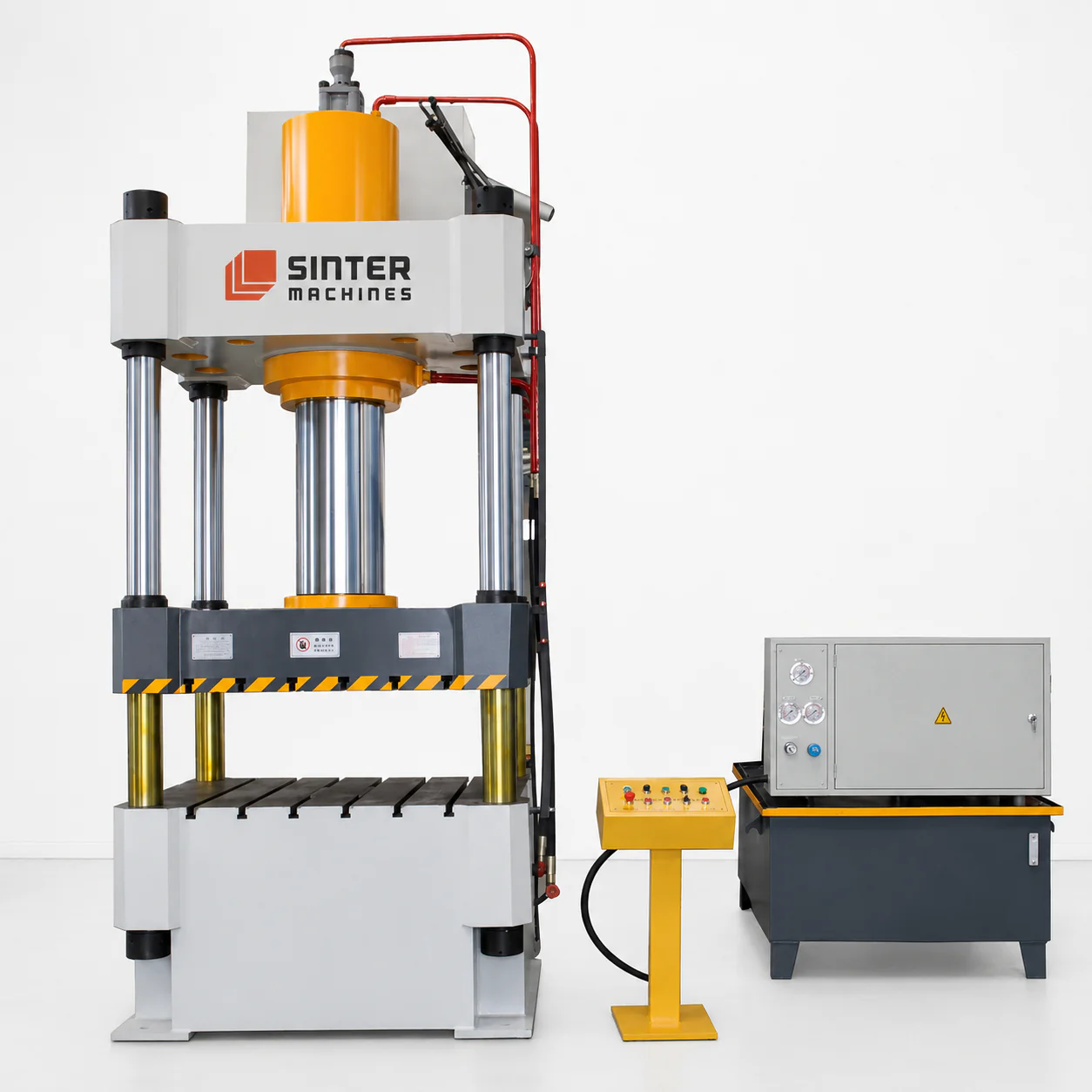

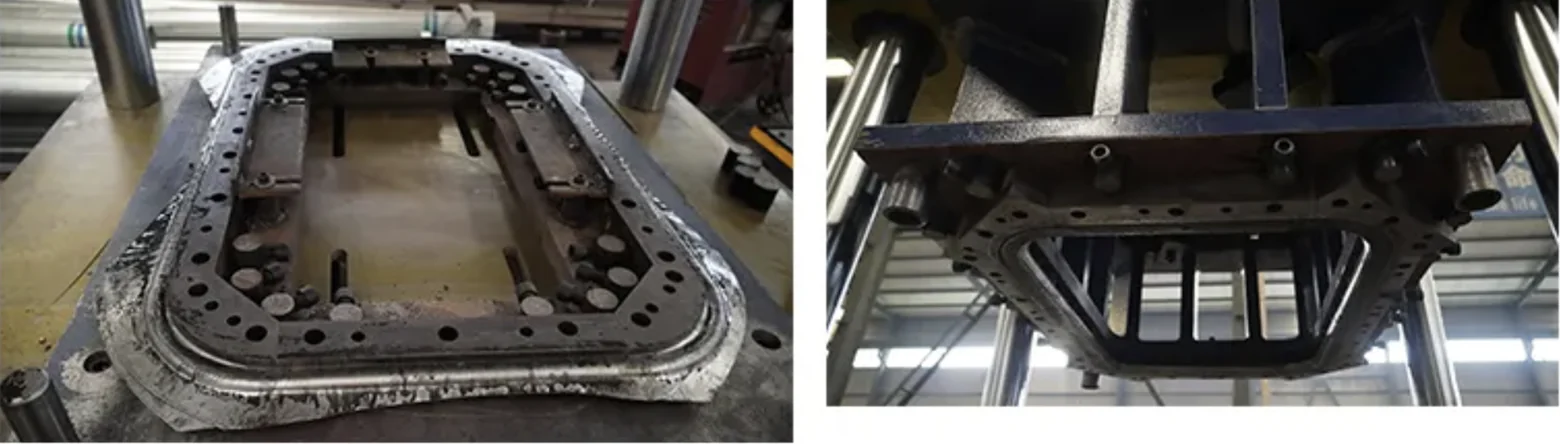

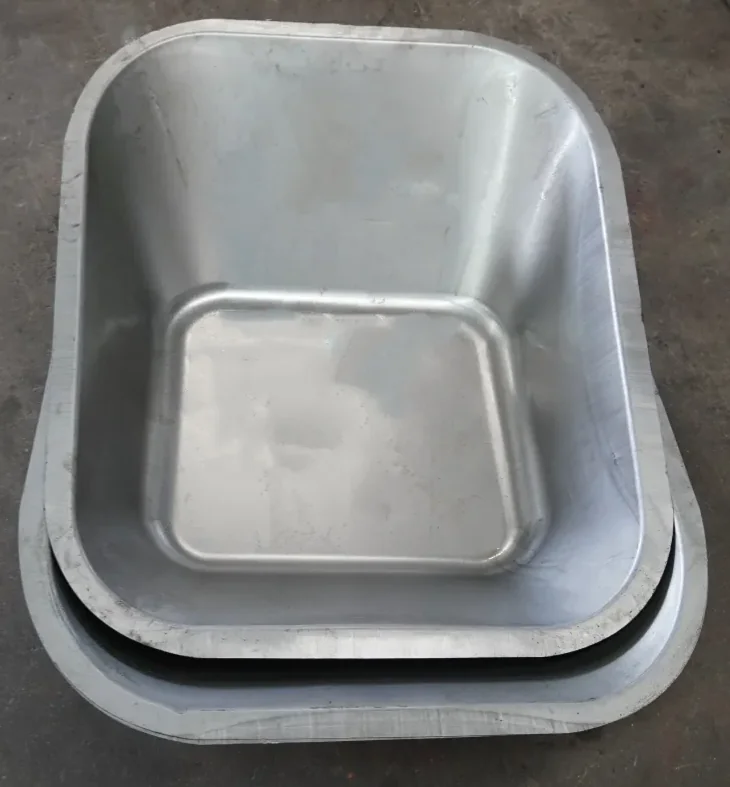

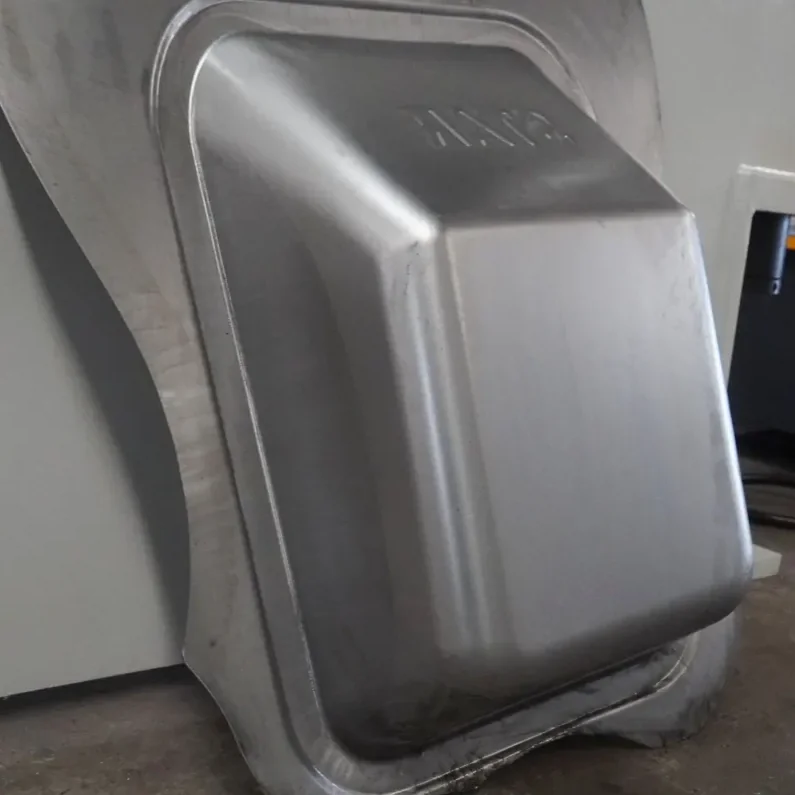

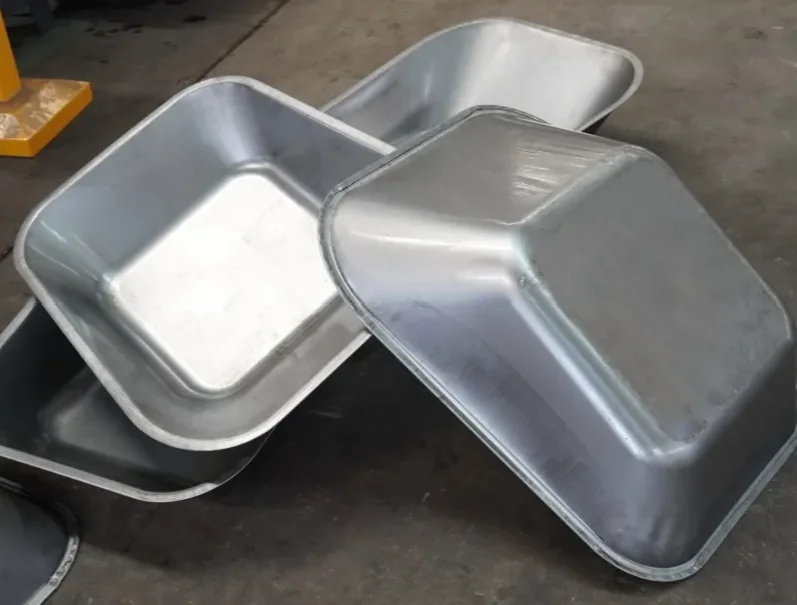

200T Four Column Hydraulic Press for Wheelbarrow Metal Edge Cutting & Finishing

Capacity

• Maximum continuous metal shearing and edge trimming force capacity of 2000 kN
• Dedicated hydraulic bottom ejector force capacity of 500 kN

Structural Design

• Heavy fatigue resistant four column configuration engineered for shock-free sheet metal shearing
• FEA stress relieved heavy steel plate welded bolster and upper moving platen assembly

Frame Type

• Precision aligned solid induction hardened pillar frame guide structure
• Stress relieved heavy welded steel plate bolster and upper moving slide assembly

Hydraulic System

• High output variable displacement axial piston pump fluid power assembly
• Multi stage high capacity offline oil filtration loop with integrated oil coolers

Main Ram Stroke

• Maximum vertical slide trimming travel distance capability of 500 mm
• Electronic stroke length limitation positioning resolution accurate within 0.005 mm

Working Hydraulic Pressure

• Maximum continuous operating main hydraulic system fluid pressure of 210 bar
• Peak shock safety valve pressure relief calibration threshold limit of 240 bar

Daylight Gap

• Maximum open vertical daylight window working clearance of 800 mm
• Minimum closed shut die height tool workspace space of 200 mm

Approach Speed

• Accelerated downward advance slide rapid travel speed of 280 mm/Sec
• Controlled tool shearing engagement deceleration velocity of 20 mm/Sec

Pressing / Drawing Speed

• Precision edge shearing and trimming operation speed of 8 to 25 mm/Sec
• Maximum cutting resistance continuous metal shearing velocity of 30 mm/Sec

Return Speed

• High speed upward ram extraction retraction travel speed of 250 mm/Sec
• Fast automated hydraulic decompression pre return system cycle timing

Bed / Platen Size Platen

• Total clear bolster bed width left to right of 1200 mm
• Total clear bolster bed depth front to back of 1000 mm

Columns

• High tensile forged alloy steel pillar diameter of 150 mm
• Heavy duty wear resistant bronze guide bushings with automatic grease lubrication

Working Envelope

• Total horizontal internal clear workspace area of 1200 by 1000 mm
• Maximum permissible upper shearing die tool assembly mass weight of 3500 kg

Control System

• Industrial programmable logic controller linked with a graphical touchscreen station
• Dual redundant non contact linear transducer position tracking systems accurate within 0.002 mm

Main Motor Power

• High efficiency primary hydraulic pump electric drive motor power of 30 kW
• Dedicated auxiliary cooling and continuous oil filtration motor power of 3 kW

Valves & Hydraulics

• High dynamic response proportional directional flow control cartridge valve manifold block
• Fast acting overhead gravity pre fill oil valve unit assembly

Automation

• Digital interface connection ports for synchronized automatic tub transfer units
• Integrated pneumatic trim scrap blowers and automated part ejection systems

Safety Features

• Dual channel infrared light curtain barriers guarding operator workspace zones
• Automated heavy duty dual fail safe mechanical anti drop ram safety locking blocks

SM 200 HP — Model Specifications

• Nominal Force: 2000 KN
• Maximum Hydraulic Pressure: 25 MPa
• Max Opening Height of the Slider: 1100 mm
• Max Stroke of the Slider: 700 mm
• Effective Bed Size: 1000 × 1000 mm
• Slider Down Speed: 100 mm/s
• Slider Pressing Speed: 7–18 mm/s
• Slider Return Speed: 90 mm/s
• Ejector Cylinder Nominal Force: 200 KN
• Stroke of the Ejection Cylinder: 200 mm
