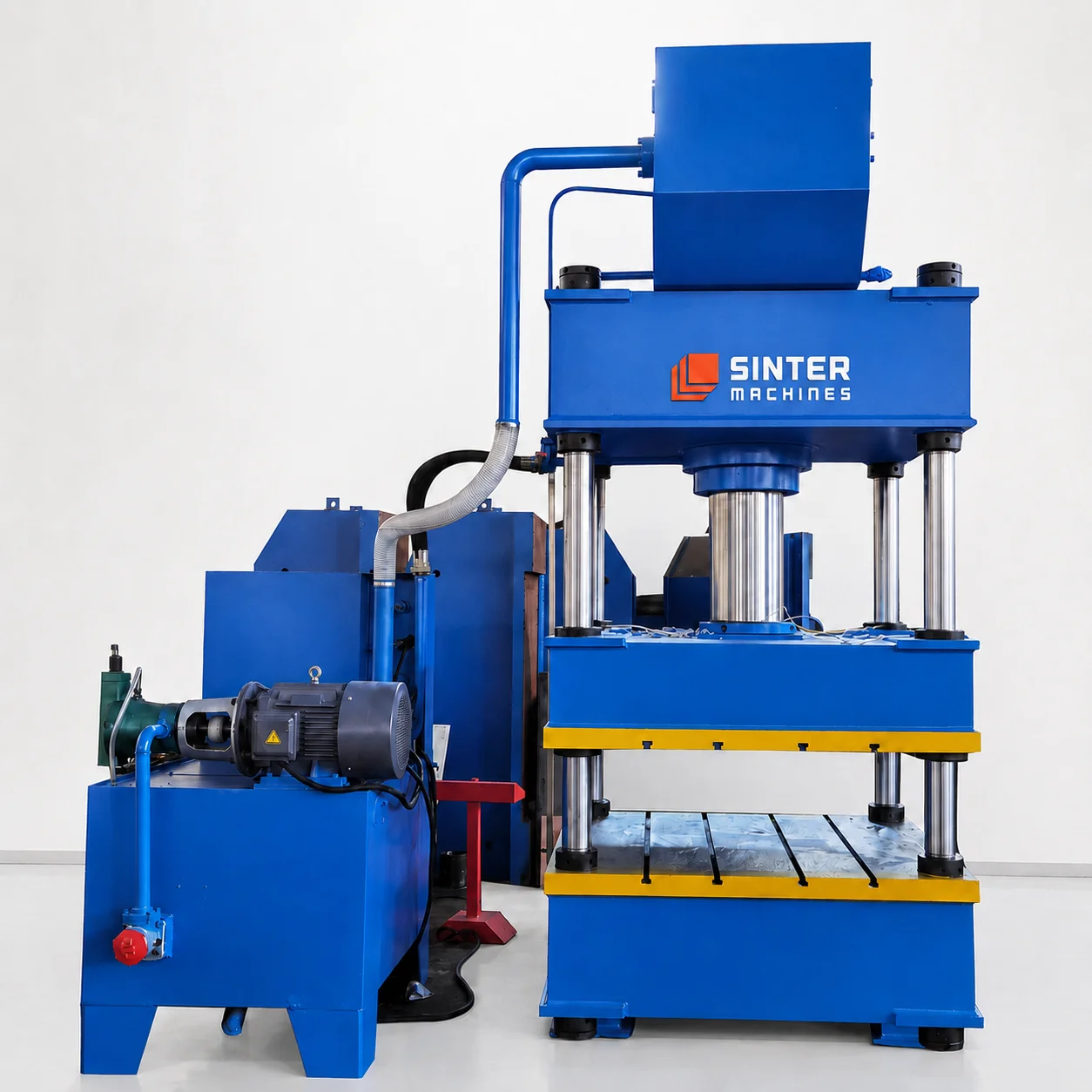

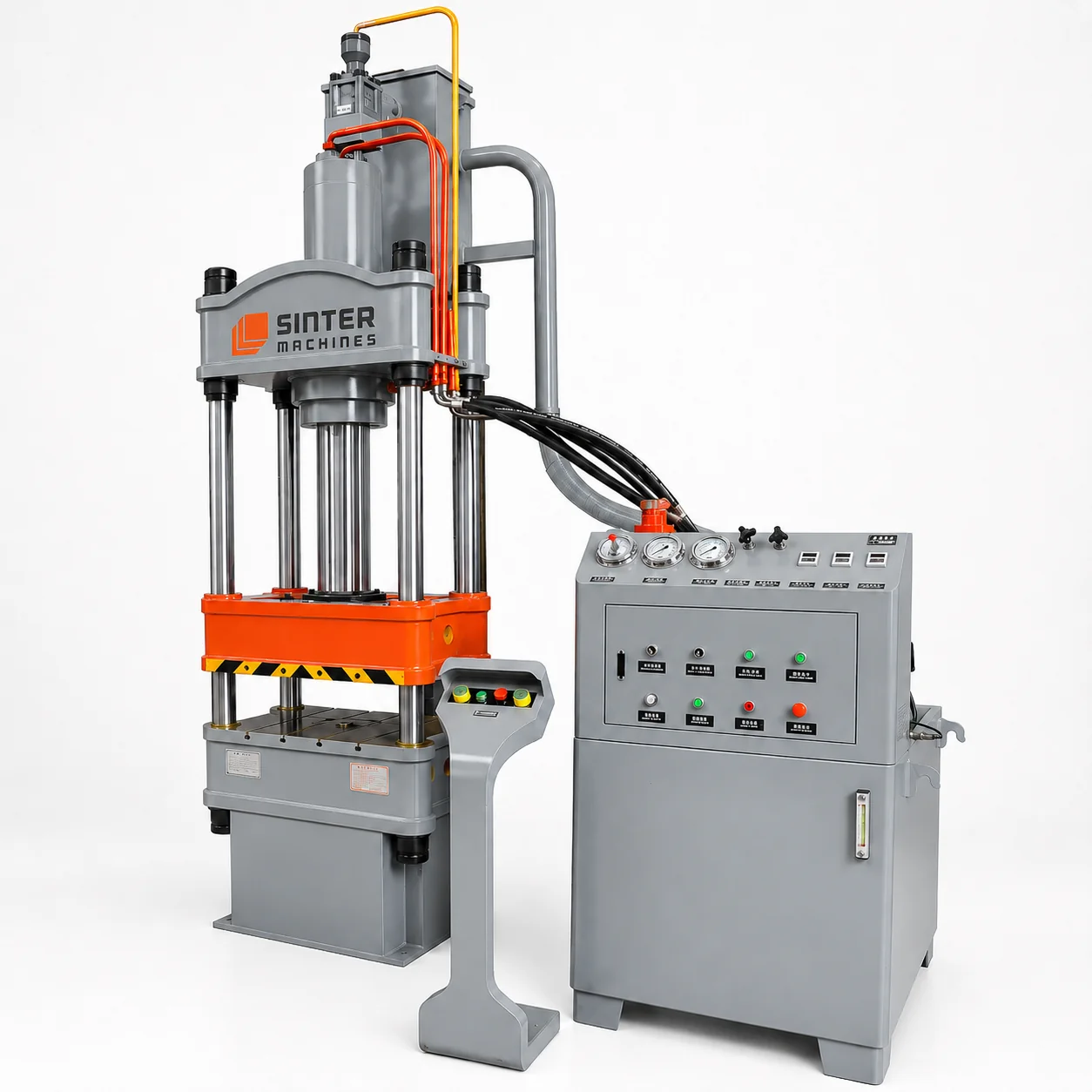

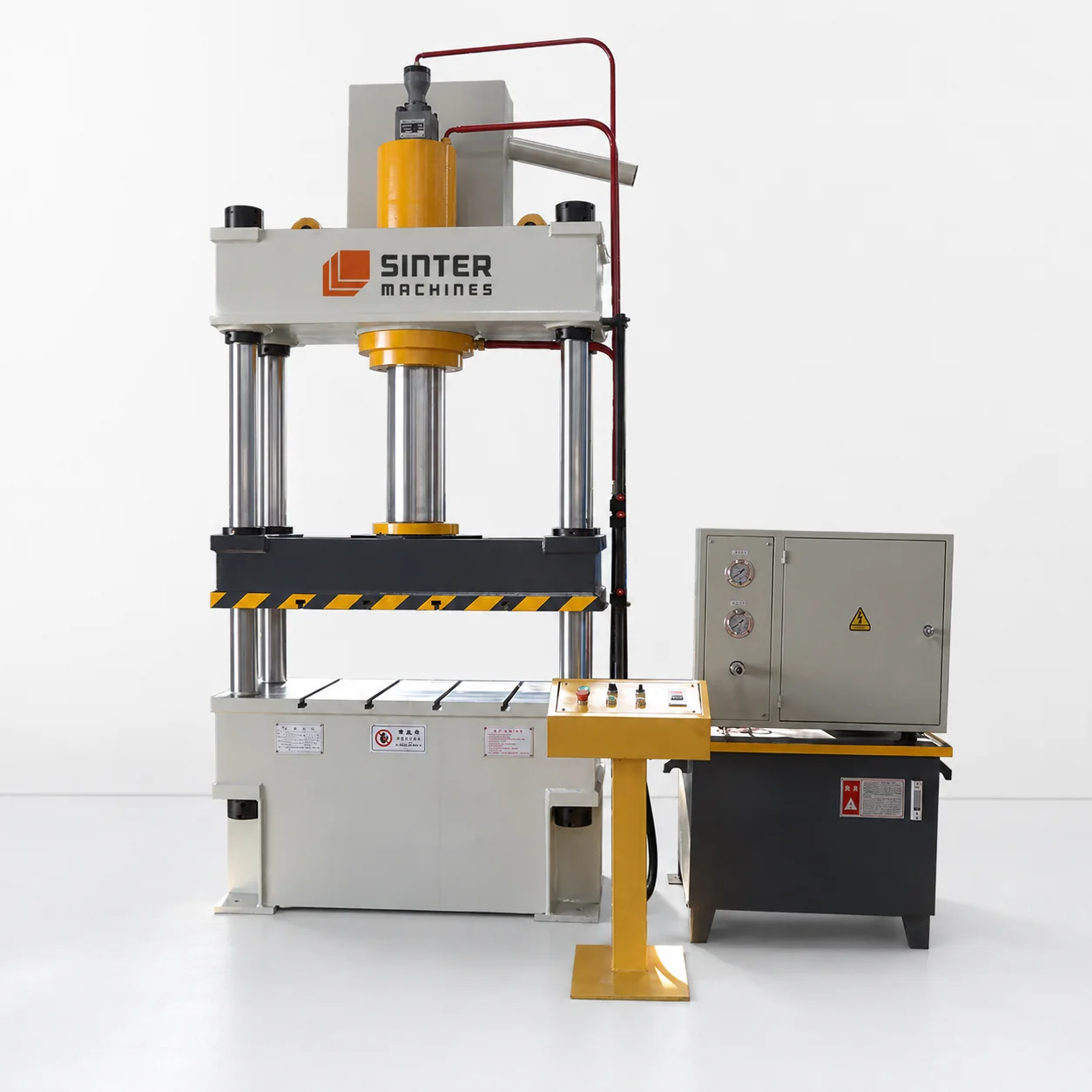

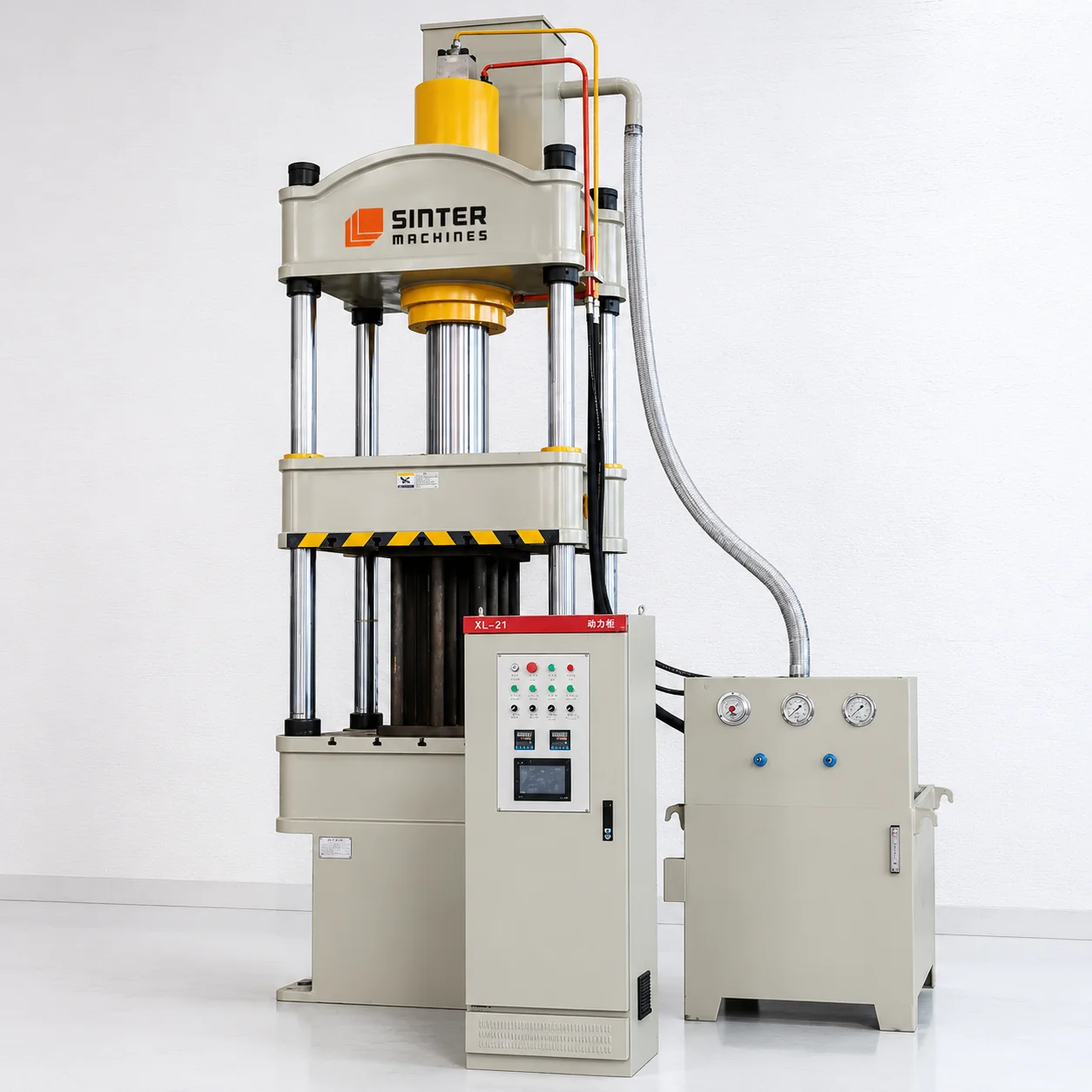

100T Four Column Hydraulic Press for Manganosite Powder Block
A Manganosite Powder Block Compression 4-Column Hydraulic Press Machine is a specialized heavy-duty industrial compaction system engineered to compress fine manganosite powder (manganese(II) oxide, MnO) into dense, uniform solid blocks, briquettes, or charge preforms.
These machines are utilized in metallurgical alloying, battery manufacturing, chemical processing, and ceramic production, where loose reactive oxide powders must be consolidated to minimize airborne dusting, prevent material oxidation, and optimize furnace or reactor feed rates.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
High-Precision Guidance & Parallelism: Manganosite and transition metal oxide powders require strict control over compaction uniformity to prevent structural weak points or density gradients. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Rigid Load Distribution: Compacting dense metal oxide powders into high-strength blocks requires continuous high tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity over long operational lifespans.
Oxidation & Dust Management: Because fine manganese oxide powders can be reactive and create hazardous dust, the press is frequently integrated with enclosed or sealed feeding hoppers, local exhaust ventilation ports, and corrosion-resistant tool coatings to protect operators and maintain material purity.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 50 Tons to 500+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | Hardened alloy tool steel or specialized wear-resistant carbide inserts designed to handle reactive metal oxide powders |
Hydraulic Drive | Variable displacement piston pumps or servo-hydraulic systems with smooth proportional pressure control |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Enclosed Volumetric Feeding: An automated, sealed feed shoe slides precisely over the die cavity to deposit a measured volume of loose manganosite powder, minimizing airborne dust and ensuring uniform fill density.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout likeness and depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate and the oxide particles to firmly settle, minimizing internal stress or cracking.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent surface cracking from elastic springback. A bottom ejection cylinder then cleanly pushes the solid manganosite block out of the die cavity for downstream sintering, alloying, or packaging.

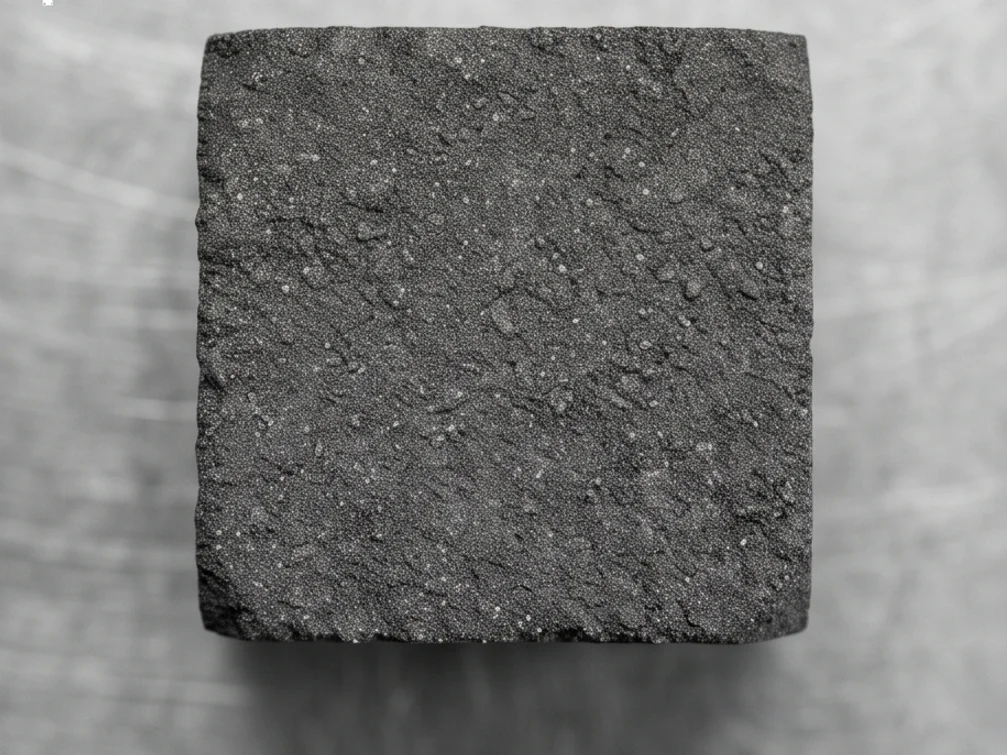

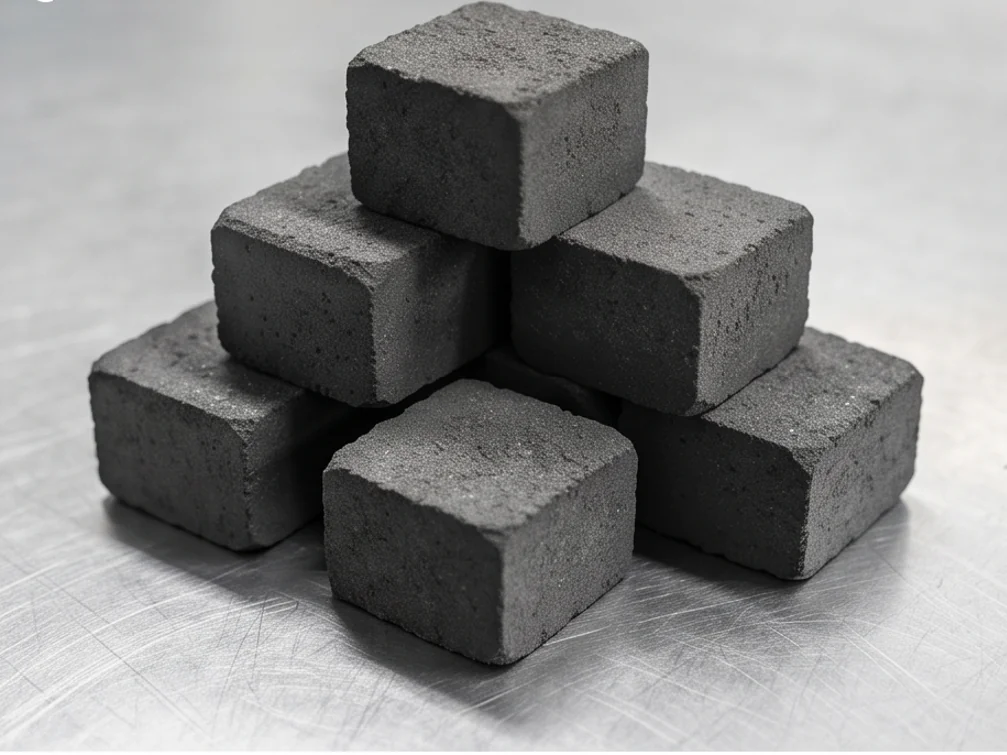

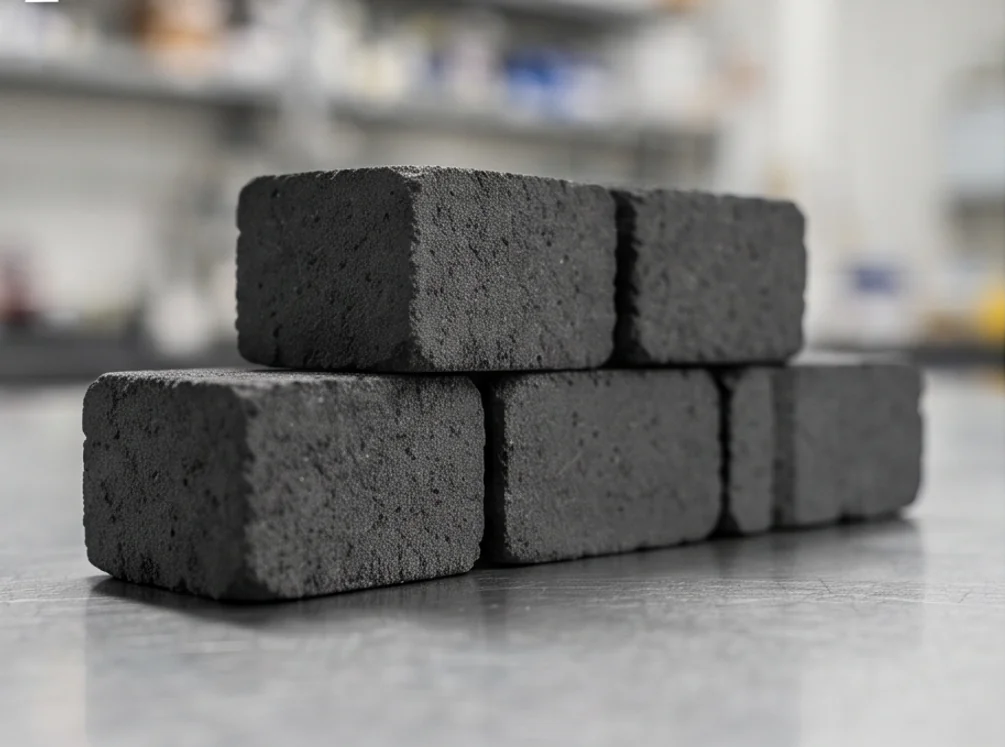

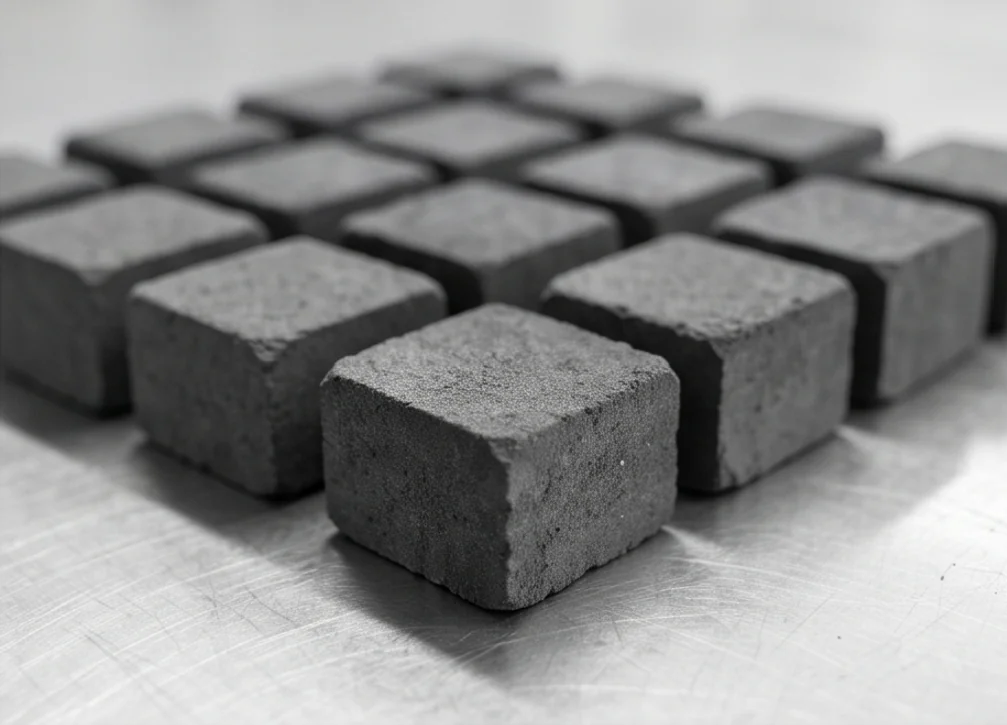

Finished Product Gallery
