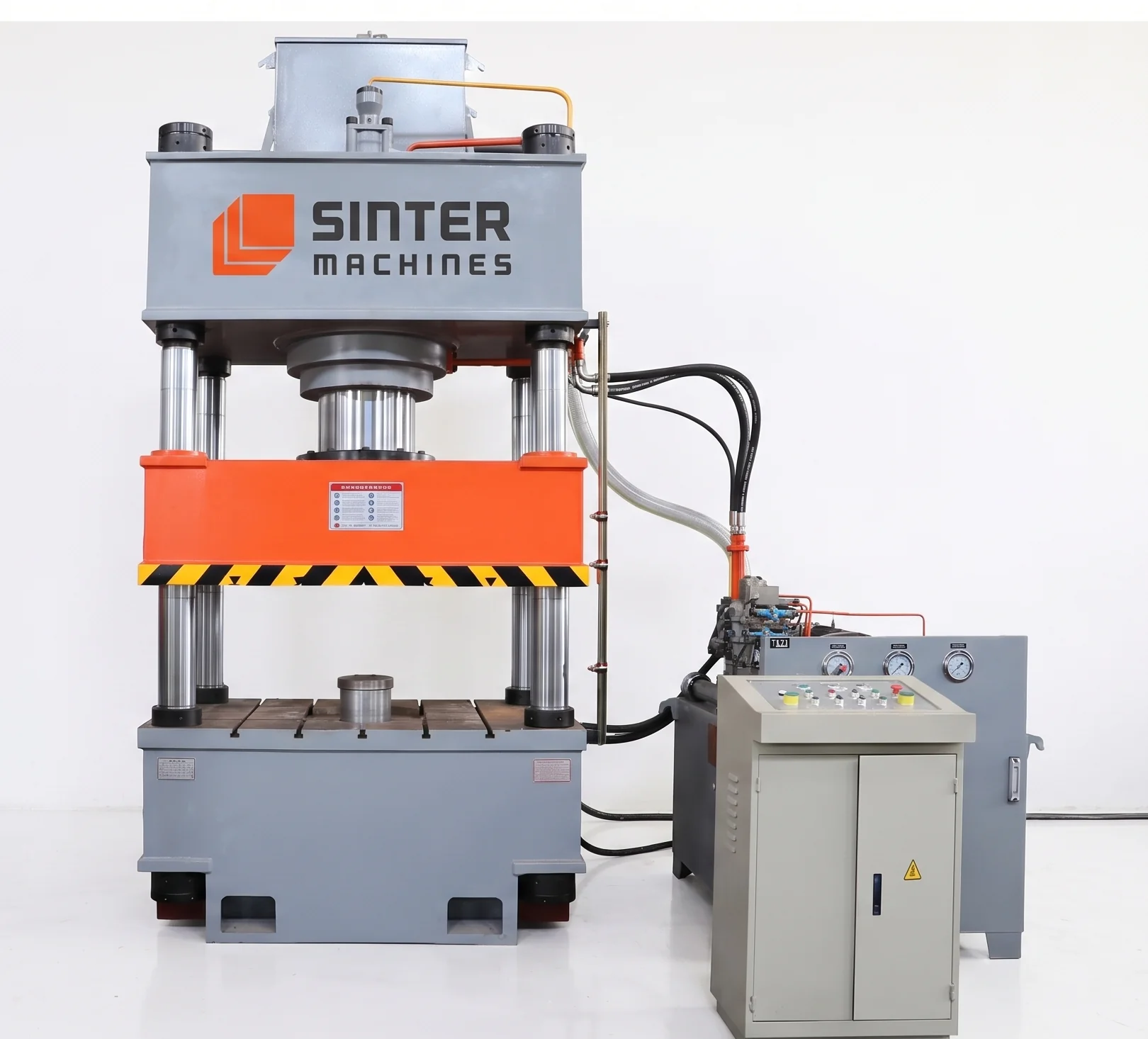

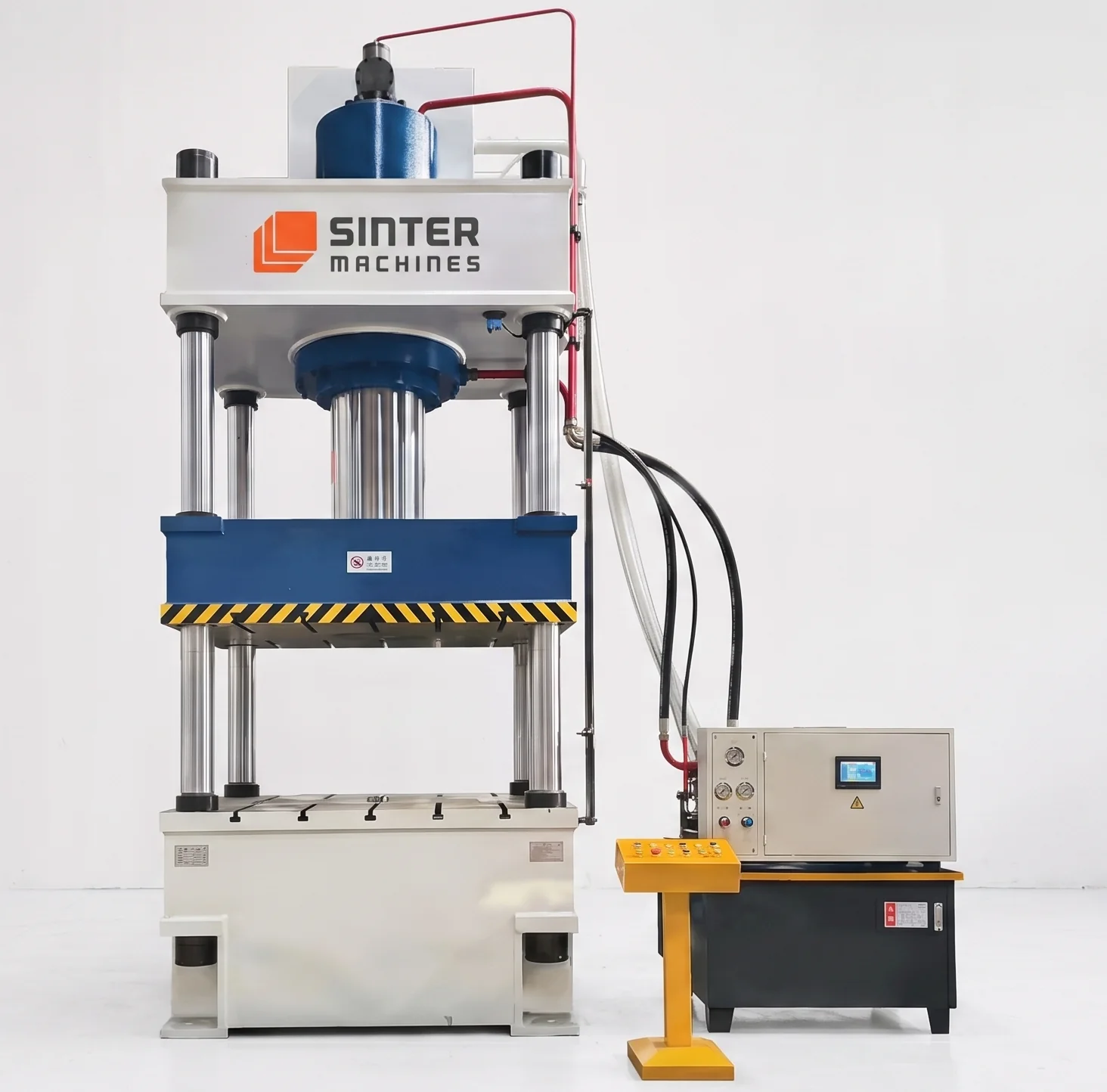

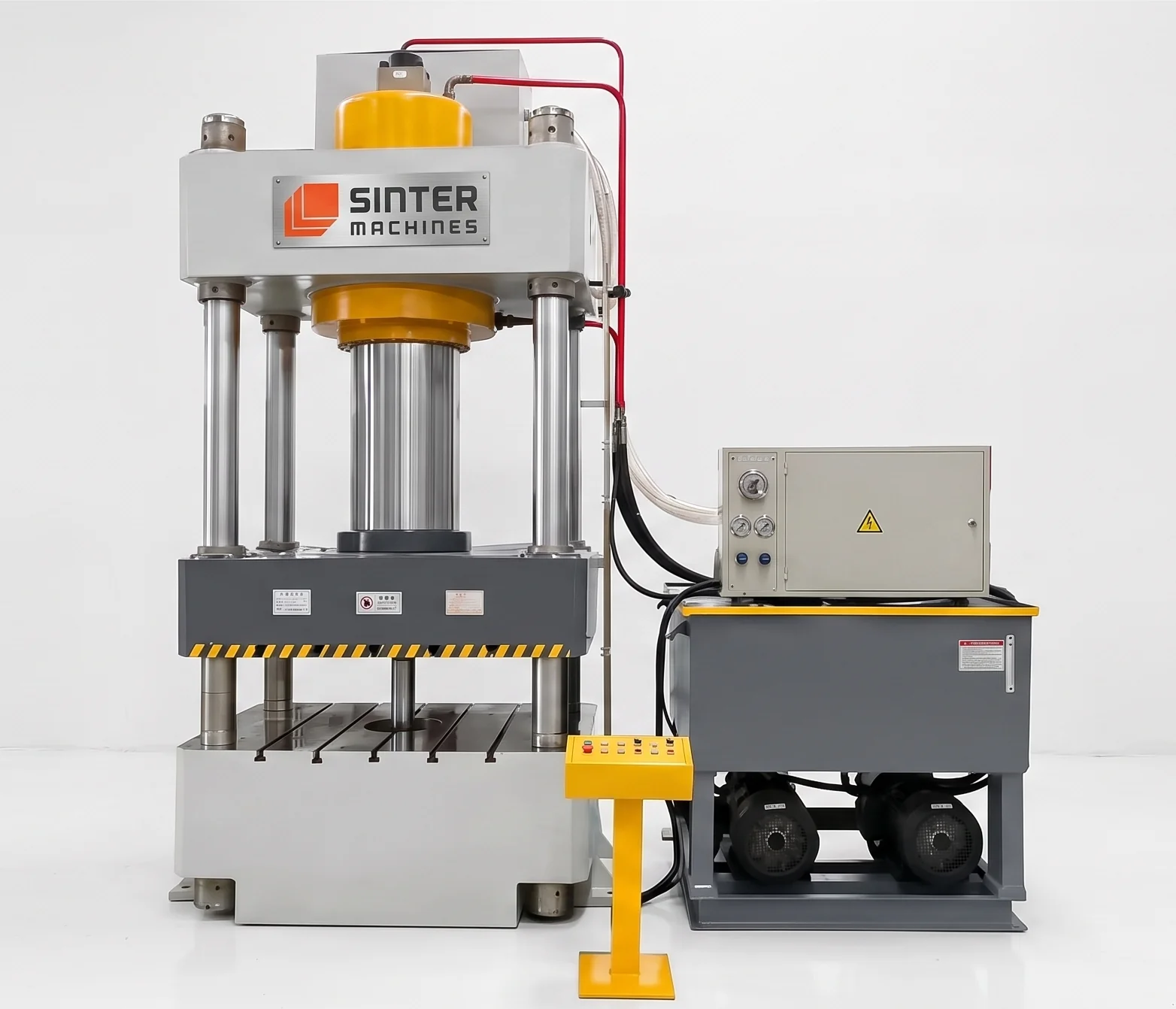

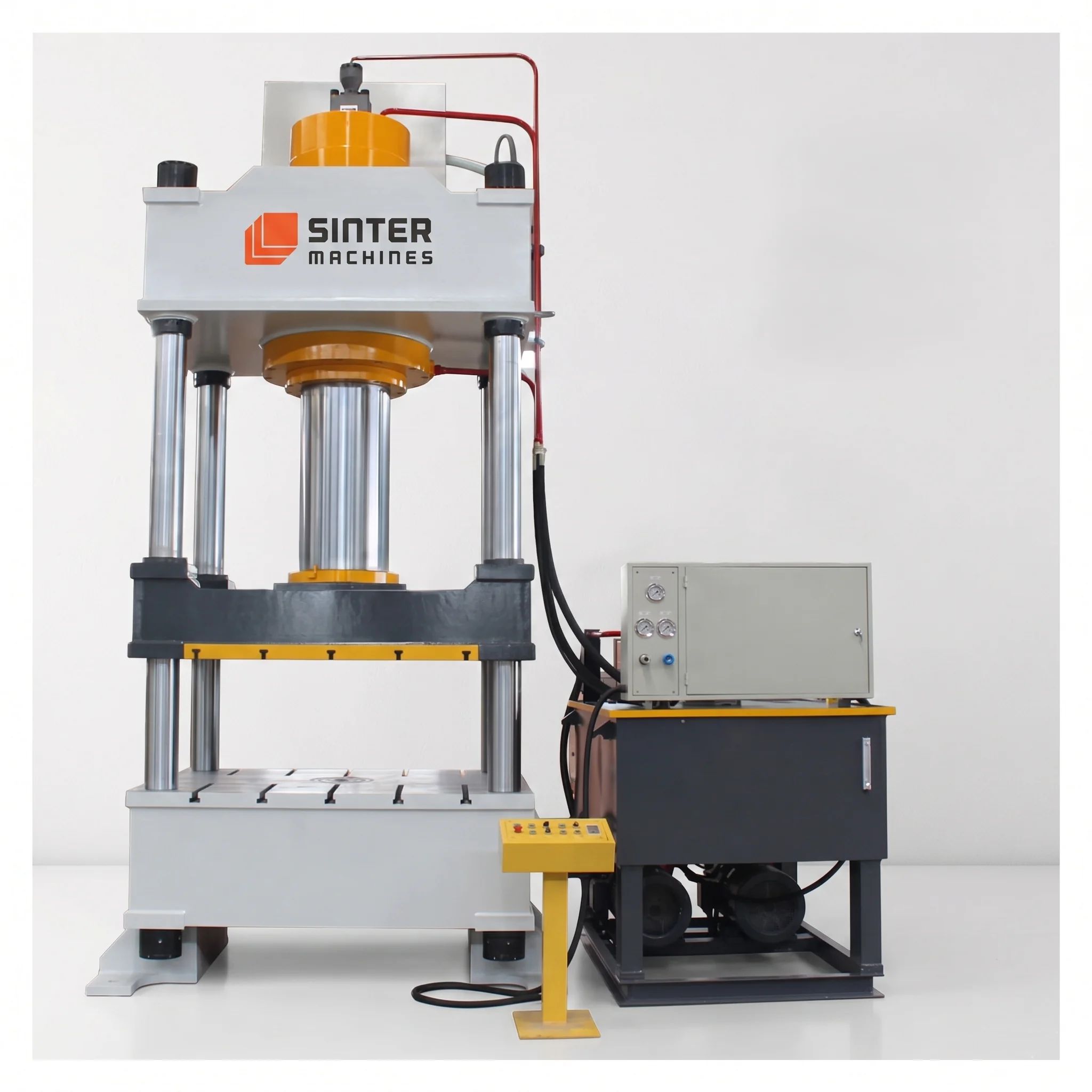

400T Four Column Hydraulic Press for Molybdenite Powder Block
Molybdenite Powder Block Compression 4-Column Hydraulic Press Machine is a heavy-duty industrial compaction system engineered to compress fine molybdenite powder (MoS2, molybdenum disulfide) or mineral concentrates into dense, uniform solid blocks, briquettes, or charge preforms.
These machines are utilized in extractive metallurgy, roasting preparation, and chemical processing, where loose molybdenum sulfide concentrates must be consolidated to minimize dusting, prevent material loss, and optimize furnace feed rates.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
High-Precision Guidance: Molybdenite concentrates require strict control over compaction uniformity. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Low-Friction & Lubricity Adaptation: Because molybdenum disulfide is a powerful solid lubricant, particles exhibit unique sliding characteristics under pressure. The press tooling and die walls are engineered with specific surface finishes or coatings to manage powder flow and prevent uneven axial pressure gradients.
Dust Containment & Safety: Fine sulfide concentrates can create hazardous dust. The press is frequently integrated with enclosed or sealed feeding hoppers, local exhaust ventilation (LEV) ports, and dust collection interfaces to protect operators and ensure environmental compliance.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 50 Tons to 400+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | Hardened alloy tool steel or specialized wear-resistant inserts designed to handle abrasive sulfide mineral powders |
Hydraulic Drive | Variable displacement piston pumps or servo-hydraulic systems with smooth proportional pressure control |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Enclosed Volumetric Feeding: An automated, sealed feed shoe slides precisely over the die cavity to deposit a measured volume of loose molybdenite powder, minimizing airborne dust.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate and the sulfide particles to firmly settle, minimizing internal stress or cracking.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent surface cracking from elastic springback. A bottom ejection cylinder then cleanly pushes the solid molybdenite block out of the die cavity for downstream roasting, smelting, or processing.

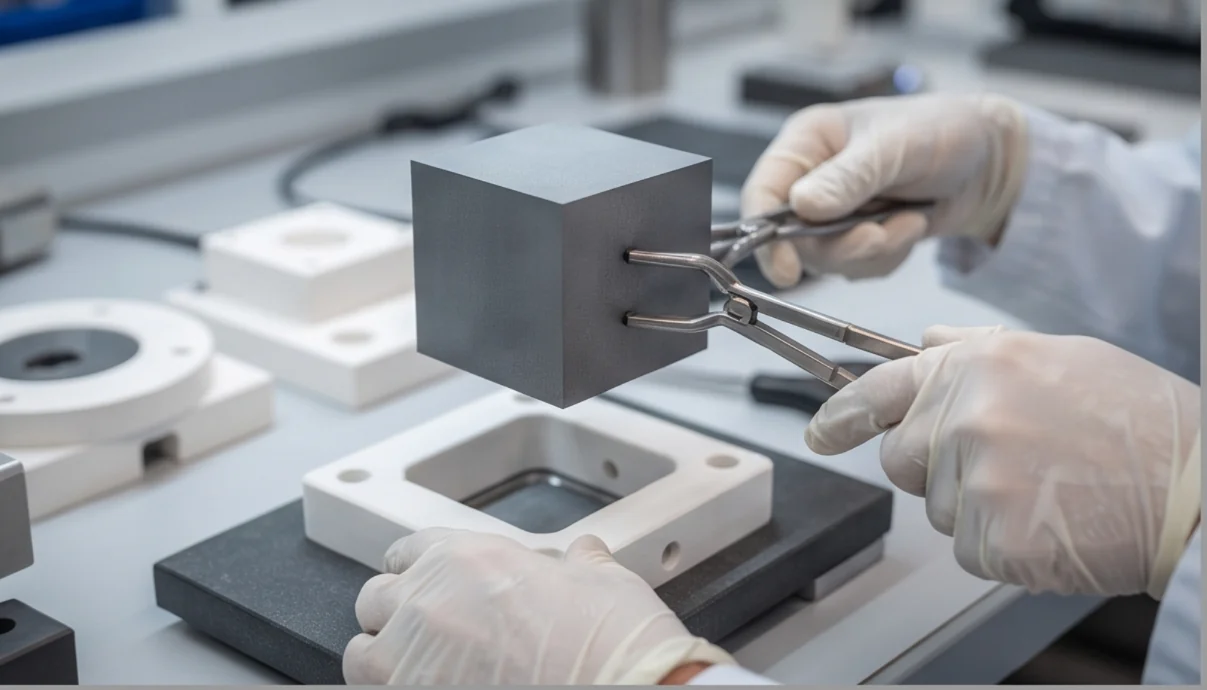

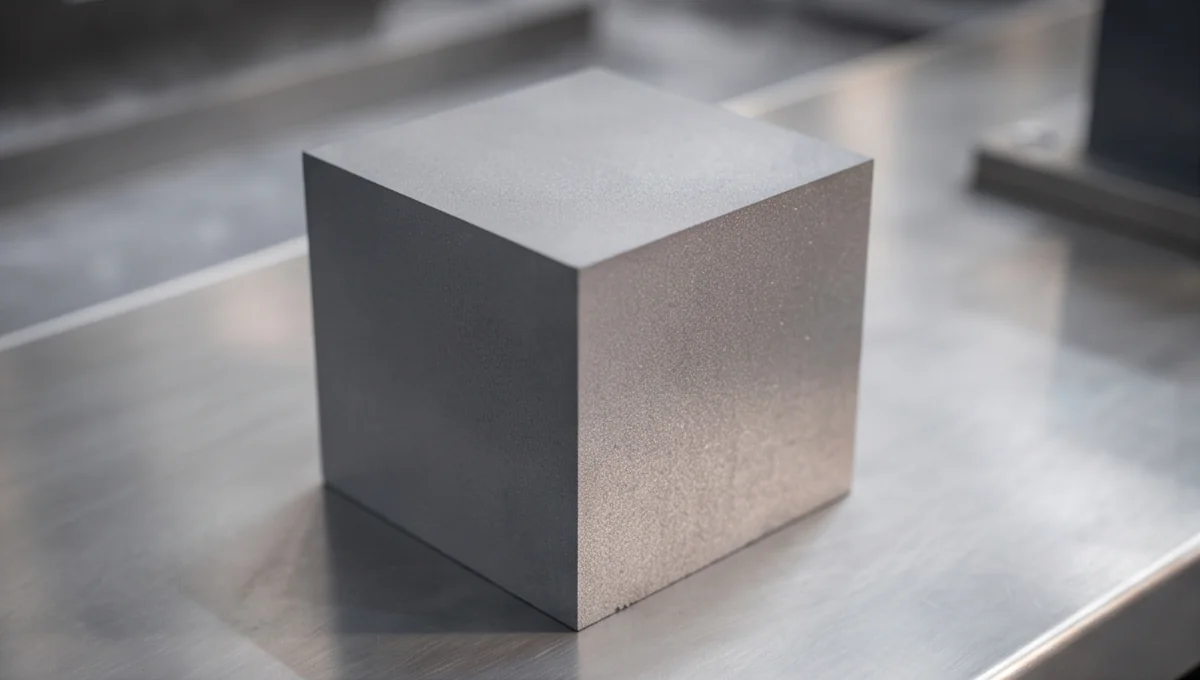

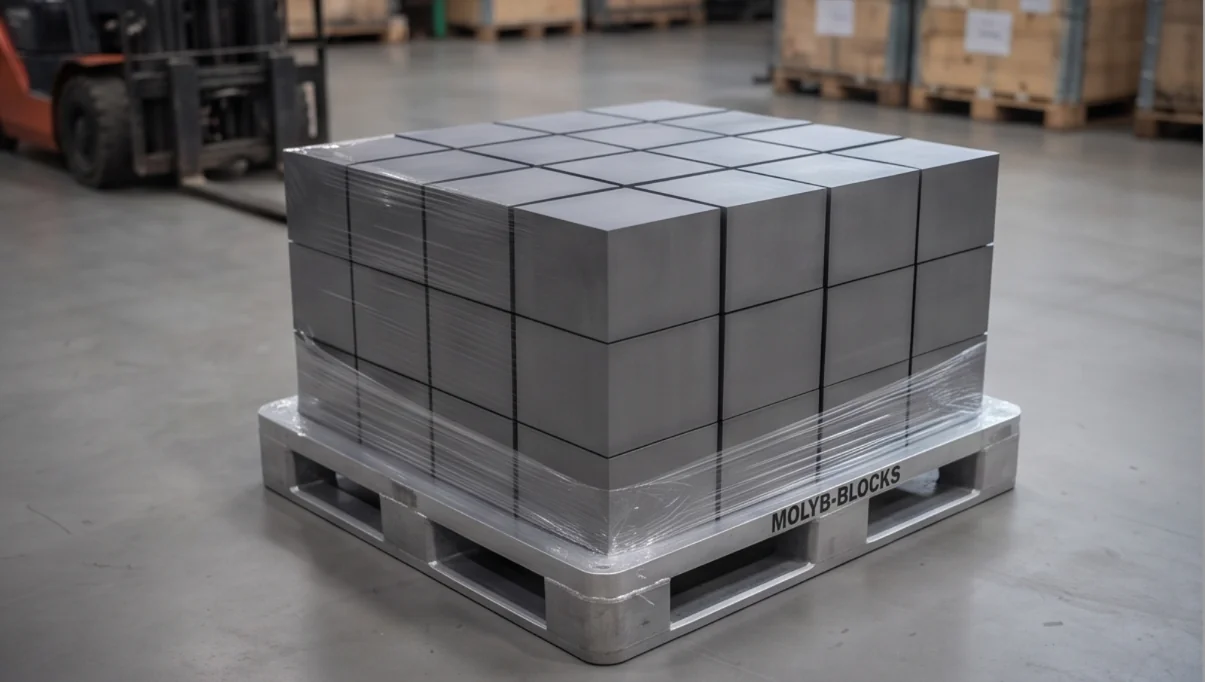

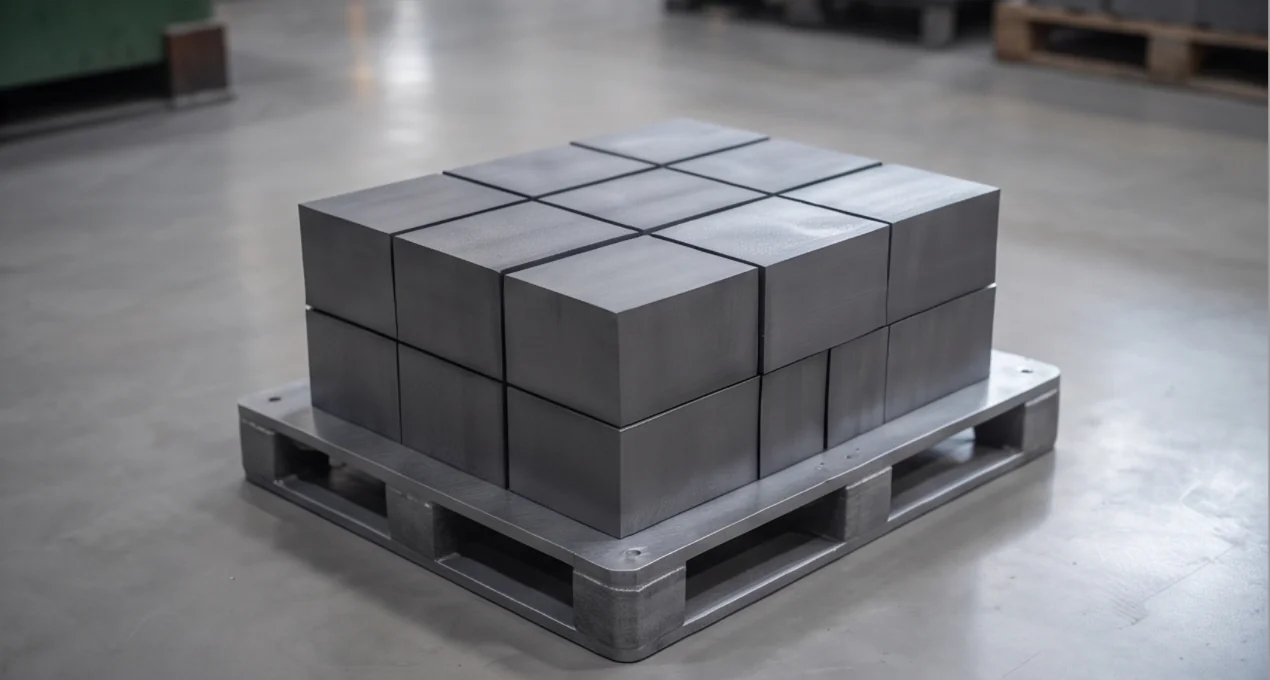

Finished Product Gallery
