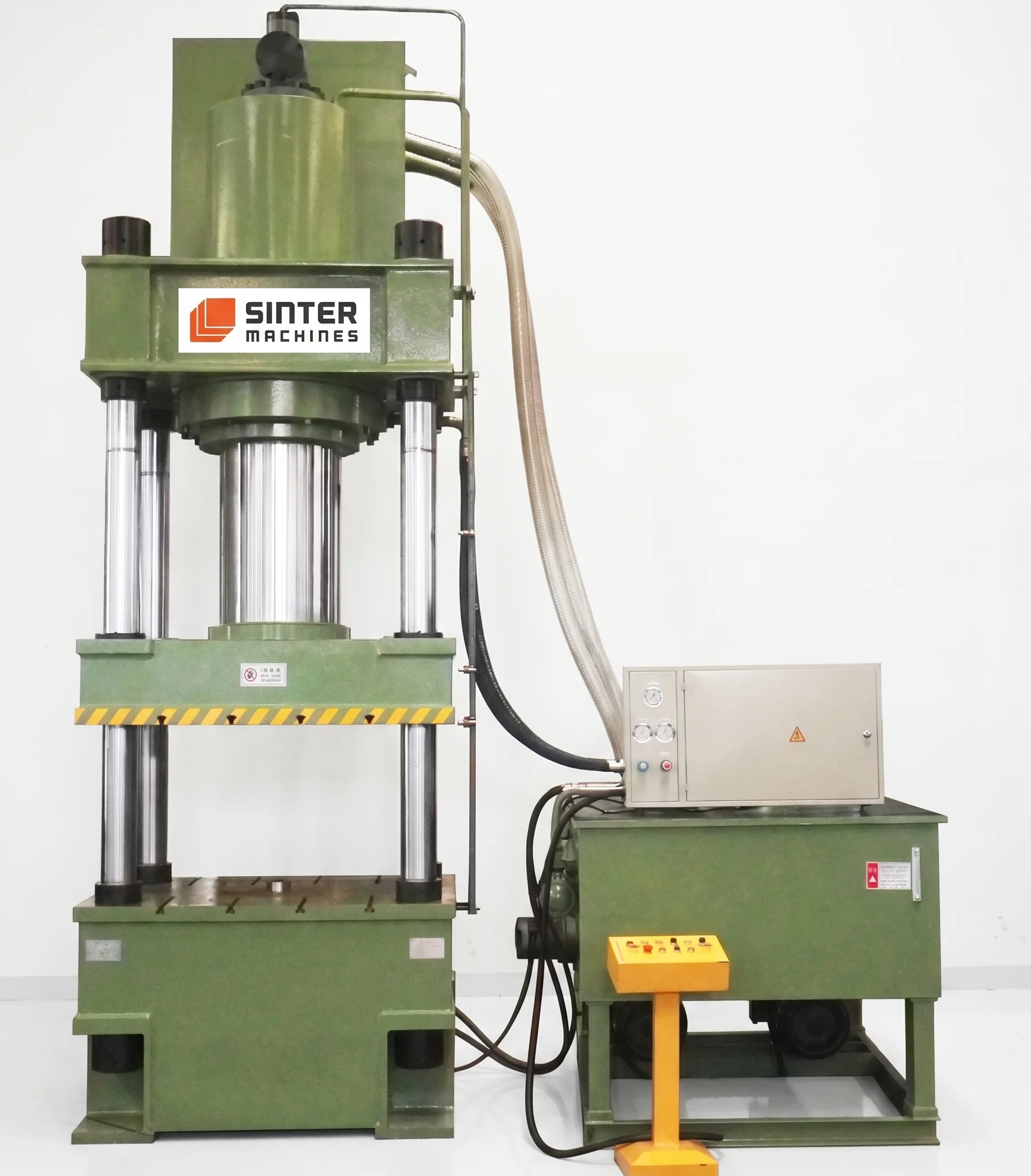

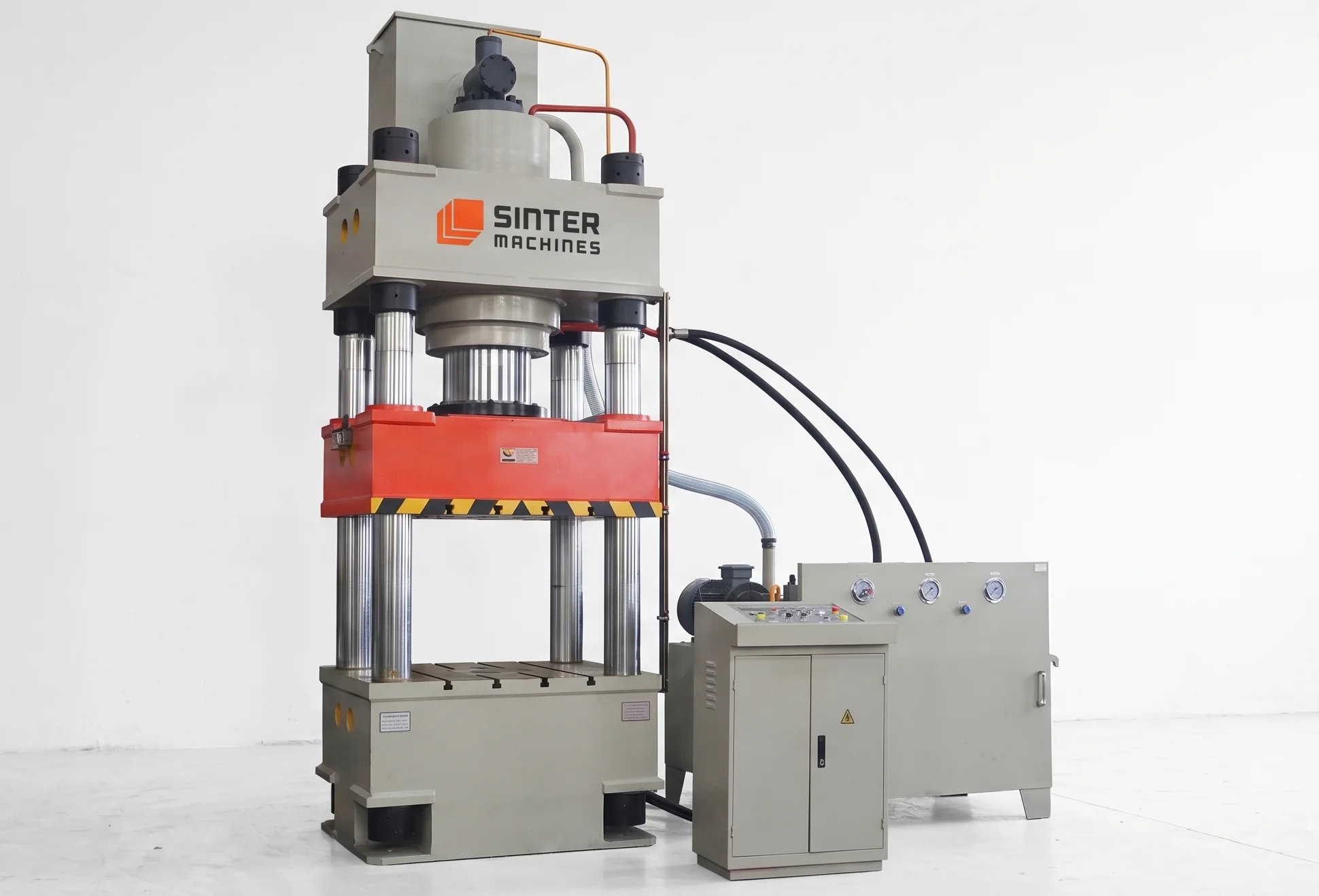

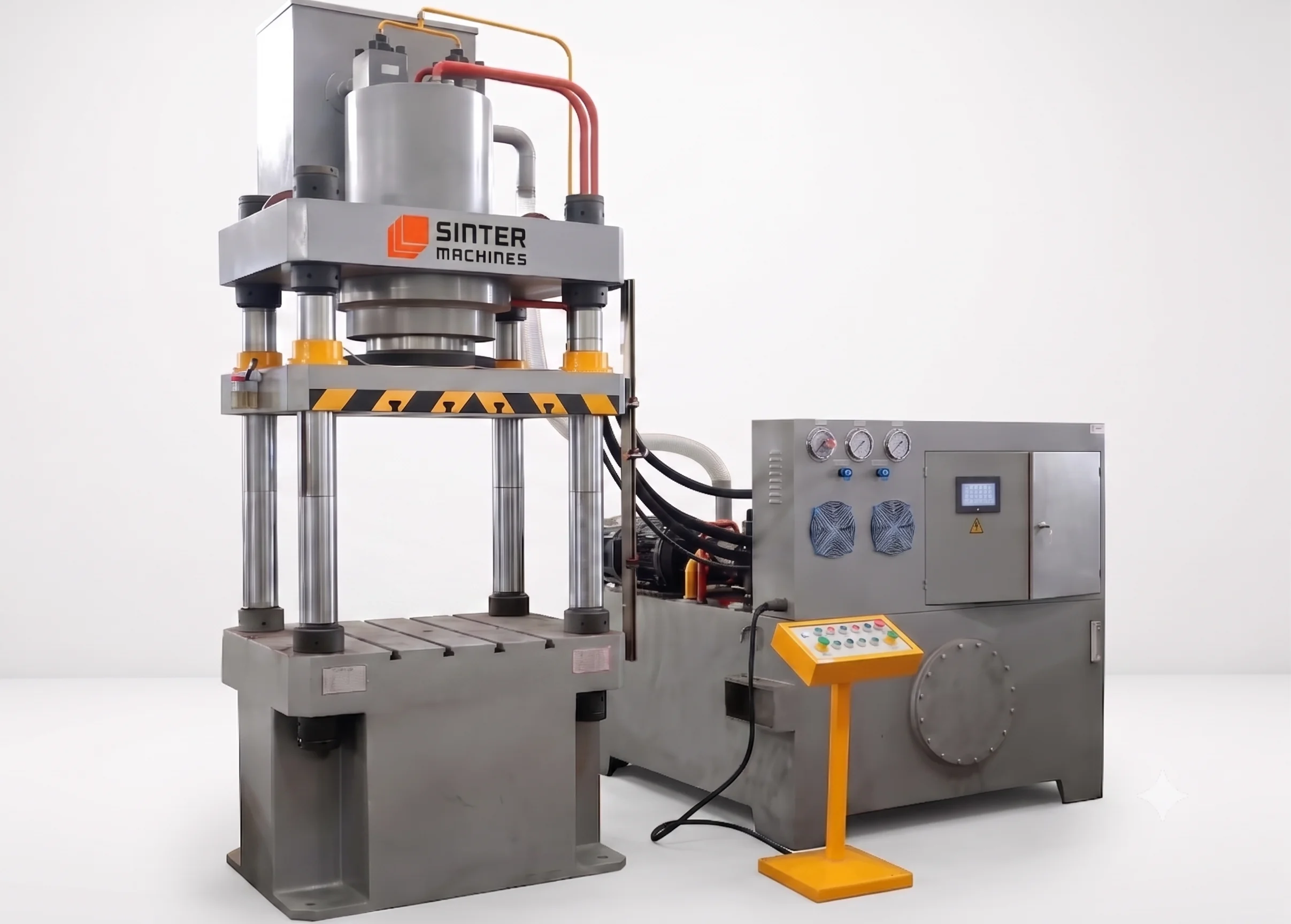

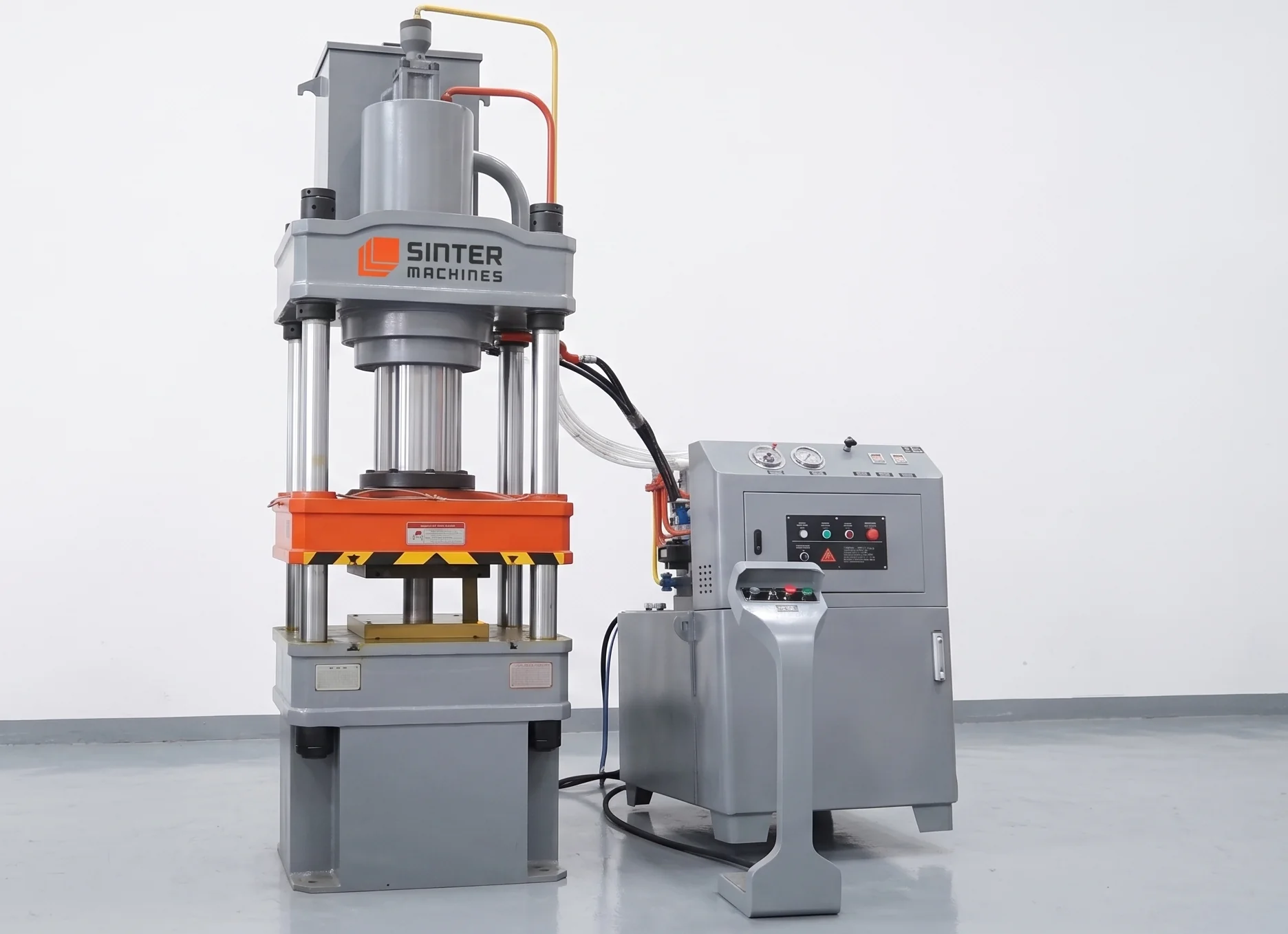

630T Four Column Hydraulic Press for Andalusite Powder Block
Andalusite Powder Block Compression 4-Column Hydraulic Press Machine is a heavy-duty industrial compaction system engineered to compress fine andalusite powder (Al2SiO5, an anhydrous aluminum silicate mineral) and refractory aggregate blends into dense, uniform solid blocks, refractory bricks, or preforms.
These machines are utilized in high-performance refractory manufacturing, kiln furniture production, and metallurgical lining fabrication, where raw mineral powders must be consolidated to ensure high thermal shock resistance, volume stability at extreme temperatures, and precise green density prior to firing.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
High-Precision Guidance & Parallelism: Andalusite refractory powders require strict control over compaction uniformity to prevent structural weak points or density gradients. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Rigid Load Distribution: Compacting hard silicate mineral powders into dense blocks requires continuous high tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity.
Abrasion Resistance: Because andalusite is a hard, abrasive mineral, press tooling, die walls, and punches are engineered with high-grade tungsten carbide inserts or specialized abrasion-resistant alloy steels to prevent premature wear and material contamination.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 100 Tons to 600+ Tons (tailored to block cross-sectional area and target green density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | High-grade tungsten carbide inserts or specialized abrasion-resistant alloy tool steel to withstand extreme wear |
Hydraulic Drive | Servo-hydraulic or variable displacement piston pumps with closed-loop proportional pressure and displacement control |
Control Unit | Advanced PLC system with HMI touchscreen interface for programming multi-stage pressing profiles, fill depth, dwell times, and automatic extraction |
03 — Operational Workflow
Operational Workflow
- Precision Volumetric Feeding: An automated, calibrated powder-feed shoe slides across the high-tolerance die cavity to evenly deposit a measured quantity of loose andalusite powder and binder mix, ensuring uniform fill density and minimizing air entrapment.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers rapidly to the material surface.
- High-Pressure Compaction: The system applies controlled, heavy tonnage. A multi-action or dual-punch configuration (top and bottom movement) ensures even particle rearrangement and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate and the silicate particles to fully settle, minimizing internal stress or lamination defects.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent elastic springback cracking. A bottom ejection cylinder then cleanly pushes the solid green andalusite block out of the die cavity for transfer to a high-temperature tunnel or shuttle kiln.
Finished Product Gallery
