630T 2 Cavity Cattle Salt Blocks Press press view 1
Cattle Salt Blocks · Hydraulic Press Machine

630T Four Column Hydraulic Press for 2 Cavity Cattle Salt Blocks

630T Rated Capacity
150 mm/s Slider Down Speed
9–18 mm/s Slider Pressing Speed
200 mm/s Slider Return Speed

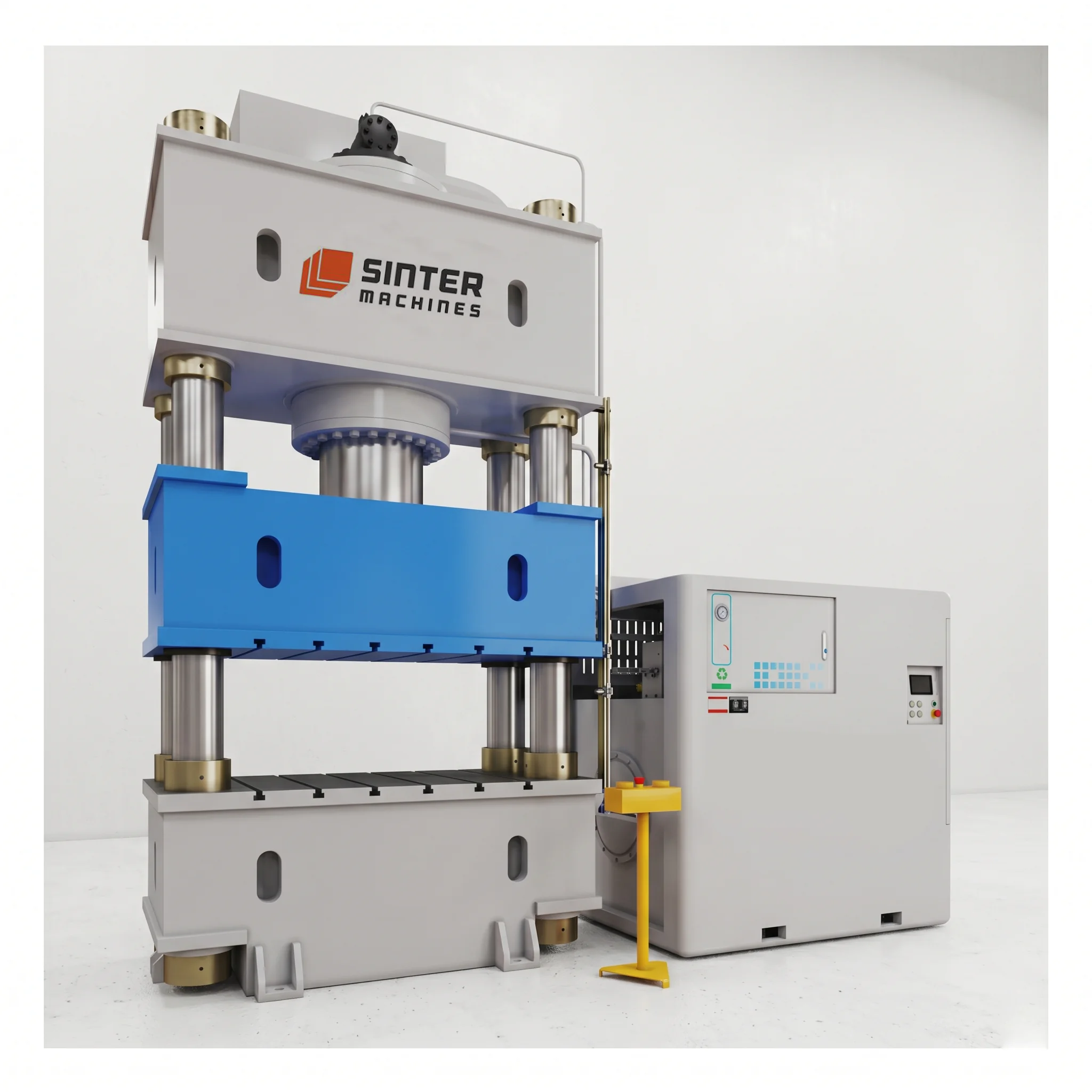

630T 2 Cavity Cattle Salt Blocks Press press view 1

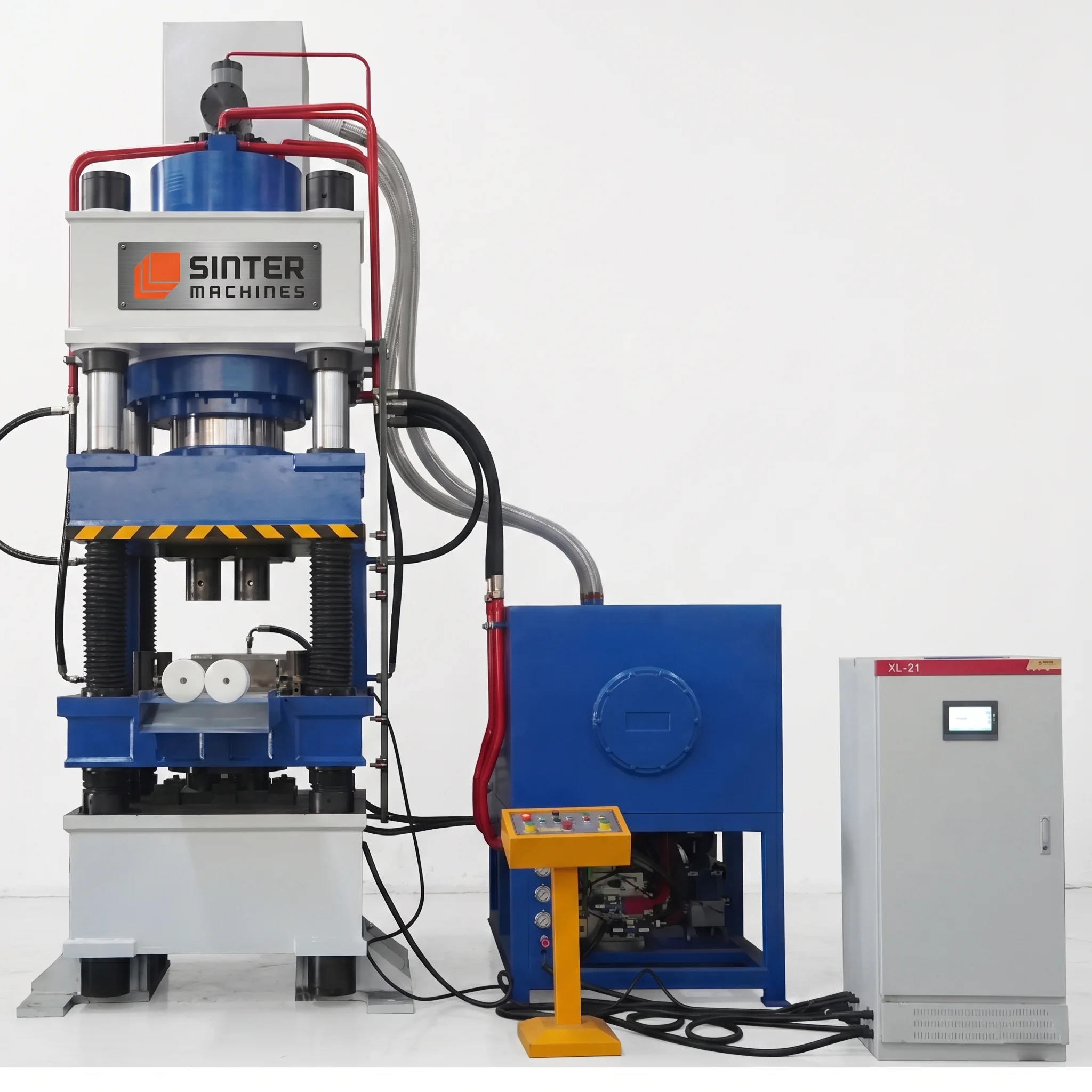

630T 2 Cavity Cattle Salt Blocks Press press view 2

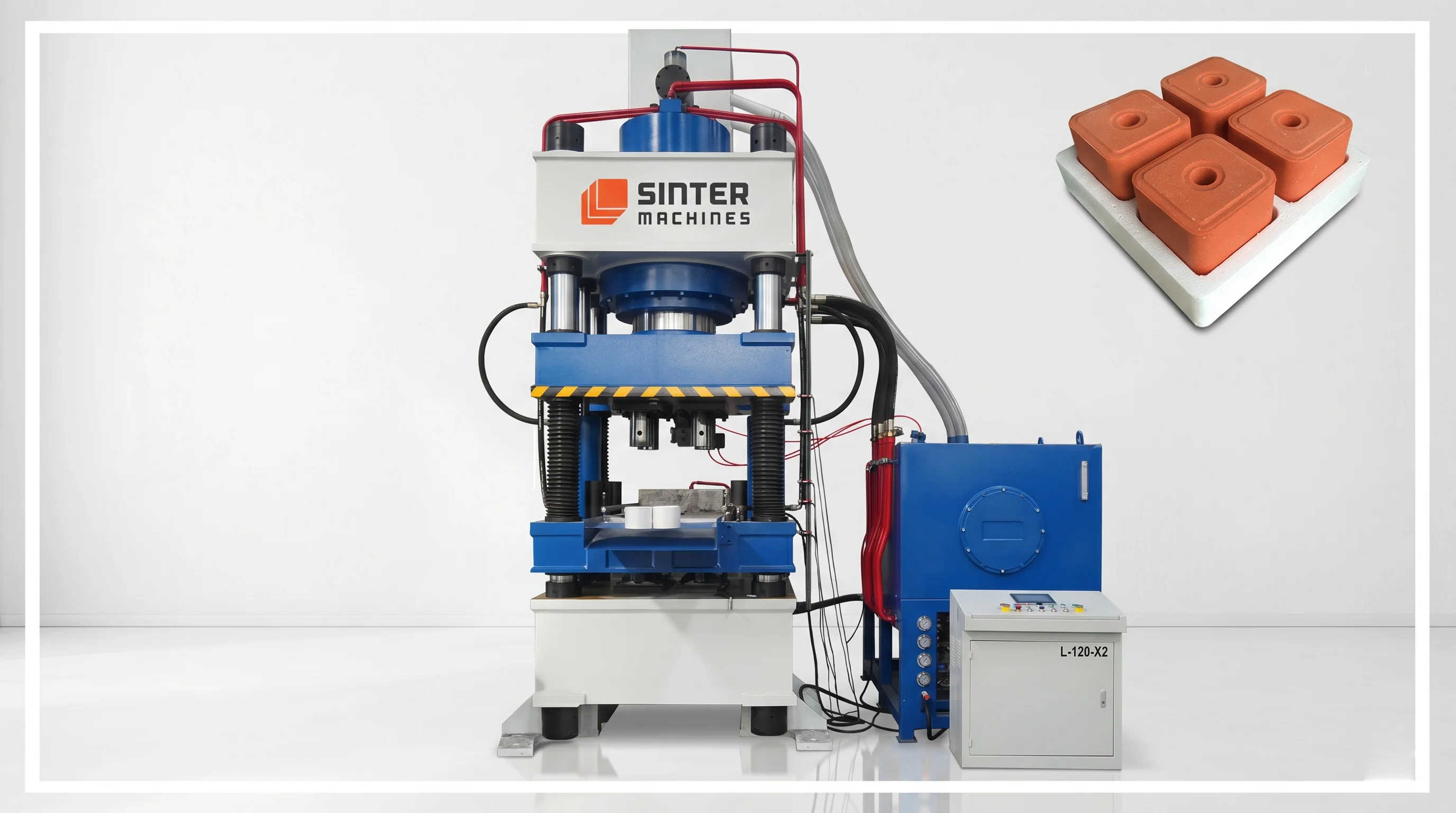

630T 2 Cavity Cattle Salt Blocks Press press view 3

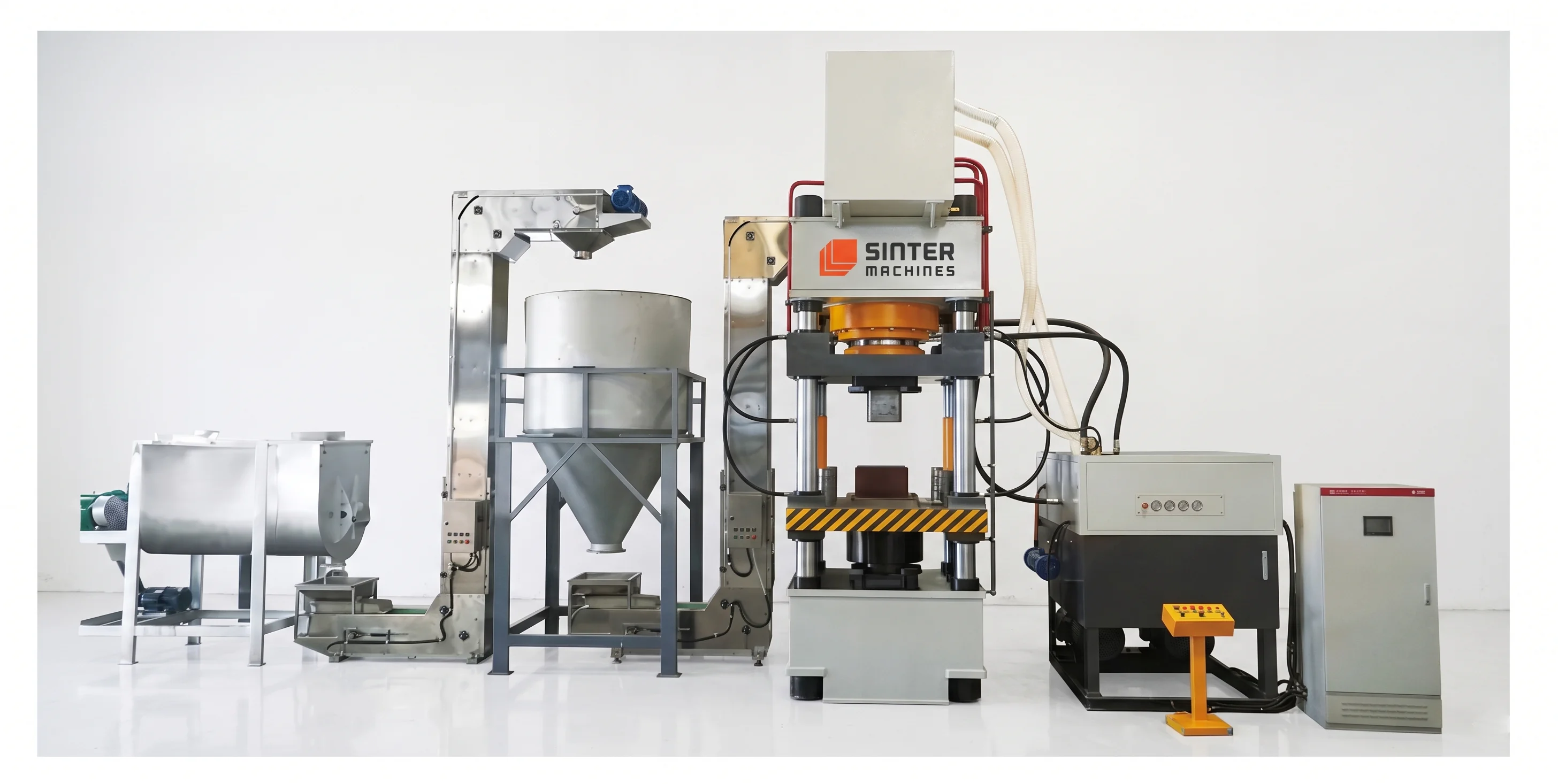

630T 2 Cavity Cattle Salt Blocks Press press view 4

01 — Press System

630T Four Column Hydraulic Press Machine

High-tonnage 630-ton four-column hydraulic press engineered for high-density 2-cavity salt block compression. It features dual-directional pressing to ensure uniform density, precision guiding, and salt-corrosion resistance.

Use Case

Industrial-scale manufacturing of high-density mineral and nutritional lick blocks for livestock feeding. Designed to continuously compress corrosive raw salt mixtures into durable, weather-resistant agricultural feed products.

  • Core Applications: Compacts livestock feed formulations into durable, weather-resistant nutrient lick blocks. Widely utilized across dairy farming, beef cattle feedlots, and pastoral livestock management systems.
  • Material: Utilizes high-purity sodium chloride mixed with mineral fortification compounds, trace elements, and vitamins. Incorporates liquid or powder binders such as molasses and lignosulfonates to achieve solid structural integrity.
  • Products Processed: Produces 2-cavity heavy-duty mineral salt blocks, trace element lick bricks, and protein-fortified cattle feed blocks. Formulated specifically to endure severe weather exposure without disintegrating in open pasture feeding environment.
  • Why 630-Ton Hydraulic Press: Delivers massive compaction tonnage to produce non-porous, high-density salt blocks that resist licking erosion and moisture decay. The dual-cavity design doubles production yield while maintaining uniform density across both pressed units.

02 — Technical Specifications

SM 630 HP – HYDRAULIC PRESS MACHINE COMPLETE TECHNICAL DATA

The SM 630 HP – Hydraulic Press Machine is a heavy-duty four-pillar hydraulic press engineered for the high-volume production of dual circular cattle salt blocks. Its powerful 630-ton compaction capacity enables the simultaneous pressing of two blocks per cycle, ensuring uniform pressure distribution, consistent density, and superior structural strength.

Capacity & Structure

  • Rated Capacity: 630 Tons (≈ 6180 kN)
  • Type: Fourpillar hydraulic compression press
  • Frame: Heavy-duty welded structure
  • Safety factor: ≥ 1.35–1.40
  • Parallelism: ≤ 0.05–0.08 mm

Hydraulic System

  • Cylinder: Doubleacting
  • Bore: 420–520 mm
  • Stroke: 500–900 mm
  • Working pressure: 28–32 MPa
  • Control: Servo / proportional hydraulic system

Compression Cycle (Dual Output)

  1. Dual cavity filling (auto/manual feeder)
  2. Mold closing
  3. Precompression (air removal)
  4. Full compression (both cavities simultaneously)
  5. Holding stage (bonding stabilization)
  6. Controlled decompression
  7. Mold opening
  8. Dual block ejection

Heating / Moisture

  • Typically cold compaction process
  • Optional:
    • Mild heating: 40–80°C
    • Steam/moisture conditioning

Working Envelope

  • Platen size: Standard: 800 × 800 mm
  • Daylight: 800–1200 mm
  • Column diameter: 140–180 mm

Control System

  • PLC: Siemens / Mitsubishi / Delta
  • HMI: Multi-recipe system

Monitored:

  • Pressure
  • Time
  • Block weight
  • Moisture

Features:

  • Batch logging
  • Dual-cavity synchronization
  • Safety PLC

SM 630 HP — Model Specifications

  • Nominal Force: 6300 KN
  • Maximum Hydraulic Pressure: 25 MPa
  • Max Opening Height of the Slider: 1500 mm
  • Max Stroke of the Slider: 900 mm
  • Effective Bed Size: 1500 × 1500 mm
  • Slider Down Speed: 150 mm/s
  • Slider Pressing Speed: 9–18 mm/s
  • Slider Return Speed: 200 mm/s
  • Ejector Cylinder Nominal Force: 500 KN
  • Stroke of the Ejection Cylinder: 300 mm
Production Case Study

2 Cavity Cattle Salt Blocks Manufacturing Plant

Salt, Minerals, BindersRaw Material
5kg to 10kgBlock Weight
100mm x 100mm x 100mmBlock Size
10 to 15 SecCycle Time
Dual cavity simultaneous block compaction
High daily volumetric output rate
Uniform brick density and weight
Fully automated continuous block ejection
Reduced manual labor handling requirement
High operational machine uptime efficiency
Consistent structural block strength durability

03 — Die / Mold System

Precision 2 Cavity Cattle Salt Blocks Die Engineering

Precision 2 Cavity Cattle Salt Blocks Die Engineering is designed to produce two circular cattle salt blocks simultaneously with exceptional dimensional accuracy and uniform density. The precision-engineered dual-cavity die ensures balanced material flow and equal compaction force distribution across both cavities, resulting in consistent block strength and quality.

Technical Specifications

Mold Type

  • Dual cavity compression mold
  • Symmetrical layout for balanced pressure

Mold Materials

  • Tool steel: P20 / H13 alloy steel
  • Surface treatment:
    • Anti-corrosion coating (salt resistant)
    • Chrome / nickel plating

Mold Construction

  • Upper punch: Dual pressing surfaces
  • Lower cavity:
    • Two circular cavities
    • Balanced load distribution
  • Guide pillars: Alignment accuracy ±0.02 mm
  • Ejection: Dual ejector system

Load Distribution Design

  • Equal cavity spacing
  • Balanced pressure transmission
  • Uniform compaction force

Venting System

  • Micro vent holes for each cavity
  • Gas escape channels

Prevents:

  • Air entrapment
  • Density variation between blocks

Surface Finish

AreaFinish
Block faceSmooth / slight texture
EdgeRounded circular
BrandingEmbossed center

Mold Life: 100,000 – 250,000 cycles

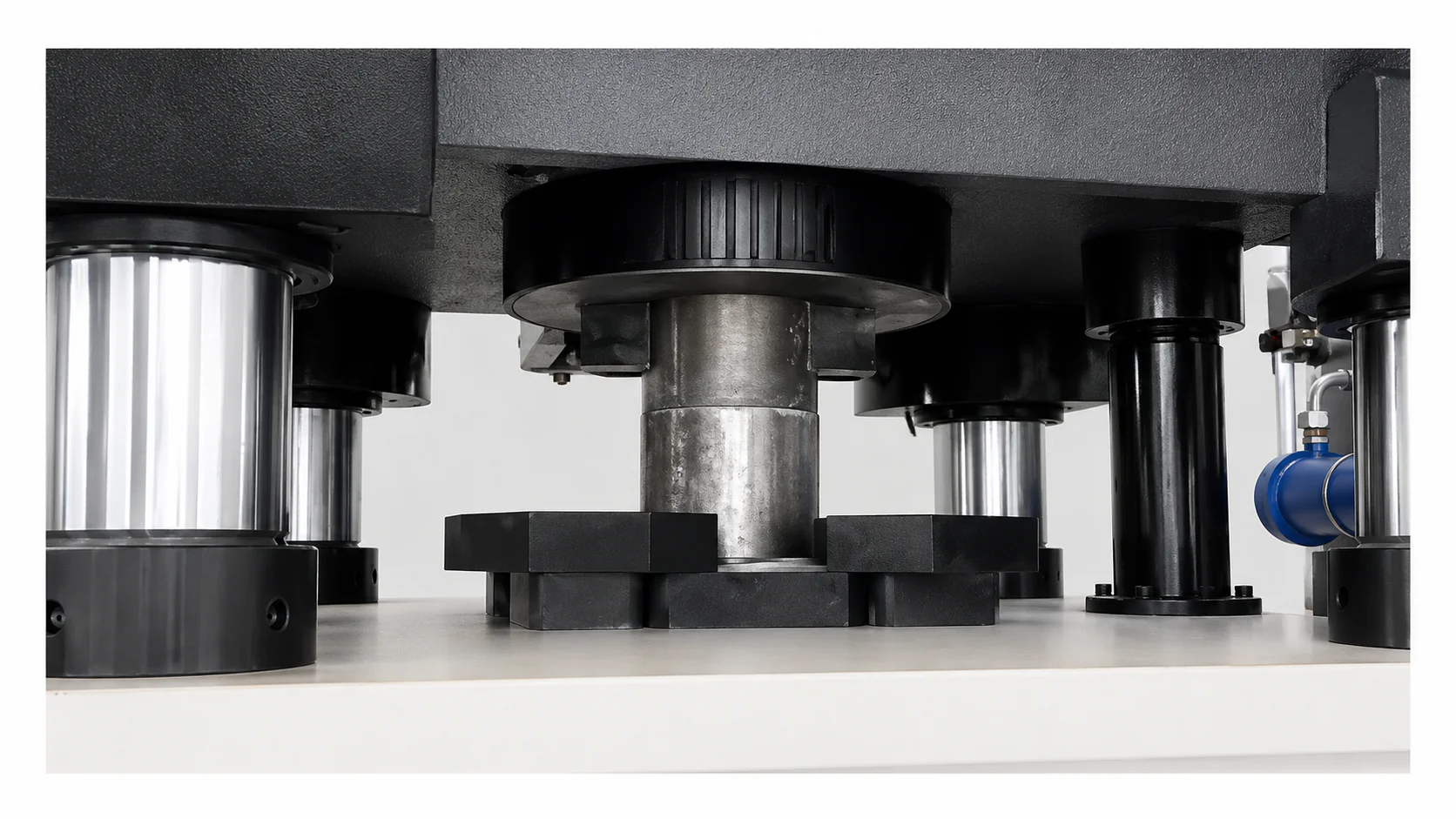

630T 2 Cavity Cattle Salt Blocks Press die mold
Case Study (Die Performance)

2 Cavity Cattle Salt Blocks Die Mold

Cr12MoVDie Steel
58-62 HRCHardness
Vacuum HardeningHeat Treatment
High wear abrasion resistance
Excellent salt corrosion protection
Extended mold service life
High dimensional block accuracy
Uniform dual cavity compaction
Reduced machine downtime frequency
Lower overall production cost

04 — Product Application

Where Animal 2 Cavity Cattle Salt Blocks Are Used

Animal 2 Cavity Cattle Salt Blocks are widely used across the livestock and dairy industry to provide essential minerals and trace nutrients to cattle and other farm animals. These high-density blocks are commonly placed in dairy farms, cattle breeding centers, grazing pastures, and commercial livestock operations for continuous mineral supplementation.

Industry Applications

Livestock & Dairy

The Livestock & Dairy sector extensively uses 2 cavity cattle salt blocks as a reliable source of essential minerals and trace nutrients for livestock. These blocks are commonly deployed as cattle mineral lick blocks, helping support animal health, growth, and productivity through controlled mineral intake. They are widely used as dairy farm supplements to enhance milk production and overall herd performance.

Agriculture

The Agriculture sector uses 2 cavity cattle salt blocks to provide essential minerals for grazing livestock in pasture-based farming systems. These blocks serve as an effective solution for outdoor mineral supplementation, ensuring animals have continuous access to vital nutrients throughout the day. Their high-density, weather-resistant construction allows them to withstand outdoor conditions while minimizing wastage.

Animal Nutrition

The Animal Nutrition industry uses 2 cavity cattle salt blocks to provide essential minerals and trace nutrients for horses and specialty livestock with specific dietary requirements. These blocks support bone health, muscle function, growth, and overall animal performance through controlled nutrient intake.

Feed Manufacturing

The Feed Manufacturing industry utilizes 2 cavity cattle salt blocks for the mass production of mineral-rich feed supplements that support livestock health and productivity. The dual-output design enables efficient, high-volume manufacturing while maintaining consistent density, strength, and nutrient distribution.

IndustryScenario
Dairy Farms Twin output feeding blocks
Livestock Outdoor circular lick blocks
Agriculture Grazing nutrition
Feed Industry High-output production
Export Standardized dual shape blocks

Finished Product Gallery

630T 2 Cavity Cattle Salt Blocks Press finished product 1
630T 2 Cavity Cattle Salt Blocks Press finished product 2

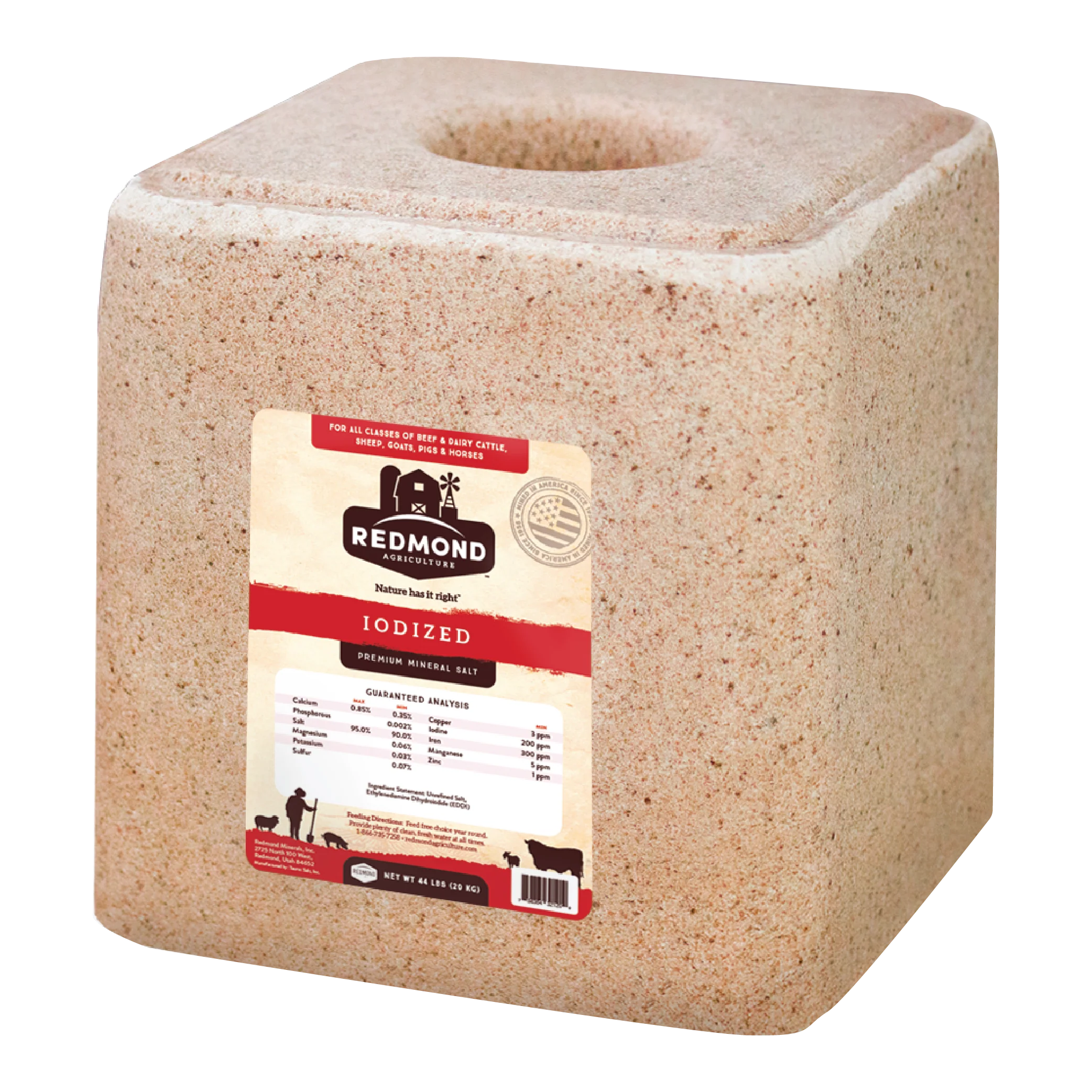

630T 2 Cavity Cattle Salt Blocks Press finished product 3

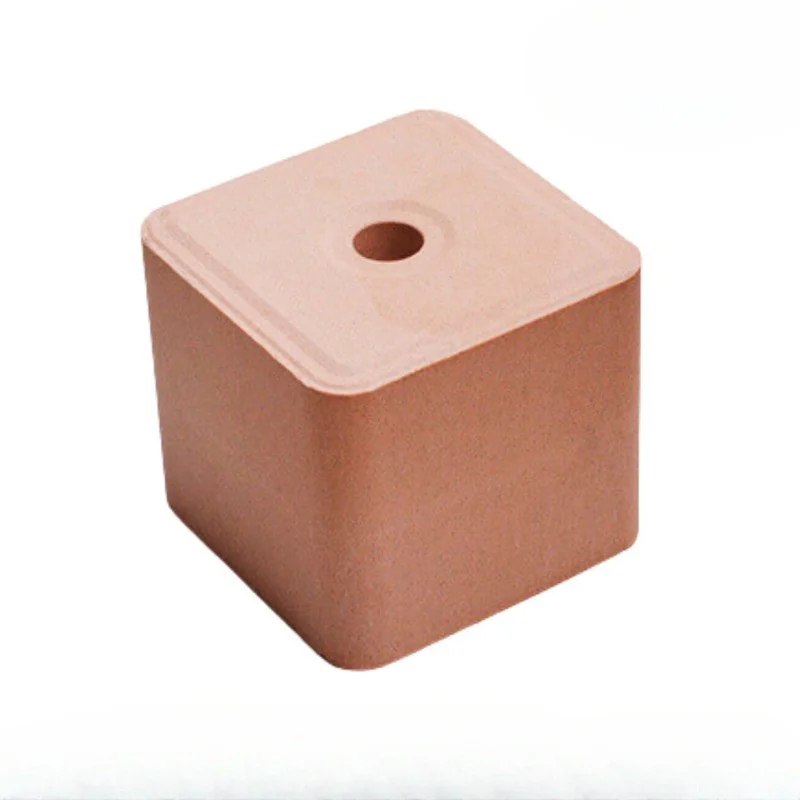

630T 2 Cavity Cattle Salt Blocks Press finished product 4

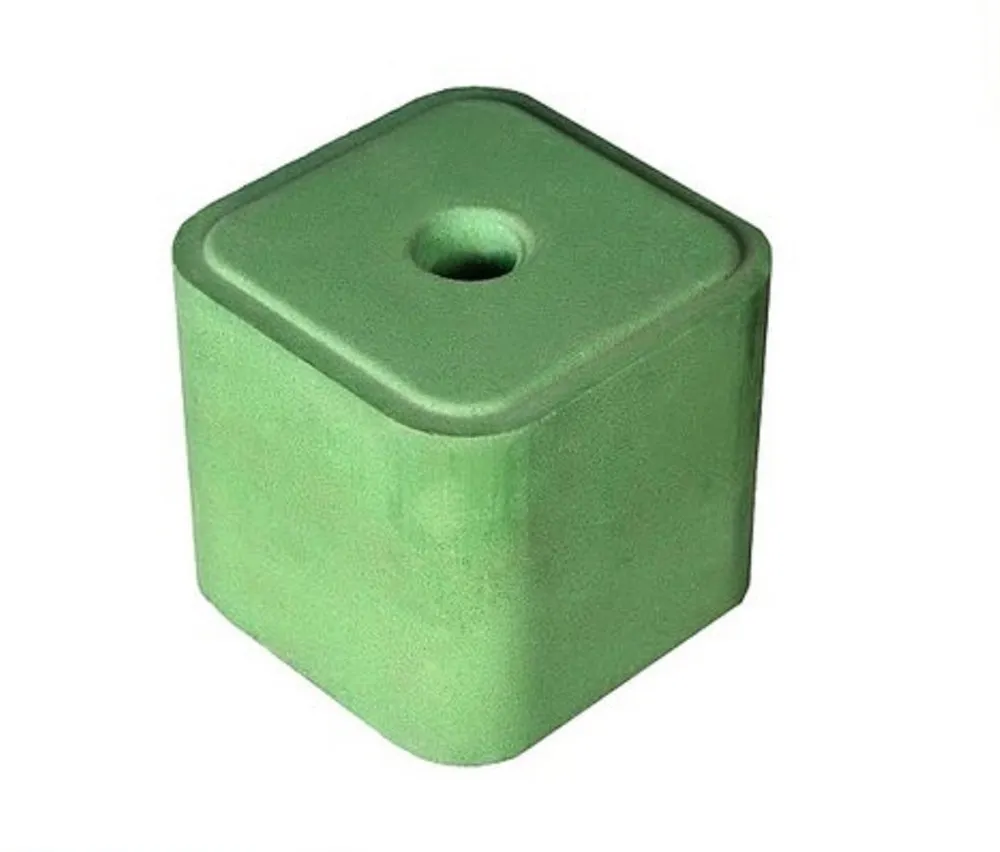

630T 2 Cavity Cattle Salt Blocks Press finished product 5

05 — Key Advantages

Why Choose the 630-Ton Sinter Hydraulic Press

The 630-Ton Sinter Hydraulic Press is the ideal choice for dual-cavity cattle salt block production because it enables two blocks to be manufactured simultaneously in every cycle, significantly increasing output and production efficiency. Its high compaction force ensures uniform pressure distribution across both cavities, resulting in consistent density, strength, and quality.

01

Dual output per cycle

Dual output per cycle is a key advantage of the 630-Ton Sinter Hydraulic Press, enabling the simultaneous production of two cattle salt blocks in a single pressing operation. This dual-cavity design significantly increases production capacity, reduces cycle costs, and improves manufacturing efficiency. Equal compaction force is applied to both cavities, ensuring consistent density, strength, and quality across each block.

02

Uniform pressure distribution

Uniform pressure distribution is a critical advantage of the 630-Ton Sinter Hydraulic Press for dual circular cattle salt block production. The machine applies balanced compaction force evenly across both cavities, ensuring each block achieves consistent density, strength, and dimensional accuracy. This uniform compression minimizes defects, prevents density variations, and improves overall product quality.

03

Fast cycle (1–2 min)

Fast cycle time (1–2 minutes) is a major advantage of the 630-Ton Sinter Hydraulic Press, enabling rapid production of dual circular cattle salt blocks with high efficiency. The short cycle time increases output capacity, supports continuous industrial-scale manufacturing, and reduces production bottlenecks.

04

Circular shape → better durability

Circular shape provides better durability by allowing compaction pressure to be distributed evenly throughout the cattle salt block during manufacturing. The absence of sharp corners reduces the risk of cracking, chipping, and stress concentration during handling, transportation, and use.

05

High-density blocks

High-density blocks produced by the 630-Ton Sinter Hydraulic Press offer exceptional strength, durability, and resistance to breakage. The powerful compaction force creates a dense and uniform structure, ensuring long-lasting performance during handling, transportation, and outdoor use.

06

2× productivity increase

2× productivity increase is a major benefit of the 630-Ton Sinter Hydraulic Press, as its dual-cavity design enables two cattle salt blocks to be produced in every pressing cycle. This effectively doubles output compared to single-cavity systems while maintaining consistent density, strength, and quality.

Get In Touch

Ready to Build Your
Production Line?

Our engineering team will size the press, die system, and automation to your target output, tile profile, and material spec. Quotations typically within 48 hours.
