800T Aerospace Fasteners, Pins & Couplings Press press view 1
Aerospace Fasteners, Pins & Couplings · Hydraulic Press Machine

800T Four Column Hydraulic Press for Cold Forged Aerospace Fasteners, Pins & Couplings

800T Rated Capacity
180 mm/s Slider Down Speed
9–18 mm/s Slider Pressing Speed
180 mm/s Slider Return Speed

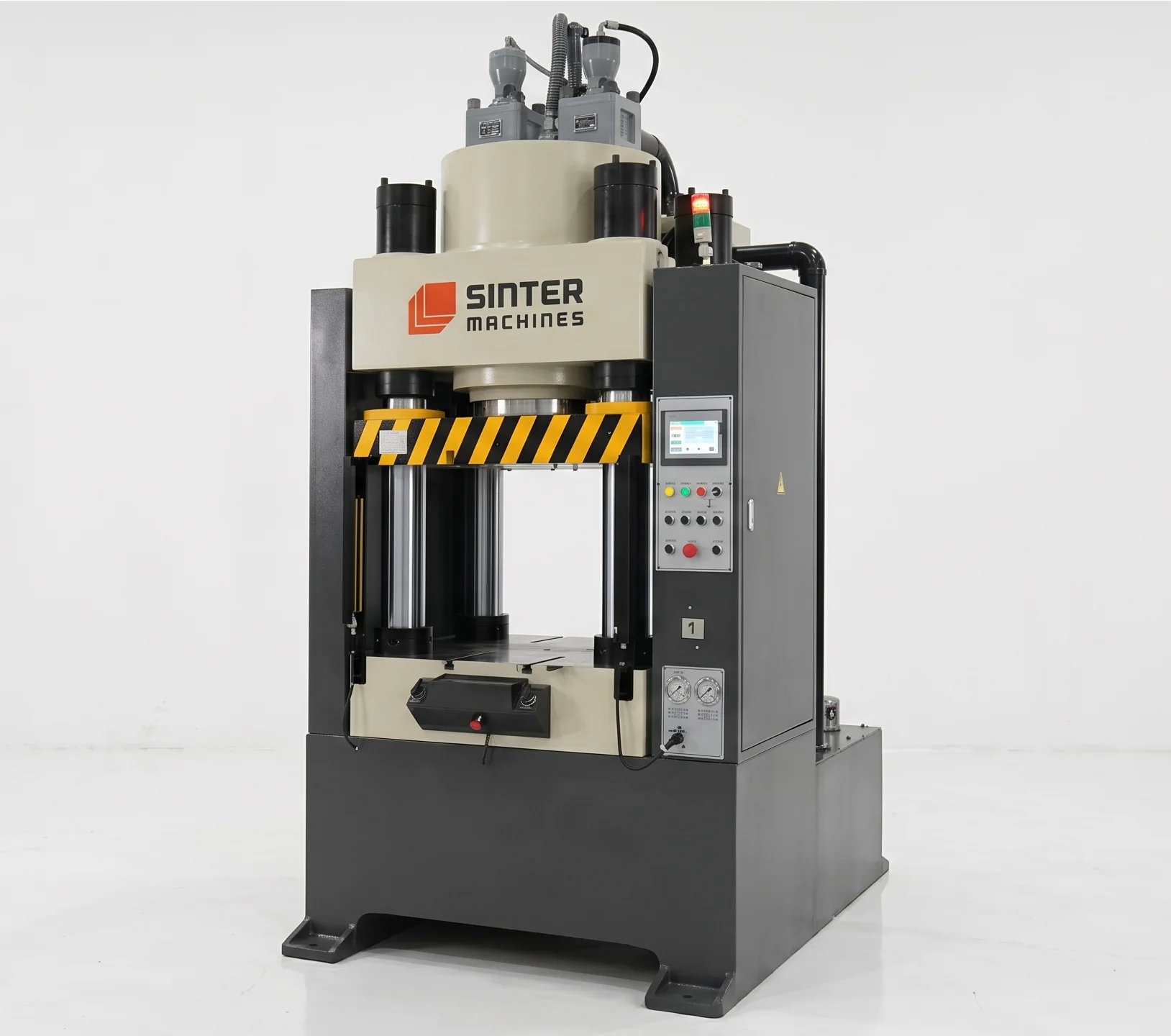

800T Aerospace Fasteners, Pins & Couplings Press press view 1

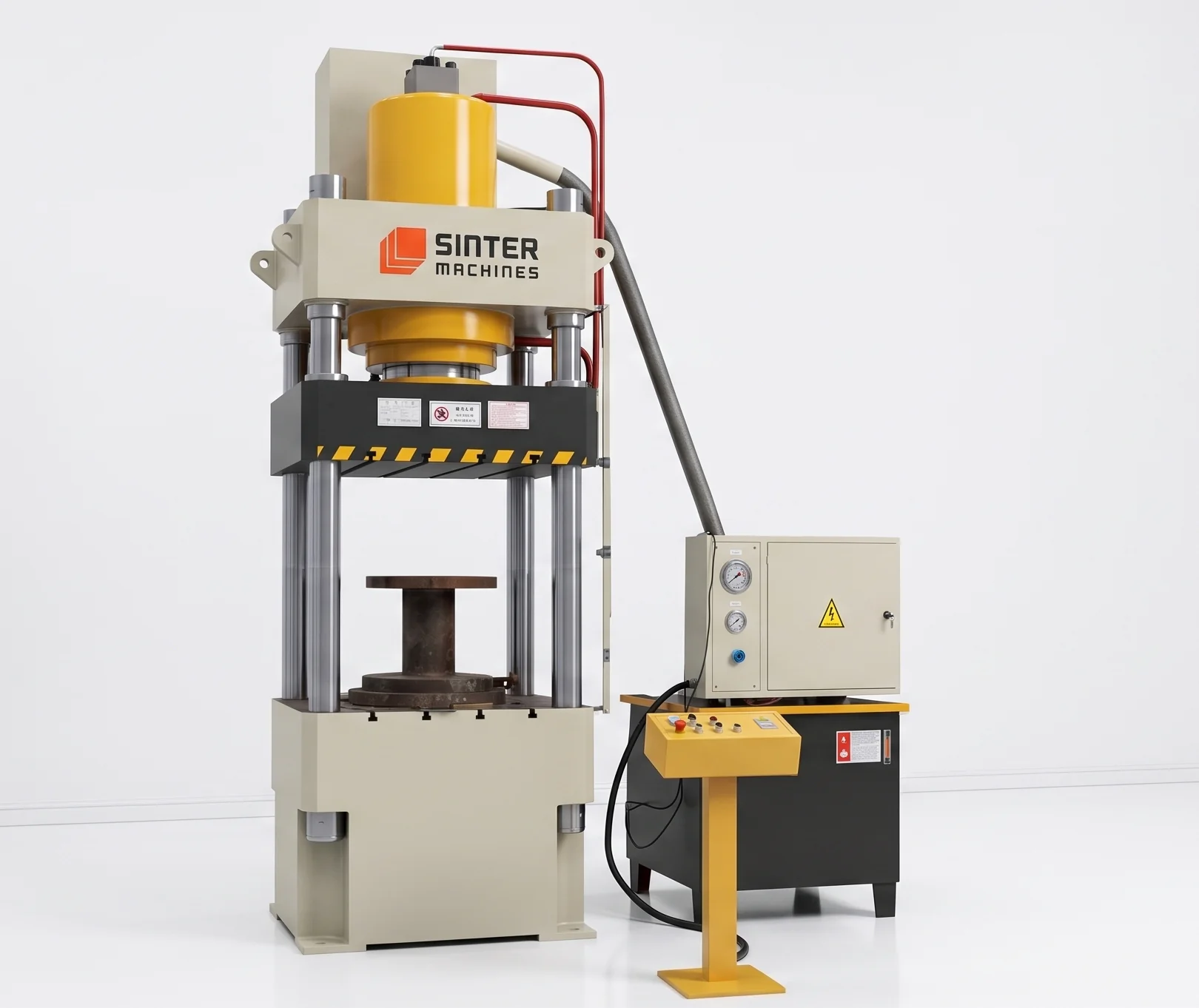

800T Aerospace Fasteners, Pins & Couplings Press press view 2

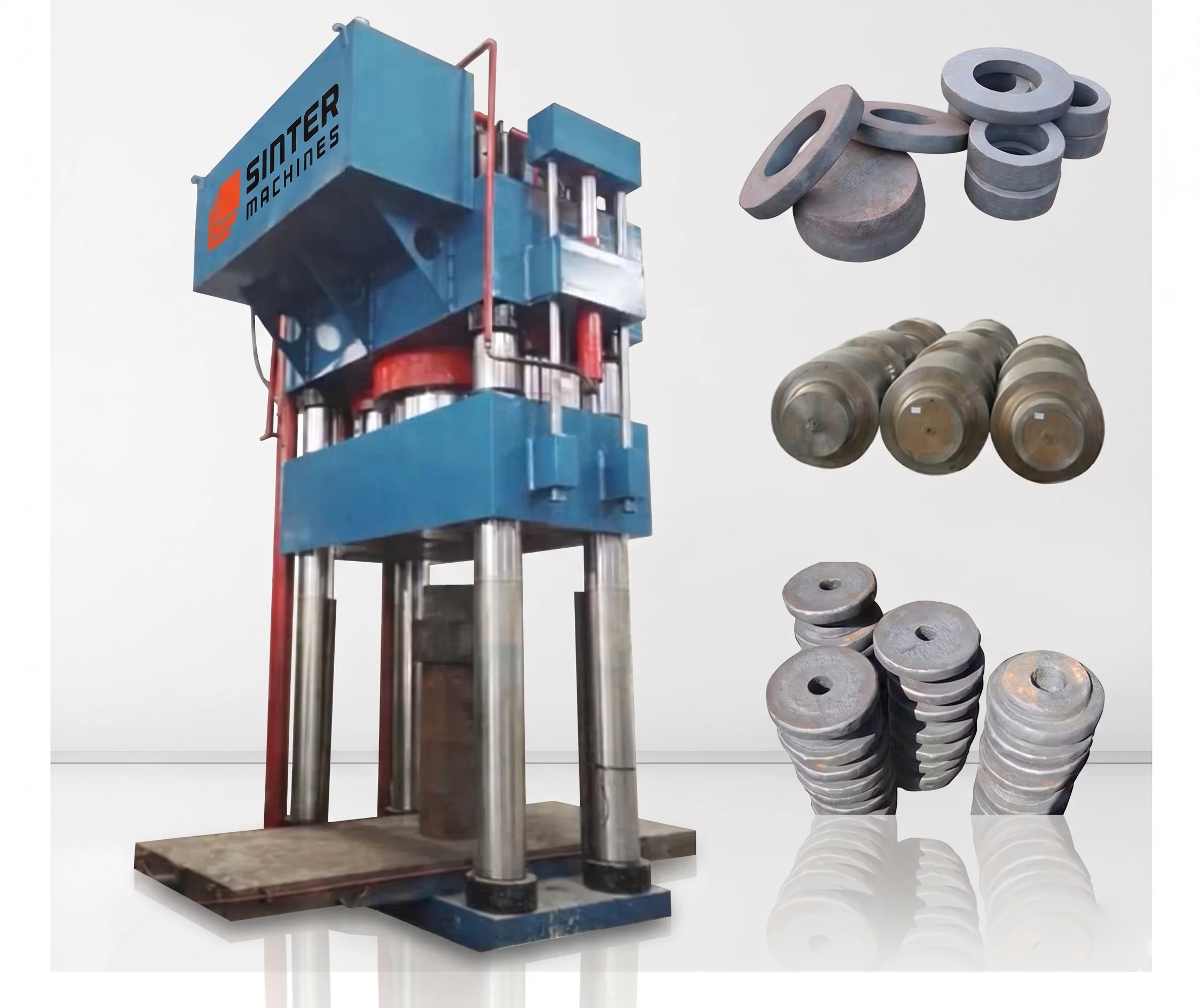

800T Aerospace Fasteners, Pins & Couplings Press press view 3

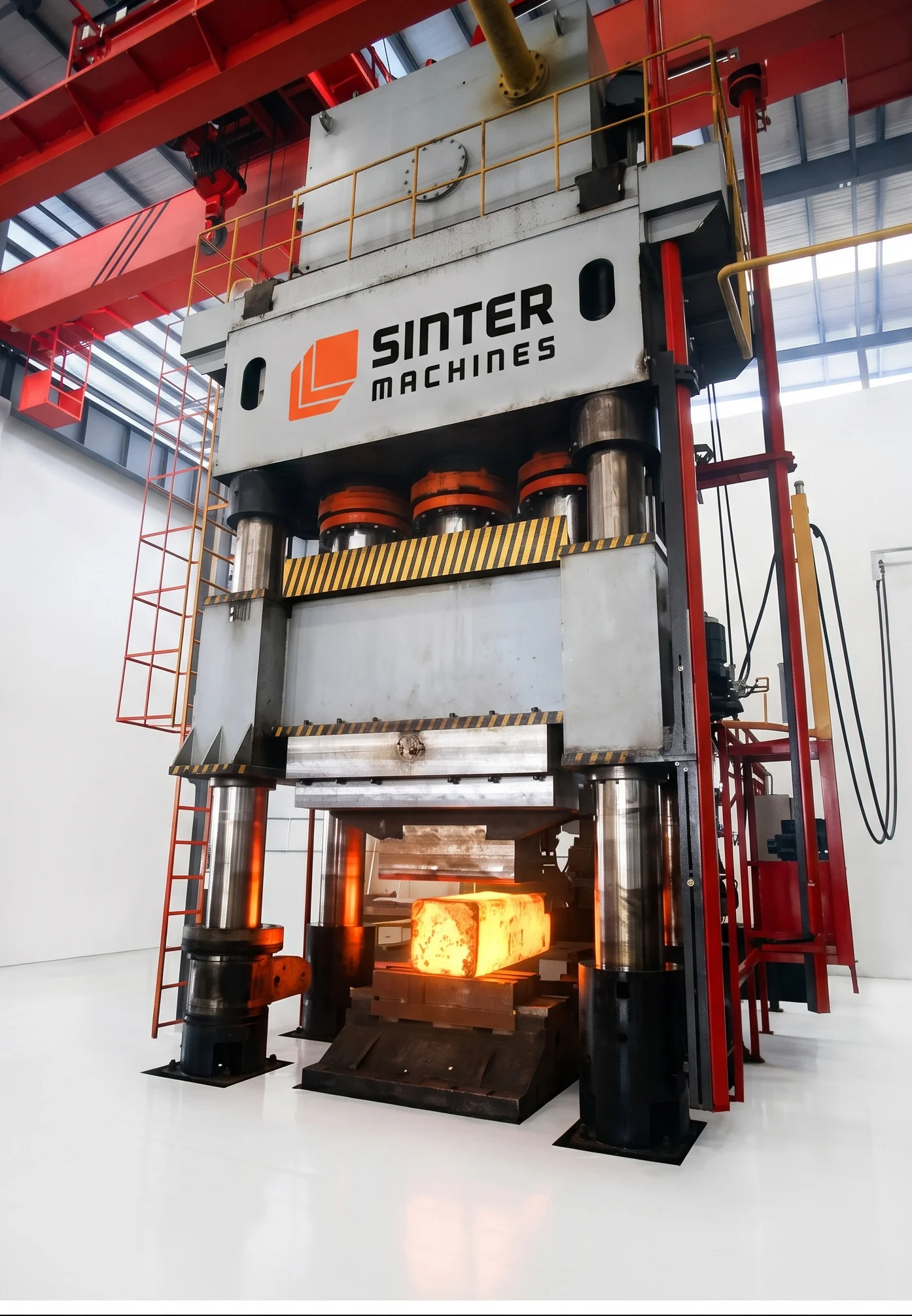

800T Aerospace Fasteners, Pins & Couplings Press press view 4

01 — Press System

800T Four Column Hydraulic Press Machine

The 800-ton four-pillar hydraulic press is a high-precision, production-ready manufacturing system engineered specifically for cold forging high-strength aerospace fasteners, pins, and couplings. This heavy-duty system meets the stringent requirements of AS9100 and NADCAP-aligned operations, providing international best practices for tier-one aerospace suppliers.

Use Case

Flight-critical aerospace components demand flawless structural integrity to endure continuous vibration, extreme cyclic loads, and high static stress environments. This press system applies highly regulated pressure profiles at room temperature, work-hardening advanced alloys and ensuring a continuous, unbroken internal grain flow.

Core Applications

  • High-precision multi-station cold heading, forward extrusion, and backward extrusion of aerospace structural hardware
  • Room-temperature upsetting and near-net-shape sizing of critical high-strength fastening elements
  • Cold formation of complex splines, flanged heads, and tight-tolerance preforms prior to final thread rolling

Material

  • Advanced high-strength titanium alloys including titanium six aluminum four vanadium and specialized aerospace grades
  • Premium nickel-based superalloys like Inconel seven one eight and high-density cobalt matrix metals
  • High-tensile aerospace stainless steels, precipitation hardening steel alloys, and ultra-pure carbon steels

Typical Products Processed

  • High-strength airframe bolts, structural shear studs, heavy-duty engine pins, and specialized socket head screws
  • Precision hydraulic couplings, high-pressure fuel line connectors, and multi-channel structural couplers
  • Load-bearing landing gear sleeves, flight control linkage joints, and custom cylindrical aerospace bushings
  • Near-net-shape fastener blanks, solid aerospace rivets, and blind structural anchoring hardware

Key Functions

  • Proportional velocity control allowing real-time speed transitions during extrusion to prevent internal micro-cracking
  • Integrated multi-stage high-speed mechanical knockout rods for flawless automatic part ejection from deep cavities
  • Digital stroke limitation and tonnage monitoring networks to ensure absolute batch consistency across flight lots

Why 800 Ton Hydraulic Press?

  • Supplies the massive tonnage required to overcome the extreme room-temperature yield strength of titanium and superalloys
  • Rigid four-pillar architecture minimizes frame deflection under off-center loads, protecting ultra-precise tungsten carbide tooling

02 — Technical Specifications

SM 800 HP – HYDRAULIC PRESS MACHINE COMPLETE TECHNICAL DATA

The SM 800 HP hydraulic press delivers exceptional tonnage capacity and micro-precise stroke accuracy engineered for cold forging flight-critical aerospace components. Its heavy-duty pre-stressed four-pillar design prevents structural deflection under massive loads, ensuring the absolute geometric consistency required for certified aerospace production.

Capacity

  • Maximum continuous cold forging compression force capacity of 8000 kN
  • Dedicated high speed bottom ejector stripping force capacity of 600 kN

Structural Design

  • High fatigue resistant pre stressed four column configuration built for high precision aerospace production
  • Finite element analysis structural simulation frame designed to absorb extreme cold extrusion stresses

Frame Type

  • Precision aligned solid induction hardened pillar frame guide structure
  • Stress relieved heavy welded steel plate bolster and upper moving slide assembly

Hydraulic System

  • High output variable displacement axial piston pump fluid power assembly
  • Multi stage high capacity offline oil filtration loop with integrated oil coolers

Main Ram Stroke

  • Maximum vertical slide forming travel distance capability of 500 mm
  • Electronic stroke length limitation positioning resolution accurate within 0.002 mm

Working Hydraulic Pressure

  • Maximum continuous operating main hydraulic system fluid pressure of 260 bar
  • Peak shock safety valve pressure relief calibration threshold limit of 290 bar

Daylight Gap

  • Maximum open vertical daylight window working clearance of 900 mm
  • Minimum closed shut die height tool workspace space of 400 mm

Approach Speed

  • Accelerated downward advance slide rapid travel speed of 320 mm/Sec
  • Controlled titanium material tool engagement deceleration velocity of 10 mm/Sec

Pressing / Drawing Speed

  • Dynamic high pressure cold forging extrusion speed of 2 to 25 mm/Sec
  • Maximum resistance continuous metal displacement squeezing velocity of 35 mm/Sec

Return Speed

  • High speed upward ram extraction retraction travel speed of 300 mm/Sec
  • Ultra fast automated hydraulic pre return system decompression cycle timing

Bed / Platen Size Platen

  • Total clear bolster bed width left to right of 1150 mm
  • Total clear bolster bed depth front to back of 1000 mm

Columns

  • Ultra high tensile forged alloy steel pillar diameter of 240 mm
  • Heavy duty wear resistant bronze guide bushings with automatic grease lubrication

Working Envelope

  • Total horizontal internal clear workspace area of 1150 by 1000 mm
  • Maximum permissible upper die tool assembly mass weight of 4000 kg

Control System

  • Industrial programmable logic controller linked with a graphical touchscreen station
  • Dual redundant non contact linear transducer position tracking systems accurate within 0.001 mm

Main Motor Power

  • High efficiency primary hydraulic pump electric drive motor power of 110 kW
  • Dedicated auxiliary cooling and continuous oil filtration motor power of 11 kW

Valves & Hydraulics

  • High dynamic response proportional servo flow control cartridge manifold block
  • Integrated fast acting overhead gravity pre fill oil valve unit assembly

Automation

  • Digital interface connection ports for synchronized industrial automatic feeder loops
  • High temperature hydraulic quick action die clamping system connecting lines

Safety Features

  • Dual channel infrared light curtain barriers guarding operator workspace zones
  • Automated heavy duty dual fail safe mechanical anti drop ram safety locking blocks

SM 800 HP — Model Specifications

  • Nominal Force: 8000 KN
  • Maximum Hydraulic Pressure: 25 MPa
  • Max Opening Height of the Slider: 1500 mm
  • Max Stroke of the Slider: 900 mm
  • Effective Bed Size: 1600 × 1600 mm
  • Slider Down Speed: 180 mm/s
  • Slider Pressing Speed: 9–18 mm/s
  • Slider Return Speed: 180 mm/s
  • Ejector Cylinder Nominal Force: 600 KN
  • Stroke of the Ejection Cylinder: 300 mm
Production Case Study

Cold Forged Aerospace Fasteners, Pins & Couplings Production Line

6to 30mmBillet/Wire
Thick900–1200 °C Temperature Range
5–8 SecCycle time
600 to 1200 PartsOutput/Hour
Dimensional accuracy held tightly
Surface integrity optimized perfectly
Internal voids closed completely
Fatigue resistance increased substantially
Grain flow maintained continuously
Microstructural defects prevented totally
High volume repeatability ensured

03 — Die / Mold System

Precision Cold Forged Aerospace Fasteners, Pins & Couplings Die Mold Engineering

This high-precision tooling system integrates specialized multi-station carbide inserts secured within heavy pre-stressed steel cassettes to handle extreme cold-heading pressures. The robust engineering layout limits elastic deformation under immense loading, ensuring zero material shearing and complete dimensional stability across flight-critical parts.

Technical Specifications (Tooling)

Die Type

  • High precision progressive multi station closed die cold heading and multi stage forward backward extrusion tool set assembly
  • Heavy duty certified aerospace grade cold forming tooling layout engineered for high stress fastener and coupling manufacturing

Die Materials

  • Premium ultra fine submicron tungsten carbide cobalt matrix inserts providing extreme compressive yield strength and wear resistance
  • Special shock resistant nickel chromium molybdenum vanadium hot work tool steel utilized for external pre stressed support rings

Tool Configuration & Construction

  • Multi layer interference fit shrink fitted container ring design engineered to counteract massive internal radial bursting stresses
  • Modular quick change cassette layout optimized to minimize production line changeover times and maximize press bed utility

Key Tooling Features

  • Integrated multi stage mechanical positive knockout pin assembly designed for rapid automatic part stripping sequences
  • Precision machined internal relief air venting channels engineered to prevent oil entrapment and avoid pneumatic pressure locks

Alignment Accuracy

  • Upper punch and lower die axis concentricity deviation kept strictly under a limit of 0.015 mm
  • Moving slide guiding parallelism variance across the active workspace restricted within a tolerance of 0.008 mm

Process Materials

  • Flight critical titanium alloys including titanium six aluminum four vanadium and specialized high strength aerospace wires
  • Premium nickel base superalloys including Inconel seven one eight and corrosion resistant precipitation hardening stainless steel rods

Surface Finish

  • Active mirror polished tungsten carbide forming cavities diamond lapped down to an roughness of Ra 0.03 microns
  • Advanced physical vapor deposition titanium aluminum nitride wear protective surface layer applied to a thickness of 0.003 mm

Tool Life

  • Expected production span of 35000 cycles before requiring mandatory cavity inspection and micro polishing procedures
  • Total structural tooling lifespan capacity reaching 300000 production cycles before complete carbide insert replacement
Case Study (Die Performance)

Precision Cold Forged Aerospace Fasteners, Pins & Couplings Die Mold

Cr-Mo-V AlloyDie Material
60-63 HRCHardness
Vacuum Gas HardeningHeat Treatment
Cavity wear resisted fully
Micro-cracking prevented completely
Geometric tolerances held tightly
Surface galling eliminated entirely
Part rejection minimized drastically
Tooling life extended substantially
Component scrap rates minimized

04 — Product Application

Where Precision Cold Forged Aerospace Fasteners, Pins & Couplings Are Used

Precision cold-forged aerospace fasteners, pins, and couplings are critical structural components holding primary airframe assemblies and engine modules together across the aviation sector. These flight-certified hardwares undergo intensive work-hardening to ensure permanent joint clamping force and exceptional resistance against fatigue cracks during extreme flight manoeuvres.

Industry Applications

These ultra-reliable aerospace components are mandatory throughout commercial aircraft production, military jet manufacturing, space launch vehicle engineering, and precision aviation maintenance networks. Their uncompromised grain flow consolidation, dimensional predictability, and strict structural traceability allow tier-one aviation suppliers to satisfy rigid aerospace standards, minimize structural weight, and guarantee flight safety.

Commercial Jetliner Airframes and Primary Wing Structural Joints

High-tensile titanium shear studs, main fuselage panel fasteners, and structural rib pins anchor critical skeletal assemblies. Their continuous grain flow provides the high fatigue life required to withstand constant cyclic tension and multi-directional wind shear stresses.

Gas Turbine Jet Engines and Rocket Propulsion Systems

Premium Inconel bolts, specialized combustion chamber studs, and high-pressure fuel line couplings secure extreme heat zones. The cold heading process eliminates microstructural flaws, ensuring the fasteners maintain clamping torque under severe thermal and mechanical vibrations.

Commercial Helicopter Rotors and Military Drone Airframes

Heavy-duty main rotor mast bolts, high-precision hinge pins, and custom load-bearing sleeves stabilize high-speed flight controls. Flawless surface integrity achieved via room-temperature compression protects these parts against sudden catastrophic failures caused by continuous mechanical oscillations.

Aerospace Fluid Distribution Systems and Hydraulic Couplings

Precision multi-channel connectors, landing gear actuator fittings, and fuel lines utilize dense cold-formed couplings. Near-net-shape processing guarantees high dimensional accuracy, creating zero-leak metal-to-metal seals capable of containing high-pressure hydraulic fluids safely.

Finished Product Gallery

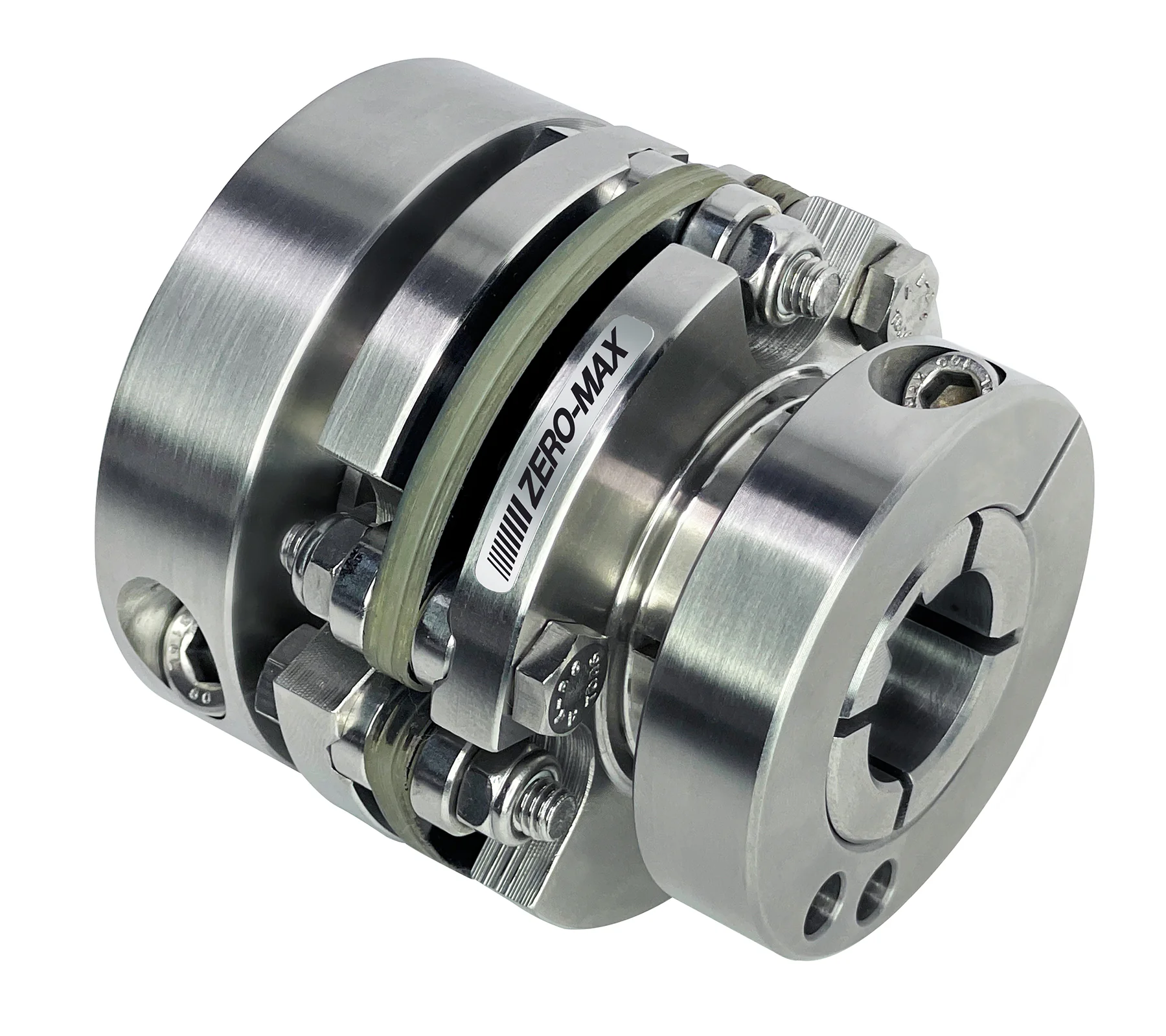

800T Aerospace Fasteners, Pins & Couplings Press finished product 1

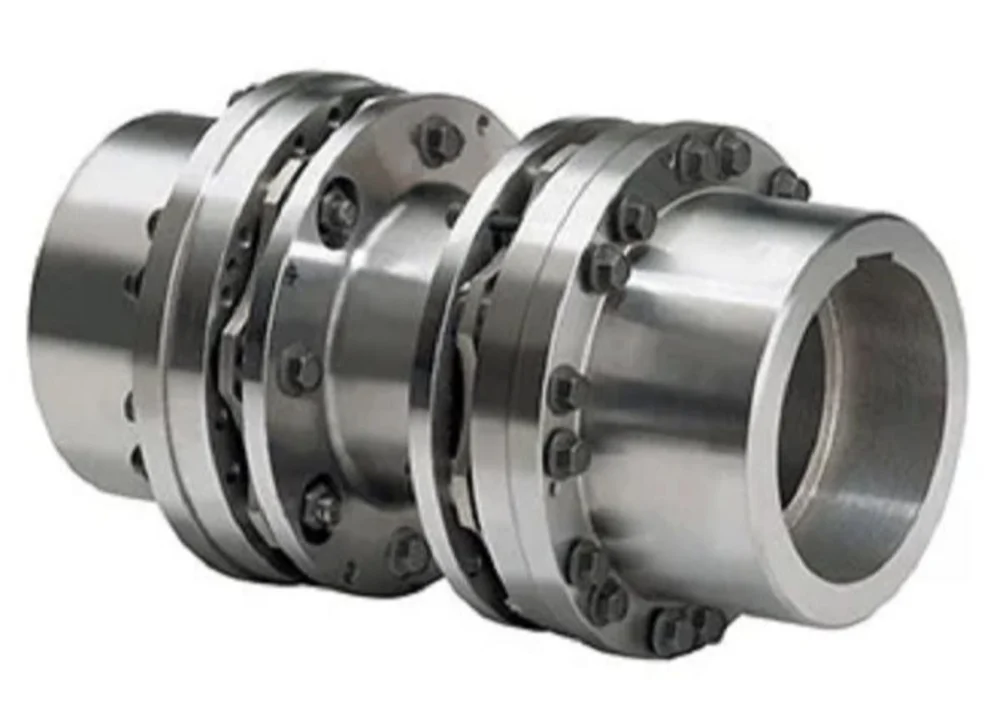

800T Aerospace Fasteners, Pins & Couplings Press finished product 2
800T Aerospace Fasteners, Pins & Couplings Press finished product 3

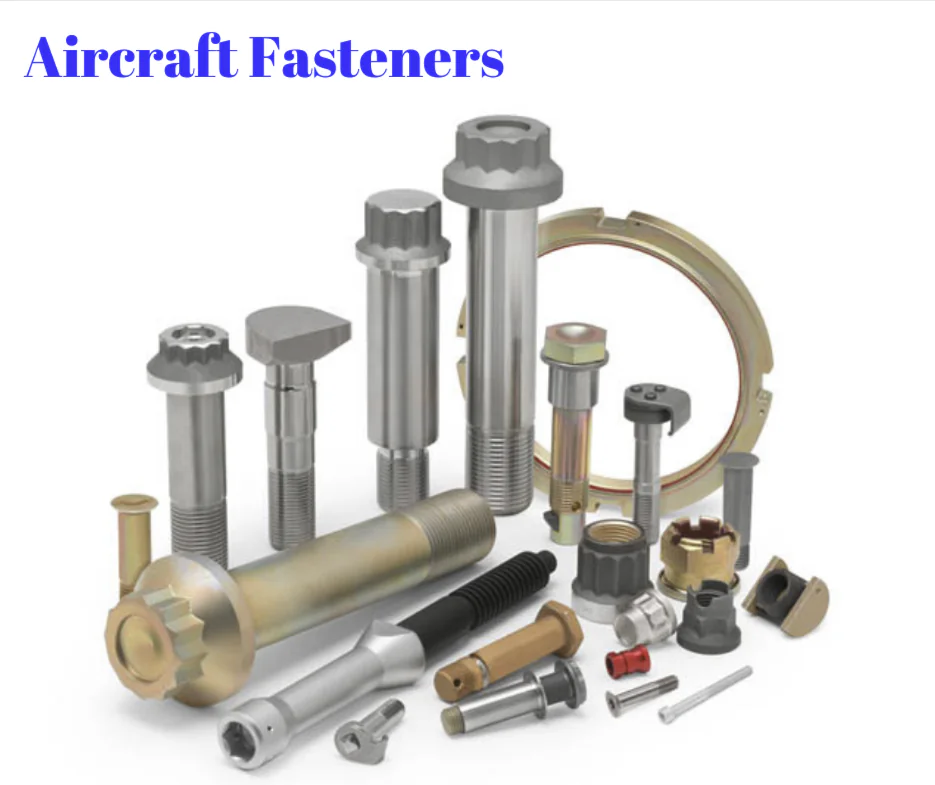

800T Aerospace Fasteners, Pins & Couplings Press finished product 4

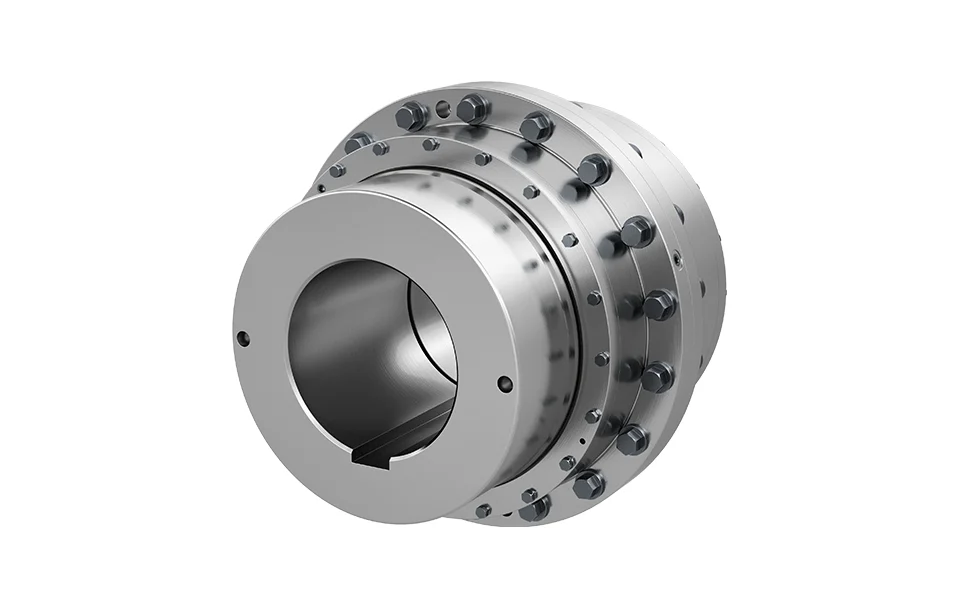

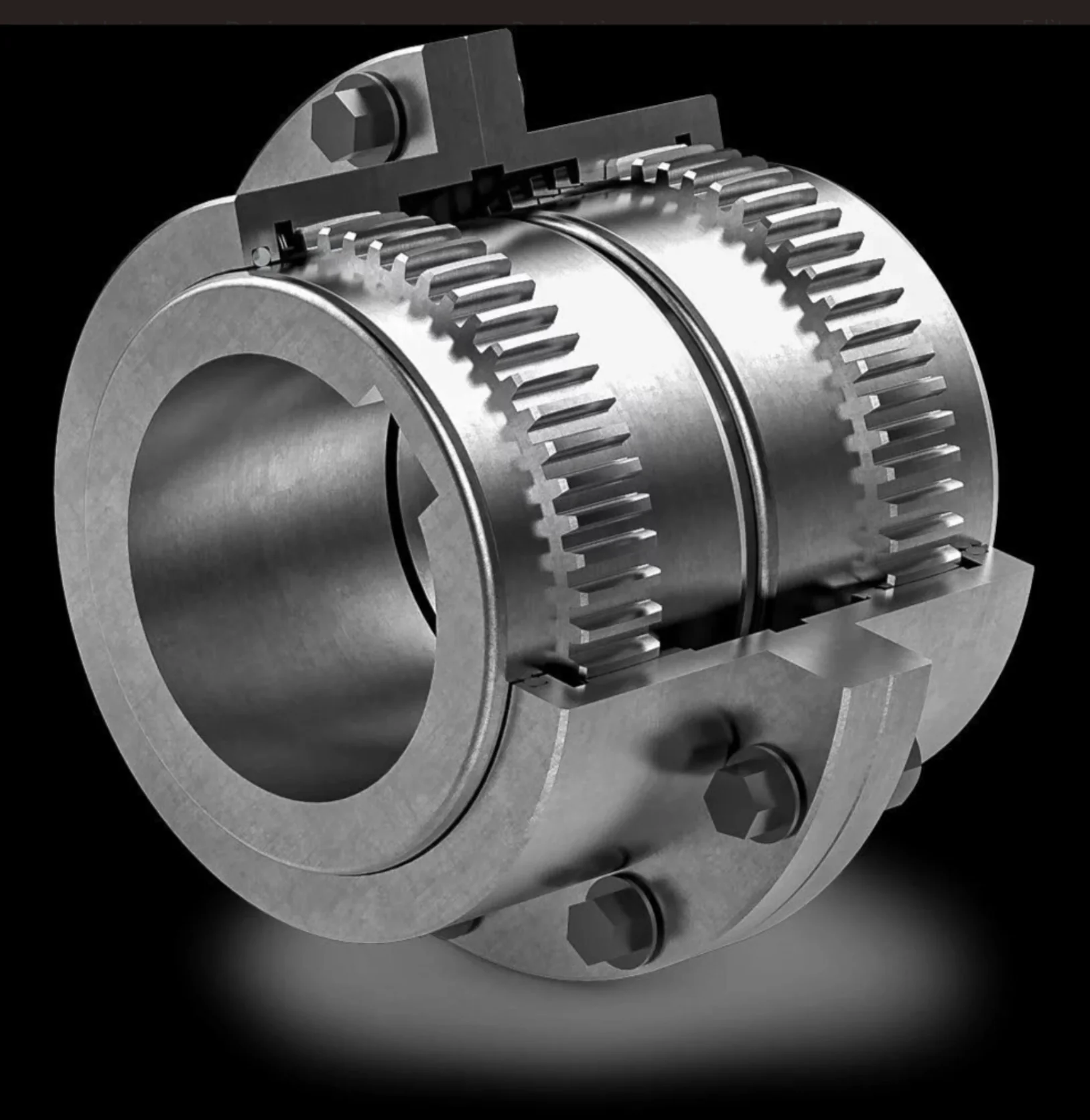

800T Aerospace Fasteners, Pins & Couplings Press finished product 5

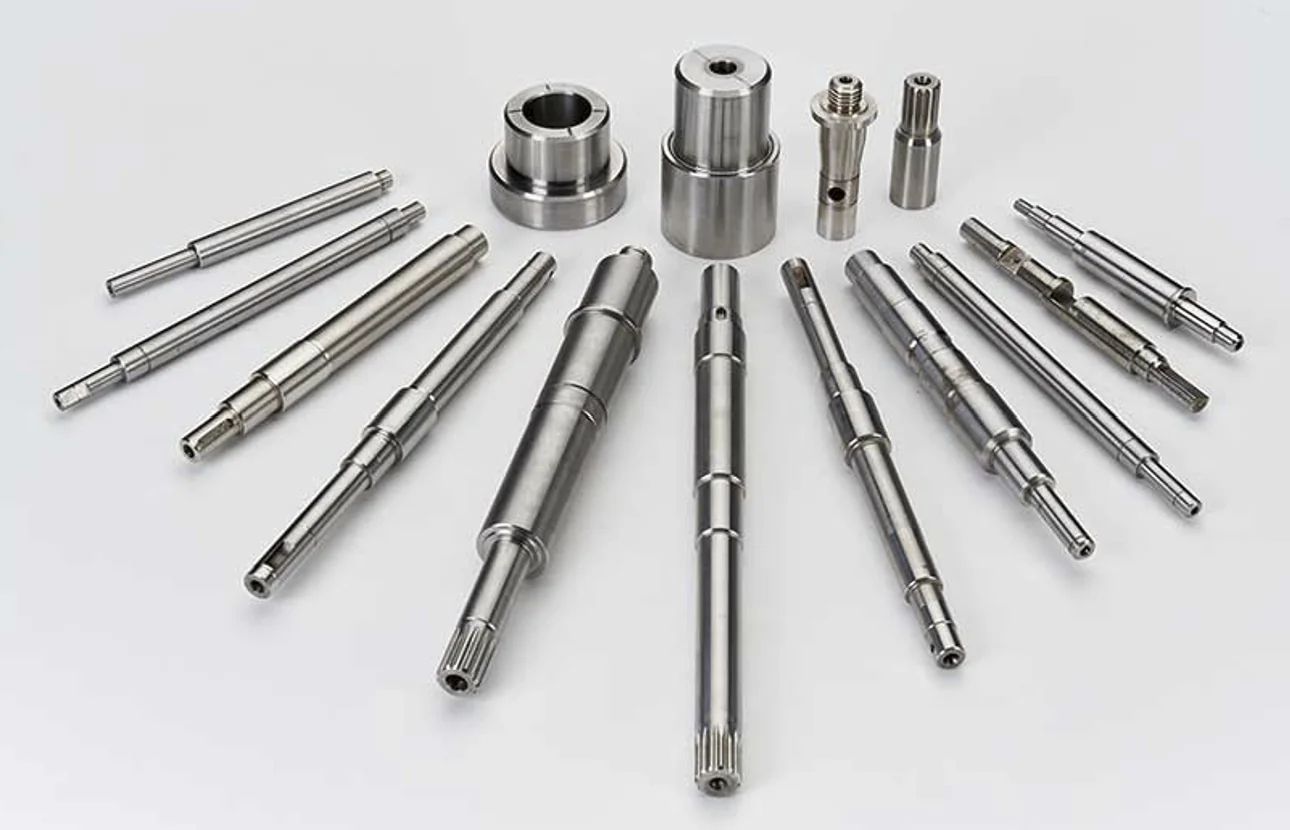

800T Aerospace Fasteners, Pins & Couplings Press finished product 6

05 — Key Advantages

Why Choose the 800-Ton Sinter Hydraulic Press

The 800-Ton Sinter Hydraulic Press delivers the massive forming pressures and frame rigidity required to cold-upset tough titanium and nickel superalloys. Its micro-precise control systems guarantee absolute structural density and repeatable tolerances, fulfilling the zero-defect mandates of flight-certified production.

Technical & Commercial Benefits

01

Massive Tonnage Capacity to Form High-Strength Advanced Aerospace Alloys

The specialized fluid system generates intense compression forces capable of cold-working titanium and Inconel raw stocks. This high mechanical pressure induces deep strain-hardening to elevate the material yield and shear fatigue strength.

02

Pre-Stressed Four-Column Architecture Minimizing Die Mismatch and Deflection

An ultra-rigid guide assembly effectively absorbs heavy off-center loading stresses produced during multi-station extrusion sequences. Maintaining perfect platen parallelism prevents dimensional skewing and protects premium tungsten carbide inserts from micro-cracking.

03

Sub-Micron Electronic Stroke Limitation for Near-Net-Shape Repeatability

Dual non-contact linear transducers continuously track the down-stroke depth to achieve extreme dimensional control accuracy. Producing virtually perfect geometric blanks minimizes material machining requirements and eliminates subsequent weight balancing issues.

04

Multi-Stage Proportional Velocity Controls Eliminating Microstructural Flaws

The programmable logic control system throttles pressing speeds down to individual millimeters per second to control metal flow rates. Regulating the internal material displacement velocity prevents sudden friction cracks or surface galling defects from ruining batches.

05

Integrated Automatic Ejection System Facilitating Fast Cycle Throughput

High-speed hydraulic knockout rods automatically strip tightly compressed fastener pins from deep die pockets upon ram reversal. This seamless mechanical extraction allows direct handshakes with robotic transfer equipment to increase total hourly yields.

06

Drastic Reduction in Raw Material Scrap Maximizing Export Profit Margins

Cold forging components directly from continuous wire or pre-cut slugs avoids extensive turning, chipping, and milling waste. Maximizing the raw material utilization ratio yields substantial cost savings on expensive, high-grade aerospace metals.
