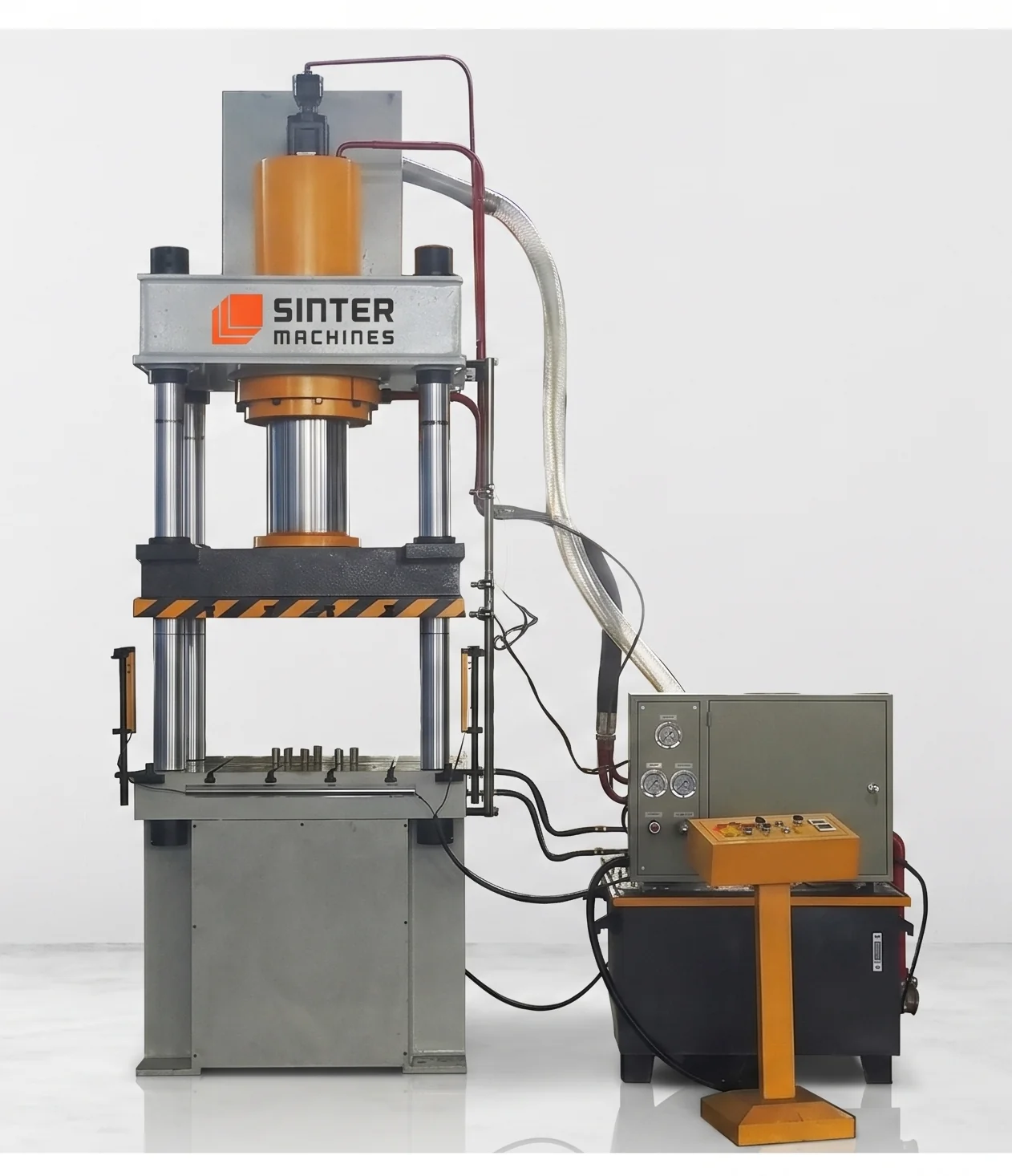

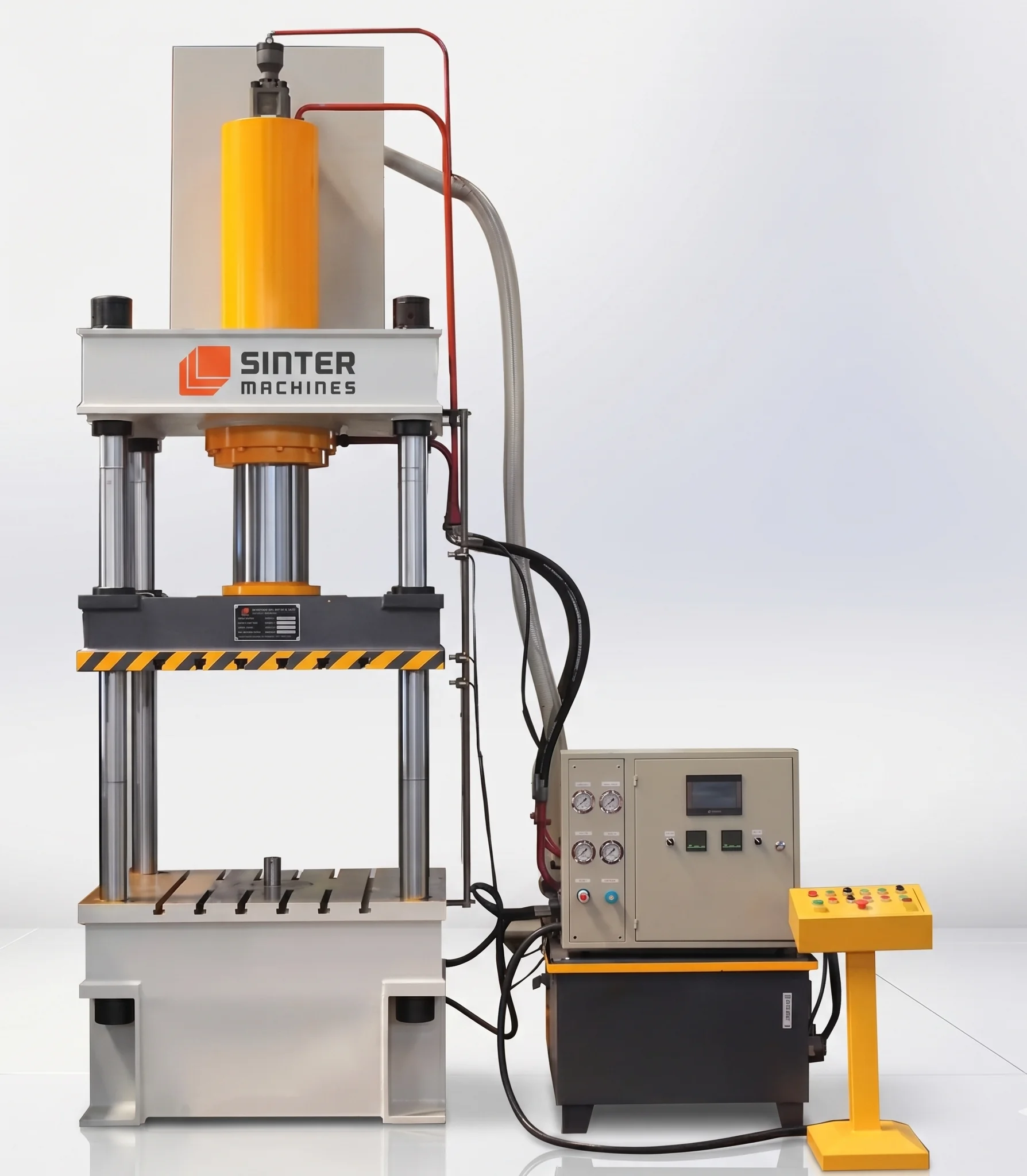

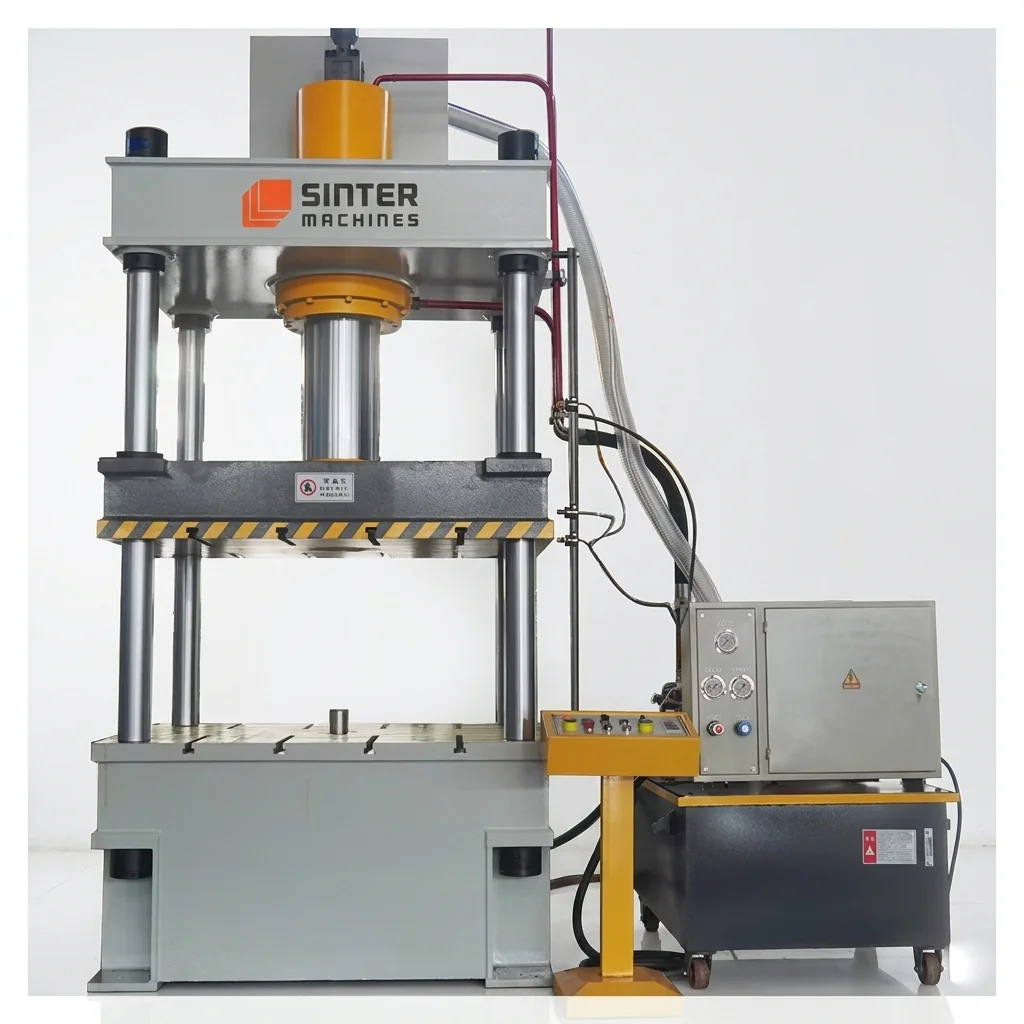

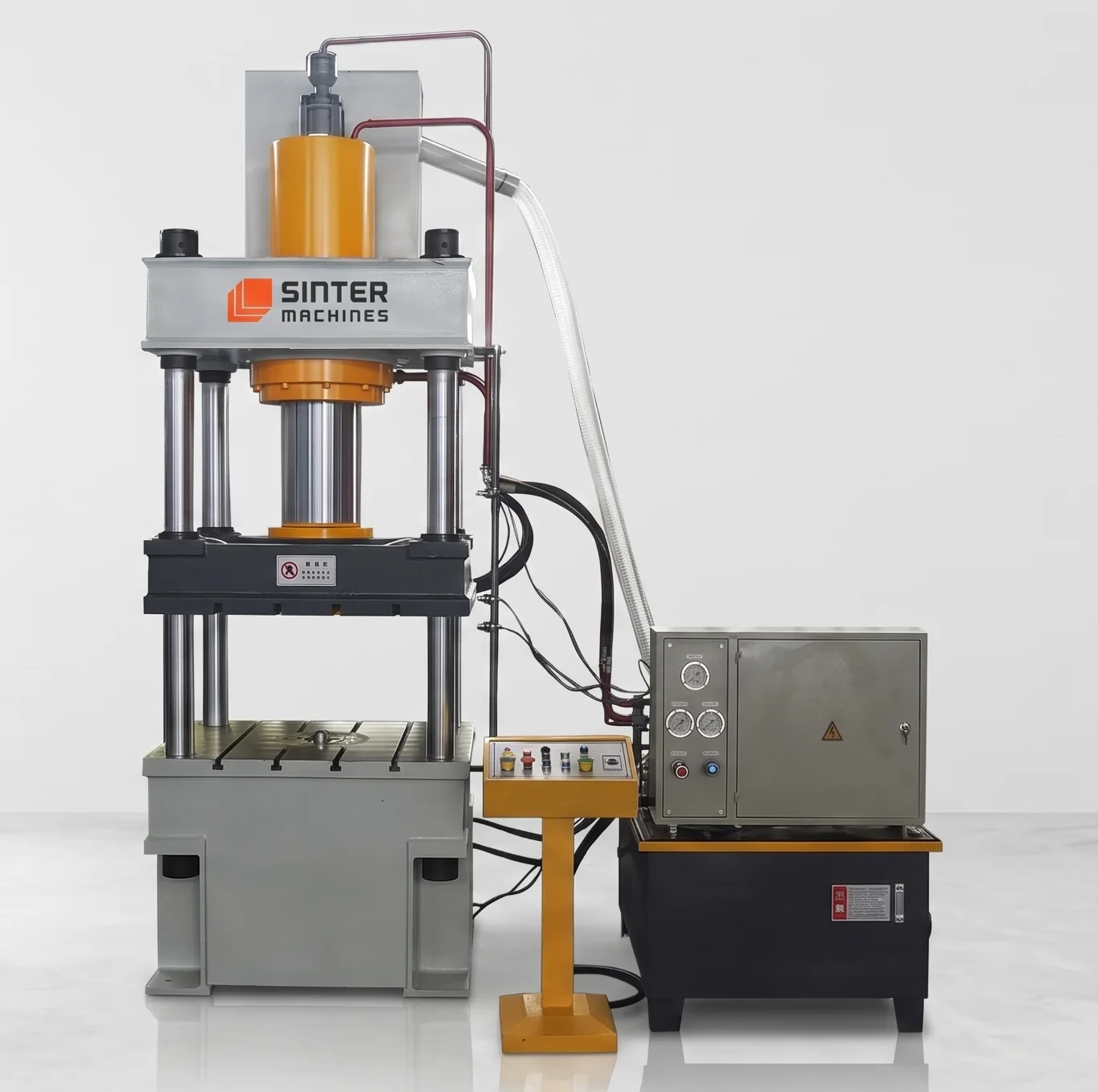

200T Four Column Hydraulic Press for Mercury Powder Block
A Mercury-Bearing Waste Powder Block Compression 4-Column Hydraulic Press Machine is a specialized heavy-duty industrial compaction system engineered to compress fine mercury-bearing compounds, metal amalgams, or chemically stabilized mercury waste powders into dense, uniform solid blocks, briquettes, or encapsulation preforms.
These machines are utilized in hazardous waste management, environmental remediation, chemical processing, and metallurgical refining, where toxic heavy metal powders must be safely consolidated to minimize airborne dusting, prevent vapor emissions, and optimize retort or stabilization feed rates.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
High-Precision Guidance & Parallelism: Hazardous mercury-bearing powders require strict control over compaction uniformity to prevent structural weak points or density gradients. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Rigid Load Distribution: Compacting dense chemical and metal powders into high-strength blocks requires continuous high tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity over long operational lifespans.
Vapor Containment & Safety Integration: Because mercury and its compounds pose severe health and environmental risks, strict containment protocols are mandatory. The press is heavily integrated with hermetically sealed feeding hoppers, local exhaust ventilation ports, complete enclosure housings, and vapor-tight collection interfaces to protect operators and prevent hazardous emissions.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 40 Tons to 400+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | Hardened alloy tool steel or specialized corrosion-resistant inserts designed to handle hazardous chemical powders |
Hydraulic Drive | Variable displacement piston pumps or servo-hydraulic systems with smooth proportional pressure control |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Hermetically Sealed Volumetric Feeding: An automated, enclosed feed shoe slides precisely over the die cavity to deposit a measured volume of loose powder, completely containing toxic dust and ensuring uniform fill density.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air or gas to evacuate and the dense particles to firmly settle, minimizing internal stress or cracking.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent surface cracking from elastic springback. A bottom ejection cylinder then cleanly pushes the solid block out of the die cavity for downstream retorting, stabilization, or secure containment.

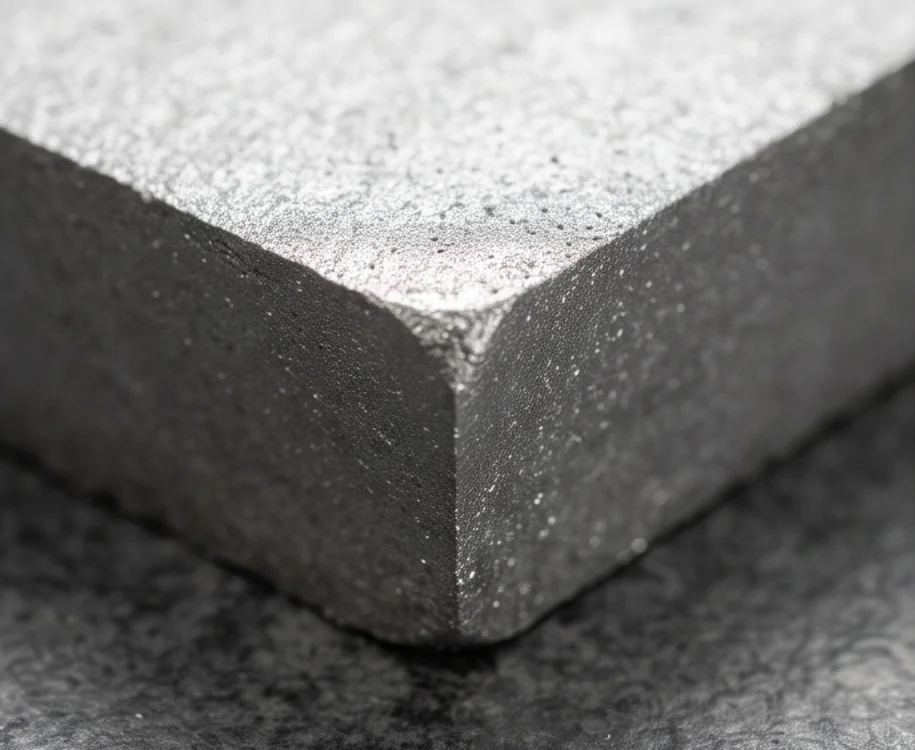

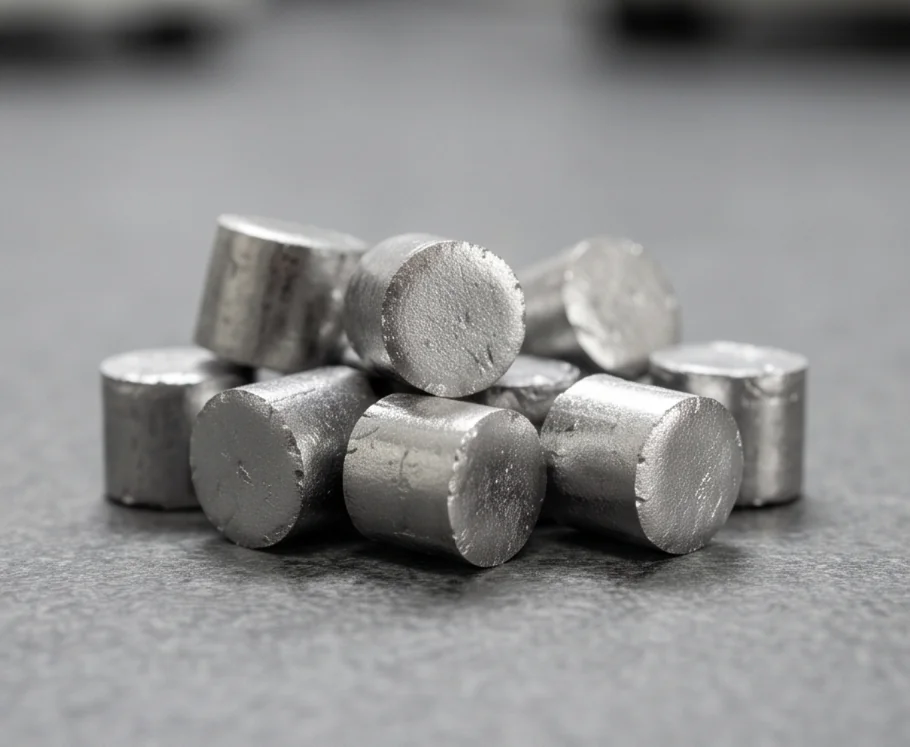

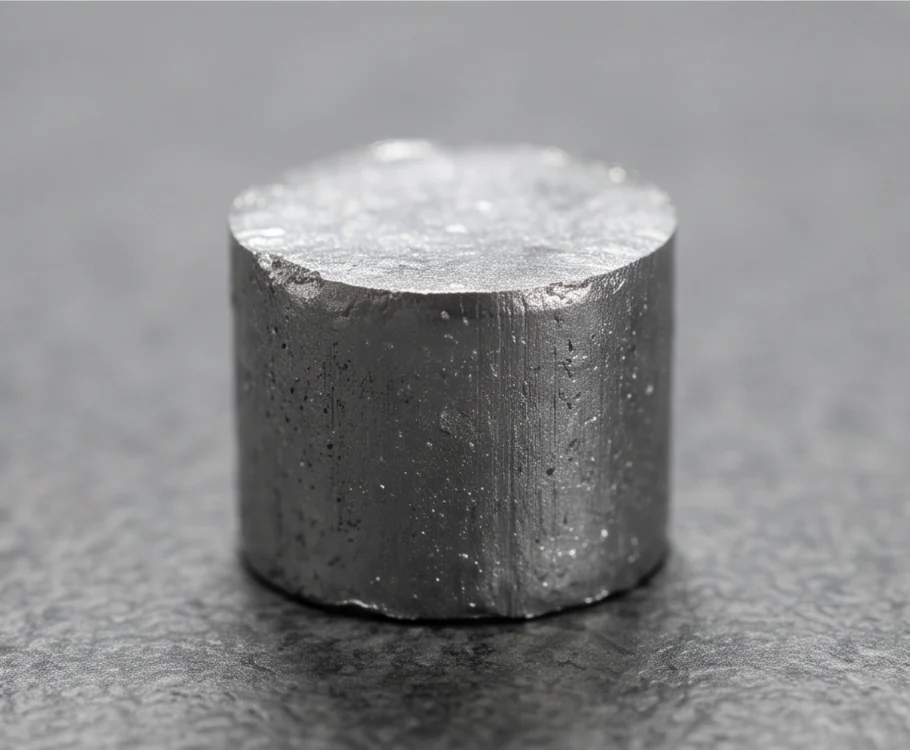

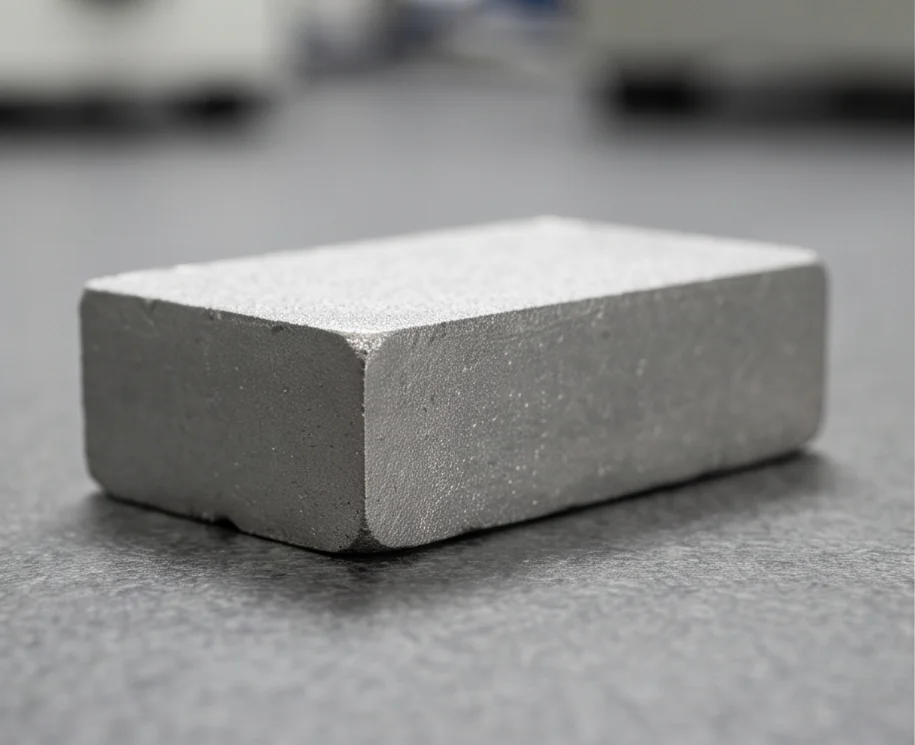

Finished Product Gallery
