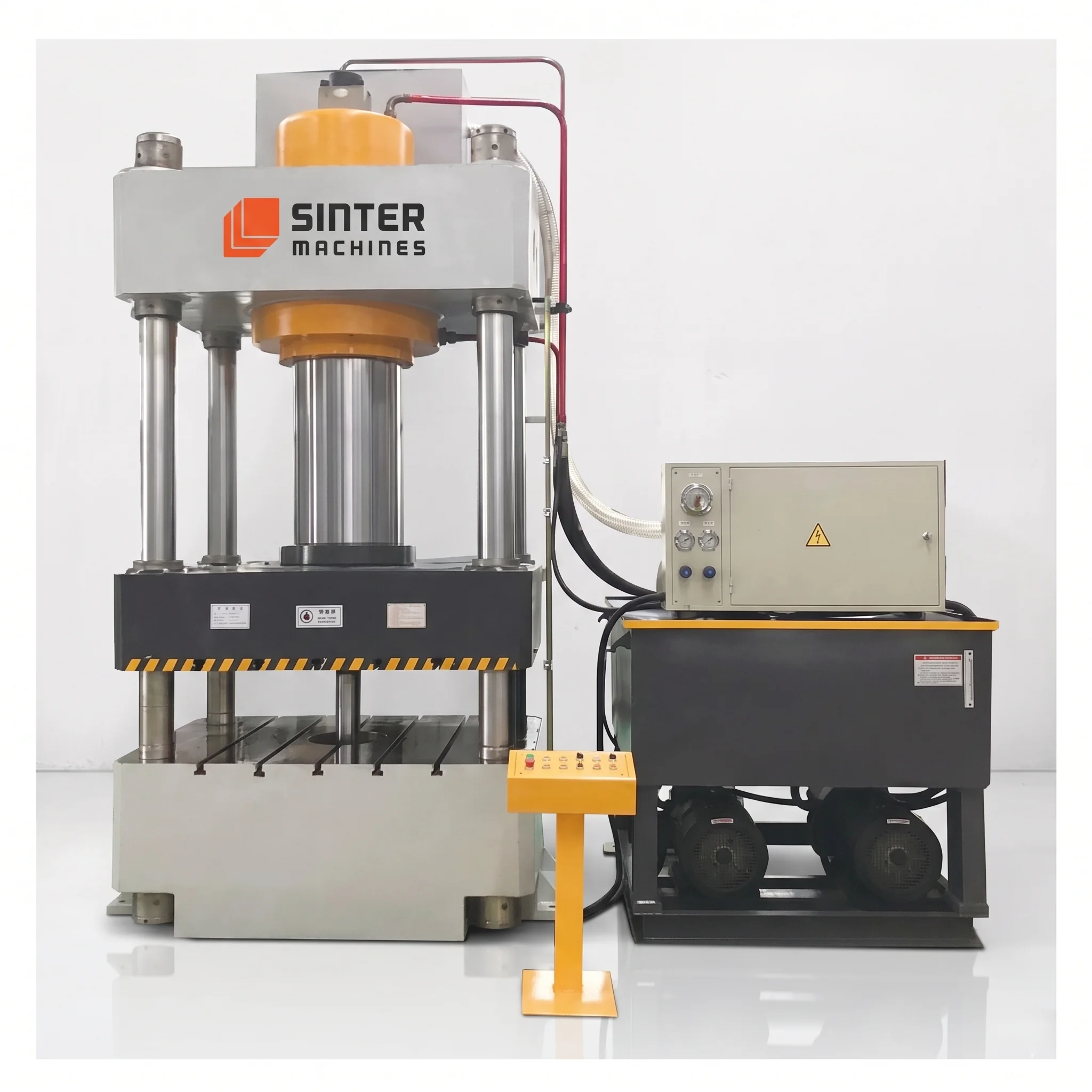

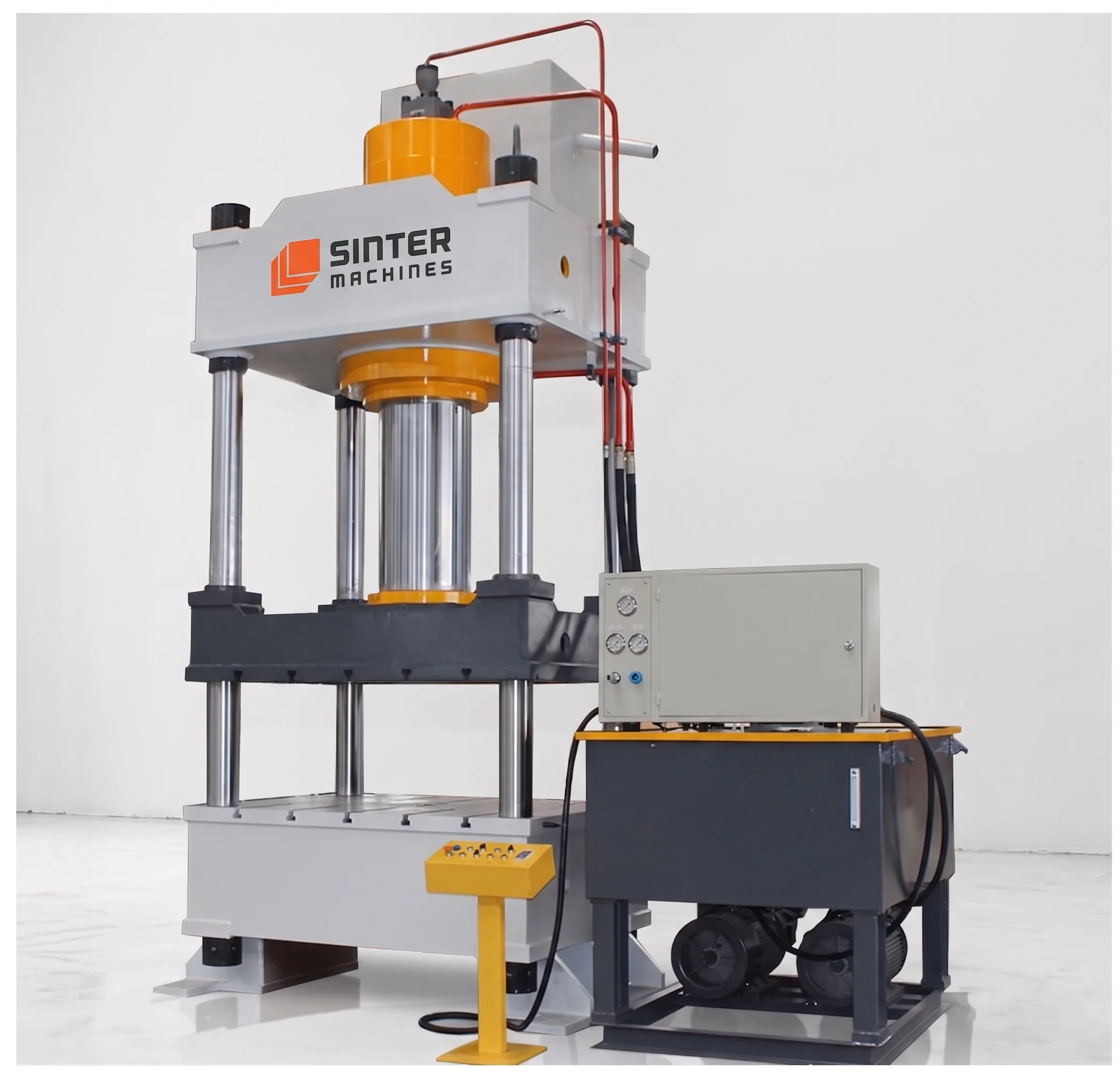

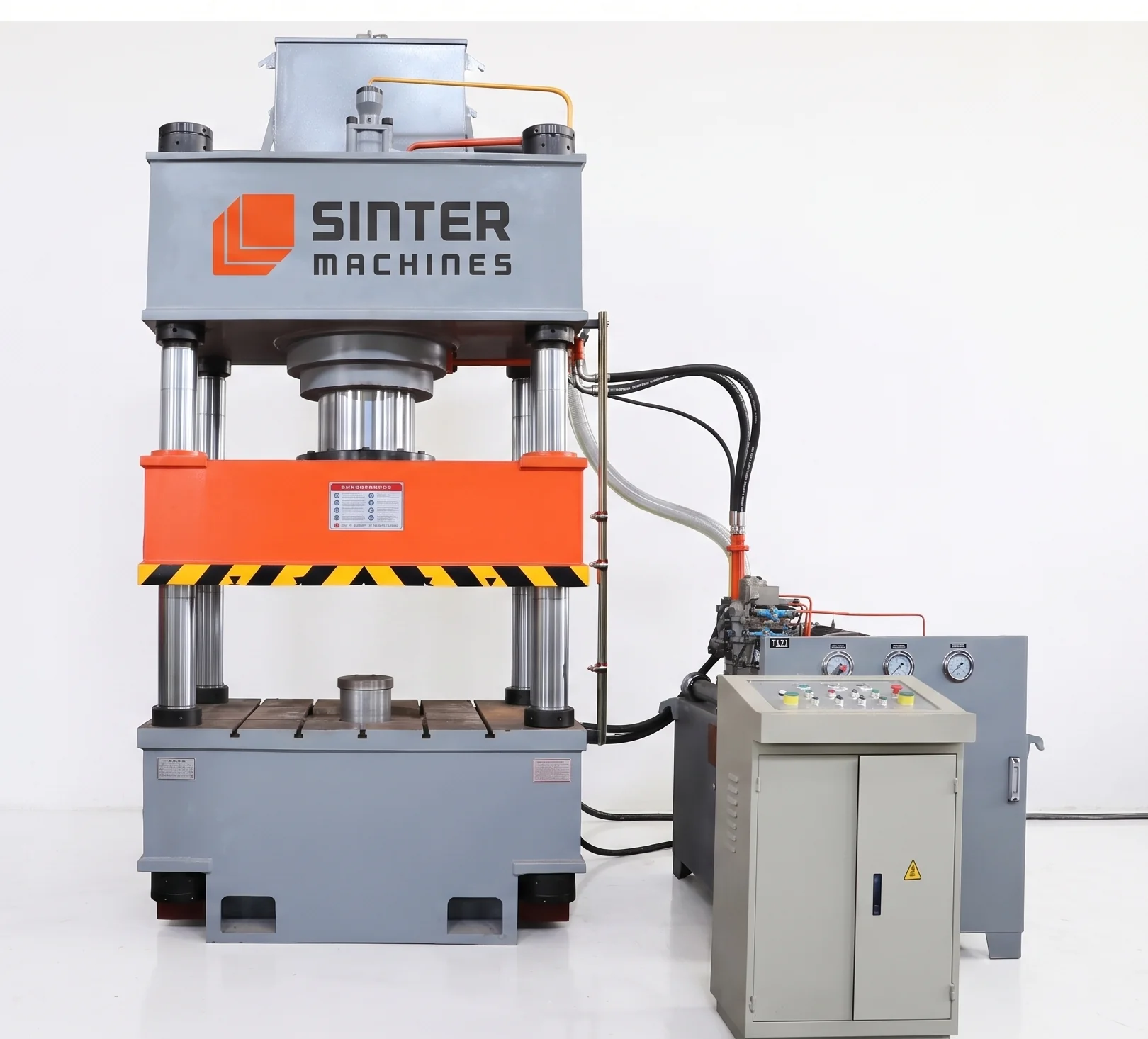

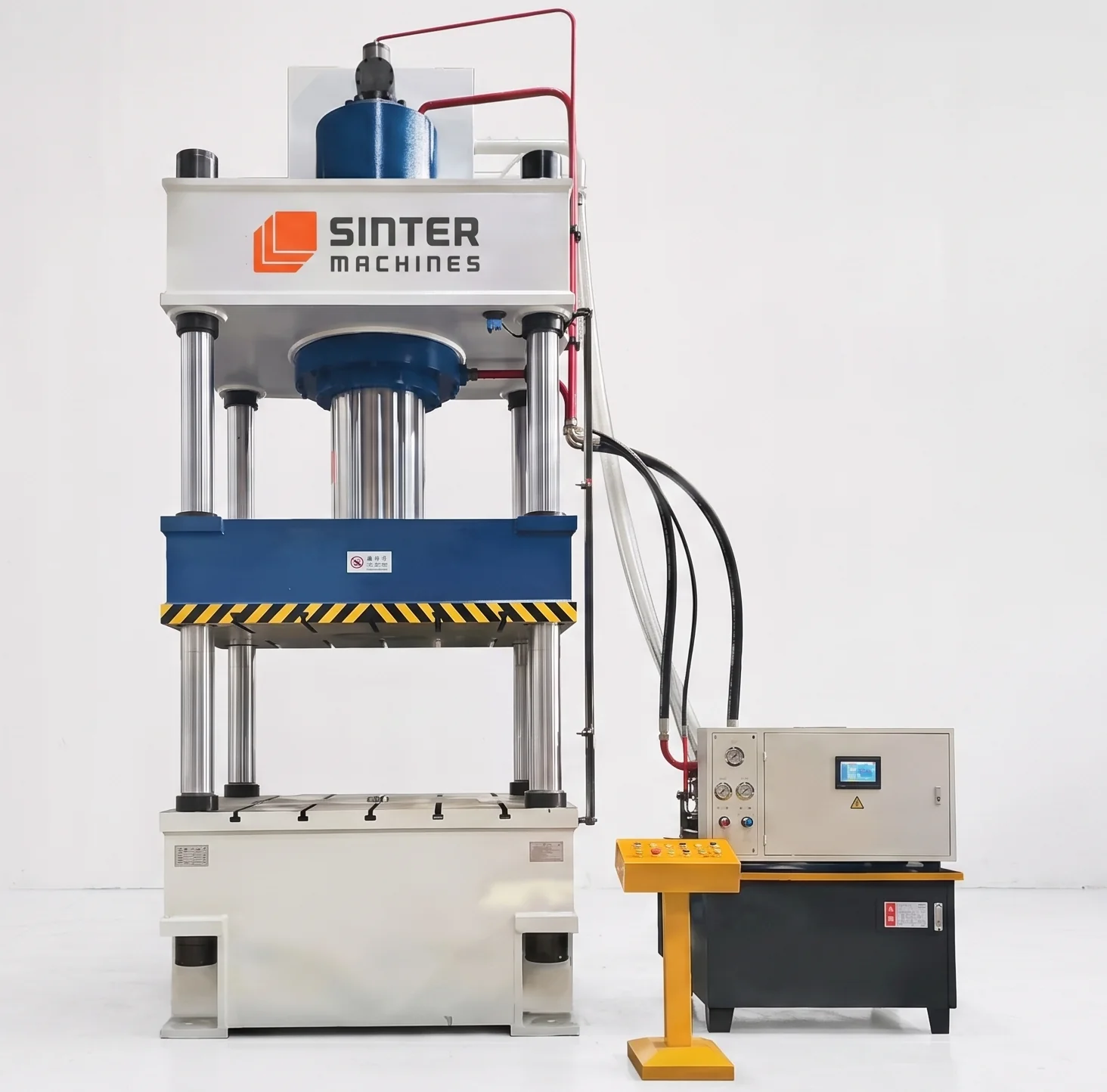

400T Four Column Hydraulic Press for Antimony Powder Block
A Antimony Powder Block Compression 4-Column Hydraulic Press Machine is a specialized heavy-duty industrial compaction system engineered to compress fine antimony metal or sulfide powder into dense, uniform solid blocks, briquettes, or charge preforms.
These machines are utilized in metallurgy, flame retardant manufacturing, battery production, and alloy compounding, where loose, toxic semi-metal powders must be consolidated to minimize airborne dusting, prevent material loss, and optimize furnace or reactor feed rates.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
High-Precision Guidance & Parallelism: Antimony and its compounds require strict control over compaction uniformity to prevent structural weak points or density gradients. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Rigid Load Distribution: Compacting dense metal powders into high-strength blocks requires continuous high tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity over long operational lifespans.
Toxicity Containment & Safety: Because antimony dust poses health and environmental hazards, strict safety protocols are mandatory. The press is heavily integrated with hermetically sealed feeding hoppers, local exhaust ventilation ports, complete enclosure housings, and dust collection interfaces to protect operators and prevent hazardous emissions.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 40 Tons to 500+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | Hardened alloy tool steel or specialized wear-resistant carbide inserts designed to handle metal powders |
Hydraulic Drive | Variable displacement piston pumps or servo-hydraulic systems with smooth proportional pressure control |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Hermetically Sealed Volumetric Feeding: An automated, enclosed feed shoe slides precisely over the die cavity to deposit a measured volume of loose antimony powder, completely containing hazardous dust and ensuring uniform fill density.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate and the dense metal particles to firmly settle, minimizing internal stress or cracking.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent surface cracking from elastic springback. A bottom ejection cylinder then cleanly pushes the solid antimony block out of the die cavity for downstream alloying, smelting, or secure packaging.

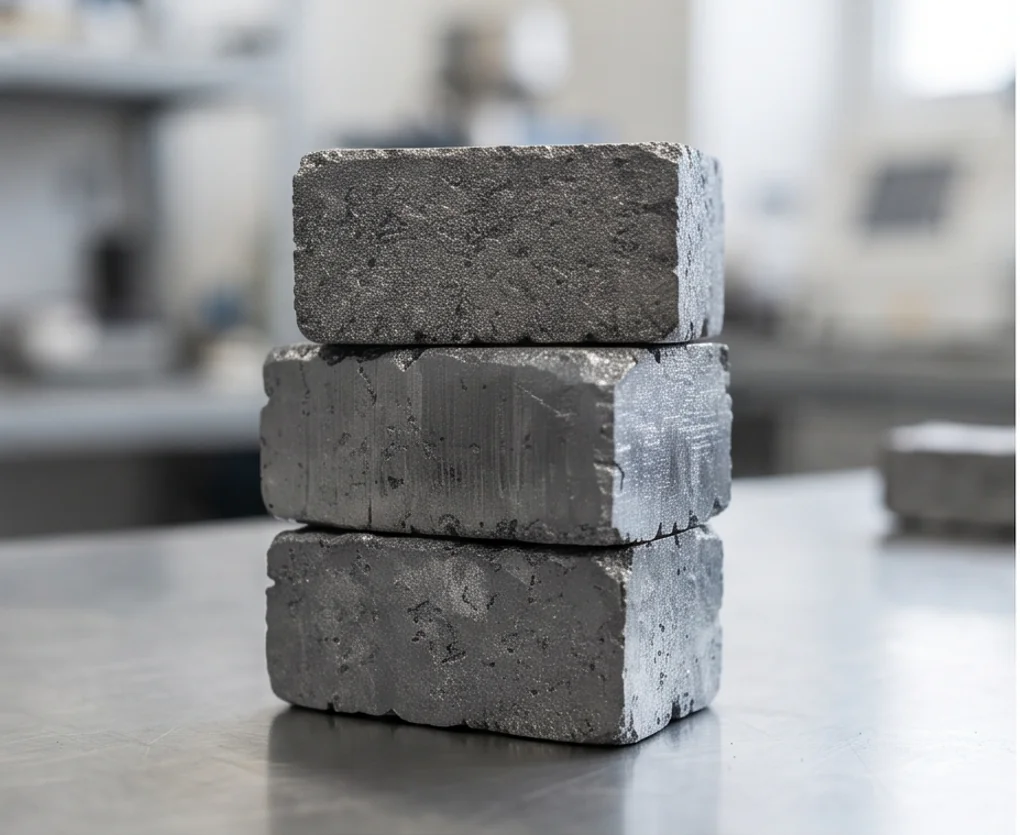

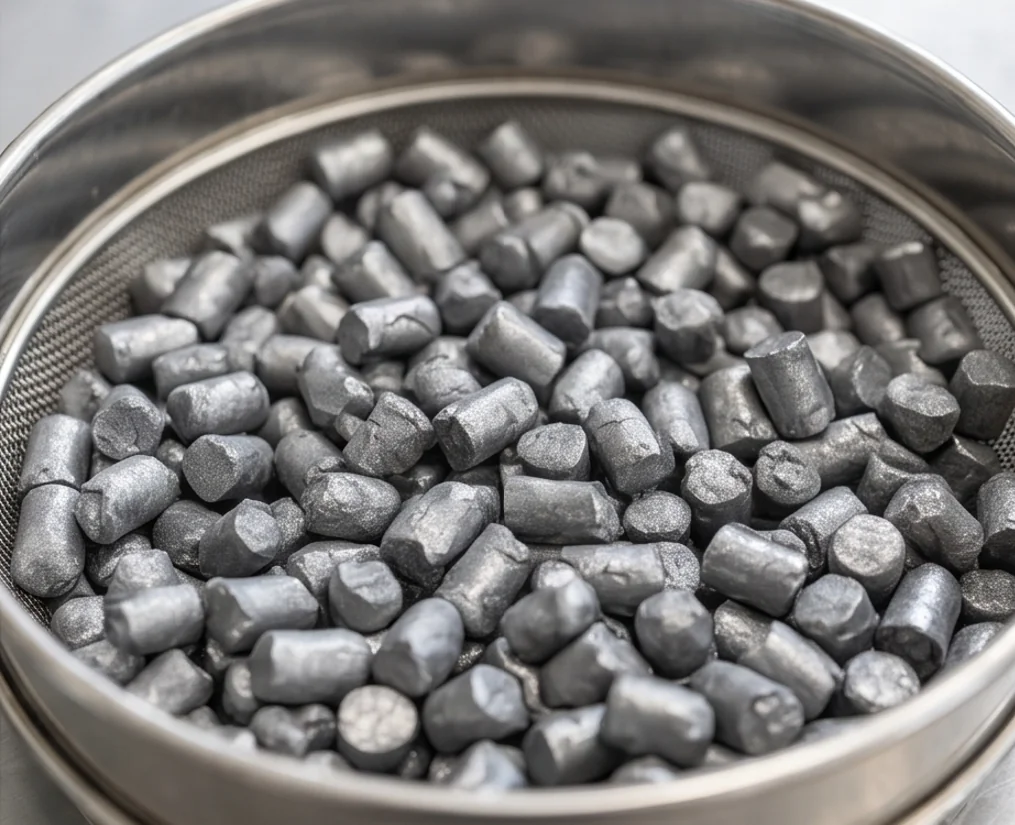

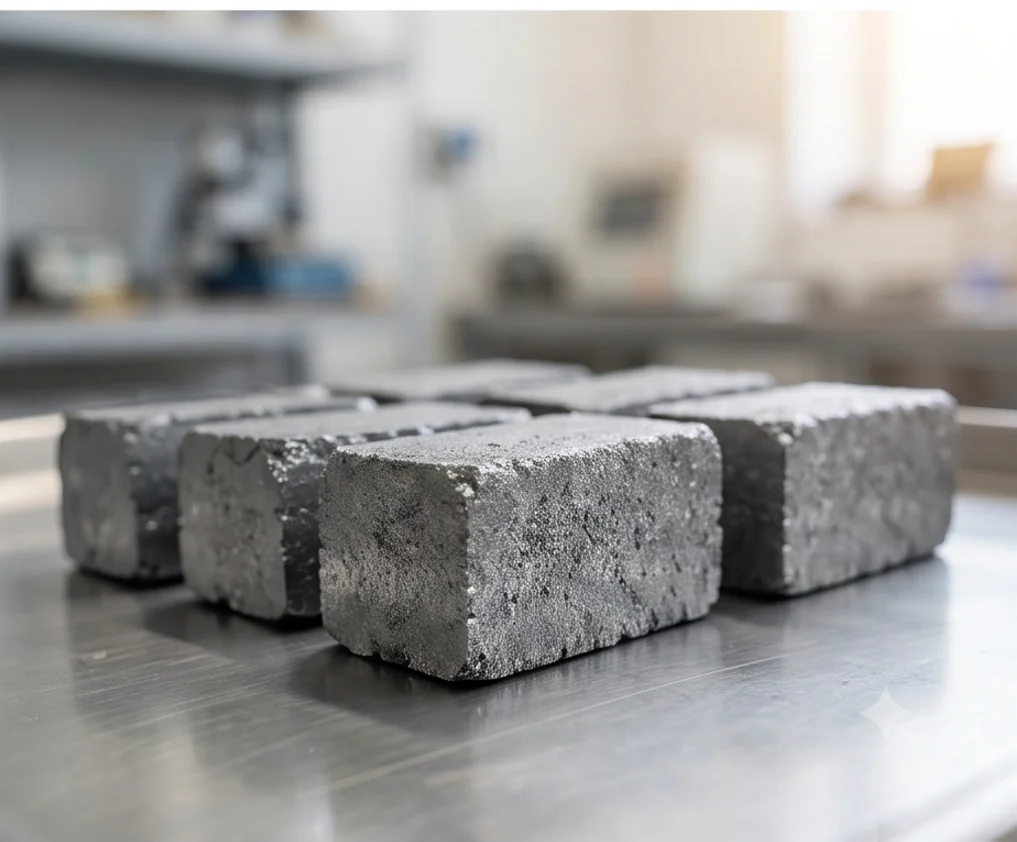

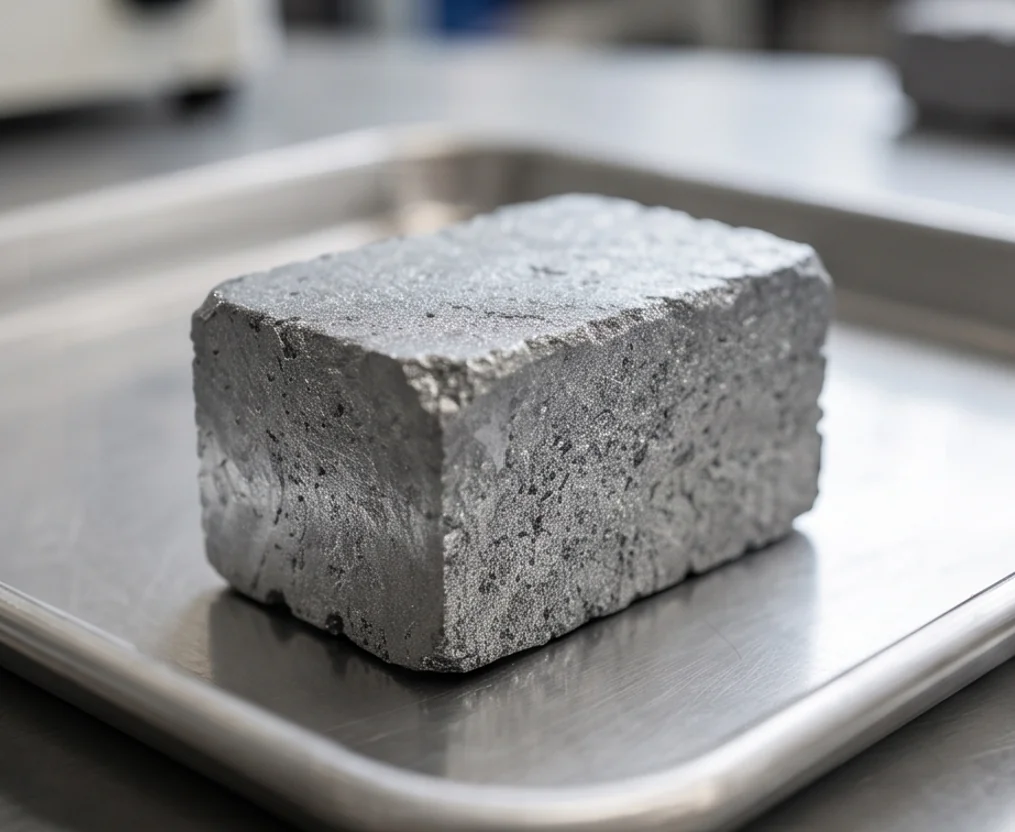

Finished Product Gallery
