Heavy Duty Camshaft Lobes · Hydraulic Press Machine

1000T Four Column Hydraulic Press for Heavy Duty Camshaft Lobes

1000T Rated Capacity
180 mm/s Slider Down Speed
10–18 mm/s Slider Pressing Speed
220 mm/s Slider Return Speed

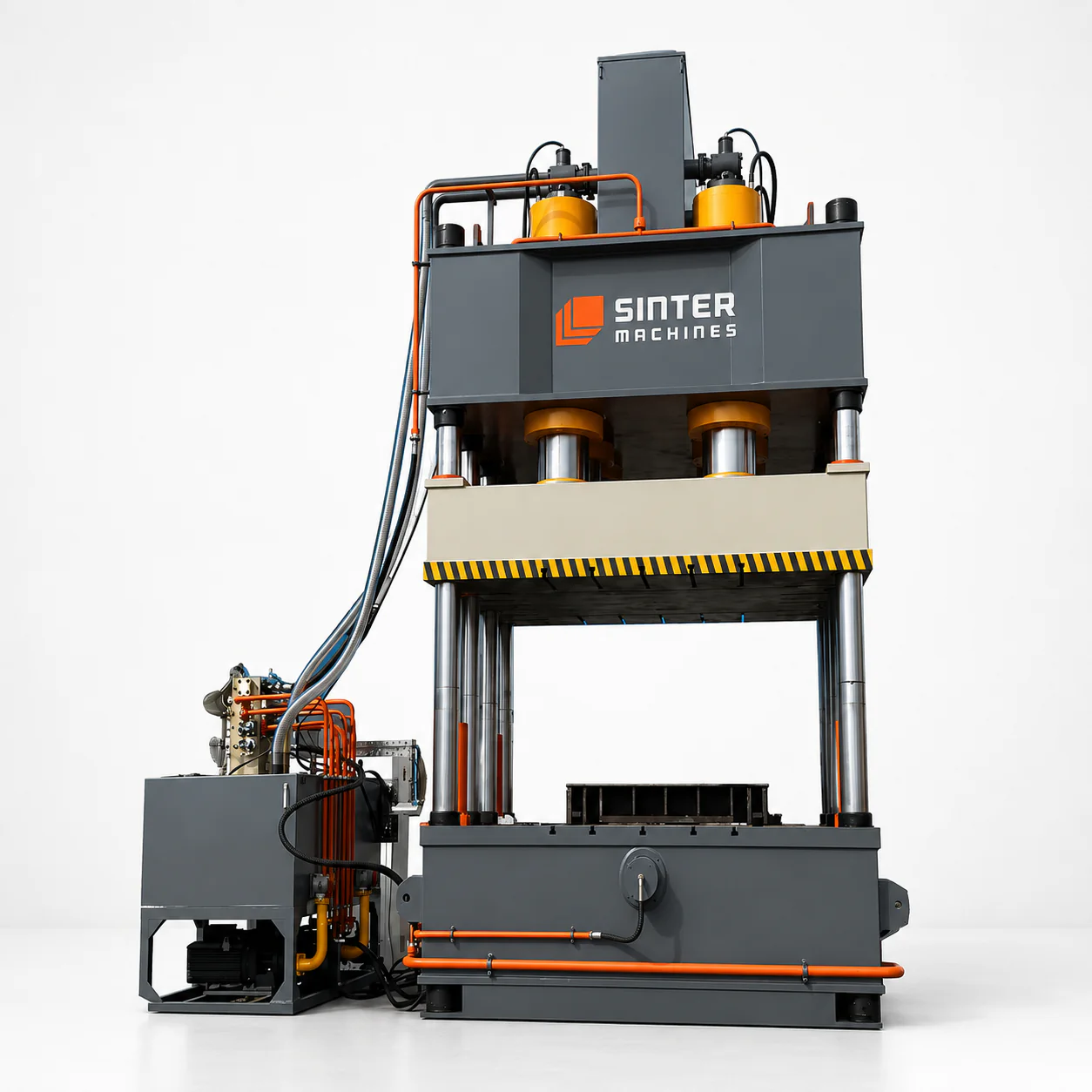

1000T Heavy duty Camshaft Lobes Press press view 1

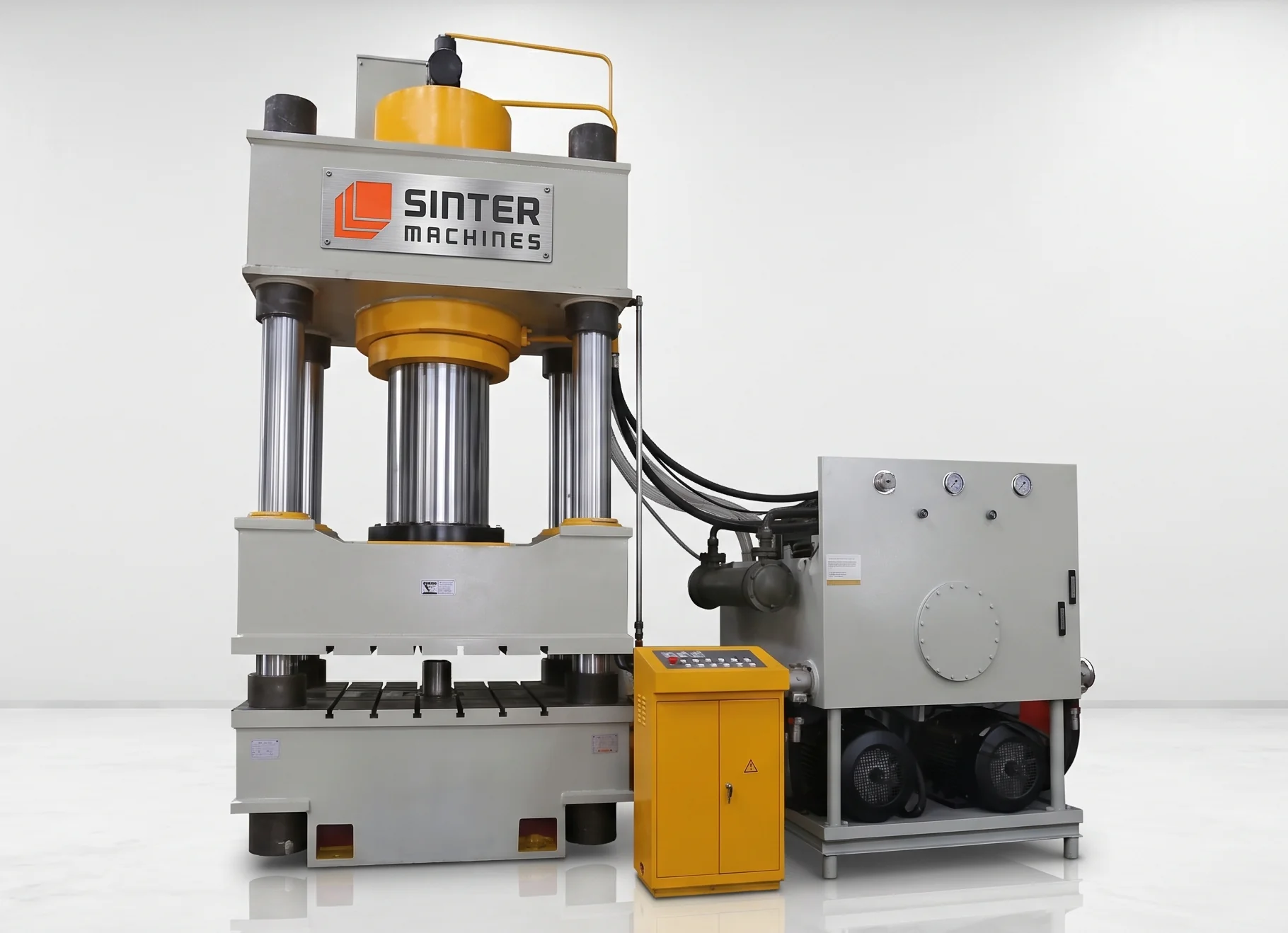

1000T Heavy duty Camshaft Lobes Press press view 2

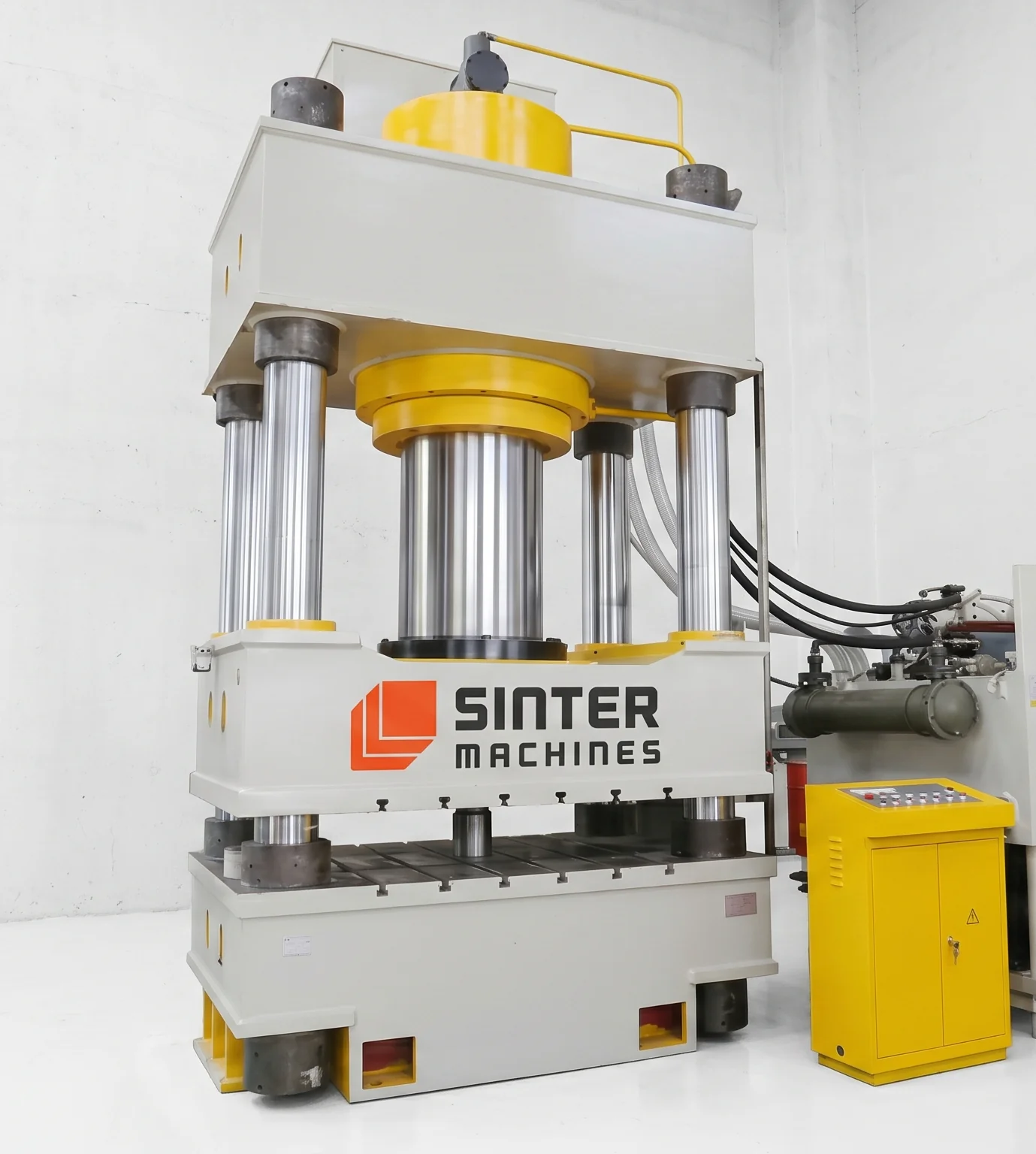

1000T Heavy duty Camshaft Lobes Press press view 3

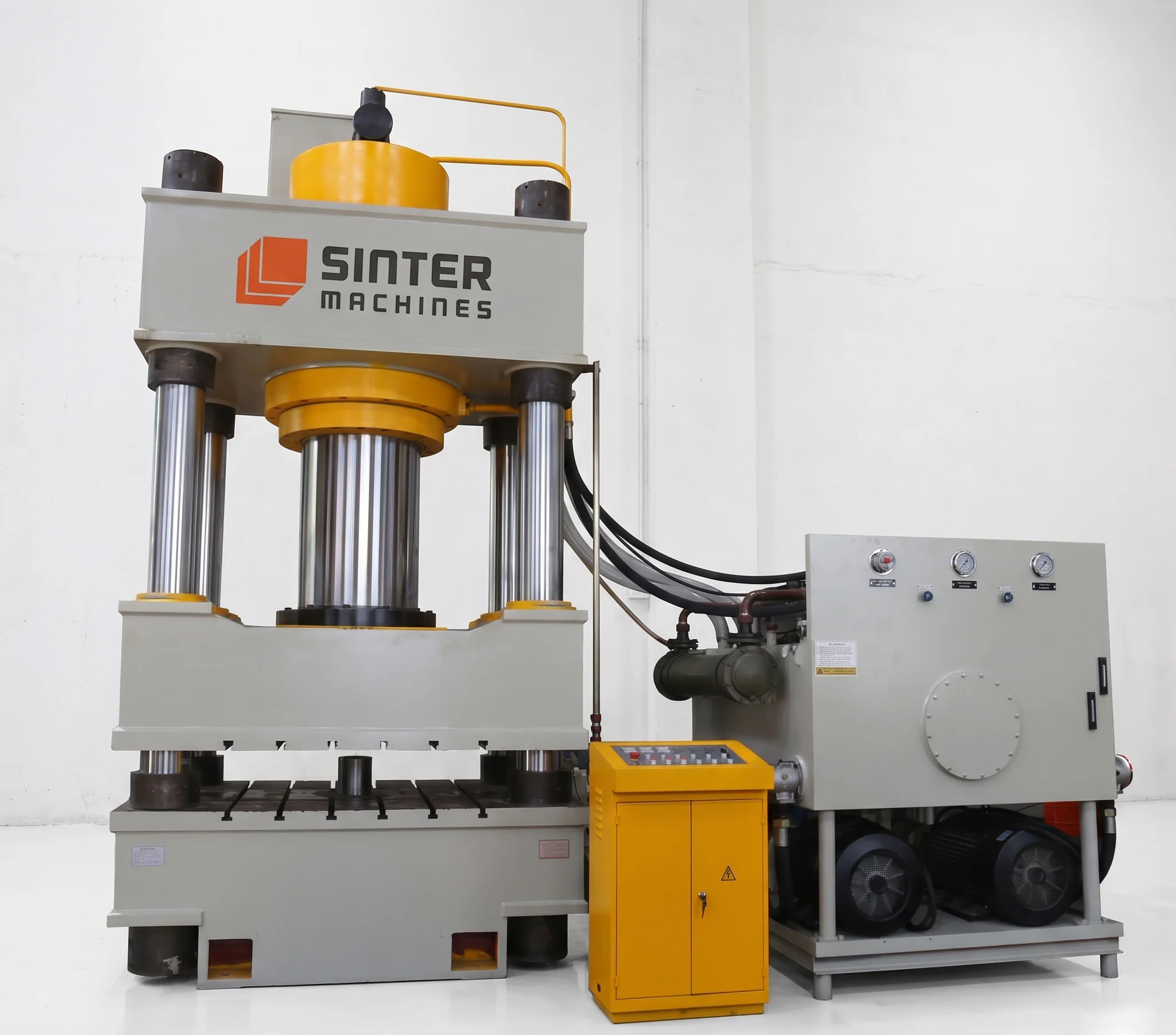

1000T Heavy duty Camshaft Lobes Press press view 4

01 — Press System

1000T Four Column Hydraulic Press Machine

Delivers extreme tonnage capacity designed to press high-density metal powders into complex camshaft lobe profiles. It maintains precise dimensional control and high core strength necessary for intense automotive engine environments.

Use Case

Specially developed for high-volume powder metallurgy manufacturing of heavy-duty engine camshaft lobes. It compacts high-performance alloy powders to near-net shapes to withstand extreme friction and mechanical stress.

  • Core Applications: High-tonnage compaction of assembled engine camshaft components for commercial, marine, and automotive heavy-duty powertrains. It is also utilized in manufacturing high-load powder metal gears, sprockets, and heavy industrial drive parts.
  • Material: Processes high-compressibility iron, iron-copper, stainless steel, and bronze powder alloys enriched with graphite and lubricants. Components often undergo post-sintering surface hardening and oil impregnation to optimize wear life under friction.
  • Products Processed: Assembled camshaft lobes, heavy-duty timing gears, drive sprockets, and complex structural powertrain components. These parts deliver superior fatigue resistance, extreme surface hardness, and precise eccentric lobe profiles.
  • Why 1000-Ton Hydraulic Press: Generates the massive compressive force required to achieve maximum green density across large surface areas without structural voids. The exceptional tonnage prevents elastic deflection, ensuring tight geometric tolerances on highly stressed lobe surfaces.

02 — Technical Specifications

SM 1000 HP – HYDRAULIC PRESS MACHINE COMPLETE TECHNICAL DATA

The SM 1000 HP – 1000 Ton Four Pillar Hydraulic Press is a high-capacity Powder Metallurgy (PM) compaction system specifically engineered for the manufacture of heavy-duty camshaft lobes. Equipped with a robust four-pillar structure, precision hydraulic controls, and high-force compaction capability of 10,000 kN, the machine ensures uniform density distribution, superior green strength, and excellent dimensional accuracy.

Capacity & Structural Design

  • Rated Compaction Force: 1000 metric tons (≈ 9,810 kN)
  • Press Configuration: Fourpillar / fourcolumn guided hydraulic press
  • Frame Construction: Heavy fabricated steel frame, stressrelieved
  • Design Standard: Heavyduty PM industrial production
  • Structural Safety Factor: ≥ 1.30
  • Deflection at Rated Load: ≤ 0.08 mm (critical for multicavity tooling)
  • Load Distribution: Uniform over entire platen surface

Hydraulic System

Main Hydraulic Cylinder

  • Type: Doubleacting, precisionguided
  • Bore Diameter: 500–600 mm
  • Stroke: 600–800 mm

Maximum Working Pressure: 30–32 MPa (300–320 bar)

Hydraulic Power Pack

  • Variable displacement axialpiston pumps
  • Servo or proportional pressure control valves
  • Closedloop load and position feedback

Pressing Modes

  • Constant pressure compaction
  • Positioncontrolled pressing
  • Multistage pressure with dwell (critical for valve seats)

Platen & Working Envelope

Upper & Lower Platen Dimensions

  • Standard: 1,000 × 1,000 mm
  • Optional: 1,200 × 1,200 mm (highcavity industrial tooling)

Guide Columns

  • Quantity: 4
  • Diameter: 160–200 mm
  • Surface: Hardened, hardchromed & precisionground

Daylight Opening: 1,200–1,600 mm

Platen Parallelism Accuracy: ±0.02 mm / 300 mm

Controls, Monitoring & Safety

Control System: PLC + industrial HMI (servohydraulic capable)

Process Monitoring

  • Compaction force vs displacement curve
  • Dwell pressure and time
  • Fill height and ejection position
  • Tool load balance (multicavity)

Safety Systems

  • Safety PLC
  • Light curtains / area scanners
  • Hydraulic overload protection
  • Emergency stop system (CE & ISO compliant)

SM 1000 HP — Model Specifications

  • Nominal Force: 10000 KN
  • Maximum Hydraulic Pressure: 25 MPa
  • Max Opening Height of the Slider: 1500 mm
  • Max Stroke of the Slider: 900 mm
  • Effective Bed Size: 1500 × 1500 mm
  • Slider Down Speed: 180 mm/s
  • Slider Pressing Speed: 10–18 mm/s
  • Slider Return Speed: 220 mm/s
  • Ejector Cylinder Nominal Force: 600 KN
  • Stroke of the Ejection Cylinder: 300 mm
Production Case Study

Powder Metallurgy (PM) Heavy Duty Camshaft Lobes Production Line

Iron, Steel, Bronze PowdersRaw Material
200g to 1200gProduct Weight
7.0 to 7.4 g/cm³Green Density
10 to 18 SecCycle Time
Ultra High Compaction Force
Extreme Green Density Output
Near Net Shape Accuracy
Multi Cavity Die Operation
Fully Automated Powder Feeding
Minimum Post Machining Needed
Continuous High Volume Output

03 — Die / Mold System

Precision Powder Metallurgy (PM) Heavy Duty Camshaft Lobes Die Mold Engineering

The Precision Powder Metallurgy (PM) Heavy Duty Camshaft Lobes Die Mold Engineering project successfully developed a high-accuracy die mold capable of producing complex cam lobe geometries with excellent dimensional consistency. Optimized tooling design and material selection improved compaction performance, reduced die wear, and enhanced production efficiency.

Technical Specifications (Tooling)

Tool Type

  • Precision PM Camshaft Lobe Compaction Die Set
  • Single-Level and Multi-Level Tooling
  • Floating Die or Fixed Die Configuration
  • Hydraulic and Mechanical Press Compatible

Tool Materials

  • Tungsten Carbide (WC-Co)
  • High-Speed Steel (HSS)
  • PM Tool Steels (ASP Series)
  • AISI D2 and M2 Tool Steel
  • Carbide Inserts for high-wear regions

Tool Construction

  • Modular die assembly with replaceable wear components
  • Precision-ground punches and die cavities
  • Heavy-duty guide pillar and bushing system
  • Carbide-reinforced wear surfaces
  • Optimized tooling design for high compaction loads and profile accuracy

Multi-Level Tooling

  • Suitable for complex cam lobe geometries
  • Independent upper and lower punch movement
  • Controlled density distribution across lobe profiles
  • Supports stepped and contoured component features
  • High-precision stroke synchronization

Alignment Accuracy

  • Die-to-punch concentricity: ≤ 0.005 mm
  • Tool alignment tolerance: ± 0.01 mm
  • Precision guide systems for repeatable accuracy
  • Minimized punch deflection and uneven wear

Surface Finish

  • Die cavity finish: Ra 0.05–0.20 µm
  • Punch finish: Ra 0.05–0.15 µm
  • Mirror-polished working surfaces
  • Improved powder flow and component release

Lubrication

  • Integrated die-wall lubrication capability
  • Compatible with PM-grade lubricants and zinc stearate
  • Optional automatic lubrication systems
  • Reduced friction and tooling wear

Tool Life

  • Carbide Die Inserts: 500,000–2,000,000+ cycles
  • Punches: 200,000–1,000,000+ cycles
  • Core Rods: 150,000–800,000+ cycles
  • Extended service life through optimized alignment, lubrication, and maintenance
Case Study (Die Performance)

Powder Metallurgy (PM) Heavy Duty Camshaft Lobes Die Mold Tooling

AISI H13 Tool SteelDie Steel
62 to 66 HRCHardness
Vacuum HardeningHeat Treatment
Extreme Wear Resistance
High Tonnage Resistance
Extended Tooling Life
Superior Surface Finish
High Fatigue Strength
Polished Lobe Cavity

04 — Product Application

Where Powder Metallurgy (PM) Heavy Duty Camshaft Lobes Are Used

Powder Metallurgy (PM) Heavy Duty Camshaft Lobes are widely used in diesel engines, commercial vehicles, agricultural machinery, construction equipment, and industrial powertrain systems where high strength and wear resistance are essential. Their precision-engineered profiles ensure efficient valve timing, improved engine performance, and long service life under demanding operating conditions.

Industry Applications

Industrial & HeavyVehicle Engines

For Industrial & HeavyVehicle Engines, advanced valve-seat and valve-guide solutions deliver superior durability under extreme temperatures, pressures, and continuous-duty operating conditions. Hightemperature exhaust valve guides and turbocharger-related valve components ensure reliable engine performance, improved thermal resistance, and reduced maintenance requirements.

Construction, Mining & OffHighway Equipment

For Construction, Mining & OffHighway Equipment, robust diesel engine valve systems and highload, hightemperature engine assemblies are engineered to withstand severe operating environments and continuous heavy-duty use. These components provide exceptional wear resistance, thermal stability, and reliable performance under demanding field conditions.

Power Generation

For Power Generation applications, generator engine valve seats and guides are designed to deliver reliable performance under continuous operation and demanding thermal conditions. Engineered for durability and precision, these components minimize wear, maintain combustion efficiency, and support consistent power output.

Marine Engines

Powder Metallurgy (PM) heavy-duty camshaft lobes are widely used in marine engines to withstand high loads, continuous operation, and demanding environmental conditions. Their superior wear resistance and dimensional precision help maintain accurate valve timing, improving engine reliability, efficiency, and service life in commercial and offshore vessels.

Finished Product Gallery

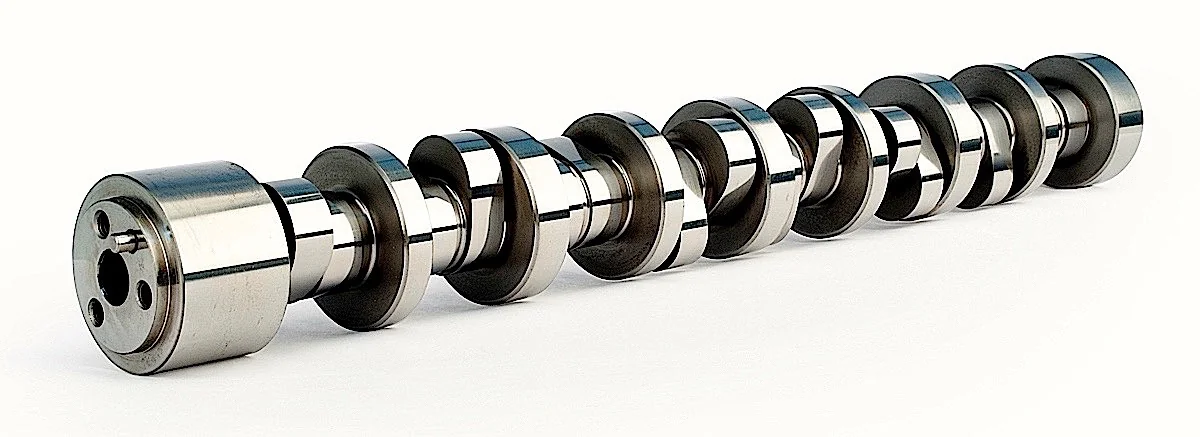

1000T Heavy duty Camshaft Lobes Press finished product 1

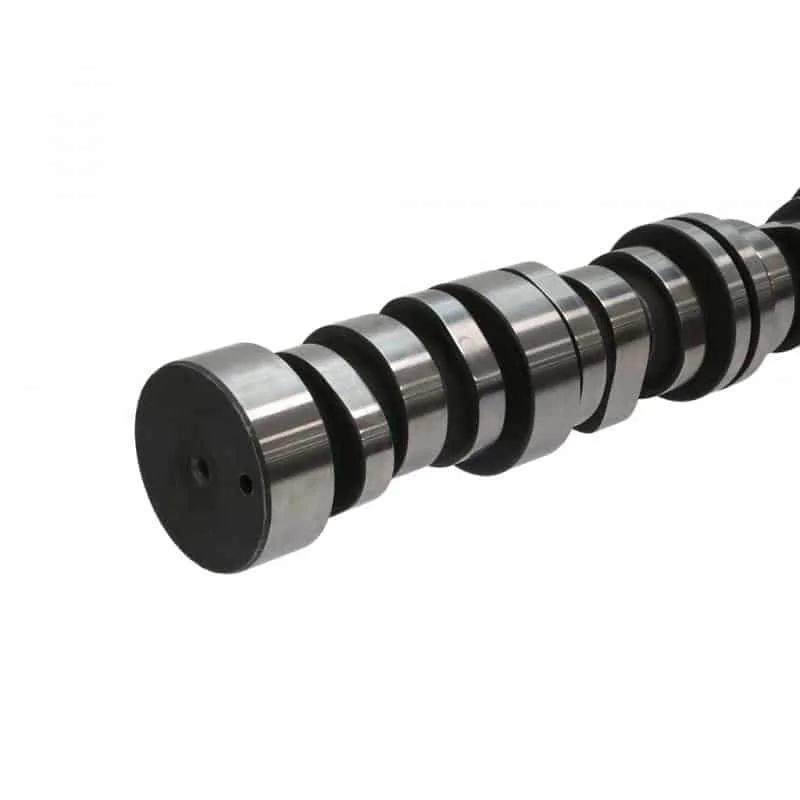

1000T Heavy duty Camshaft Lobes Press finished product 2
1000T Heavy duty Camshaft Lobes Press finished product 3

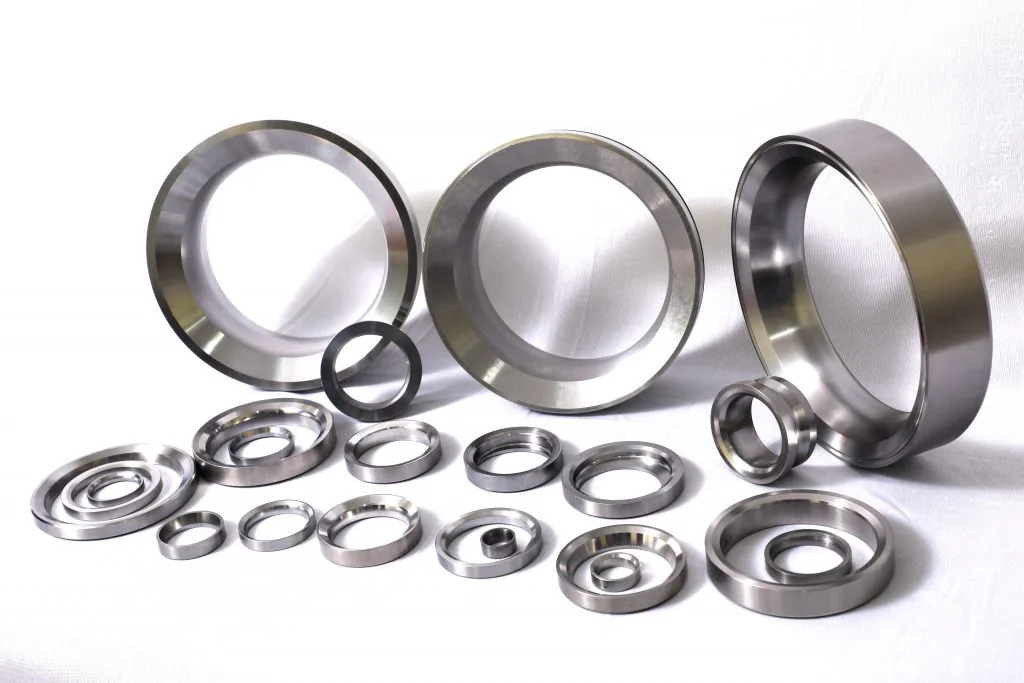

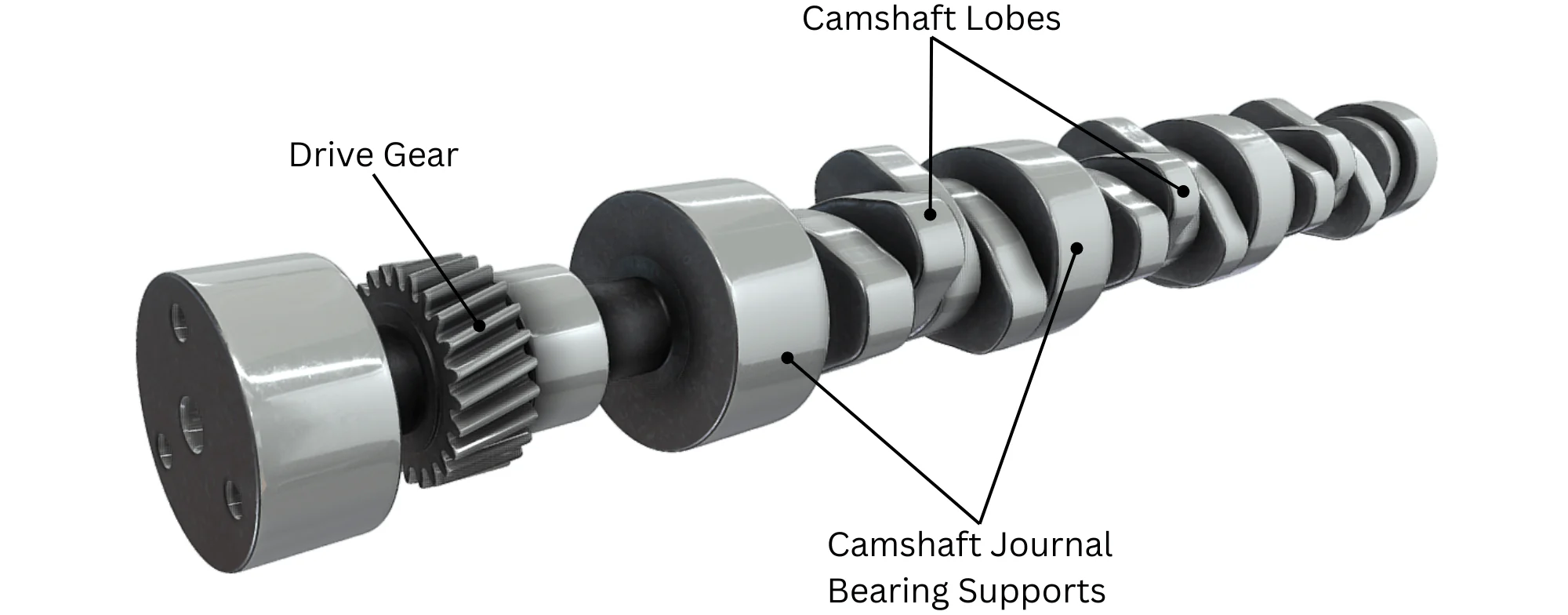

1000T Heavy duty Camshaft Lobes Press finished product 4

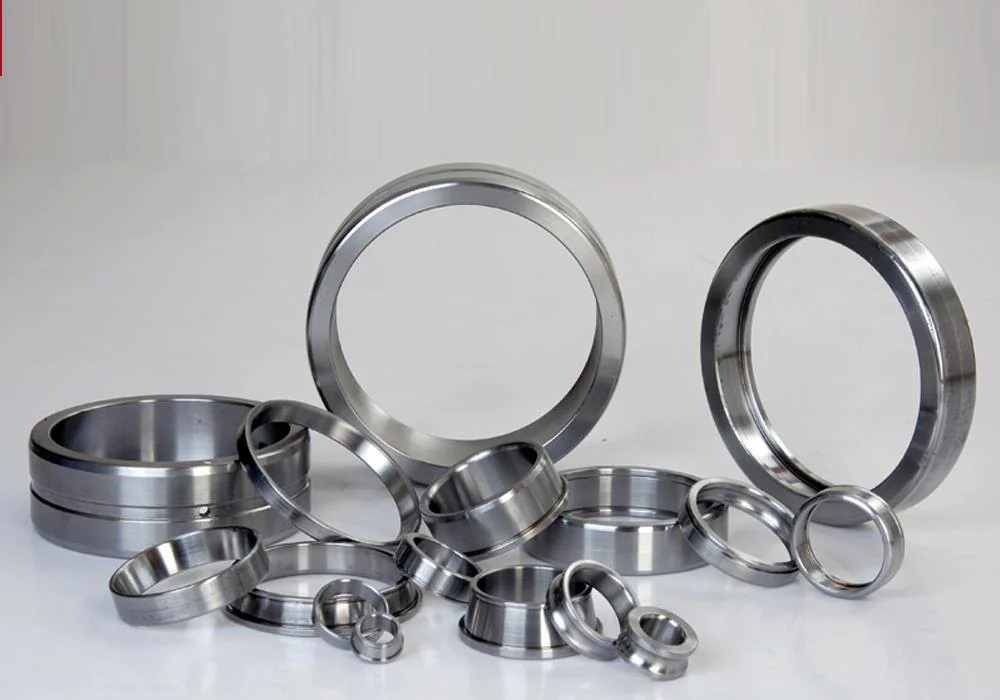

1000T Heavy duty Camshaft Lobes Press finished product 5

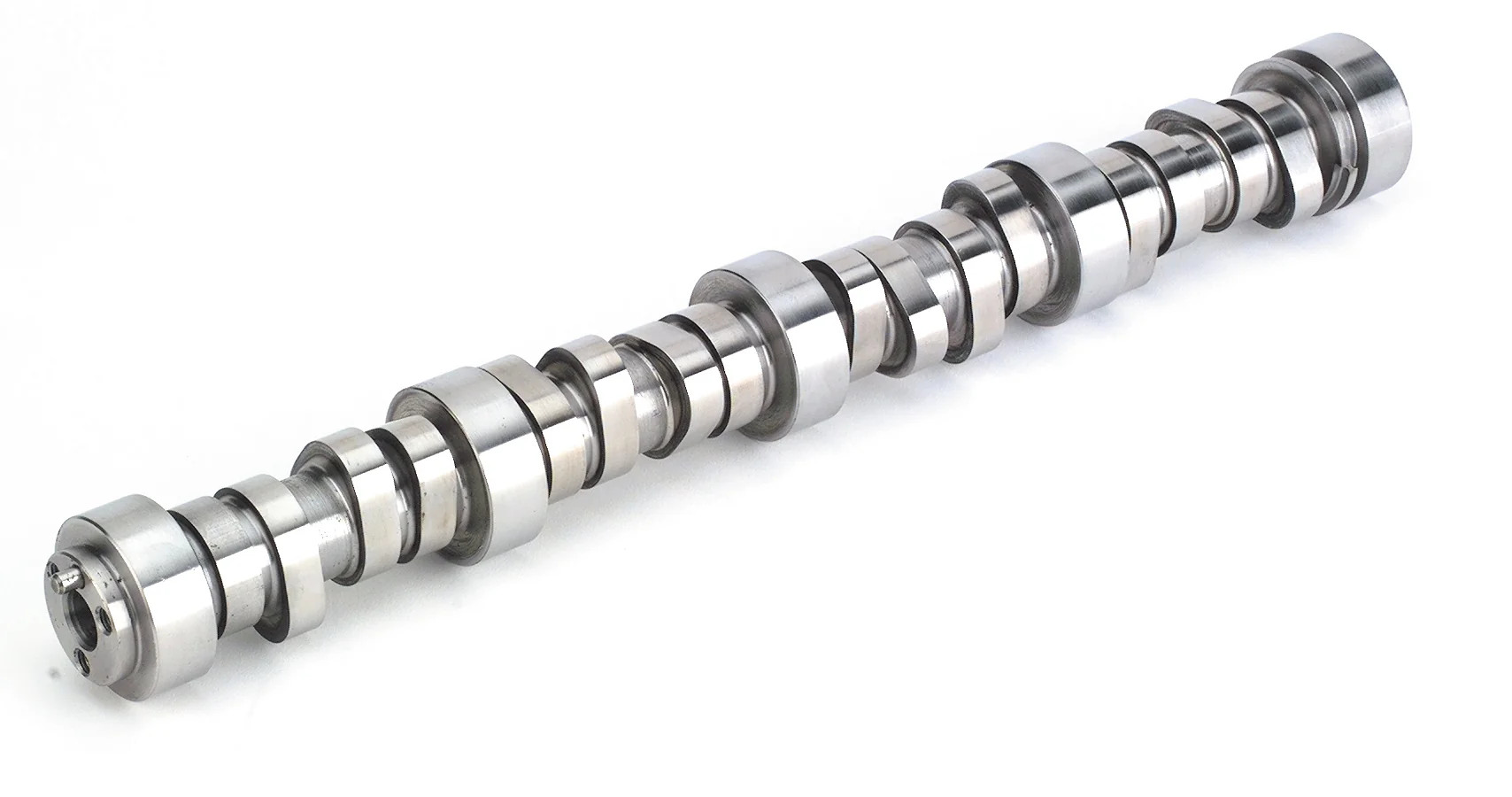

1000T Heavy duty Camshaft Lobes Press finished product 6

05 — Key Advantages

Why Choose the 1000-Ton Sinter Hydraulic Press

Why Choose the 1000-Ton Sinter Hydraulic Press for Powder Metallurgy (PM) Heavy-Duty Camshaft Lobes: The 1000-ton Sinter Hydraulic Press provides the high compaction force required to produce dense, high-strength PM camshaft lobes capable of withstanding extreme loads and wear conditions. Its precise control of pressure and dimensional accuracy ensures consistent part quality, improved fatigue performance, and reduced material waste.

01

Superior Compaction Force

Delivers exceptional compaction force, enabling the production of high-density Powder Metallurgy (PM) heavy-duty camshaft lobes with superior structural integrity. Higher compaction levels reduce porosity, resulting in improved strength, wear resistance, and fatigue performance.

02

Consistent Part Quality

Ensures consistent part quality through precise control of compaction pressure, stroke, and process parameters. This results in uniform density distribution across Powder Metallurgy (PM) heavy-duty camshaft lobes, minimizing defects and dimensional variations. The repeatable manufacturing process enhances product reliability, reduces scrap rates, and ensures dependable performance in demanding engine applications.

03

High Dimensional Accuracy

Delivers high dimensional accuracy by maintaining precise control over compaction force and tooling alignment throughout the pressing cycle. This ensures Powder Metallurgy (PM) heavy-duty camshaft lobes are produced with tight tolerances and consistent geometry. The result is reduced machining requirements, improved assembly fit, and enhanced overall component performance and reliability.

04

Enhanced Mechanical Performance

Enhances the mechanical performance of Powder Metallurgy (PM) heavy-duty camshaft lobes by achieving optimal material density and uniform microstructure. This results in superior wear resistance, fatigue strength, and load-bearing capacity, enabling components to perform reliably under high-stress operating conditions. The improved mechanical properties contribute to longer service life, greater engine efficiency, and reduced maintenance requirements.

05

Increased Production Efficiency

Increases production efficiency by enabling fast, consistent, and high-volume manufacturing of Powder Metallurgy (PM) heavy-duty camshaft lobes. Its advanced control systems optimize cycle times while maintaining uniform part quality, reducing downtime and minimizing production losses. The result is higher throughput, improved operational productivity, and lower overall manufacturing costs.

06

Lower Lifecycle Costs

Helps lower lifecycle costs by producing high-density, high-quality Powder Metallurgy (PM) heavy-duty camshaft lobes with minimal defects and reduced material waste. Its ability to manufacture durable components with superior wear resistance extends service life and decreases maintenance frequency. This results in lower operating expenses, reduced downtime, and a better return on investment over the product's lifetime.
