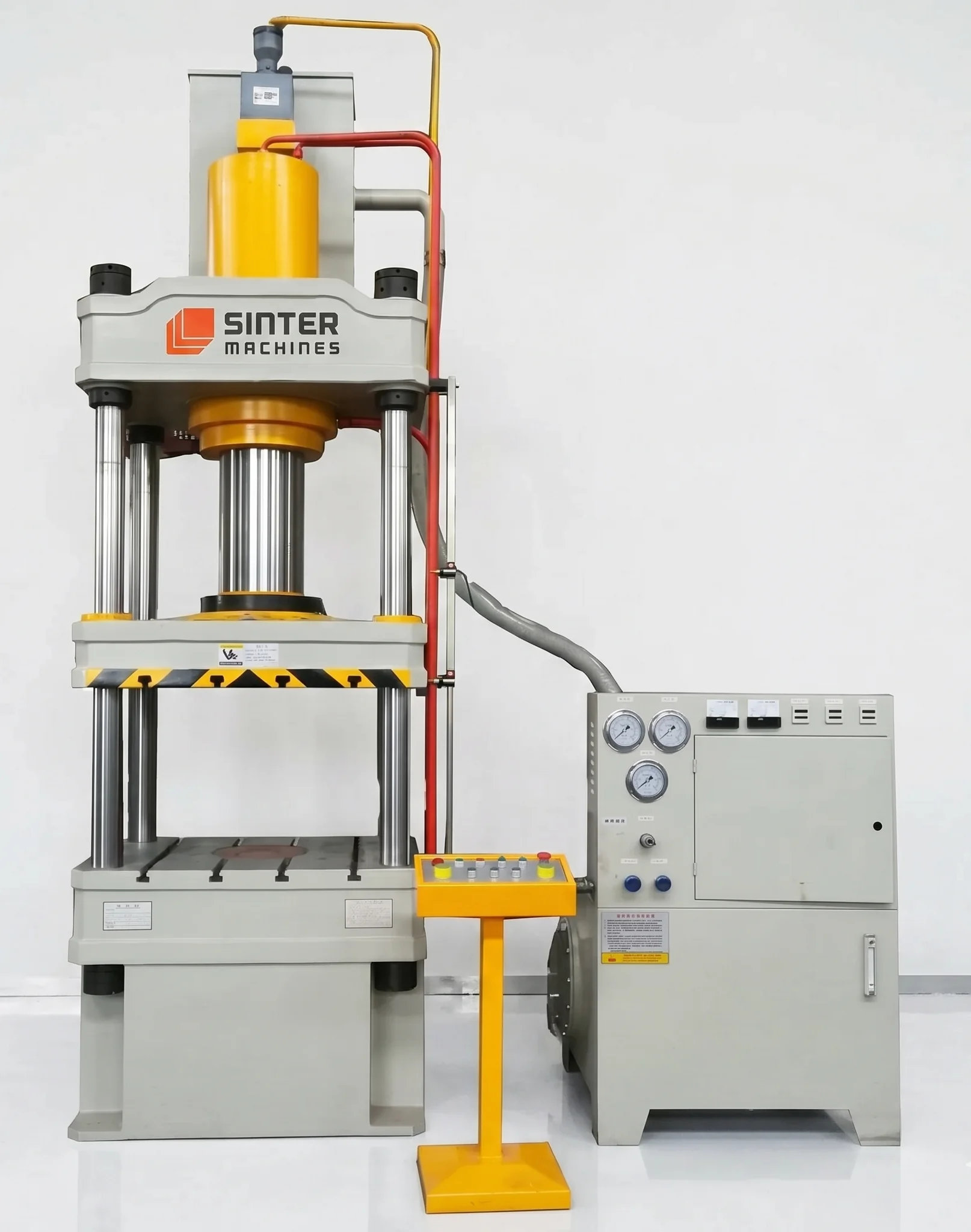

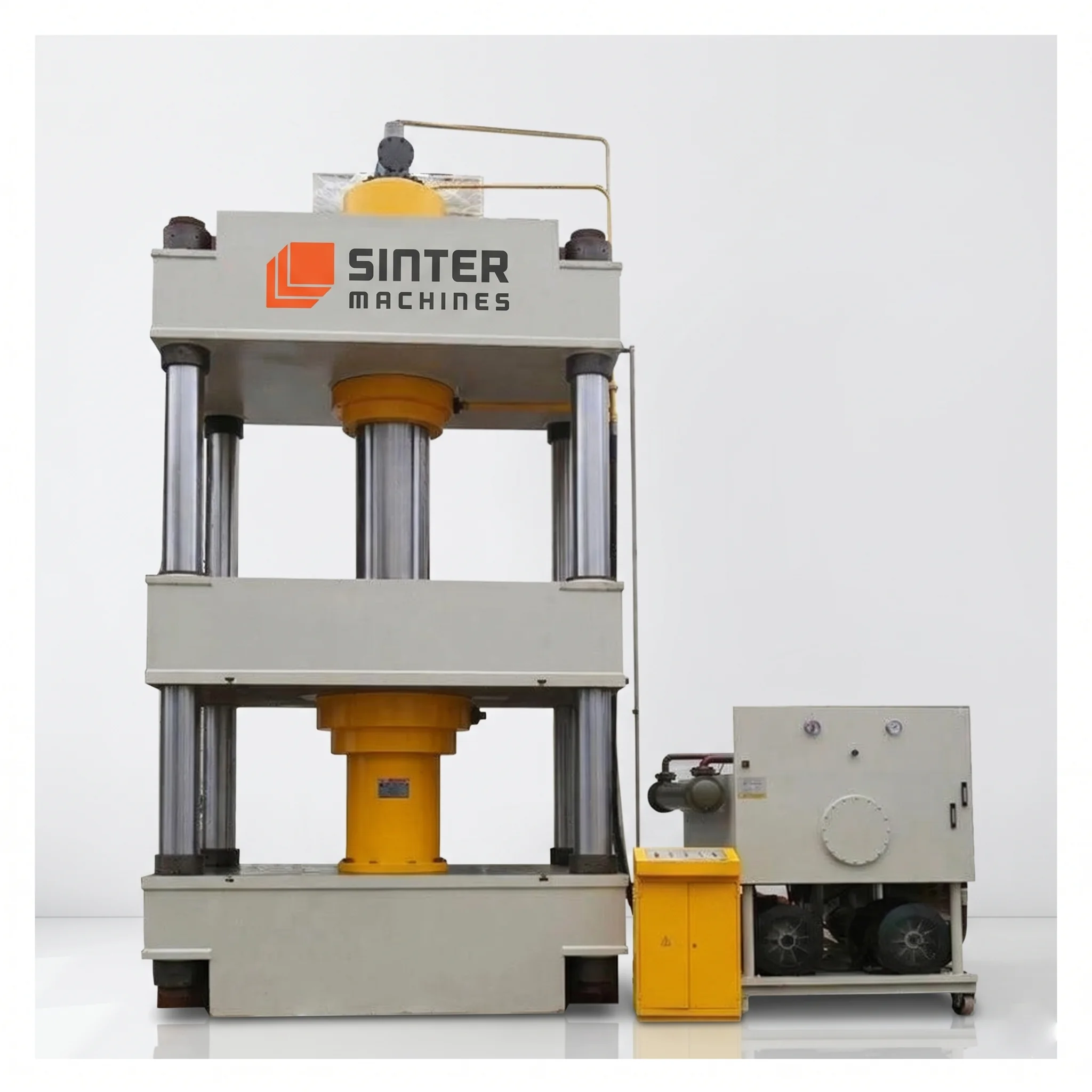

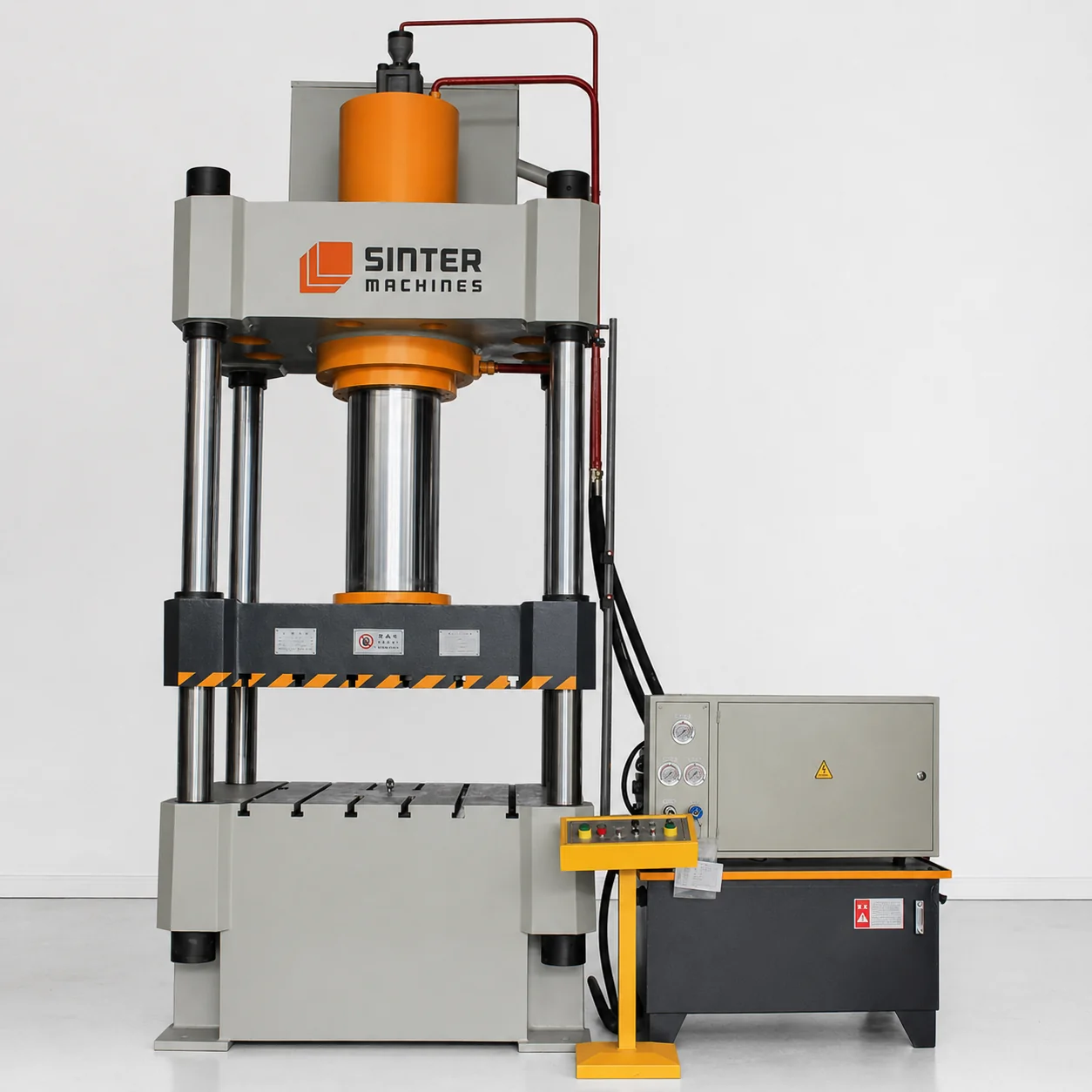

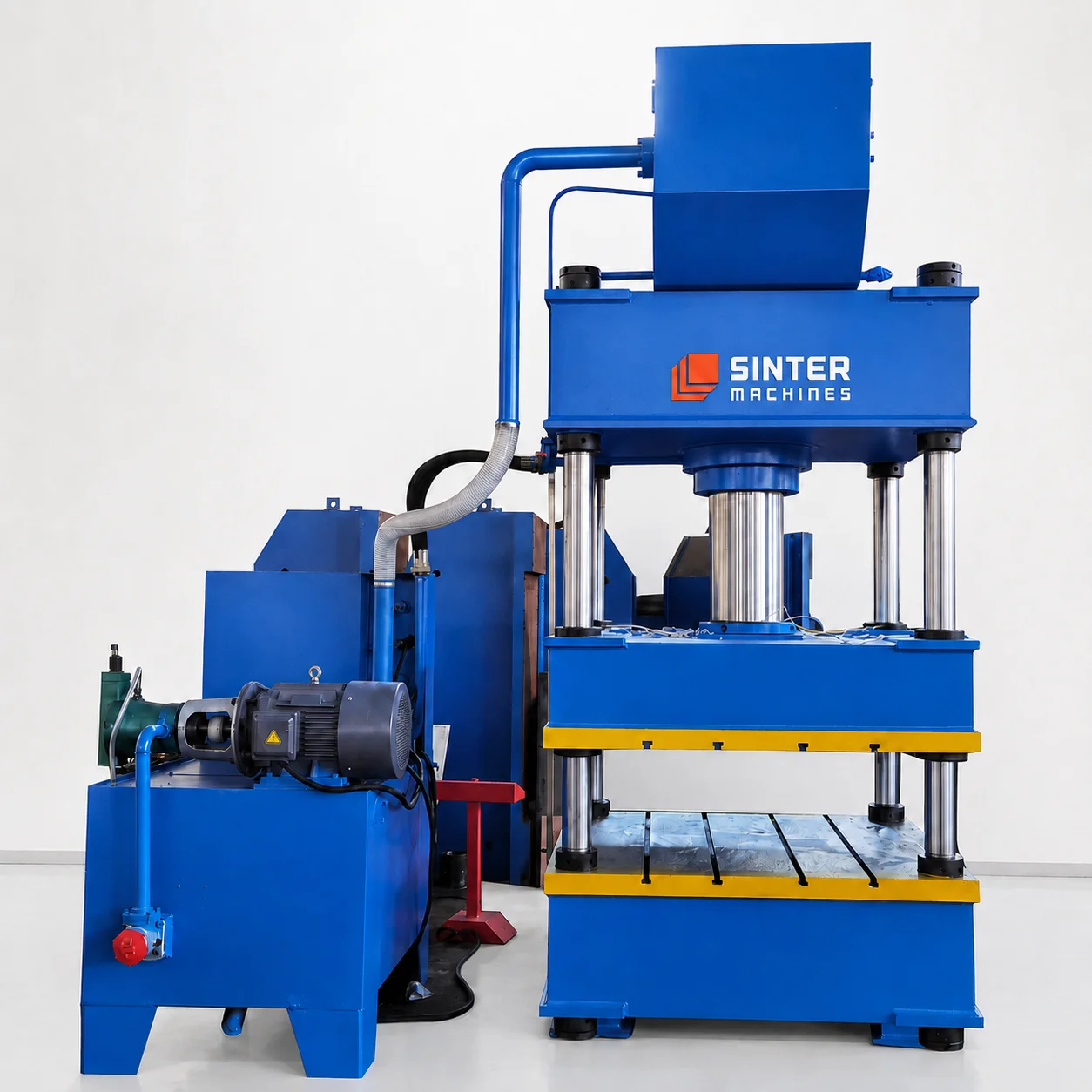

100T Four Column Hydraulic Press for Hungchaoite Powder Block
Hungchaoite Powder Block Compression 4-Column Hydraulic Press Machine is a specialized industrial compaction system designed to press fine hungchaoite powder (MgB4O5(OH)4 .7H2O), a hydrated magnesium borate mineral, into dense, uniform solid blocks, tablets, or briquettes.
These machines are utilized in chemical processing, borate refining preparation, and industrial manufacturing, where loose hydrous mineral powders must be consolidated to minimize dusting, prevent material loss, and optimize material handling or feed rates.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
High-Precision Guidance: Hydrated borate mineral powders require strict control over compaction uniformity to prevent structural weak points or density gradients. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Rigid Load Distribution: Compacting mineral powders requires continuous high tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity.
Moisture & Material Sensitivity: Because hungchaoite is a hydrous borate containing substantial crystal water, press tooling features corrosion-resistant finishes or specialized liners to protect against chemical reactivity and moisture degradation over long operational cycles.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 40 Tons to 300+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | Corrosion-resistant alloy tool steel or specialized wear-resistant inserts designed to handle soft, hydrous mineral powders |
Hydraulic Drive | Variable displacement piston pumps or servo-hydraulic systems with smooth proportional pressure control |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Volumetric Feeding: An automated, calibrated feed shoe slides precisely over the die cavity to deposit a measured volume of loose hungchaoite powder, ensuring uniform fill density and minimizing airborne dust.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate and the mineral particles to firmly settle, minimizing internal stress or cracking.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent surface cracking from elastic springback. A bottom ejection cylinder then cleanly pushes the solid hungchaoite block out of the die cavity for downstream processing or storage.

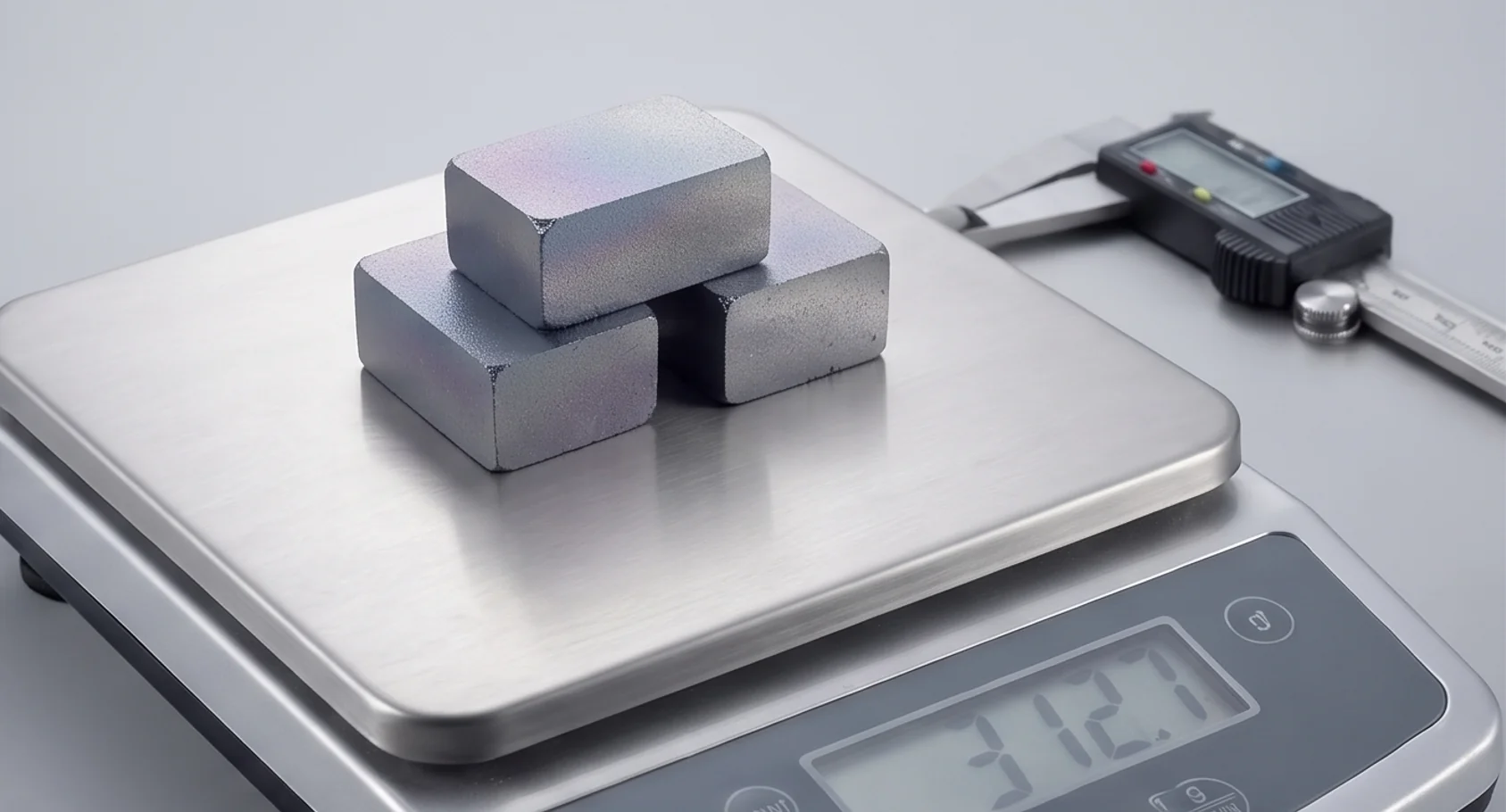

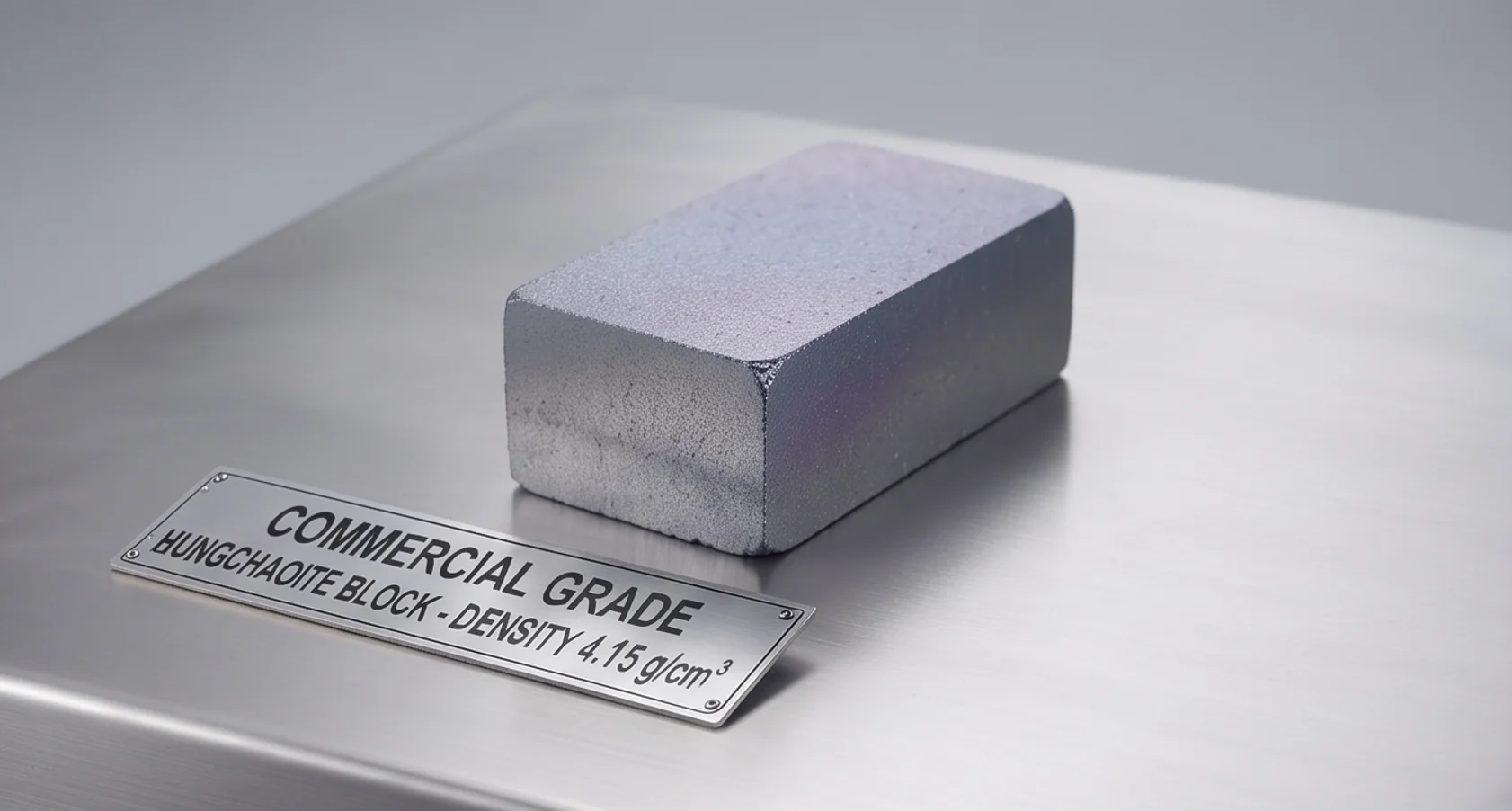

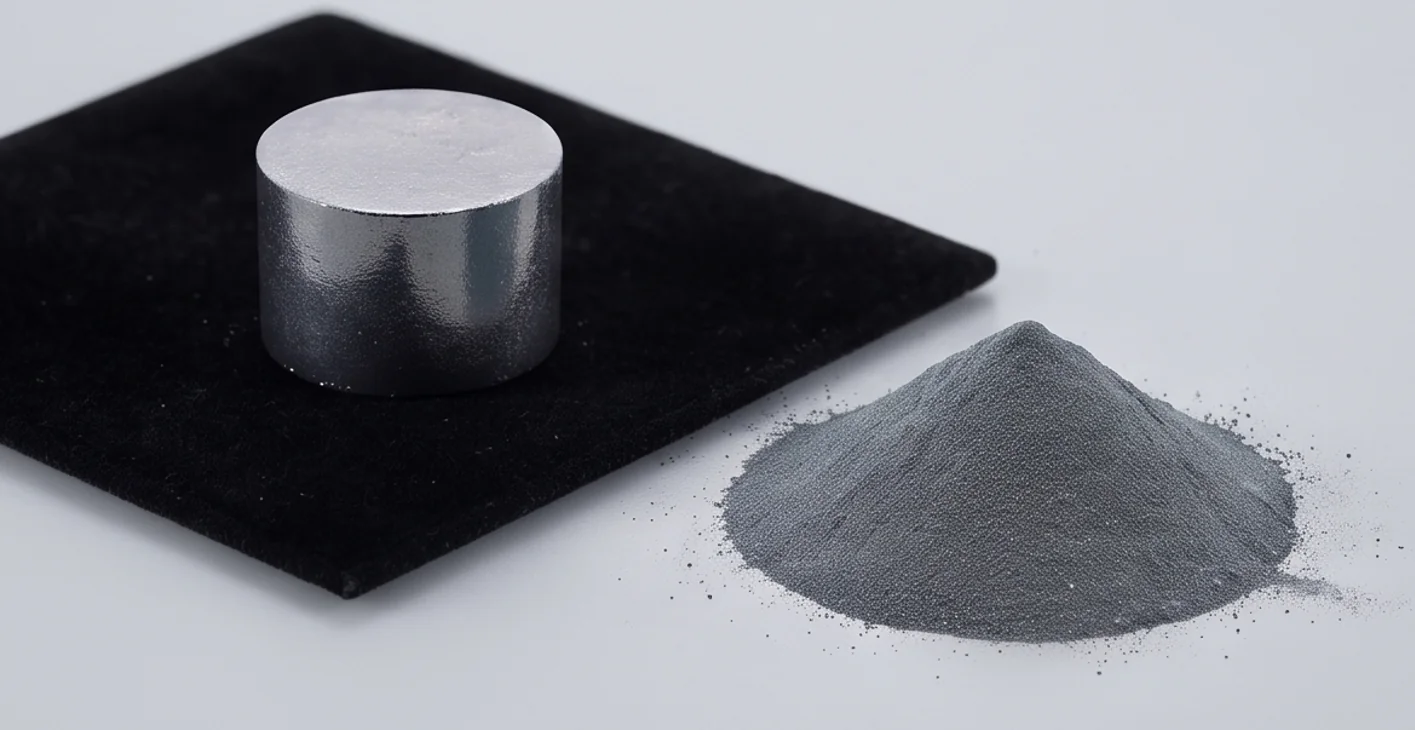

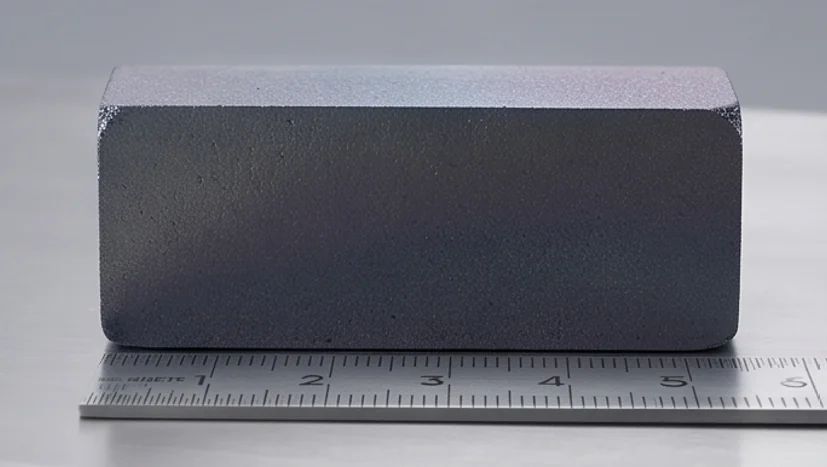

Finished Product Gallery
