02 — Technical Specifications
SM 400 HP – HYDRAULIC PRESS MACHINE COMPLETE TECHNICAL DATA

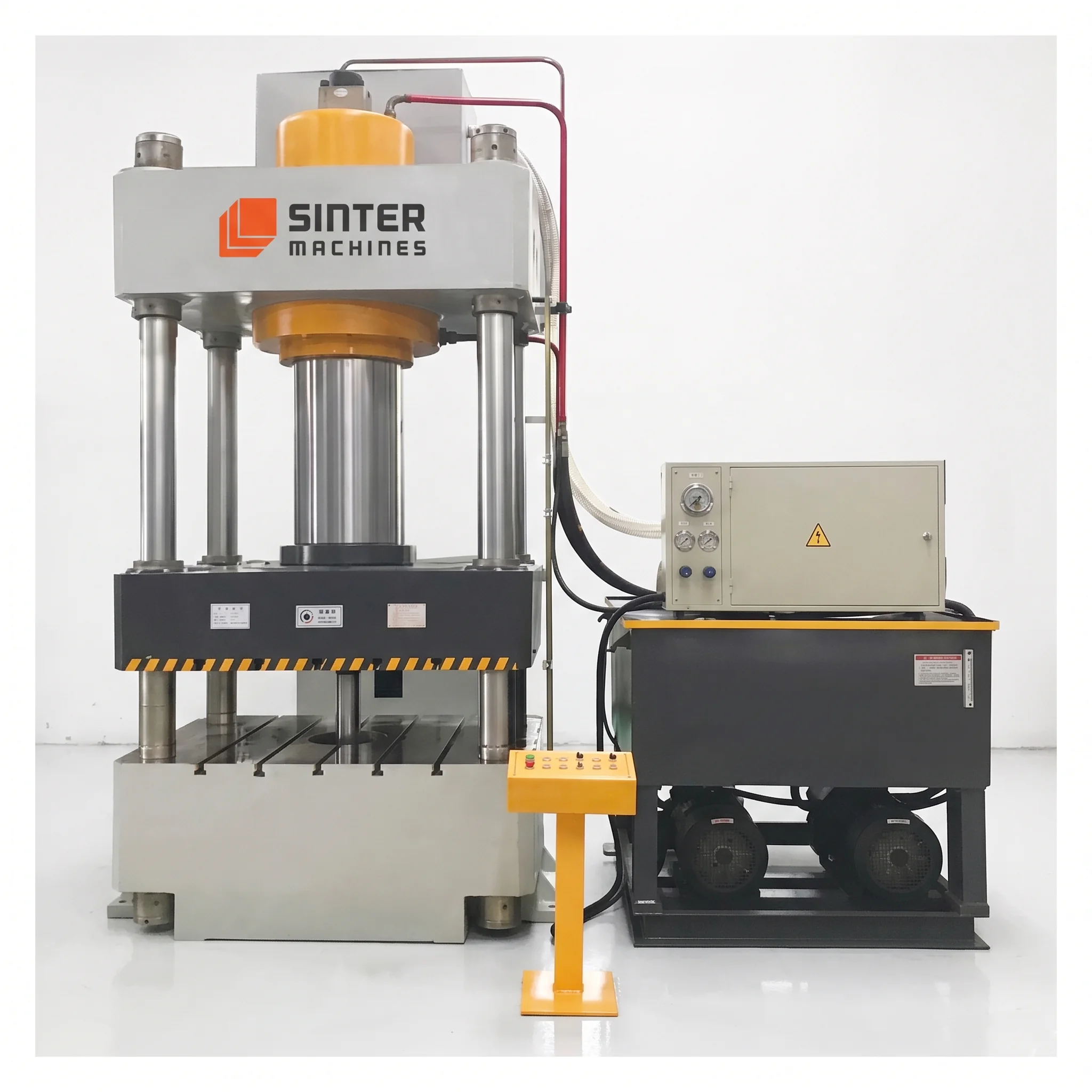

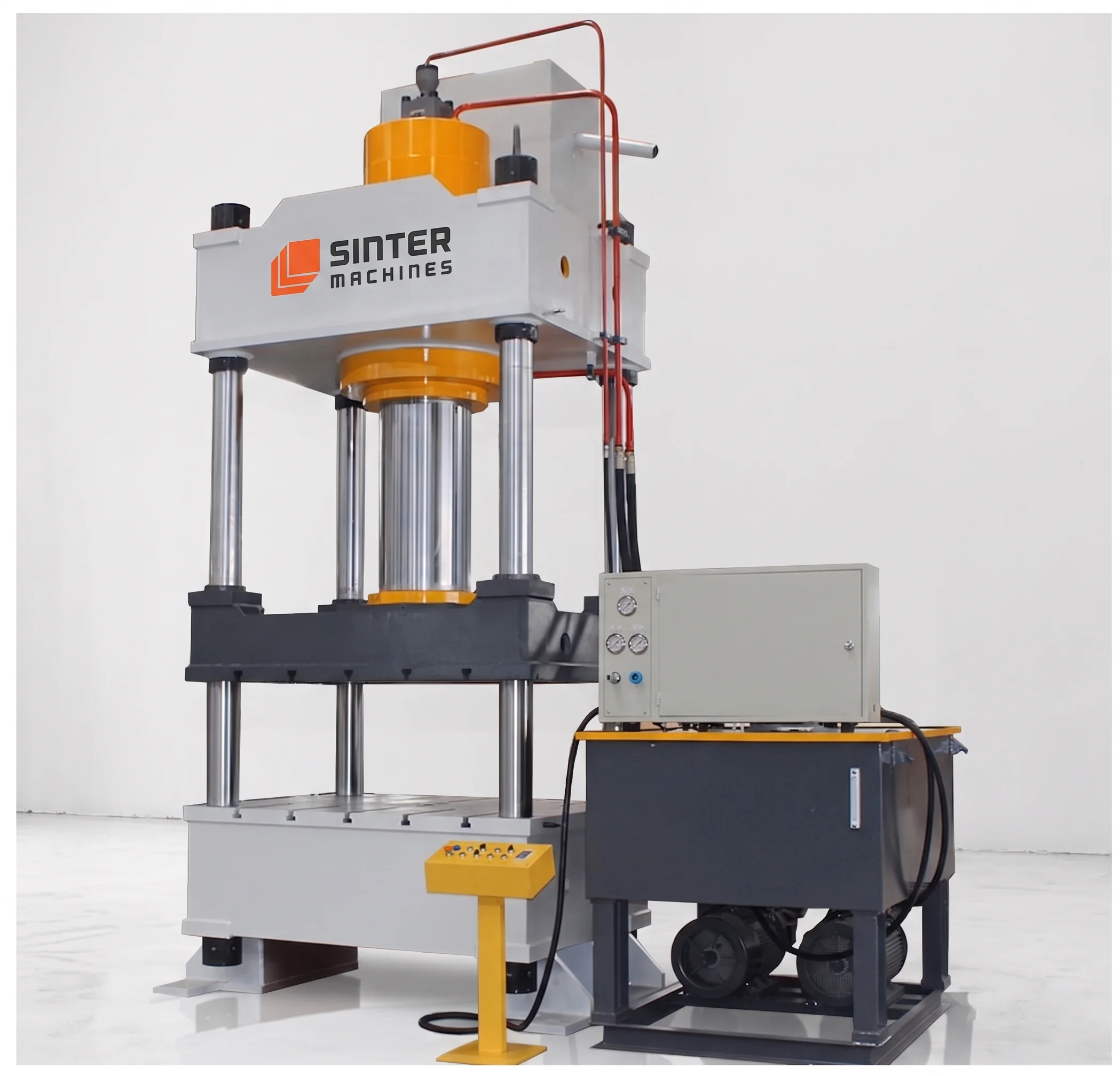

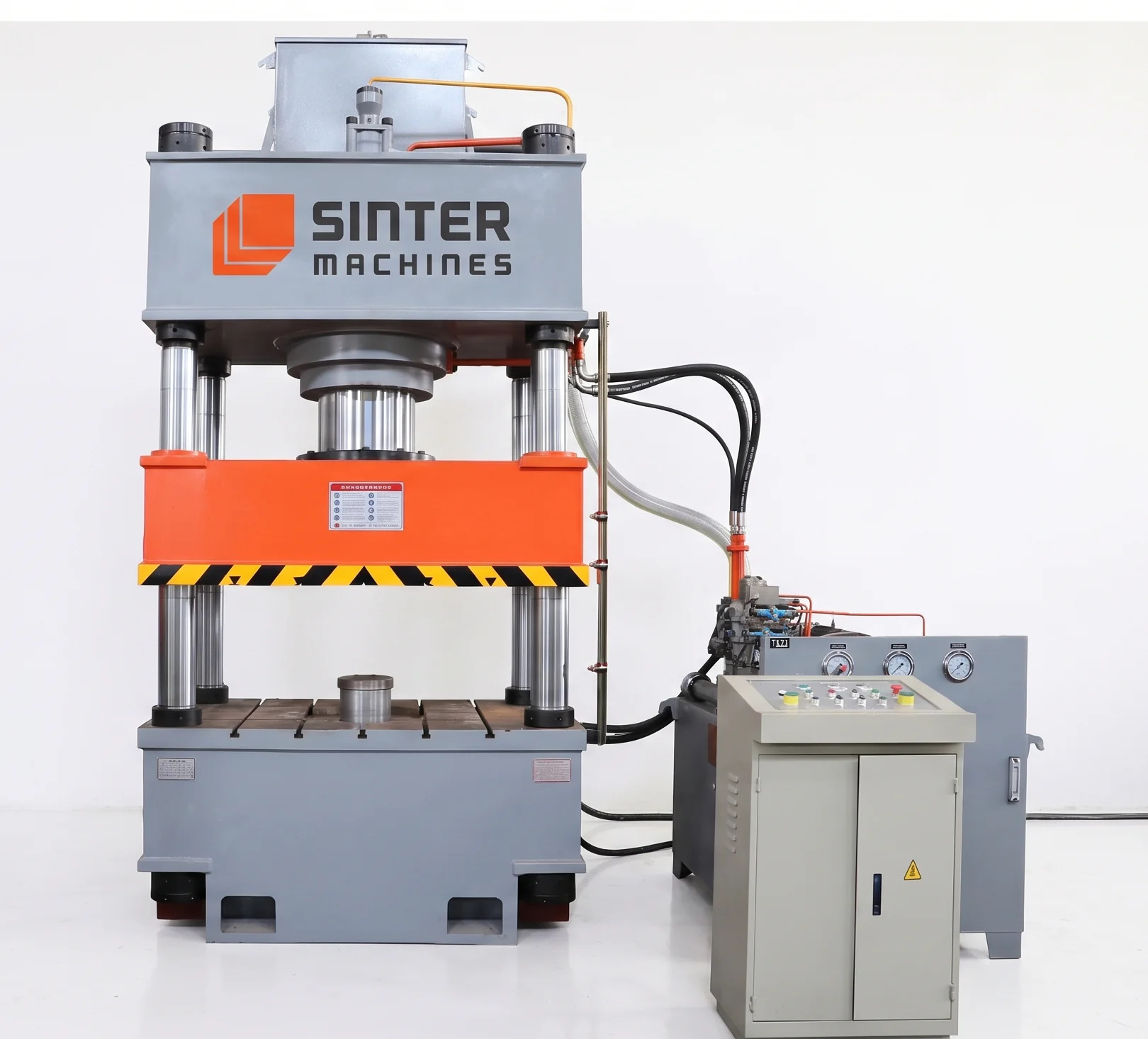

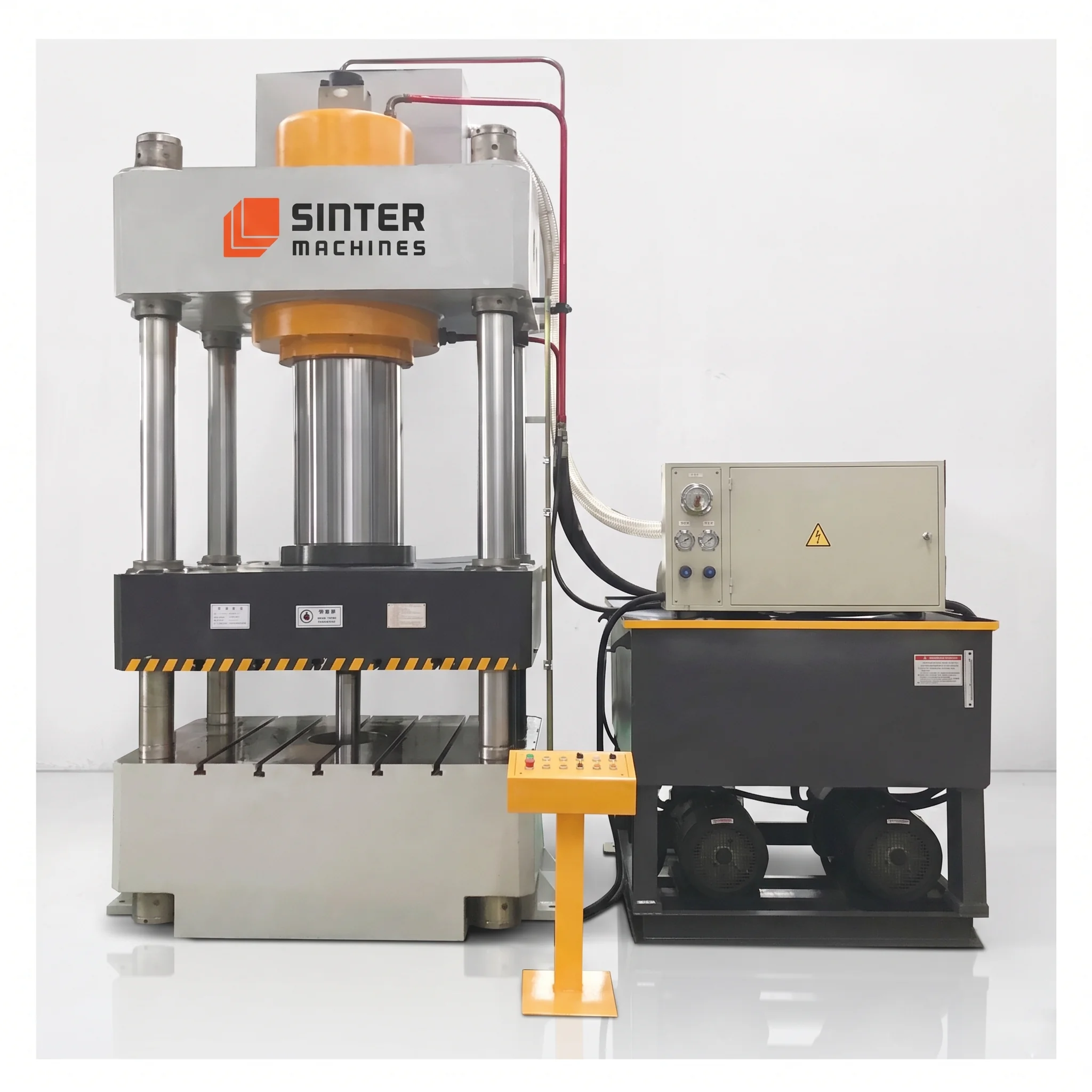

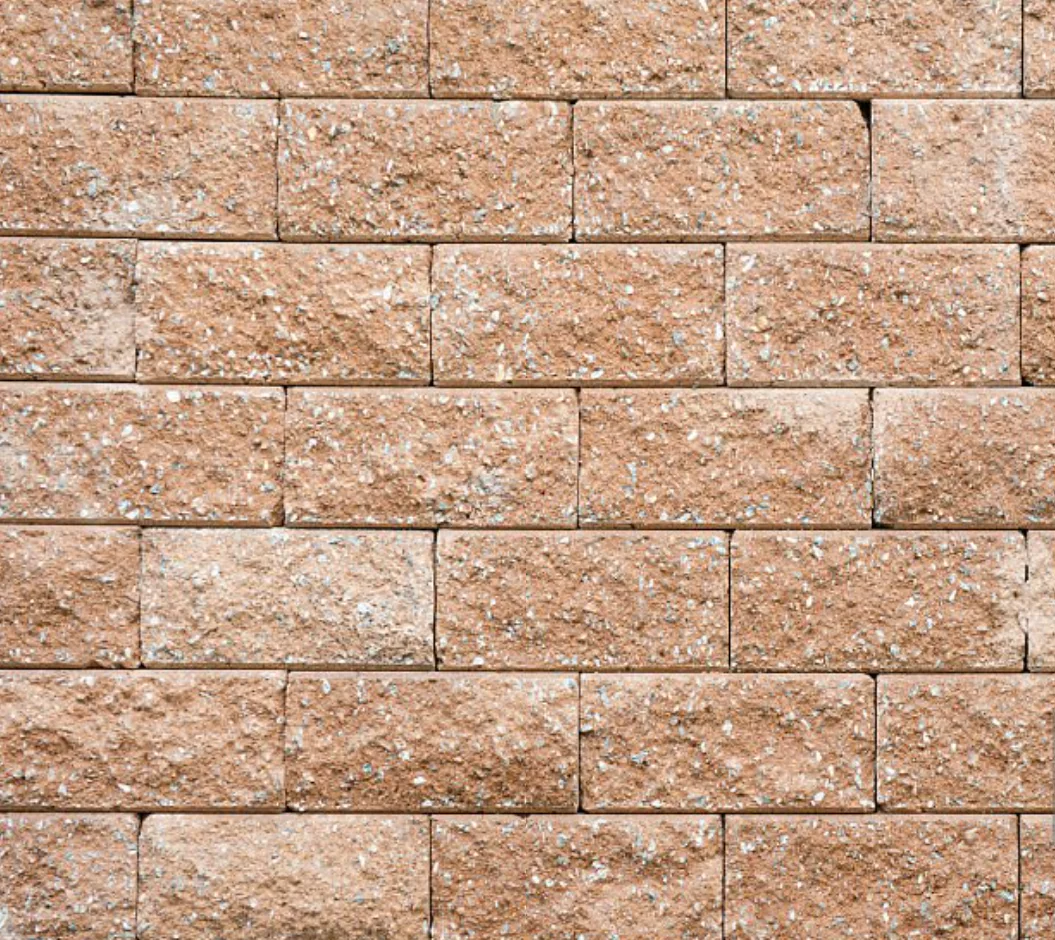

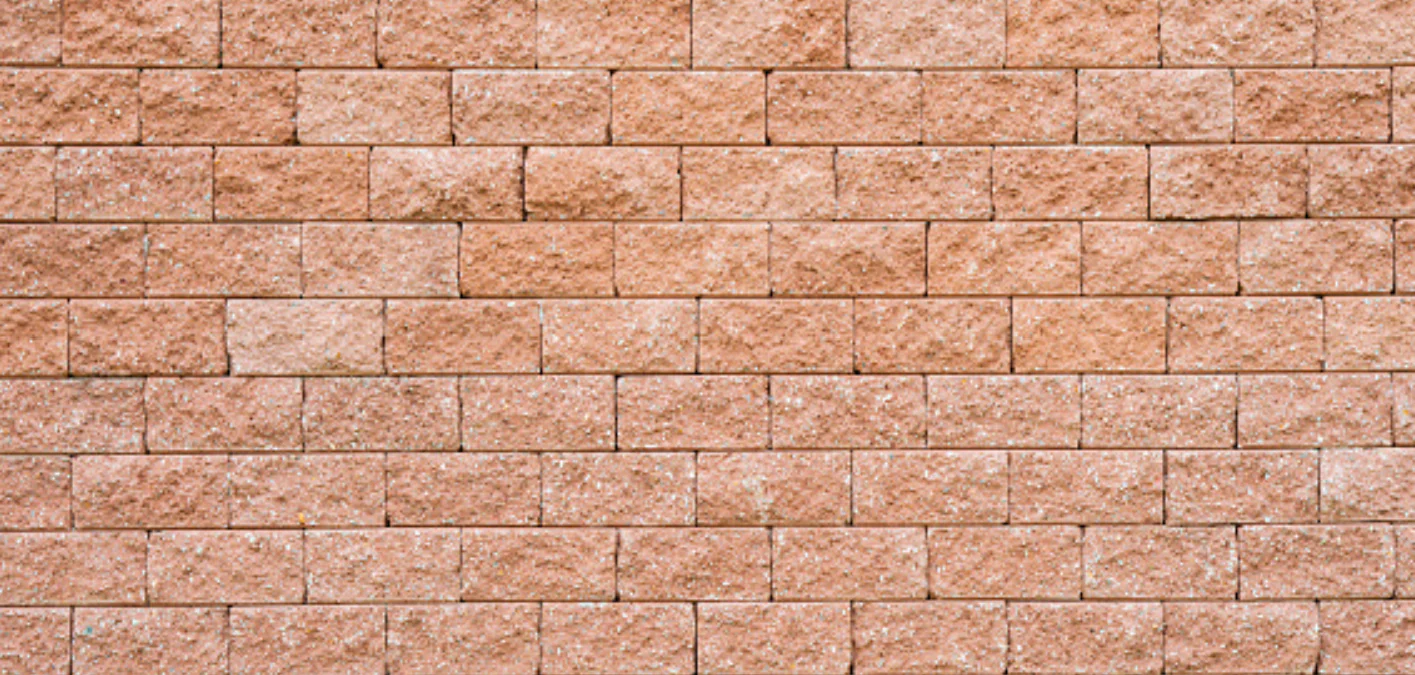

The SM 400 HP hydraulic press generates massive compaction force to produce extra high-density structural bricks from recycled debris sand. Its heavy-duty four-column construction ensures exact parallelism and reliable continuous operation under high pressure.
Capacity: 400 Ton heavy duty force
Structural Design: Heavy duty steel welded construct
Frame Type: 4 Column 3 Beam rigid structure
Hydraulic System: Cartridge valve integrated manifold system
Main Ram Stroke: 800 mm
Working Hydraulic Pressure: 25 MPa
Daylight Gap: 1250 mm
Approach Speed: 120 mm/Sec
Pressing / Drawing Speed: 10 mm/Sec
Return Speed: 100 mm/Sec
Bed / Platen Size Platen: 1400 mm LR x 1100 mm FB
Columns: 4 Hard chrome plated steel pillars
Working Envelope: 1400 mm x 1100 mm x 1250 mm
Control System: PLC programmable controller with touch screen HMI
Main Motor Power: 30 kW electric motor
Valves & Hydraulics: High pressure cartridge valves with oil cooling system
Automation: Fully automatic cycle operation
Safety Features: Dual hand start buttons and photo-electric light curtain curtains
SM 400 HP — Model Specifications
- Nominal Force: 4000 KN
- Maximum Hydraulic Pressure: 25 MPa
- Max Opening Height of the Slider: 1250 mm
- Max Stroke of the Slider: 800 mm
- Effective Bed Size: 1260 × 1160 mm
- Slider Down Speed: 100 mm/s
- Slider Pressing Speed: 7–12 mm/s
- Slider Return Speed: 100 mm/s
- Ejector Cylinder Nominal Force: 400 KN
- Stroke of the Ejection Cylinder: 300 mm
