03 — Die / Mold System

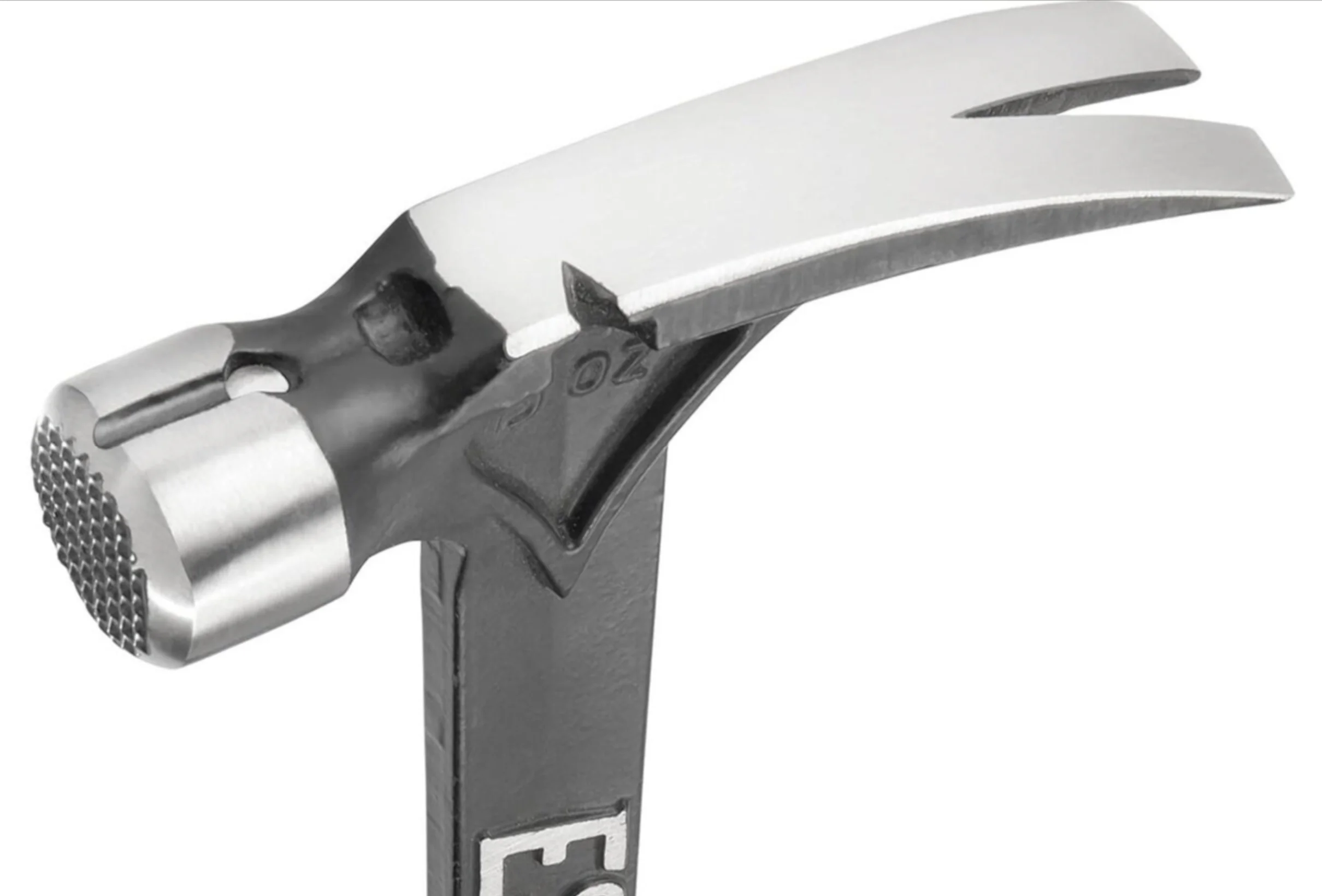

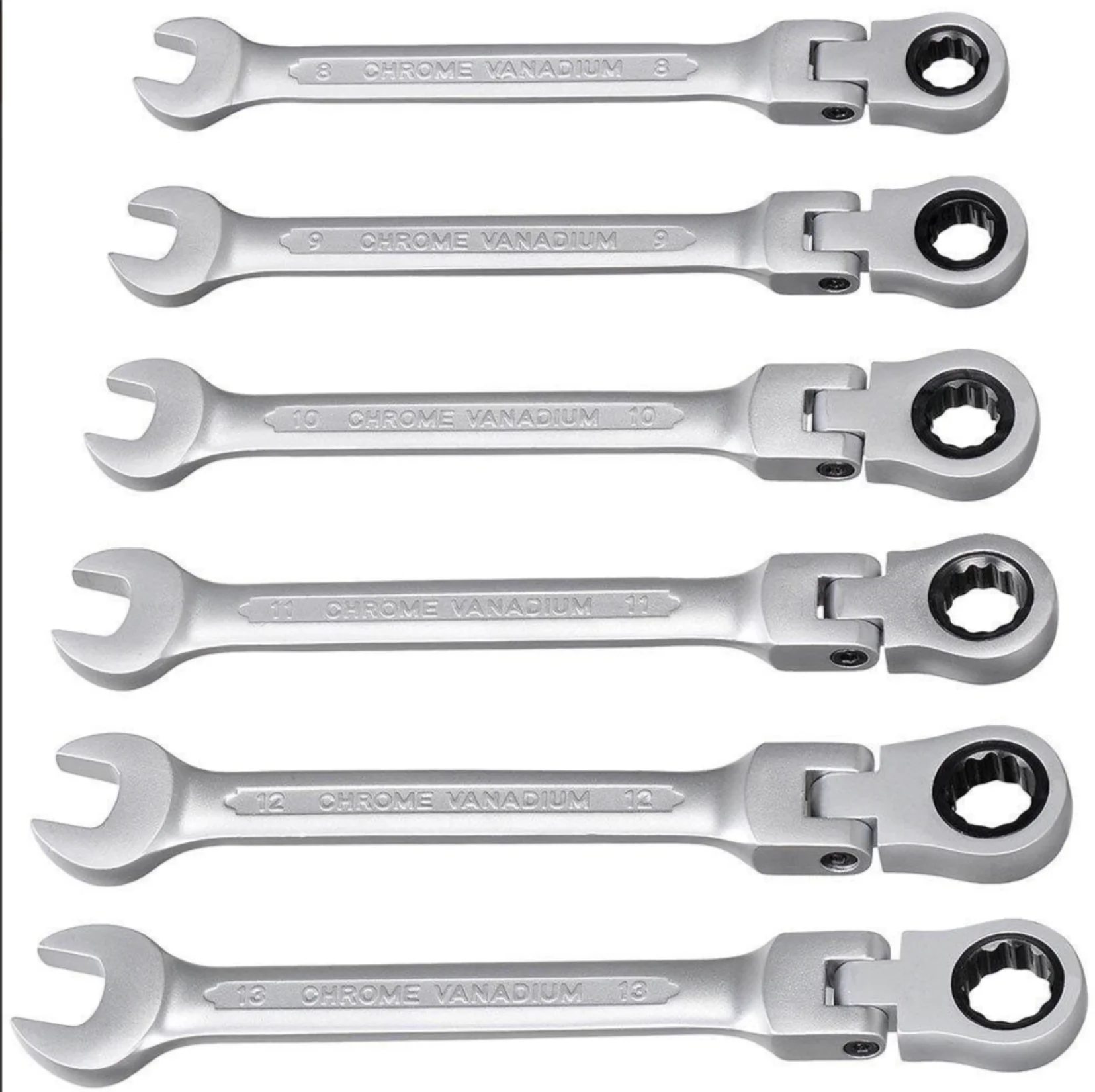

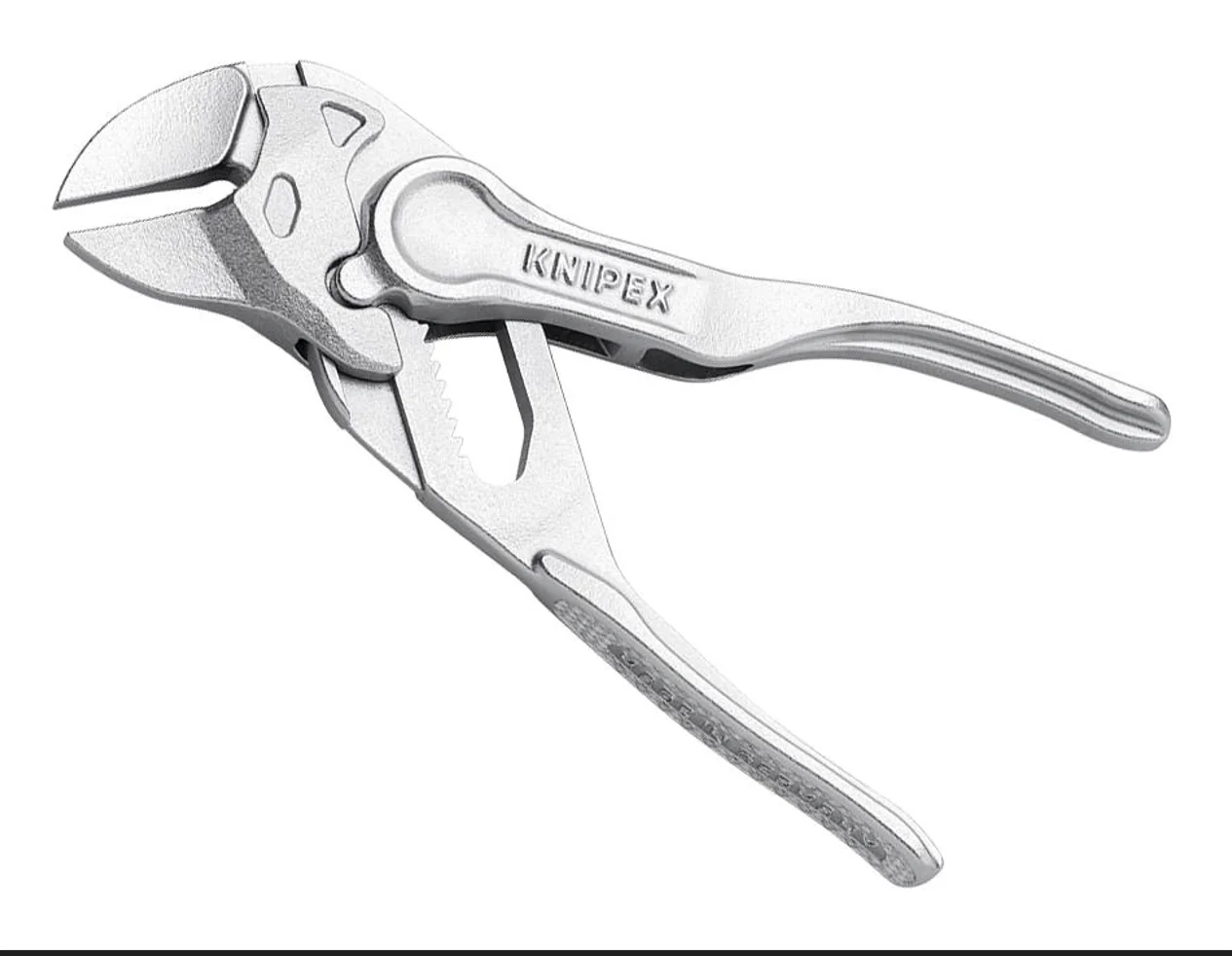

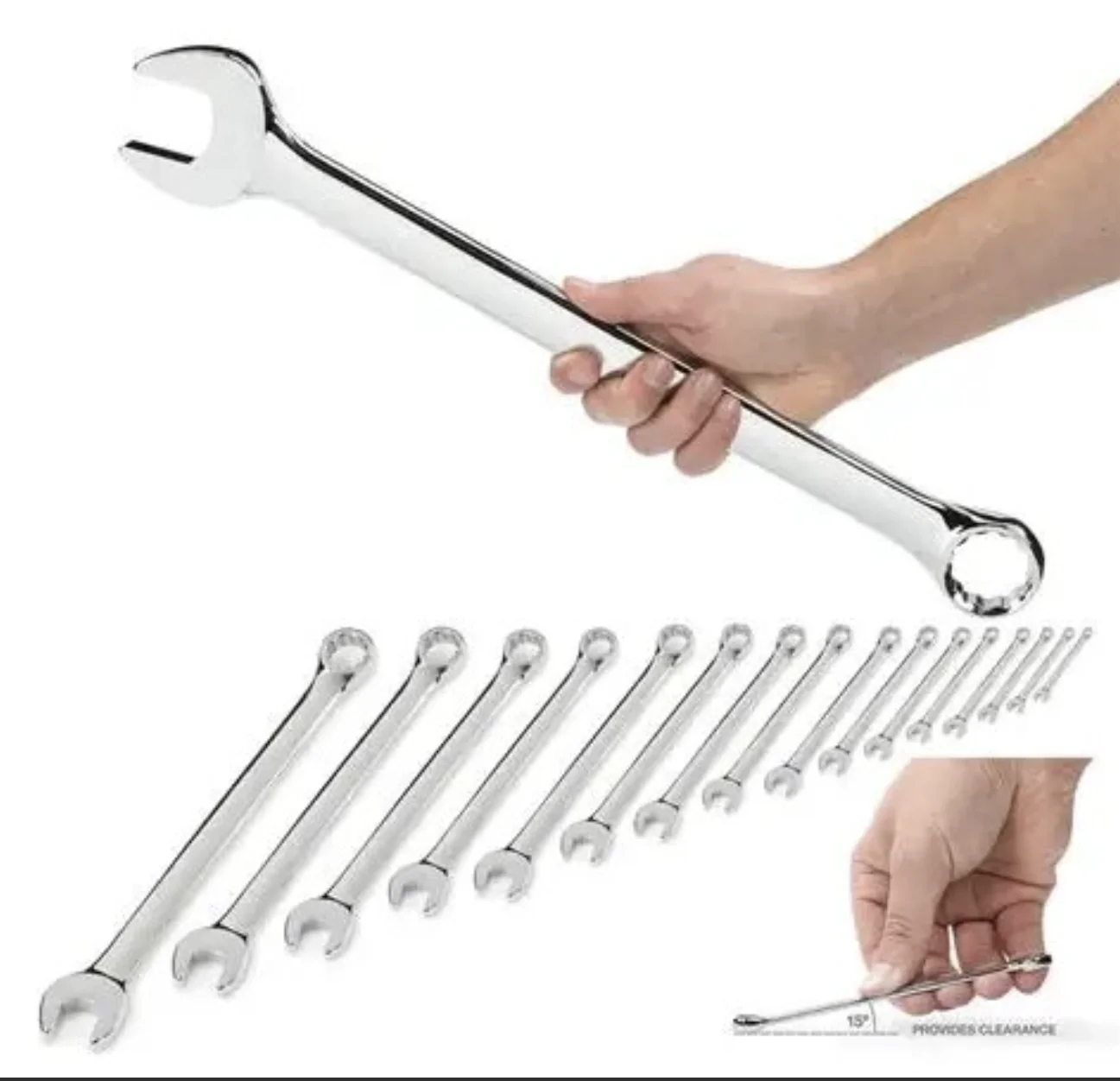

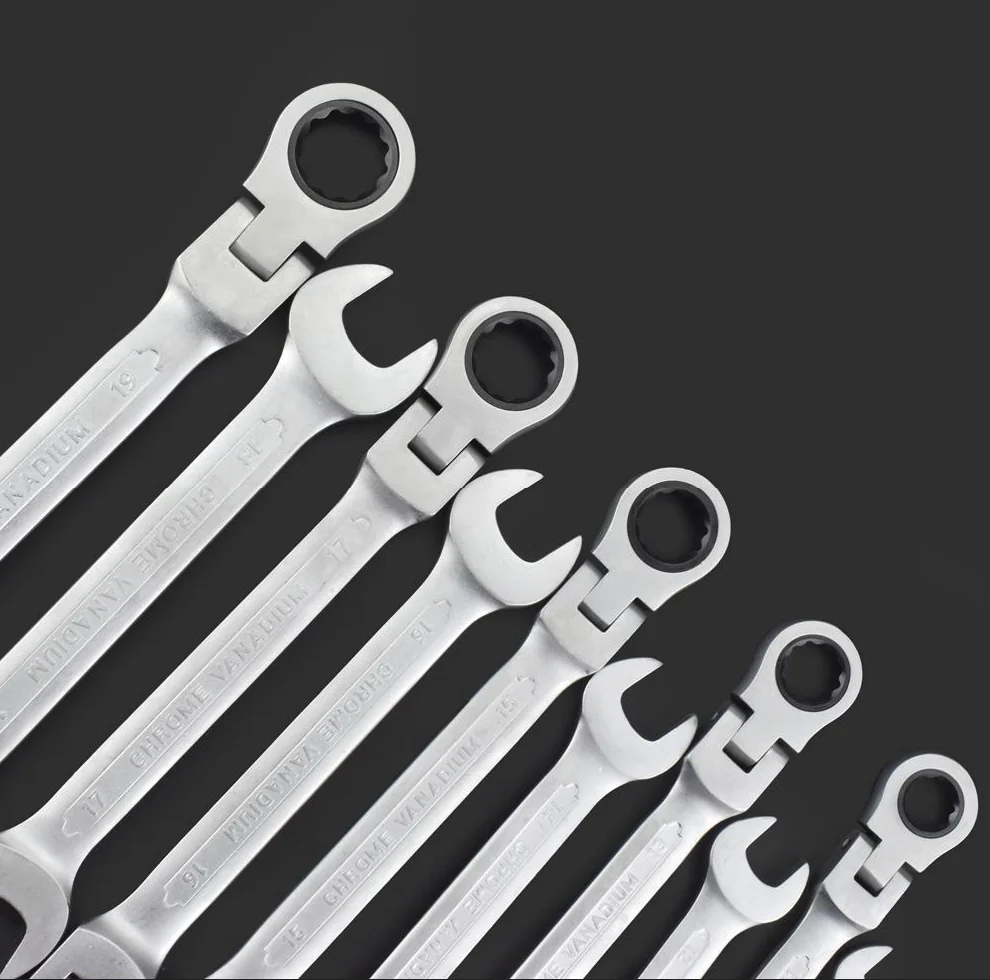

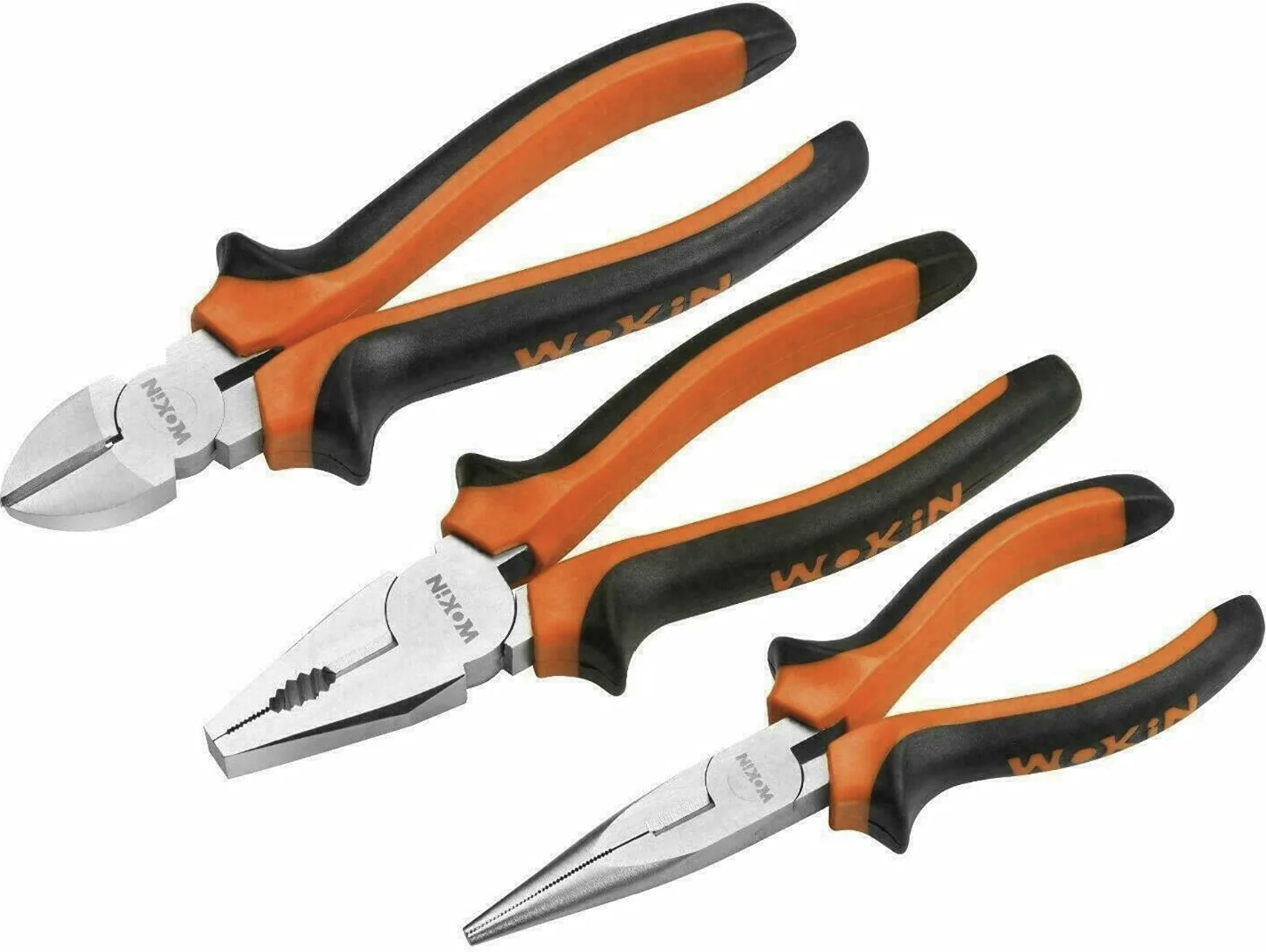

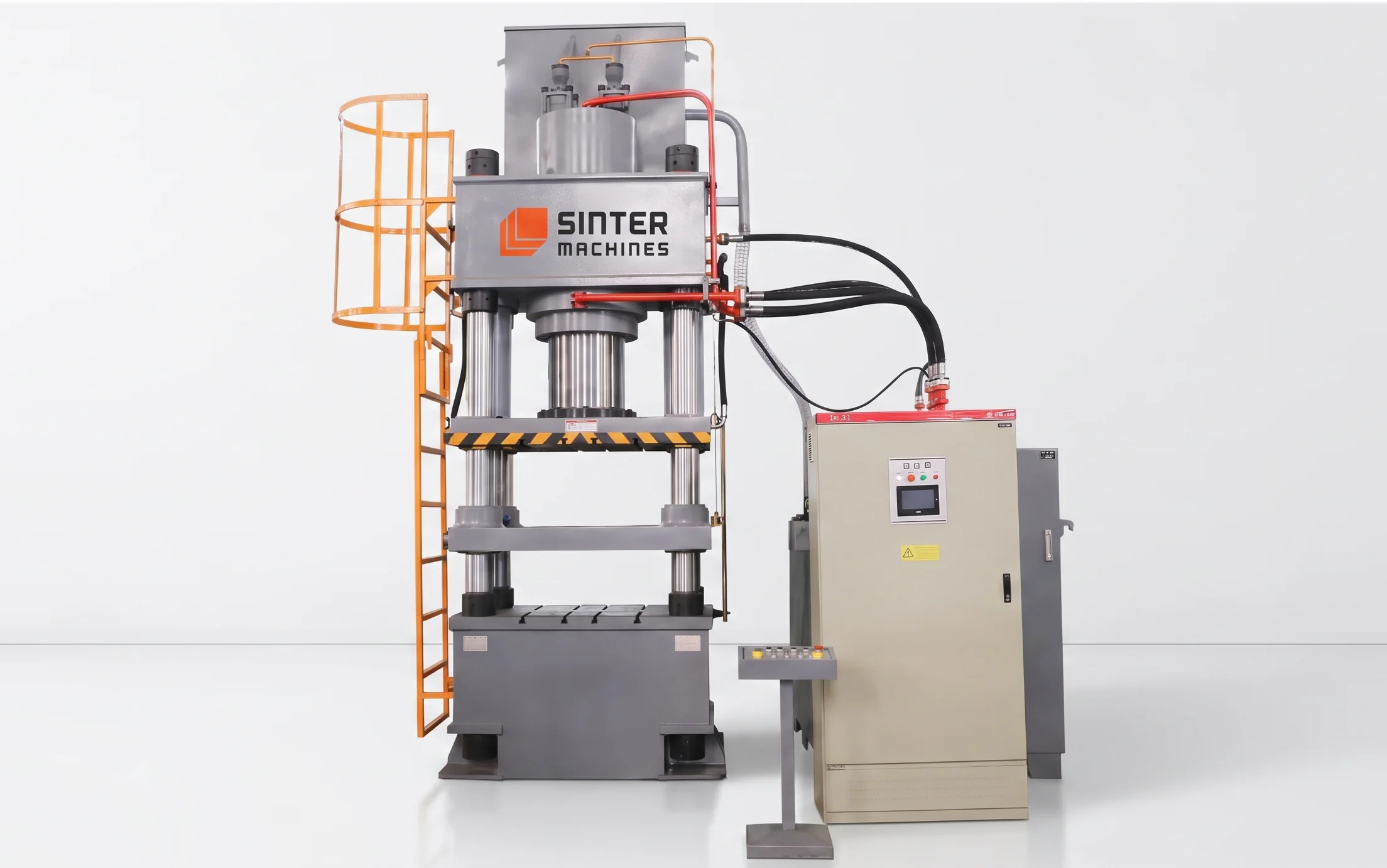

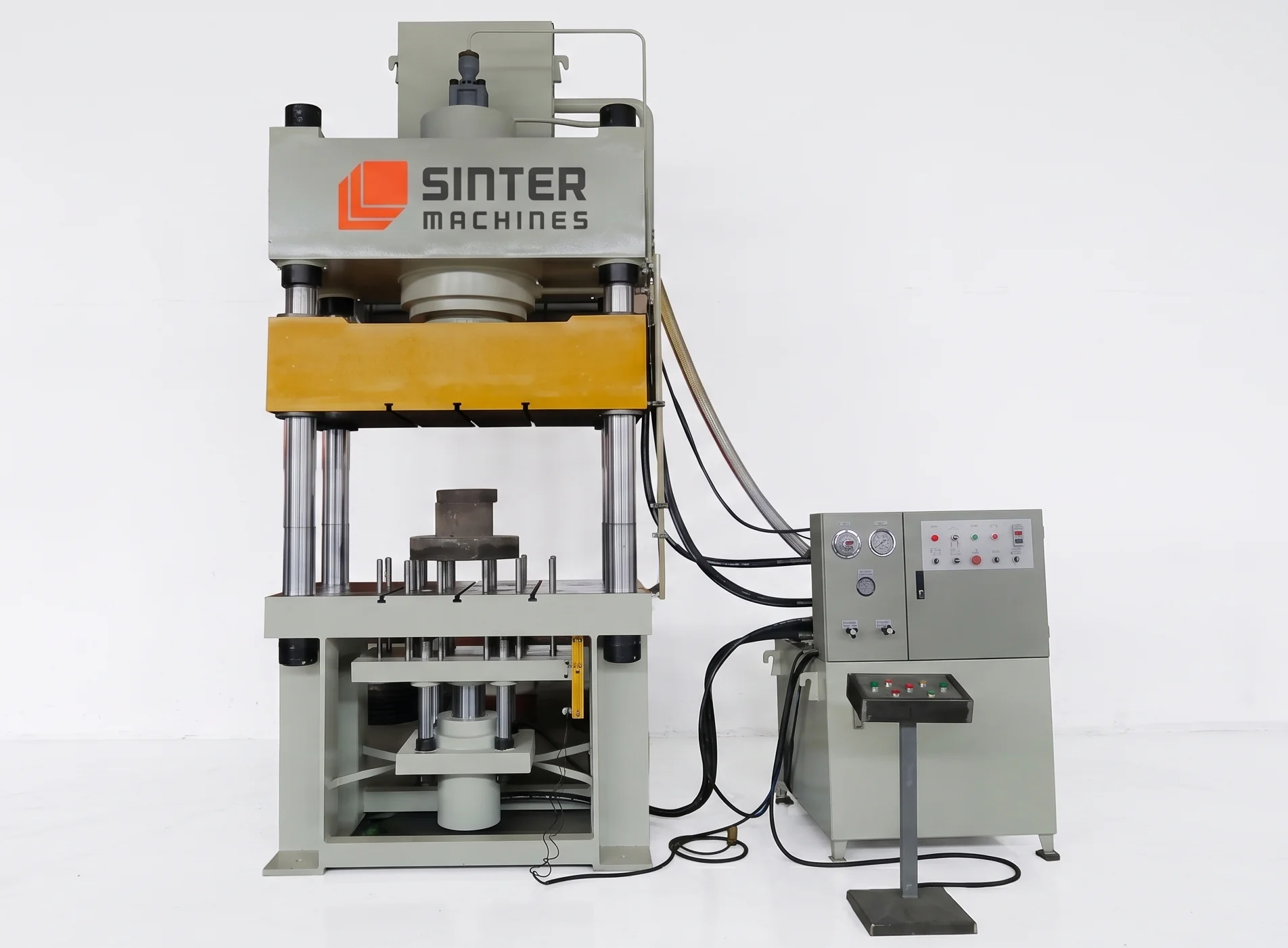

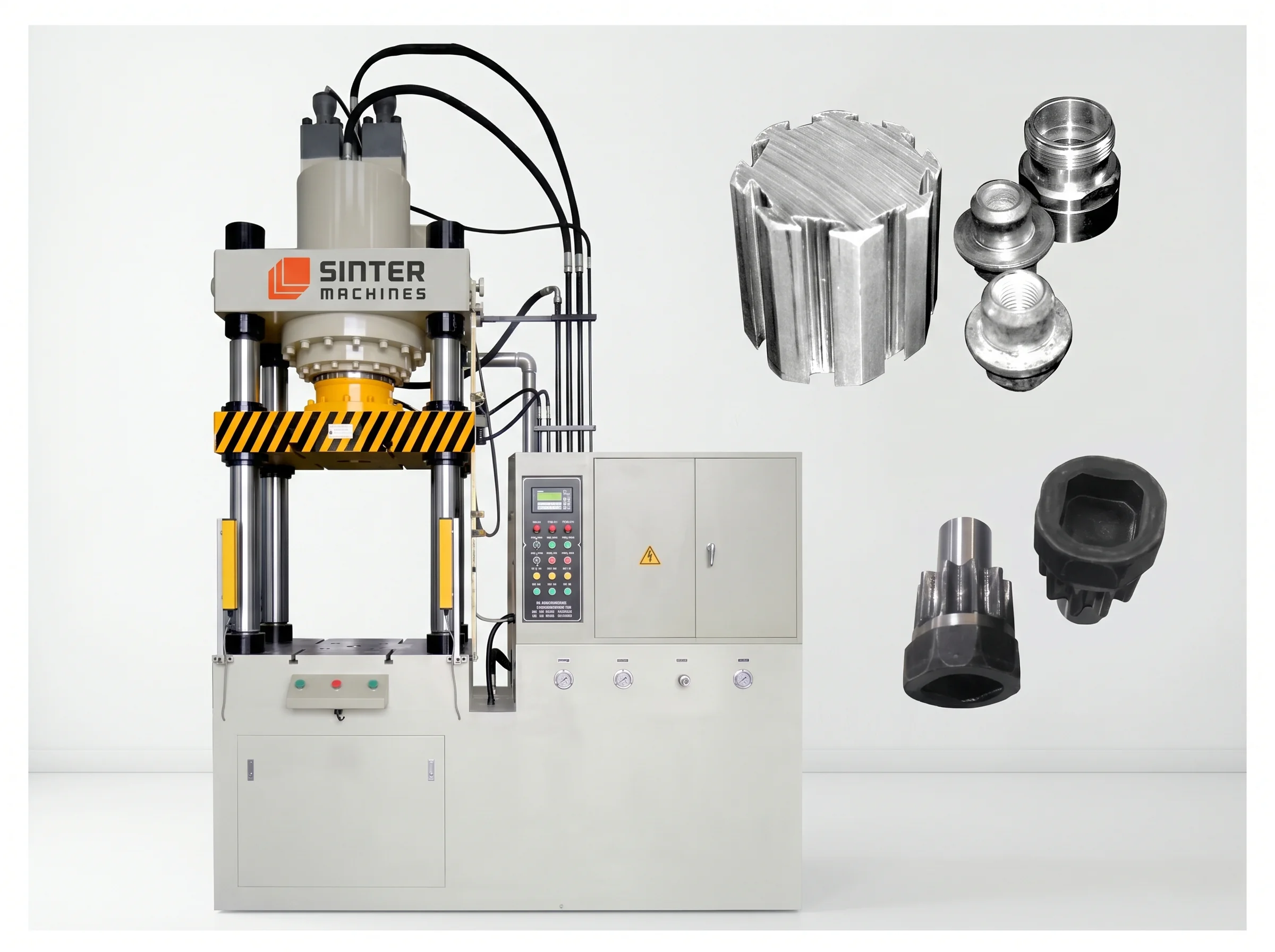

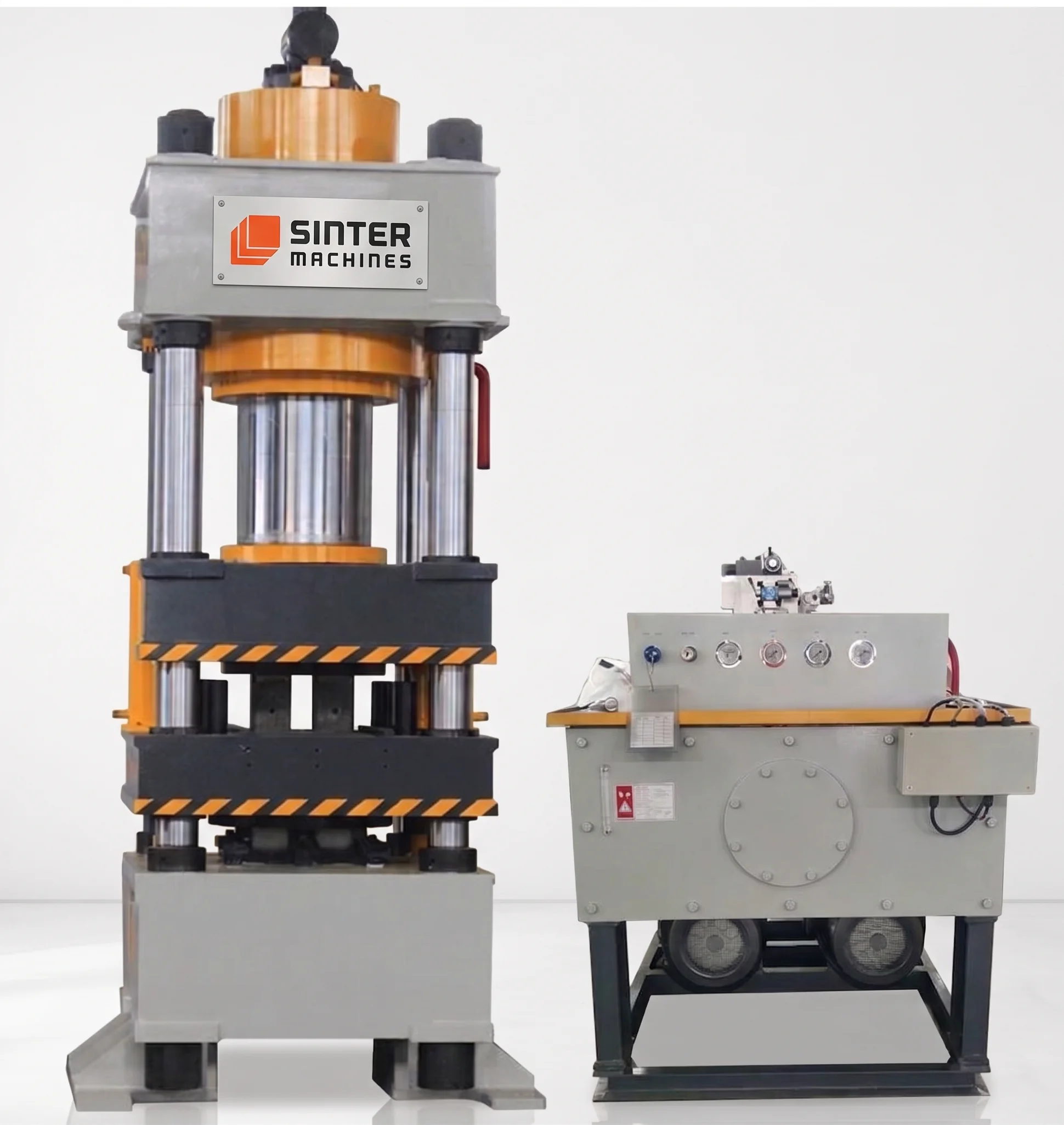

Precision Hot Forging Hand Tools Wrenches, Hammers & Pliers Die Mold Engineering
This precision tool engineering system utilizes robust, multi-cavity closed-die blocks designed to withstand rapid impact forces and frequent thermal cycling during high-volume tool production. The heavily reinforced layout resists intense localized shear stresses to form thin webs and complex hand tool contours without structural failure.
Technical Specifications (Tooling)
Die Type
- High efficiency progressive multi cavity closed die hot forming tool set featuring distinct edger blocker and finisher impressions
- High velocity precision industrial tooling layout engineered for high volume consumer goods production lines
Die Materials
- Premium hot work steel matrix formulation containing high chromium molybdenum and vanadium elements for thermal shock resistance
- Specialized high impact nickel base hardfacing alloys deposited at high friction parting line radius zones
Tool Configuration & Construction
- Modular pocketed insert container design engineered to reduce tooling replacement costs and minimize thermal cracking
- Pre stressed heavy duty tool steel die holder frame layout optimized for fast mechanical setup procedures
Key Tooling Features
- Integrated mechanical or pneumatic knockout pins built for rapid and clean automatic component ejection sequences
- Precision machined flash gutter channels designed to collect excess material flow and reduce internal cavity stress
Alignment Accuracy
- Upper and lower die half horizontal mismatch mismatch deviation kept strictly under a limit of 0.150 mm
- Precision guide pin alignment concentricity variation restricted within a tolerance of 0.025 mm
Process Materials
- Premium chromium vanadium alloys high carbon tool steels and high strength structural carbon steel bars
- Heavy engineering metallurgy stocks matching international hardware and professional hand tool manufacturing standards
Surface Finish
- Active impression cavity internal profiles precision ground and polished down to Ra 0.40 microns
- Thermally stable physical vapor deposition wear protective surface layer applied to a depth of 0.005 mm
Tool Life
- Expected production span of 12000 cycles before requiring mandatory cavity reconditioning procedures
- Total structural tooling lifespan capacity reaching 90000 production cycles before complete replacement
