1250T Four Column Hydraulic Press for Ceramic Powder Block
A Ceramic Powder Block Forming 4-Column Hydraulic Press Machine is a specialized heavy-duty industrial compaction system engineered to compress fine technical or traditional ceramic powders into dense, uniform solid blocks, green compacts, refractory bricks, or advanced ceramic preforms.
These machines are utilized in advanced ceramics manufacturing, electronic substrate production, electrical insulator fabrication, and refractory engineering, where loose ceramic powders must be consolidated to minimize airborne dusting, eliminate internal porosity, and optimize structural integrity prior to high-temperature sintering.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
High-Precision Guidance & Parallelism: Ceramic powders require strict control over compaction uniformity to prevent structural weak points or density gradients that can cause warping, cracking, or uneven shrinkage during final sintering. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Rigid Load Distribution: Compacting fine ceramic powders into high-strength green blocks requires continuous, balanced high tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity over long operational lifespans.
Tooling Durability & Wear Resistance: Because many ceramic powders are hard and abrasive during high-pressure compaction, press tooling, die walls, and punches are engineered with hardened alloy tool steels or specialized tungsten carbide inserts to prevent rapid tooling degradation and material contamination.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 50 Tons to 1000+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | Hardened alloy tool steel or specialized tungsten carbide inserts designed to handle abrasive ceramic powders |
Hydraulic Drive | Variable displacement piston pumps or servo-hydraulic systems with smooth proportional pressure control |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Enclosed Volumetric Feeding: An automated, sealed feed shoe slides precisely over the die cavity to deposit a measured volume of loose ceramic powder, minimizing airborne dust and ensuring uniform fill density.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate and the ceramic particles to firmly settle, minimizing internal stress or lamination.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent surface cracking from elastic springback. A bottom ejection cylinder then cleanly pushes the solid ceramic block out of the die cavity for downstream sintering, high-temperature firing, or packaging.

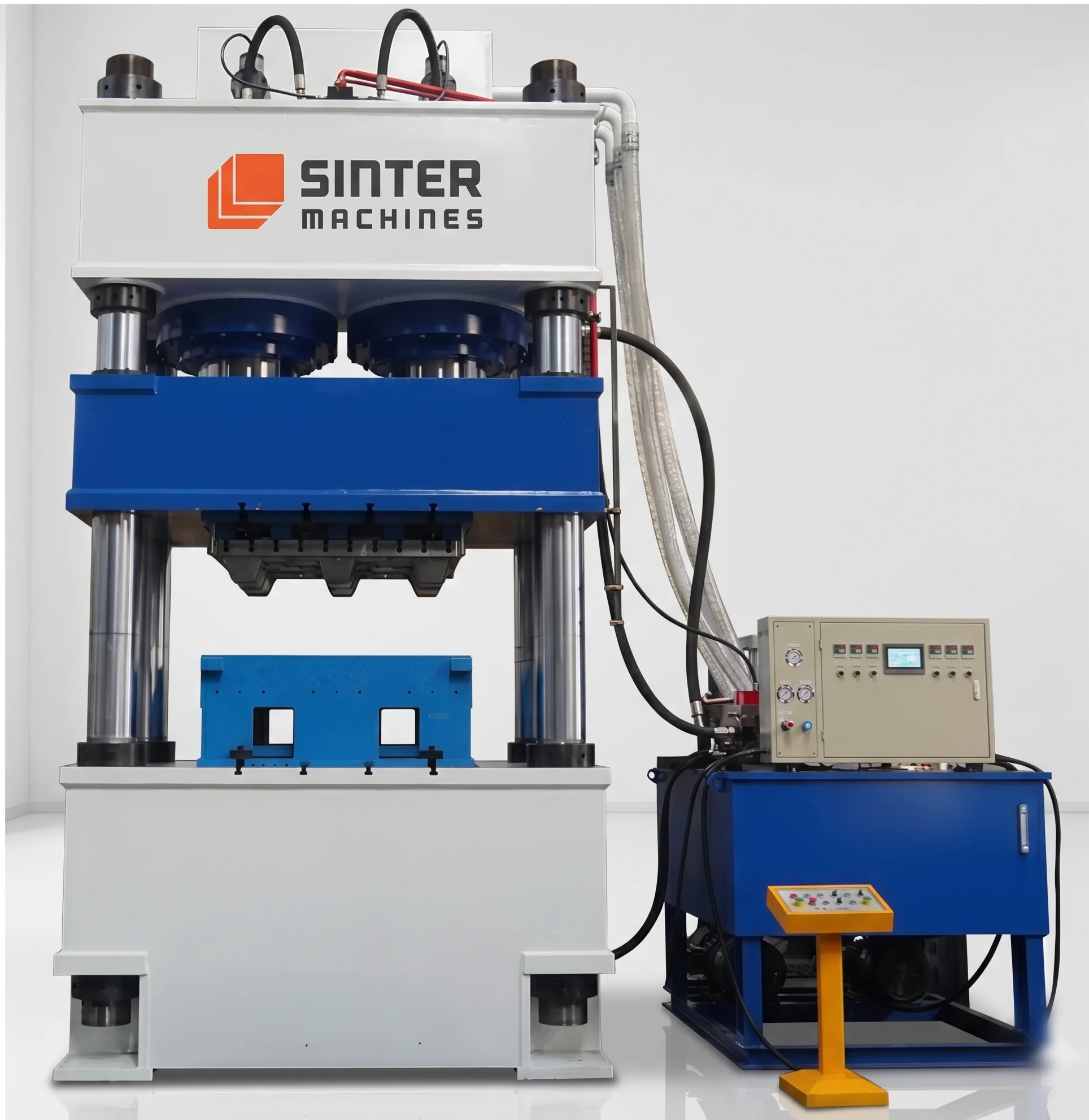

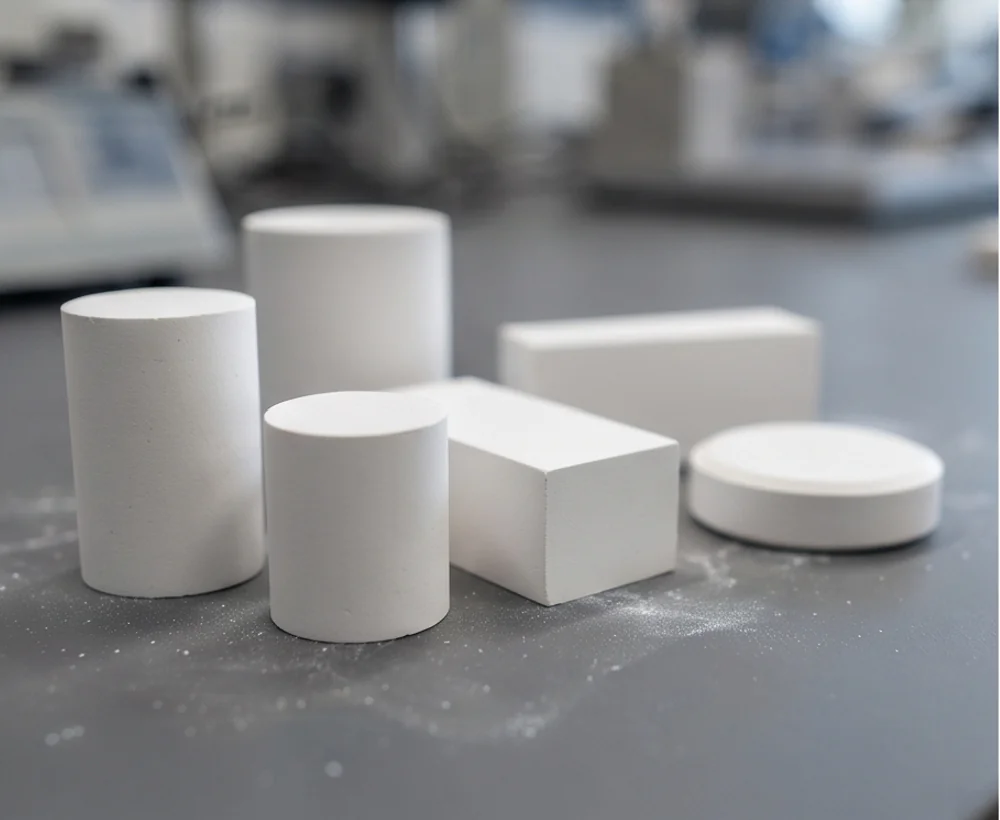

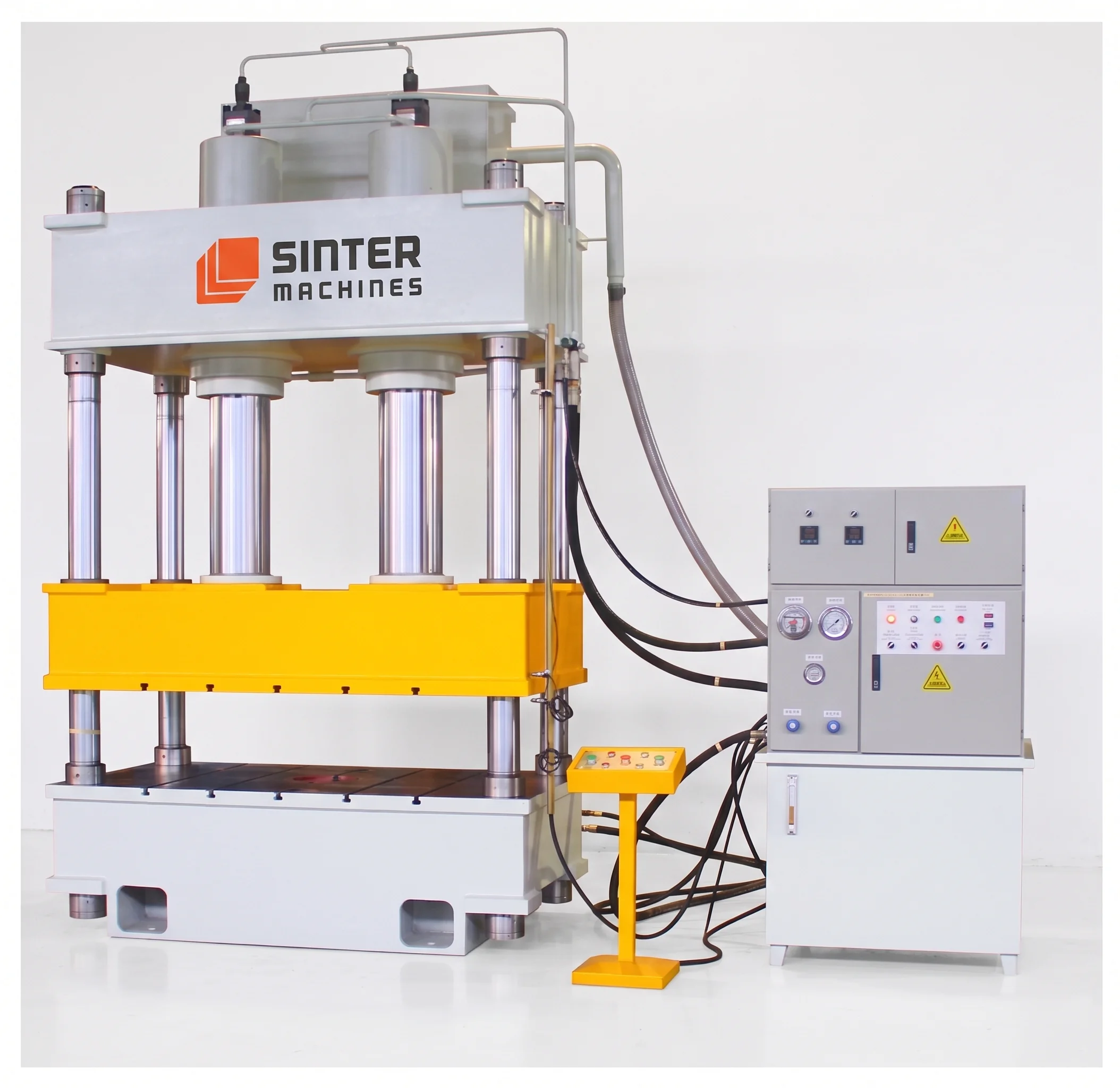

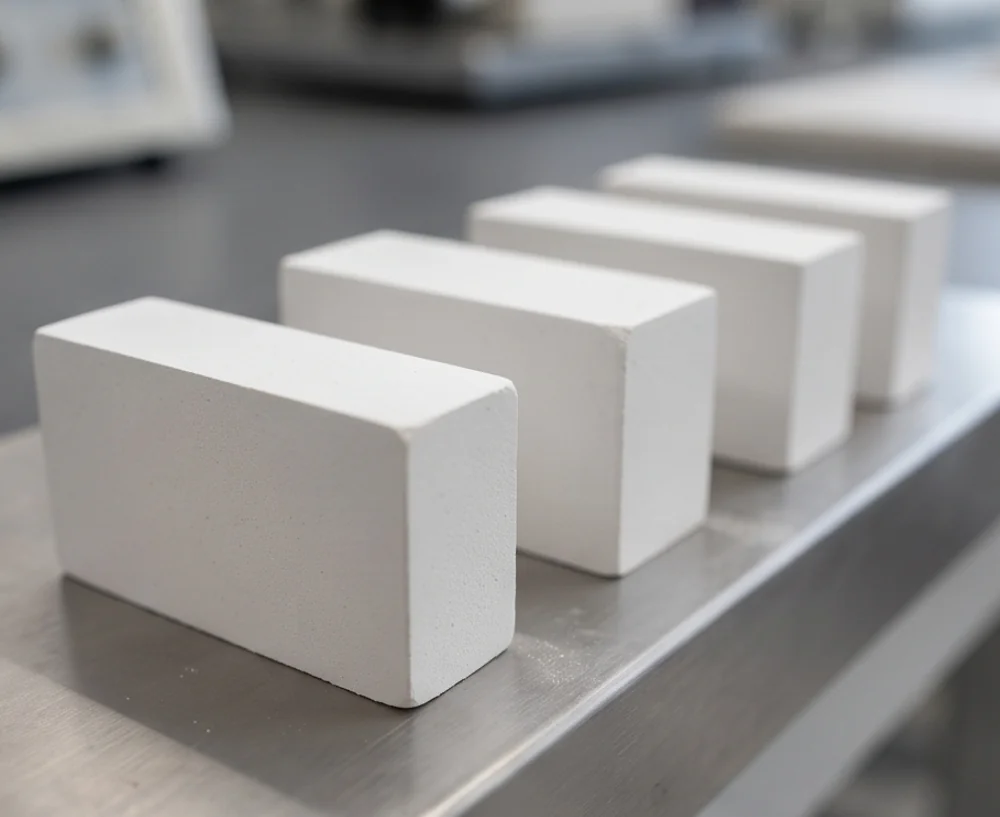

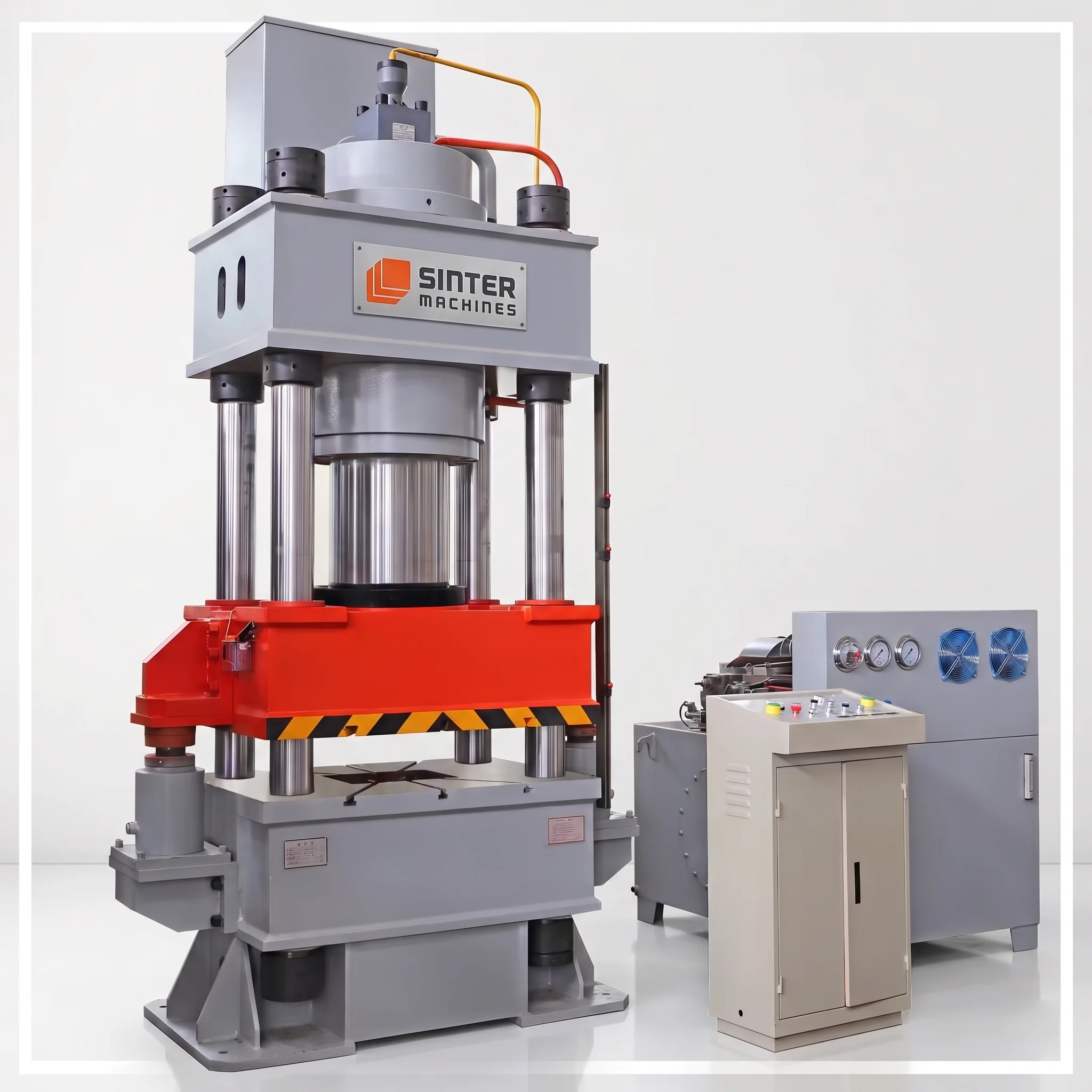

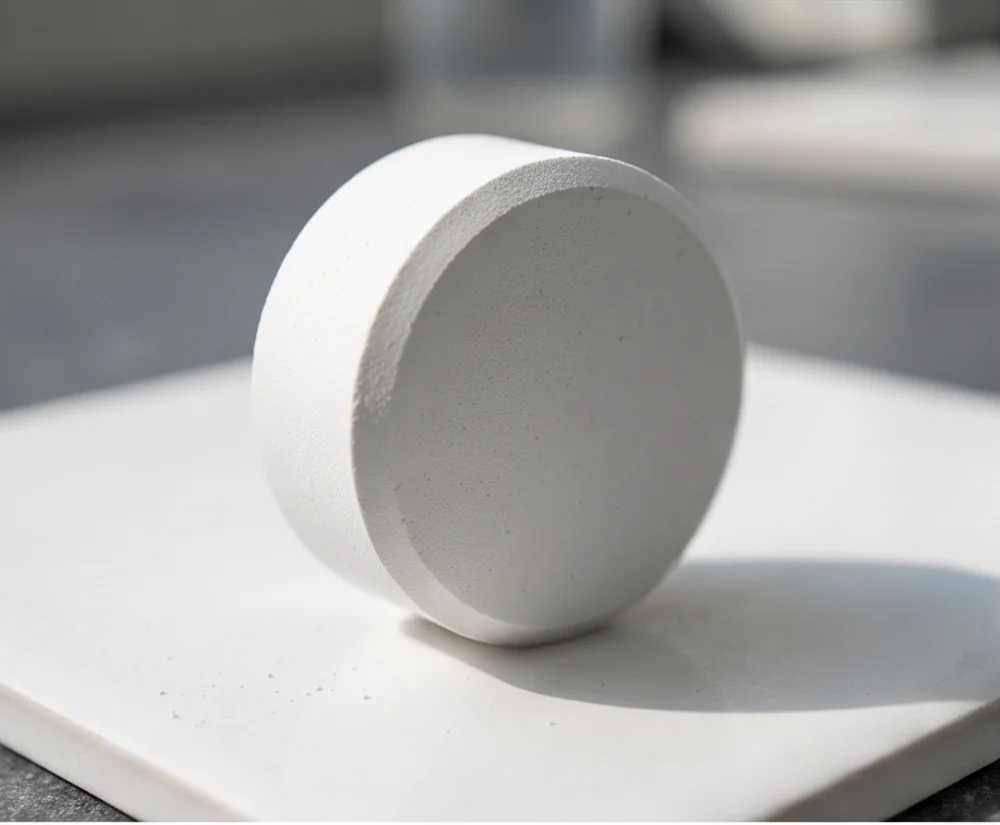

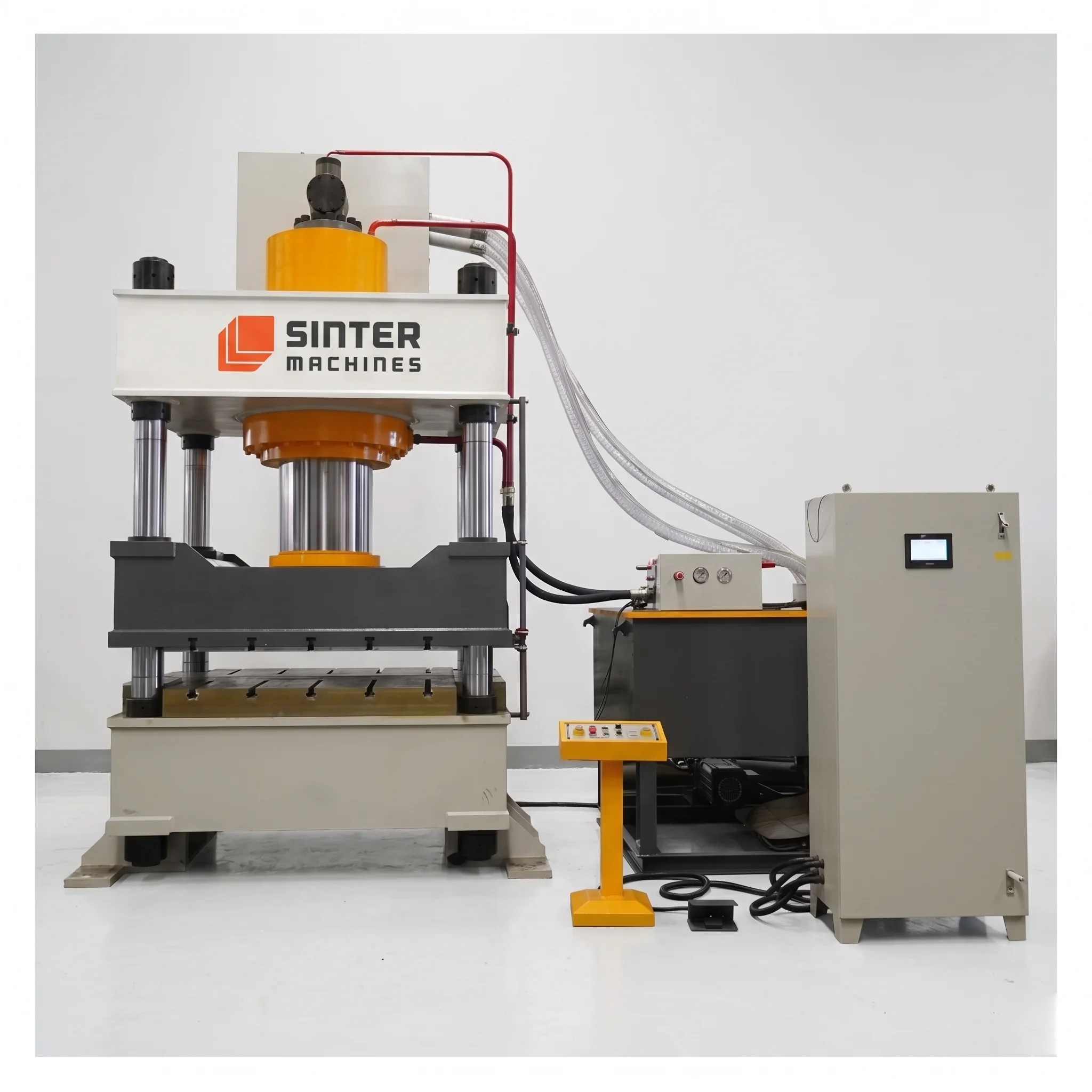

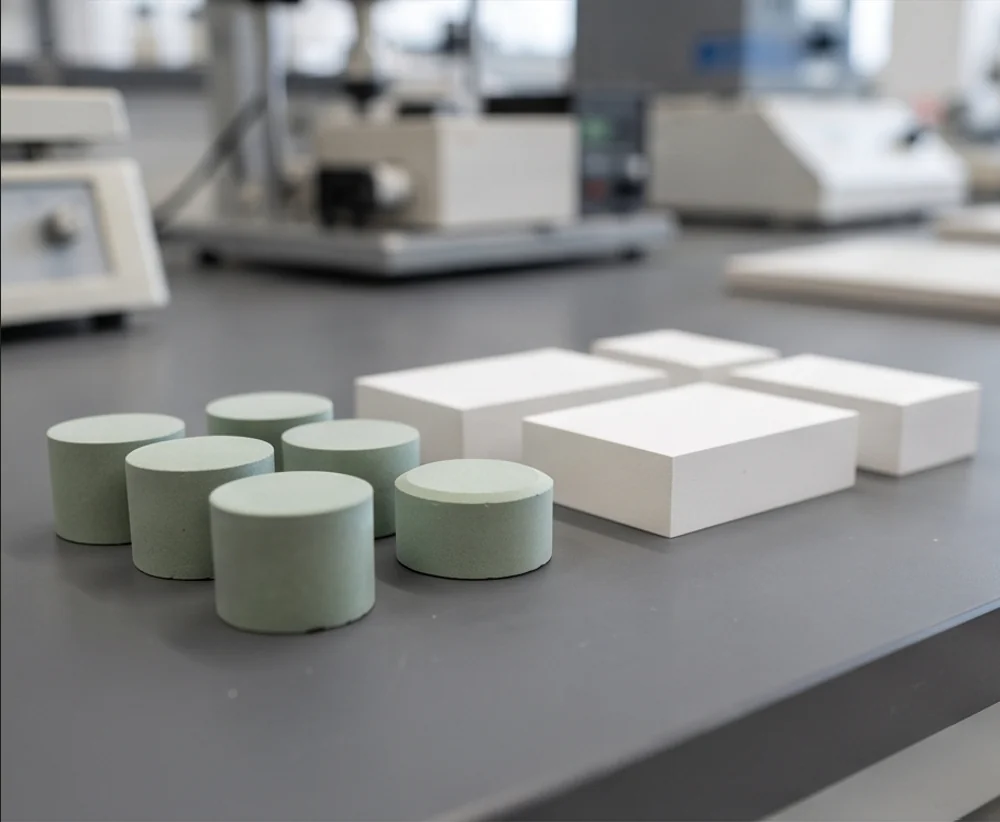

Finished Product Gallery
