100T Household Pots and Pans Press press view 1
Household Pots & Pans · Hydraulic Press Machine

100T Four Column Hydraulic Press for Forming Household Pots & Pans

100T Rated Capacity
100 mm/s Slider Down Speed
7–15 mm/s Slider Pressing Speed
90 mm/s Slider Return Speed

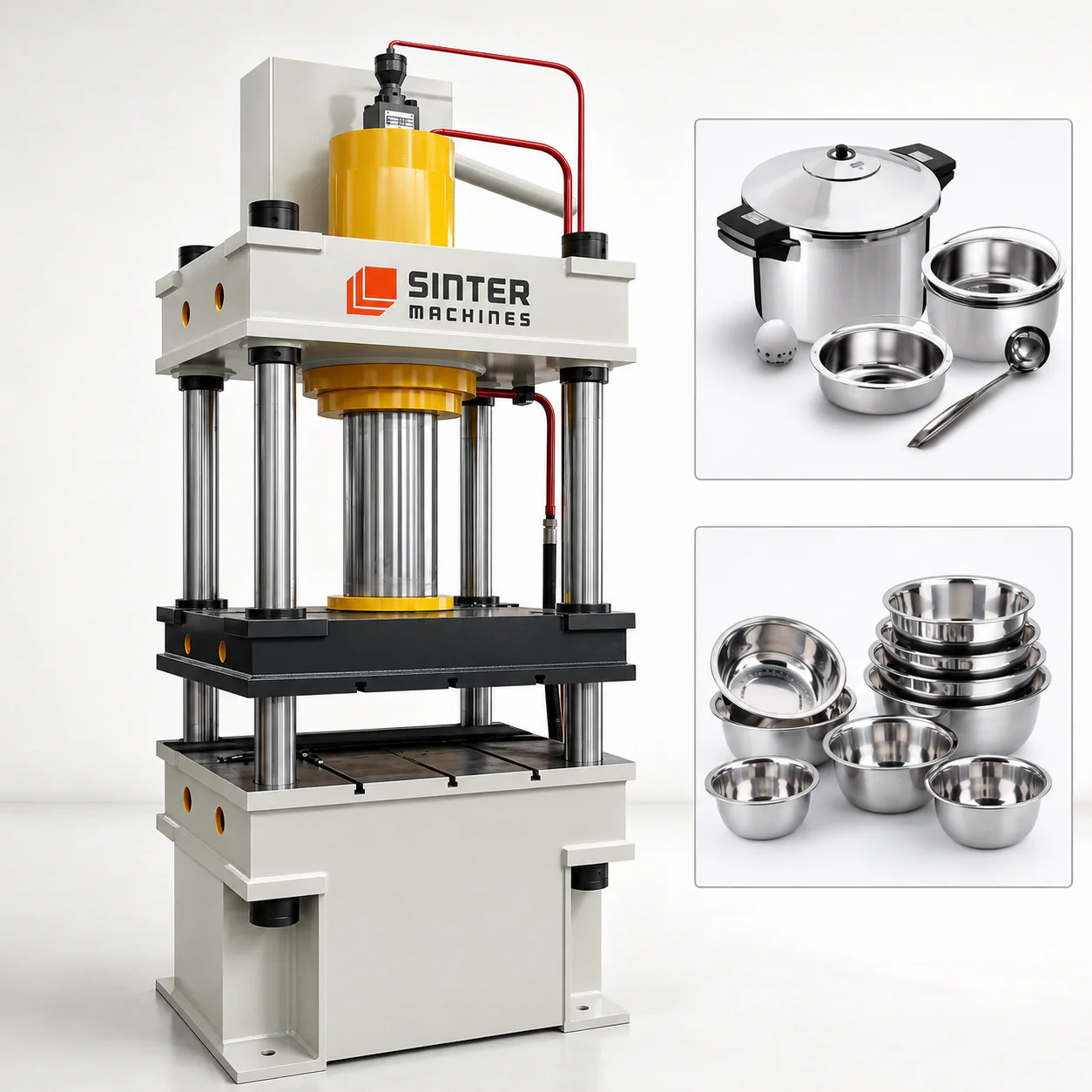

100T Household Pots and Pans Press press view 1

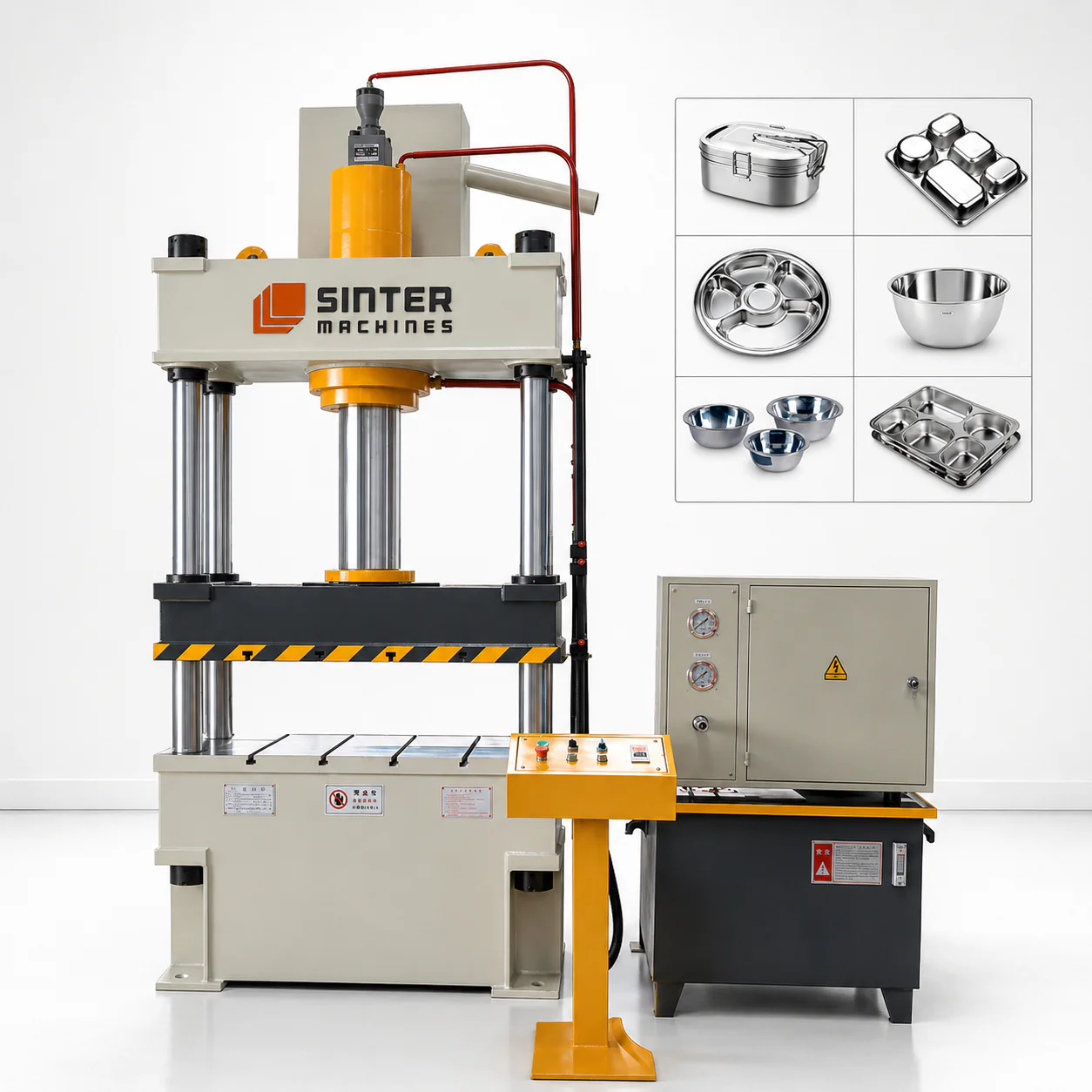

100T Household Pots and Pans Press press view 2

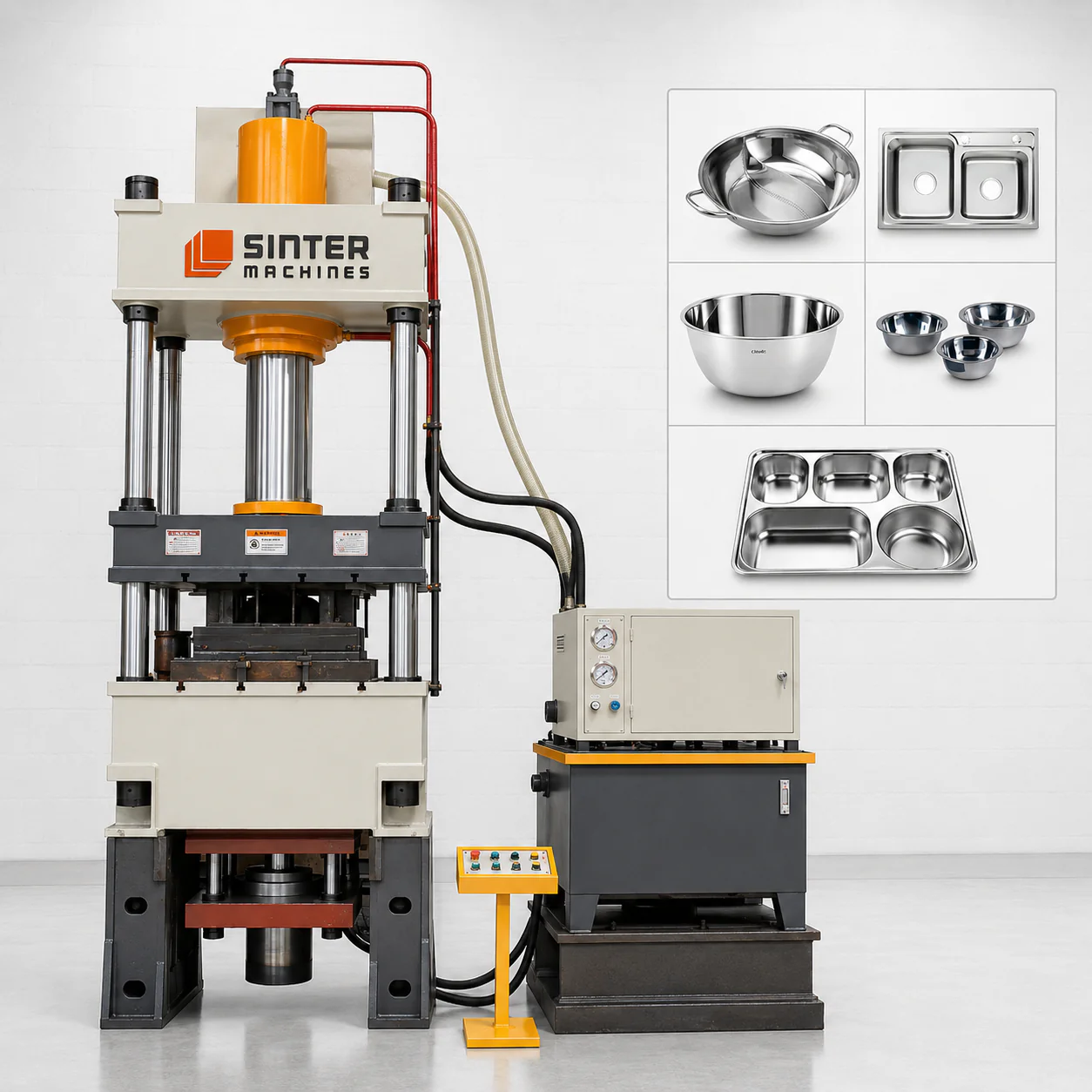

100T Household Pots and Pans Press press view 3

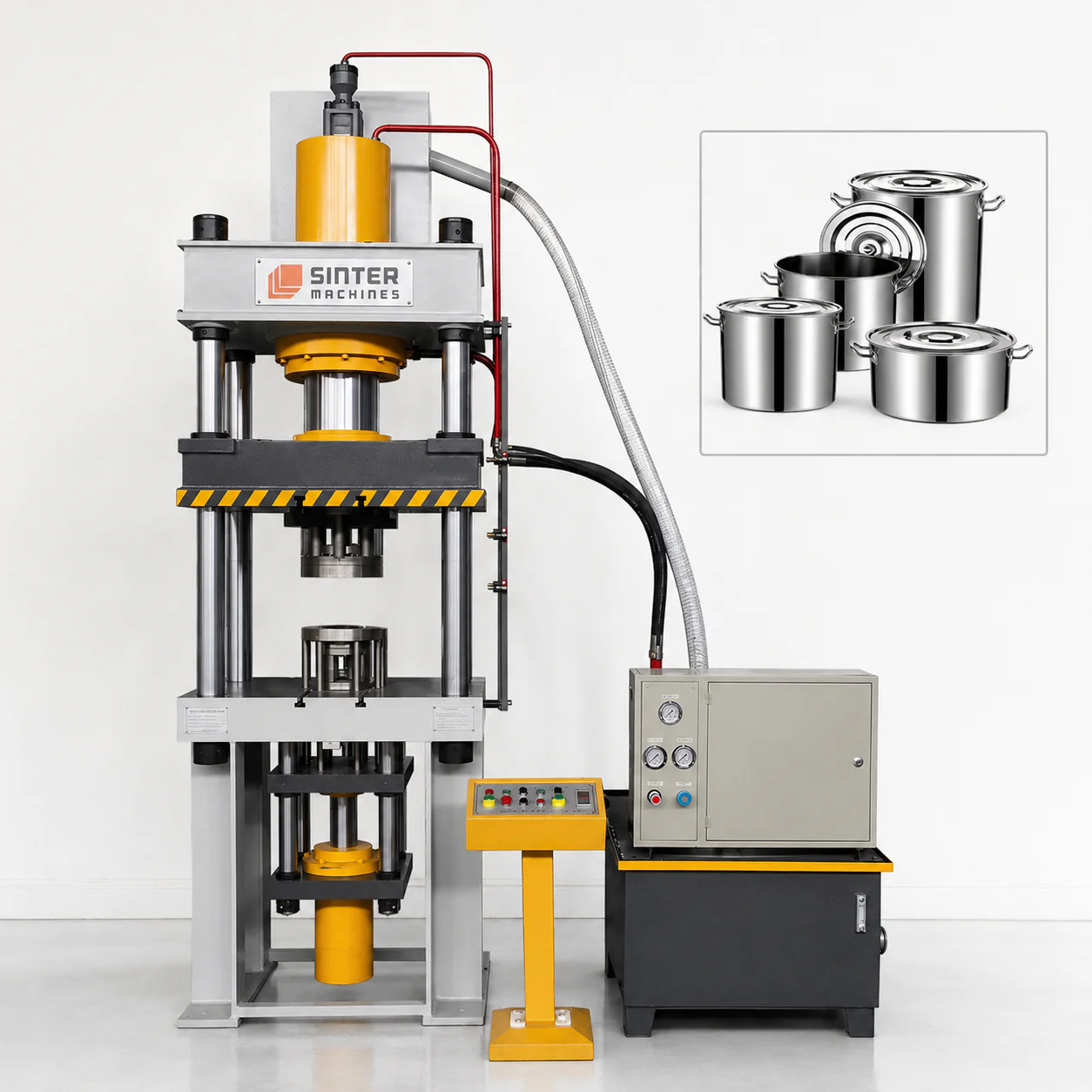

100T Household Pots and Pans Press press view 4

01 — Press System

100T Four Column Hydraulic Press Machine

100T Four Column Hydraulic Press for Forming Household Pots & Pans is a compact and efficient metal forming solution designed for manufacturing high-quality cookware products from aluminum, stainless steel, and mild steel sheets. The machine delivers precise and uniform forming force for deep drawing, shaping, and sizing operations, ensuring excellent product finish and dimensional consistency.

Offering:

  • Reliable deep drawing of stainless steel and aluminum
  • Consistent shape and surface finish
  • High productivity with low operating cost
  • Scalability for growing cookware businesses

Use Case

The 100 Ton Four Pillar Hydraulic Press is an ideal forming solution for manufacturing household cookware and utensils, offering reliable deep drawing performance for stainless steel and aluminum components. Its precise hydraulic control ensures consistent product shape, excellent surface finish, and efficient material utilization.

  • Core Applications: Manufacturing household cookware, kitchen utensils, pots, pans, bowls, containers, and deep-drawn kitchen products. It is widely used in cookware production plants and metal forming facilities.
  • Material: Suitable for stainless steel, aluminum, mild steel, and other food-grade metal sheets. The press ensures efficient forming while maintaining material integrity and surface quality.
  • Typical Products Formed: Household cooking pots, frying pans, saucepans, pressure cooker bodies, kitchen bowls, and utility containers. It supports production of various shapes and sizes with consistent quality.
  • Key Functions: Performs deep drawing, forming, shaping, embossing, sizing, and pressing operations. The machine ensures uniform wall thickness, smooth contours, and precise dimensional accuracy.
  • Why 100 Ton Hydraulic Press?: The 100-ton capacity provides the optimal forming force required for most cookware and utensil applications. It delivers reliable production, reduced material wastage, long tool life, and cost-effective operation for high-volume manufacturing.

02 — Technical Specifications

SM 100 HP – HYDRAULIC PRESS MACHINE

COMPLETE TECHNICAL DATA

The SM 100 HP – 100 Ton Hydraulic Press Machine is a versatile and efficient forming solution designed for the production of household cookware and utensils. It delivers a controlled 100-ton pressing force for deep drawing, shaping, embossing, and sizing operations, ensuring consistent product quality, excellent surface finish, and accurate dimensions.

Capacity & Structural Design

  • Rated Press Capacity: 100 metric tons (≈ 980 kN)
  • Press Configuration: Fourpillar / fourcolumn hydraulic press
  • Frame Construction: Welded steel frame, stressrelieved
  • Design Duty: Continuous cookware production
  • Structural Safety Factor: ≥ 1.25
  • Deflection at Full Load: ≤ 0.04–0.05 mm
  • Load Distribution: Uniform over entire die area

Hydraulic System

Main Hydraulic Cylinder

  • Type: Doubleacting
  • Bore Diameter: 180–220 mm
  • Stroke: 250–400 mm

Maximum Working Pressure: 25 MPa (250 bar)

Hydraulic Power Pack

  • Fixed or variabledisplacement pump
  • Proportional pressurecontrol valve

Operating Modes

  • Constantpressure deep drawing
  • Strokecontrolled forming
  • Pressure dwell (to avoid springback)

Platen & Working Envelope

Upper / Lower Platen Size

  • Standard: 350 × 350 mm
  • Optional: up to 450 × 450 mm

Guide Columns

  • Quantity: 4
  • Diameter: 60–80 mm
  • Finish: Hardened, hardchromed & precisionground
  • Daylight Opening: 450–650 mm
  • Platen Parallelism Accuracy: ±0.02 mm / 300 mm

Controls & Safety

  • Control System: PLC with touchscreen HMI

Monitored Parameters

  • Forming force
  • Stroke position
  • Dwell time
  • Cycle counter

Safety Systems

  • Twohand operation
  • Safety guards or light curtain
  • Pressurerelief & overload valves
  • Emergency stop

SM 100 HP — Model Specifications

  • Nominal Force: 1000 KN
  • Maximum Hydraulic Pressure: 25 MPa
  • Max Opening Height of the Slider: 900 mm
  • Max Stroke of the Slider: 600 mm
  • Effective Bed Size: 750 × 700 mm
  • Slider Down Speed: 100 mm/s
  • Slider Pressing Speed: 7–15 mm/s
  • Slider Return Speed: 90 mm/s
  • Ejector Cylinder Nominal Force: 200 KN
  • Stroke of the Ejection Cylinder: 200 mm
Production Case Study

Forming Household Cookware and Utensils Production Line

0.5 – 2 mmMaterial thickness
~320 mmBlank Dia
6-15 SecCycle time
±0.05 mmForming accuracy
Excellent performance
Efficiently forming
uniform wall thickness
Superior surface finishes
High output with minimal material wastage
Low operating costs
Improved productivity
Enhanced product quality
Reduced rejection rates
Reliable long-term production efficiency.

03 — Die / Mold System

Precision Deep Drawing Household Cookware and Utensils Die Mold Engineering

The die mold system is precision-engineered for deep drawing household cookware and utensils, ensuring uniform material flow, accurate dimensions, and superior surface quality. Its optimized design enables efficient production of stainless steel and aluminum cookware with minimal wrinkling, thinning, or material stress.

Technical Specifications (Tooling)

Die Type: Precision deep drawing die with forming, redraw, sizing, and trimming tooling configurations.

Die Materials: High-grade hardened tool steels such as D2, H13, and wear-resistant alloy steel materials.

Tool Configuration & Construction: Precision-machined punch, die cavity, blank holder, guide pillars, guide bushes, stripper rings, and reinforced die set assembly.

Key Tooling Features: Optimized material flow control, anti-wrinkling design, high wear resistance, replaceable inserts, and precision-guided operation.

Alignment Accuracy: High-precision guide system providing alignment accuracy up to ±0.03 mm for consistent cookware dimensions.

Materials Formed: Stainless steel, aluminum, mild steel, food-grade metal sheets, and cookware-grade alloys.

Surface Finish: Mirror-polished and fine-ground forming surfaces with Ra 0.2–0.8 µm finish for superior cookware appearance and smooth drawing performance.

Tool Life: Typically, 800,000–1,500,000 production cycles depending on material type, sheet thickness, production volume, and maintenance practices.

Case Study (Die Performance)

Precision Deep Drawing Household Cookware and Utensils Die Mold

H13 / D2 tool steelDie Material
52–58 HRCWorking Hardness
Vacuum hardenedHeat Treatment
Excellent dimensional accuracy
Uniform wall thickness
Superior surface finish
Extended operational life with minimal wear
Reducing maintenance requirements
Higher production efficiency
Lower rejection rates
Improved product consistency
Enhanced quality standards

04 — Product Application

Where Deep Drawn Household Cookware and Utensils Are Used

Deep drawn household cookware and utensils are widely used in residential and commercial kitchens due to their durability, hygienic properties, and excellent heat distribution. Their seamless construction, smooth surface finish, and high strength make them ideal for everyday cooking and food preparation applications.

Industry Applications

Domestic Household Kitchens

Deep drawn cookware such as pots, pans, bowls, and containers are commonly used for daily cooking needs. Their robust construction ensures long service life and ease of cleaning.

Hotels and Restaurant Kitchens

Commercial kitchens rely on deep drawn cookware for high-volume food preparation and cooking operations. These products offer durability, consistent performance, and resistance to frequent use.

Catering and Food Service Industries

Large-scale catering facilities use deep drawn utensils and containers for cooking, serving, and food handling. Their seamless design supports hygiene and operational efficiency.

Food Processing and Institutional Facilities

Canteens, hospitals, educational institutions, and food processing units utilize deep drawn cookware and utensils for safe and reliable food preparation. Their corrosion resistance and easy maintenance make them suitable for demanding environments.

Finished Product Gallery

100T Household Pots and Pans Press finished product 1
100T Household Pots and Pans Press finished product 2
100T Household Pots and Pans Press finished product 3
100T Household Pots and Pans Press finished product 4
100T Household Pots and Pans Press finished product 5
100T Household Pots and Pans Press finished product 6

05 — Key Advantages

Why Choose the 100-Ton Sinter Hydraulic Press

The 100-Ton Sinter Hydraulic Press is an efficient and reliable solution for manufacturing deep drawn household cookware and utensils with high precision and consistent quality. Its advanced hydraulic control, compact design, and cost-effective operation make it ideal for both small and mid-scale cookware manufacturers.

01

Excellent Deep Draw Control

The press delivers smooth and controlled forming pressure throughout the drawing cycle. This ensures uniform material distribution and minimizes wrinkles, cracks, and thinning defects.

02

Smooth Cosmetic Surface Finish

Precise hydraulic movement helps produce cookware with superior surface quality and appearance. This reduces secondary finishing requirements and enhances product value.

03

Compact Footprint and Low Energy Use

The machine occupies less factory floor space while maintaining high production efficiency. Its energy-efficient hydraulic system helps reduce overall operating costs.

04

Long Die Life

Controlled force application minimizes shock loads and stress on tooling components. This extends die service life and lowers tooling maintenance expenses.

05

Easy Operator Training

User-friendly controls and simple operating procedures enable faster operator learning. This improves workplace productivity and reduces training time for new personnel.

06

Cost-Effective for Small and Mid-Scale Manufacturers

The press offers an excellent balance of performance, reliability, and investment cost. It helps cookware manufacturers achieve profitable production with lower capital and operational expenditure.
