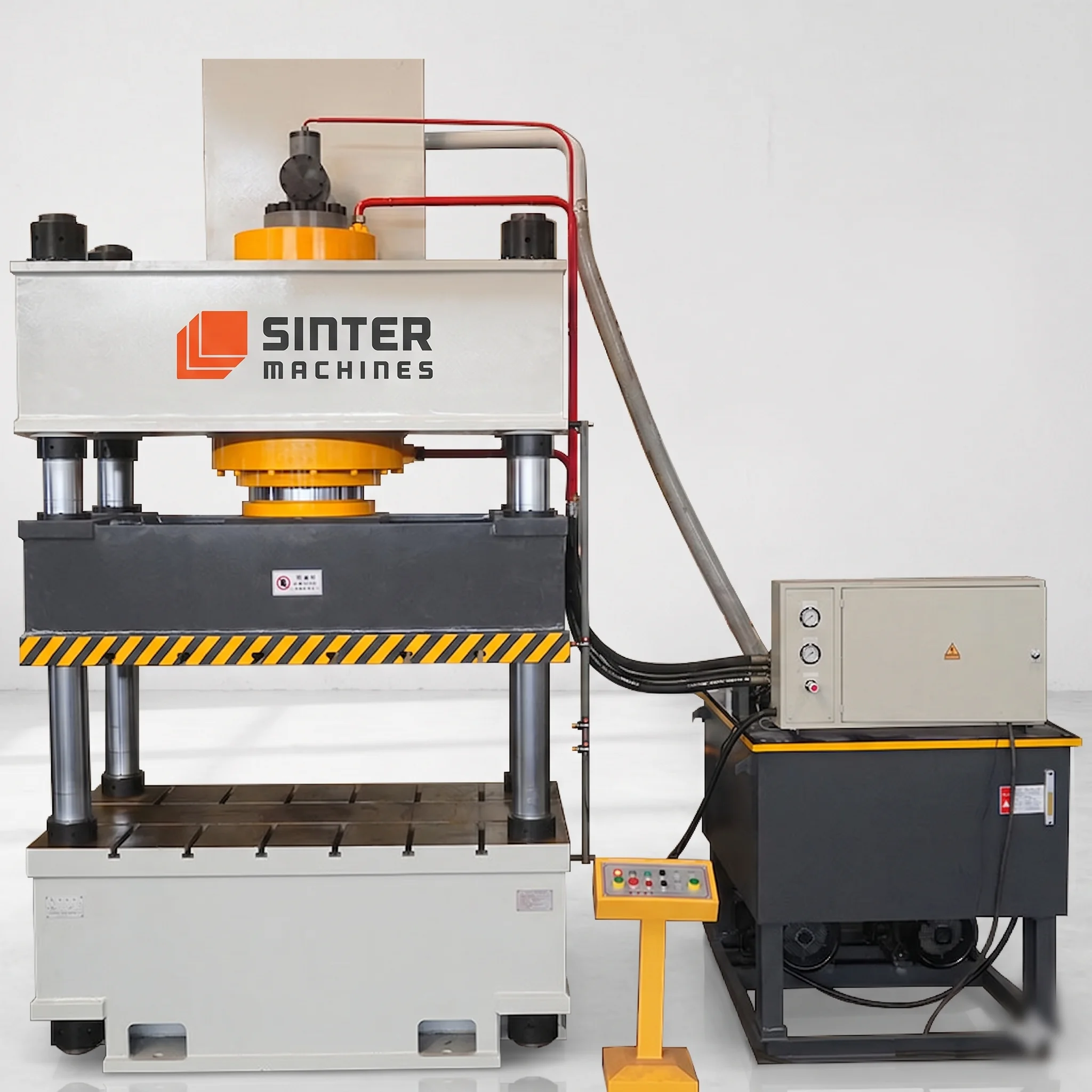

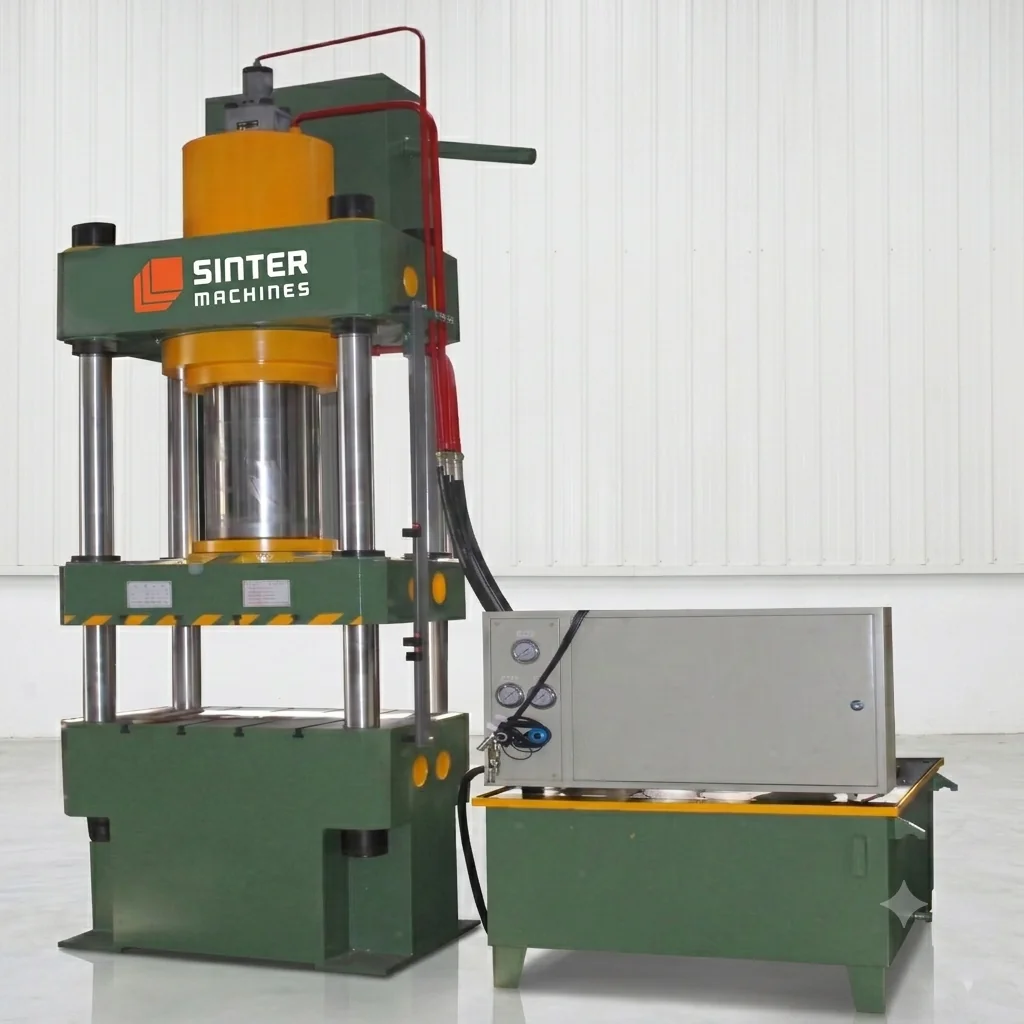

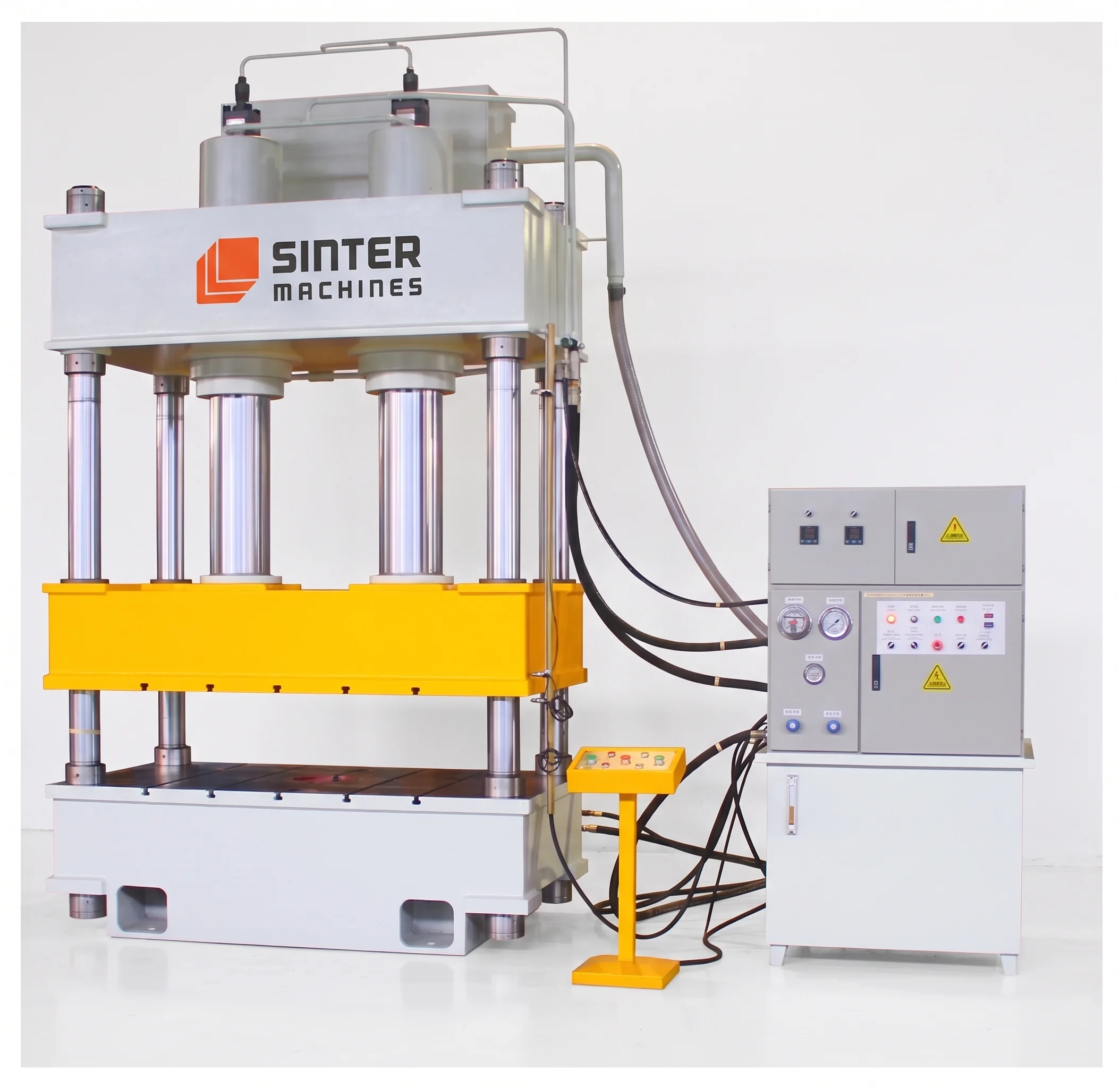

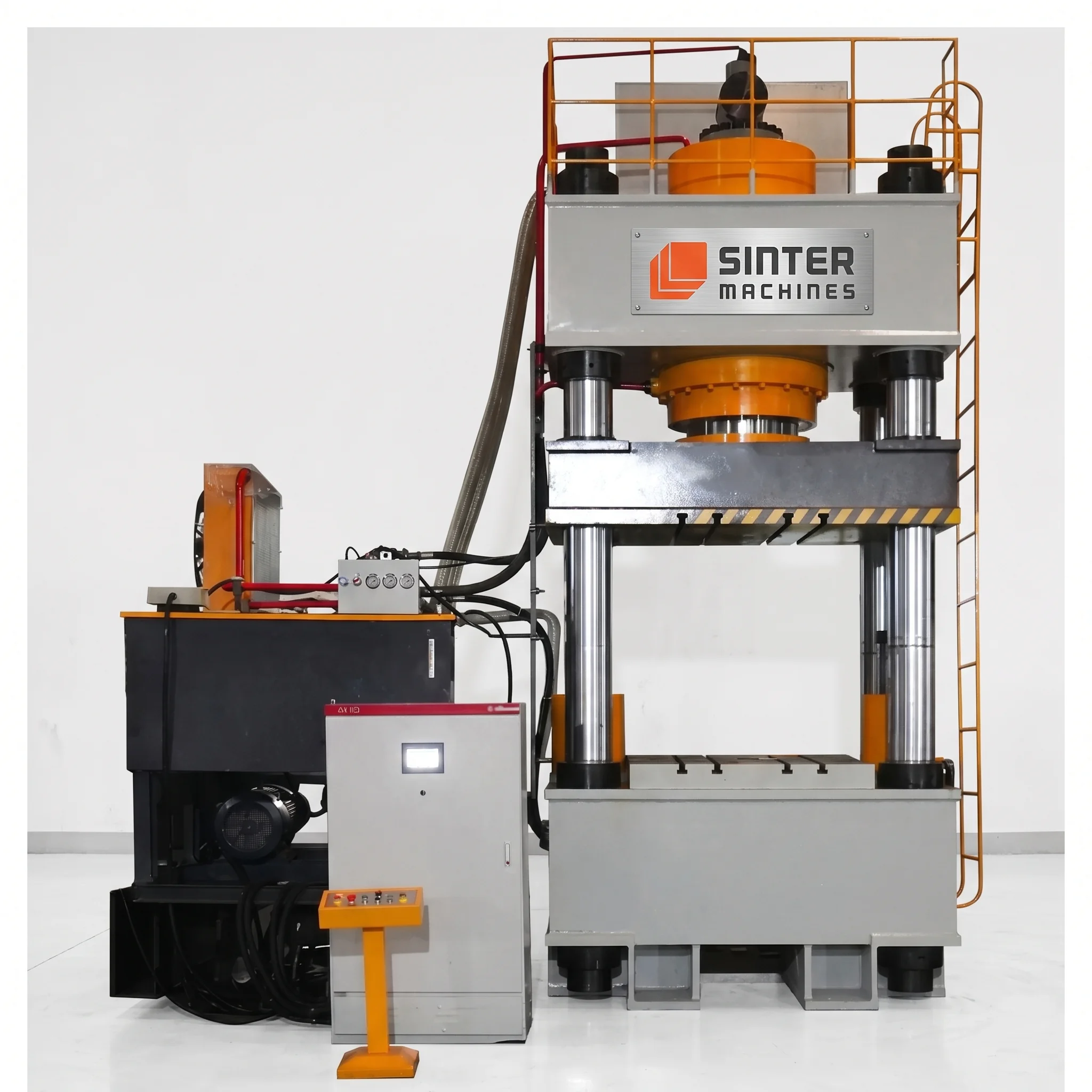

1250T Four Column Hydraulic Press for Tungsten Powder Block
A Tungsten Powder Block Compression 4-Column Hydraulic Press Machine is a specialized heavy-duty industrial compaction system engineered to compress fine tungsten metal powder into dense, uniform solid blocks, bars, or green compacts.
These machines are utilized in advanced powder metallurgy, high-temperature refractory manufacturing, electrical contact production, and aerospace component fabrication, where high-density, high-melting-point metal powders must be consolidated to minimize airborne dusting, reduce internal porosity, and ensure structural integrity prior to high-temperature sintering.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
High-Precision Guidance & Parallelism: Tungsten powder requires strict control over compaction uniformity to prevent density gradients or structural weak points that can cause warping or cracking during final sintering. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Rigid Load Distribution: Compacting extremely dense, hard refractory metal powders into high-strength green blocks requires continuous high tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity over long operational lifespans.
Tooling Durability & High Wear Resistance: Because tungsten powder is extremely abrasive and dense during high-pressure compaction, press tooling, die walls, and punches are engineered with hardened alloy tool steels or specialized tungsten carbide inserts to prevent rapid tooling degradation and material contamination.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 100 Tons to 1000+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | Hardened alloy tool steel or specialized tungsten carbide inserts designed to handle abrasive refractory metal powders |
Hydraulic Drive | Variable displacement piston pumps or servo-hydraulic systems with smooth proportional pressure control |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Enclosed Volumetric Feeding: An automated, sealed feed shoe slides precisely over the die cavity to deposit a measured volume of loose tungsten powder, minimizing airborne dust and ensuring uniform fill density.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate and the dense metal particles to firmly settle, minimizing internal stress or lamination.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent surface cracking from elastic springback. A bottom ejection cylinder then cleanly pushes the solid tungsten block out of the die cavity for downstream sintering, hydrogen reduction furnace processing, or secure packaging.

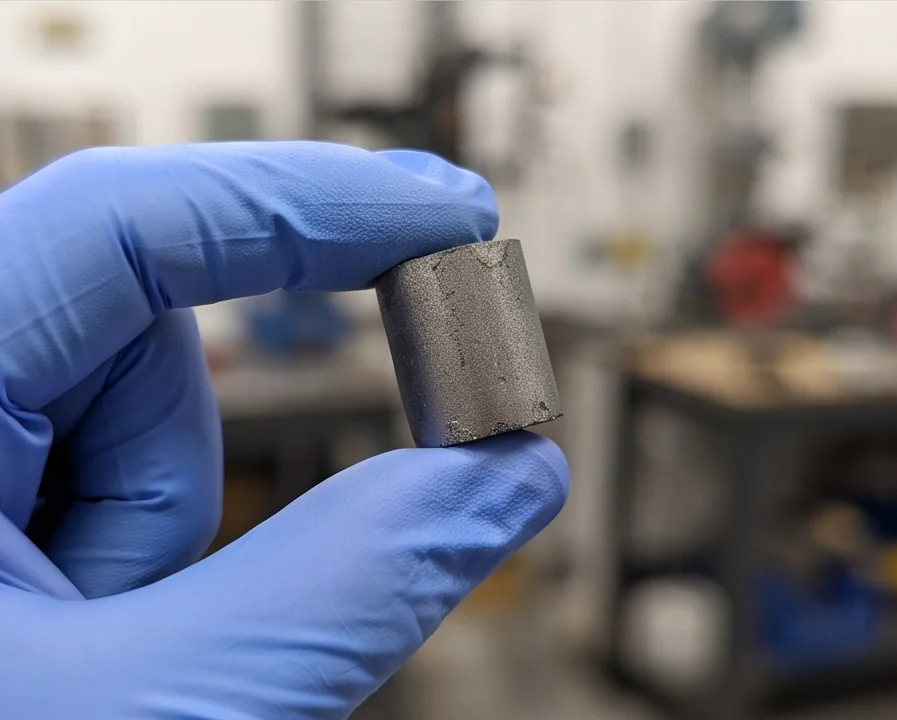

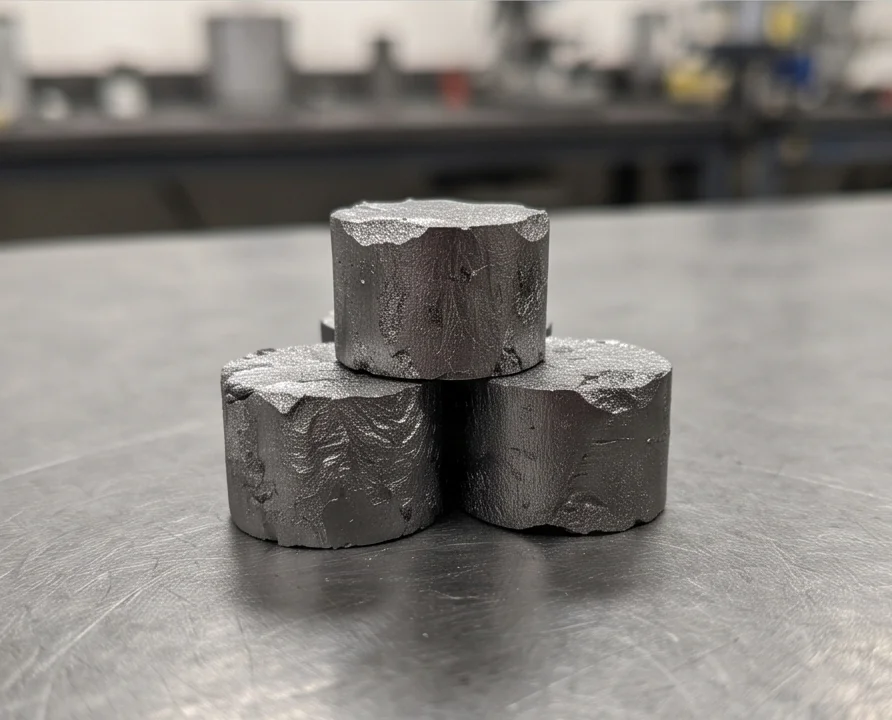

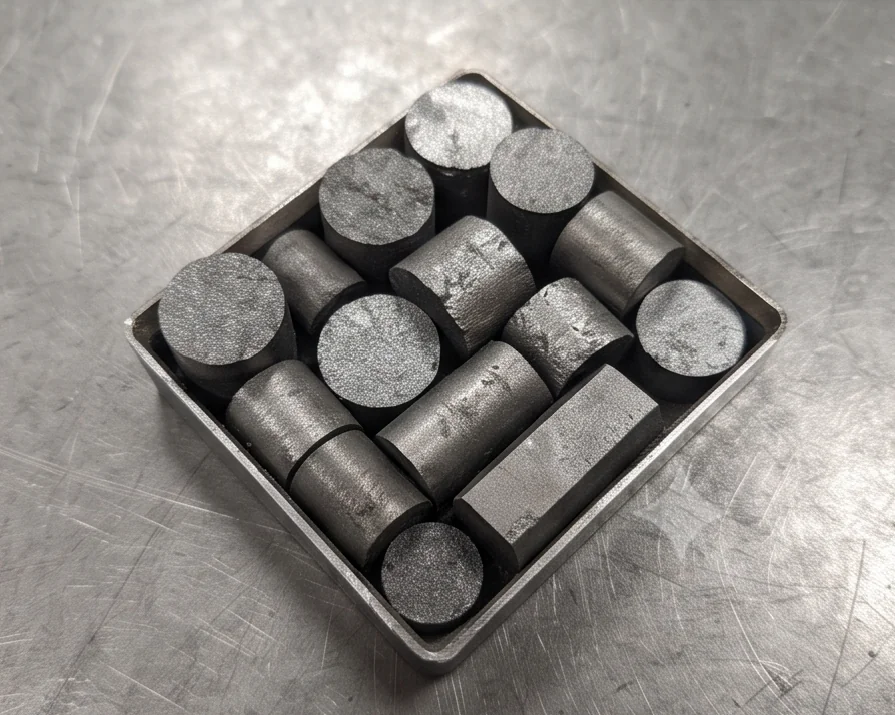

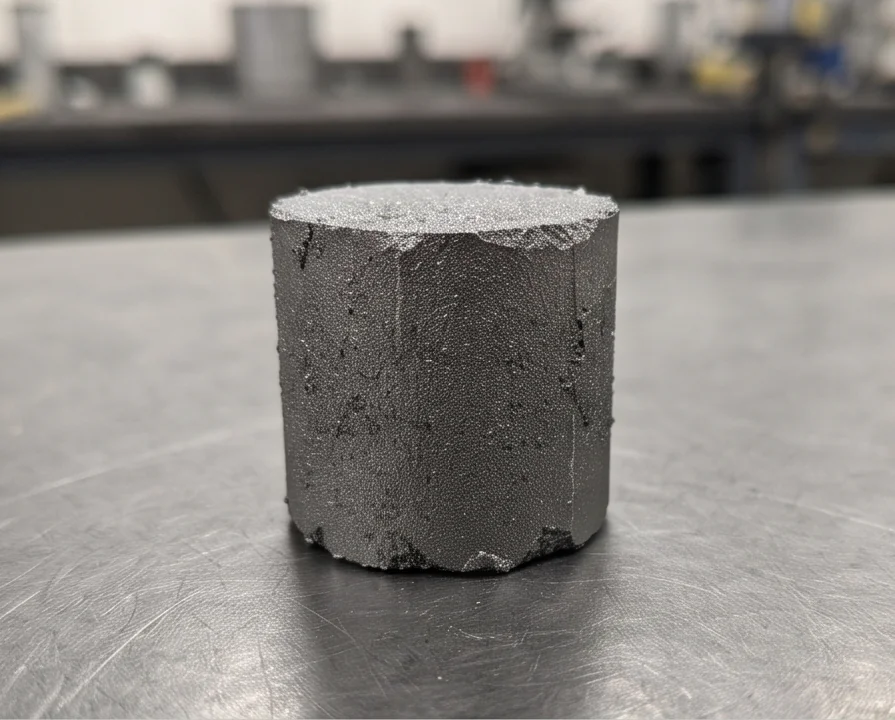

Finished Product Gallery
