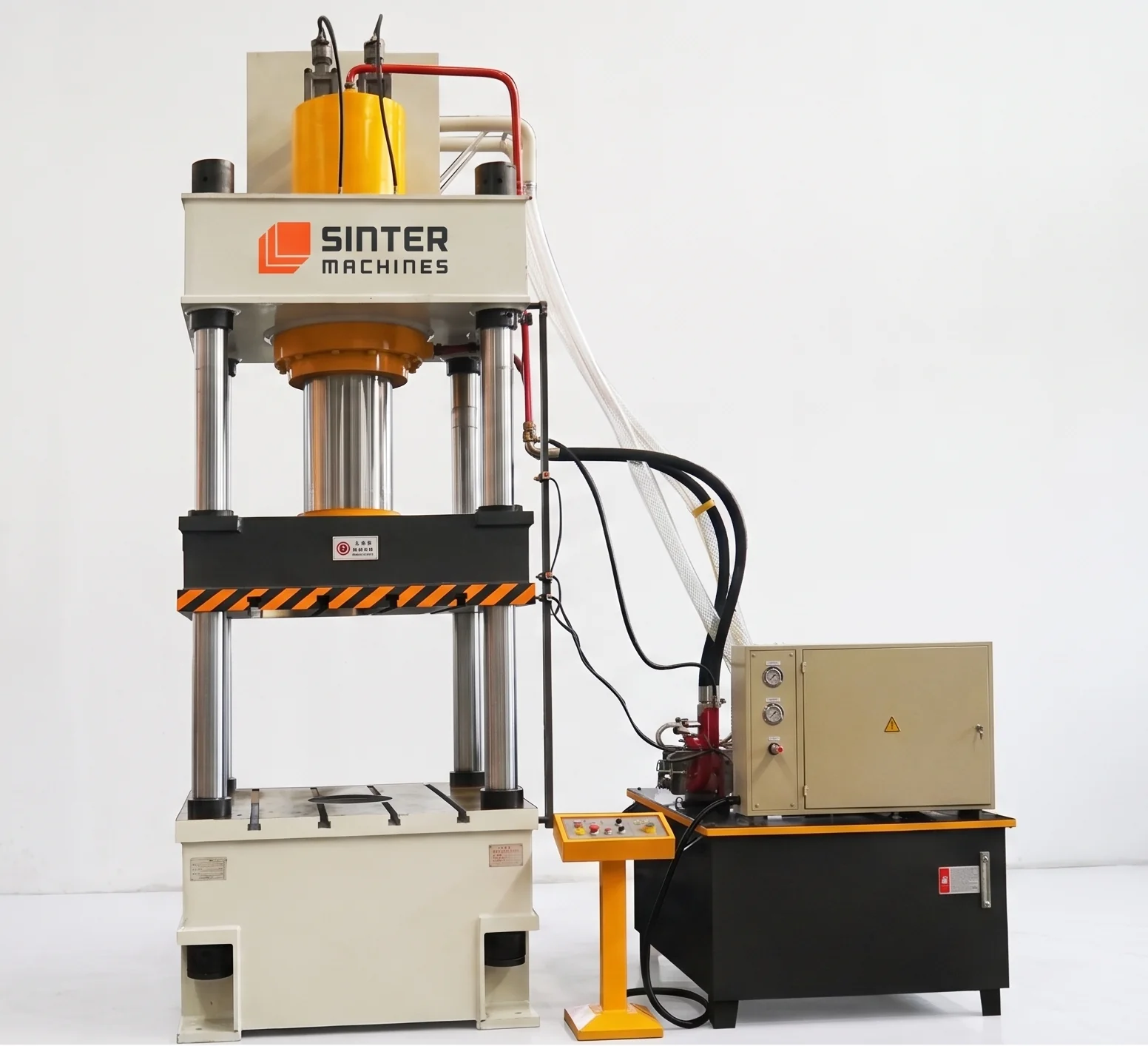

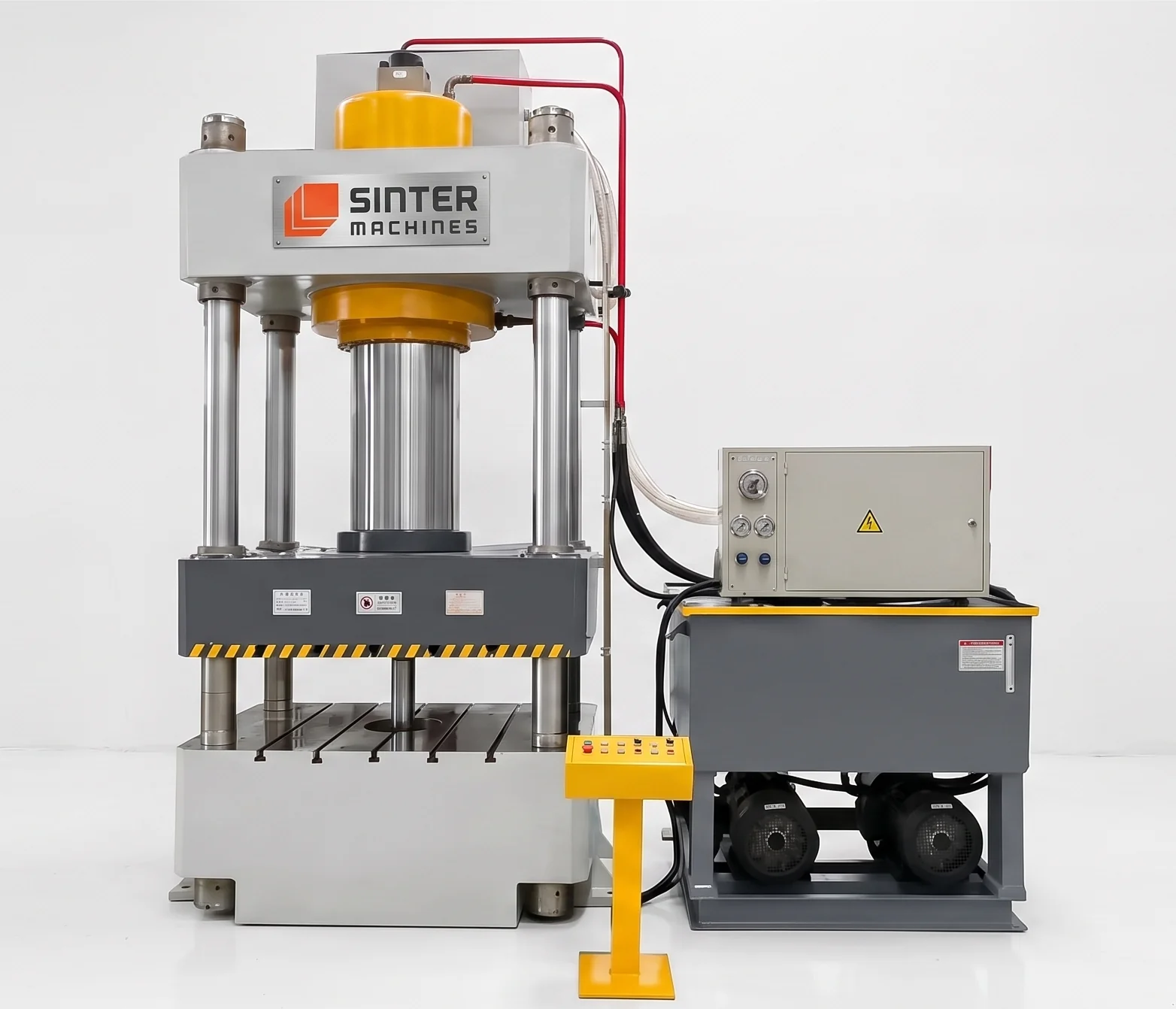

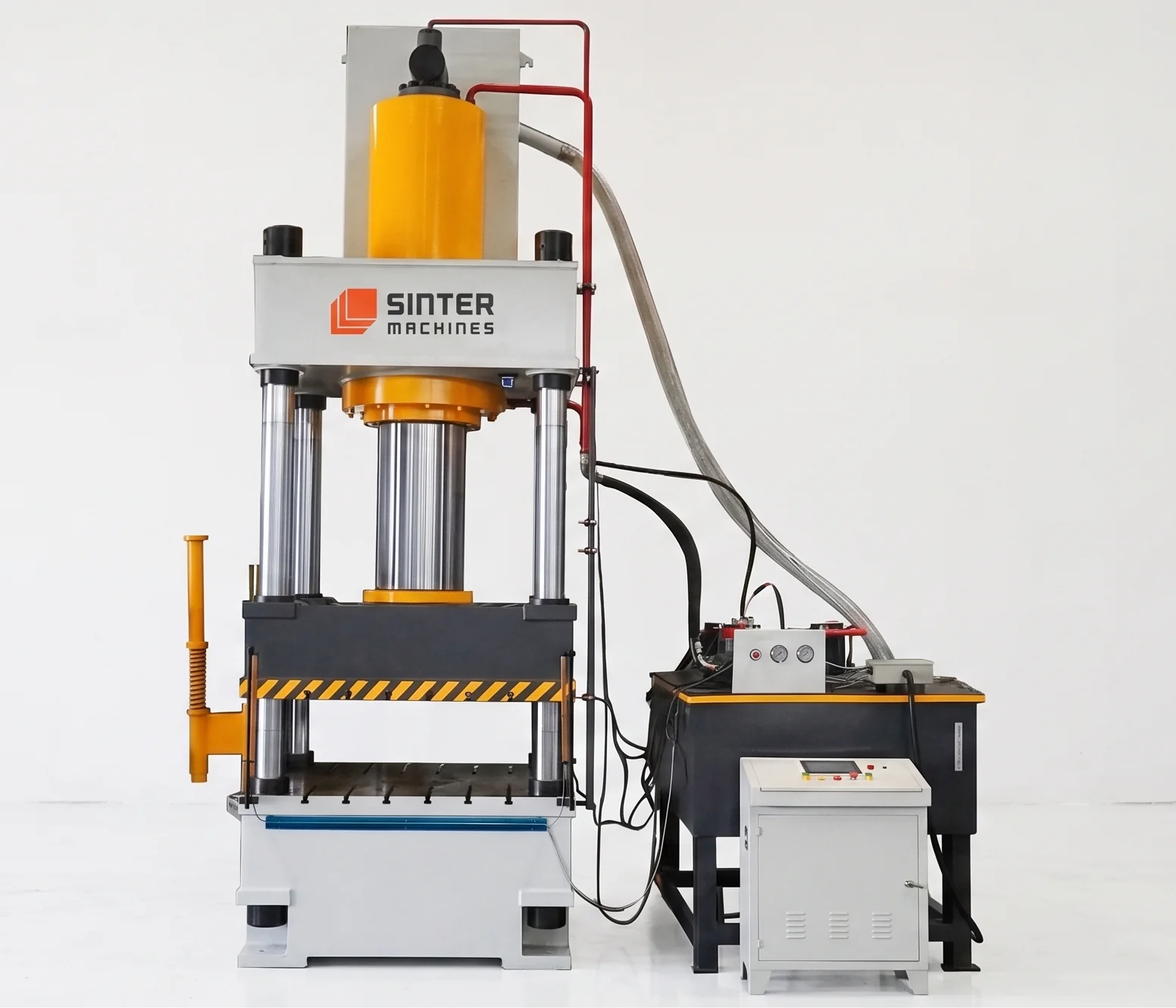

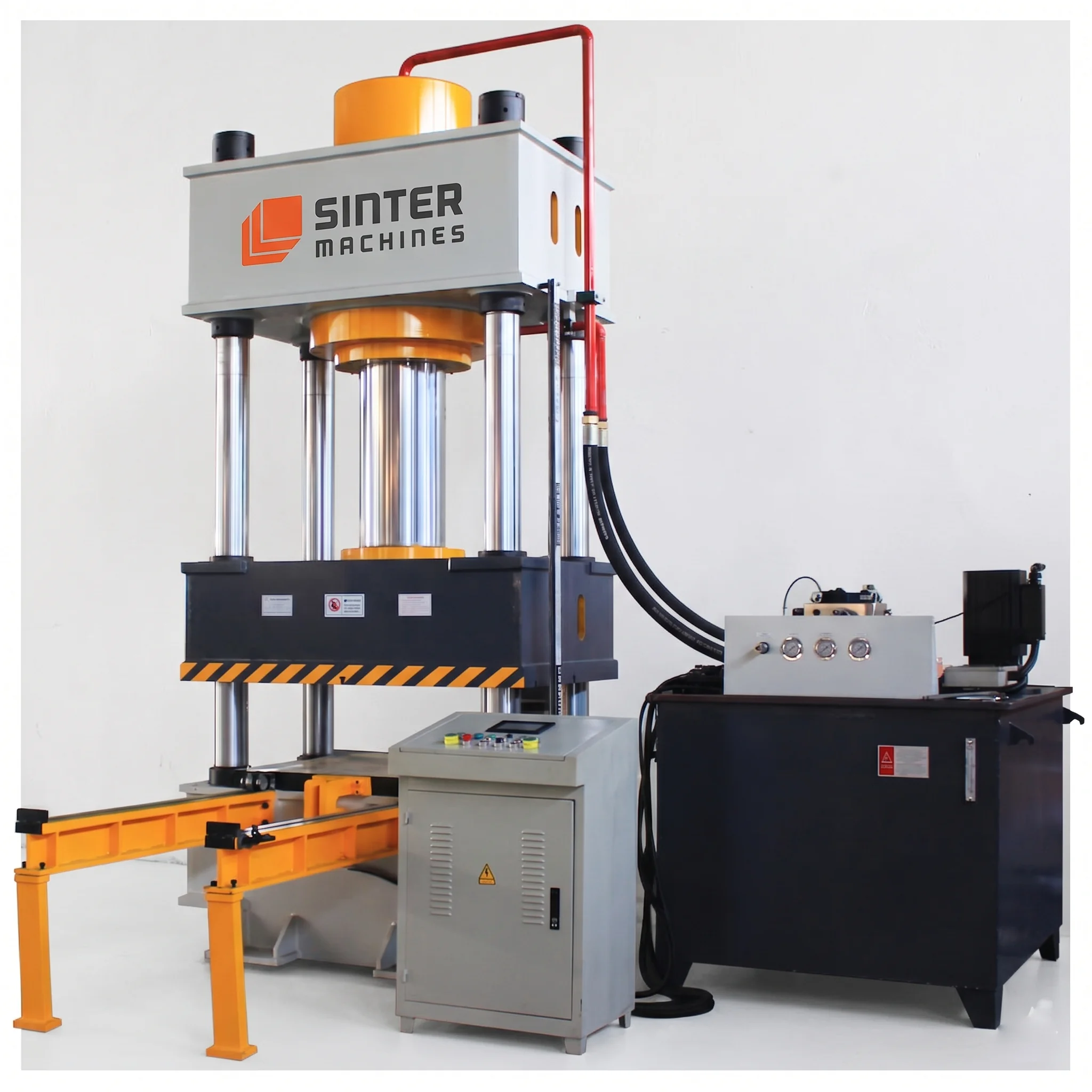

400T Four Column Hydraulic Press for Anorthite Powder Block
An Anorthite Powder Block Compression 4-Column Hydraulic Press Machine is a heavy-duty industrial compaction system engineered to compress fine anorthite powder (a calcium feldspar mineral, CaAl2Si2O8) into dense, uniform solid blocks, refractory bricks, or advanced ceramic preforms.
These machines are utilized in high-performance refractory manufacturing, advanced technical ceramics, glass-ceramic production, and high-temperature insulation fabrication, where loose mineral powders must be consolidated to minimize dusting, prevent material loss, and ensure structural integrity prior to firing.
01 — Engineering Considerations
Structural Design and Engineering Considerations (4-Column Architecture)
High-Precision Guidance and Parallelism: Anorthite ceramic and mineral powders require strict control over compaction uniformity to prevent structural weak points or density gradients. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Rigid Load Distribution: Compacting mineral powders into high-strength blocks requires continuous high tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity over long operational lifespans.
Tooling and Wear Resistance: Because feldspar and silicate mineral powders can be abrasive during high-pressure compaction, press tooling, die walls, and punches are engineered with hardened alloy tool steels or specialized wear-resistant inserts to prevent rapid tooling degradation and material contamination.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 50 Tons to 500+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die and Punch Assembly | Hardened alloy tool steel or specialized wear-resistant carbide inserts designed to handle abrasive mineral powders |
Hydraulic Drive | Servo-hydraulic or variable displacement piston pumps with smooth proportional pressure control |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Enclosed Volumetric Feeding: An automated, sealed feed shoe slides precisely over the die cavity to deposit a measured volume of loose anorthite powder, minimizing airborne dust and ensuring uniform fill density.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate and the mineral particles to firmly settle, minimizing internal stress or cracking.
- Controlled Decompression and Ejection: Hydraulic pressure is gradually bled off to prevent surface cracking from elastic springback. A bottom ejection cylinder then cleanly pushes the solid anorthite block out of the die cavity for downstream sintering, curing, or kiln firing.

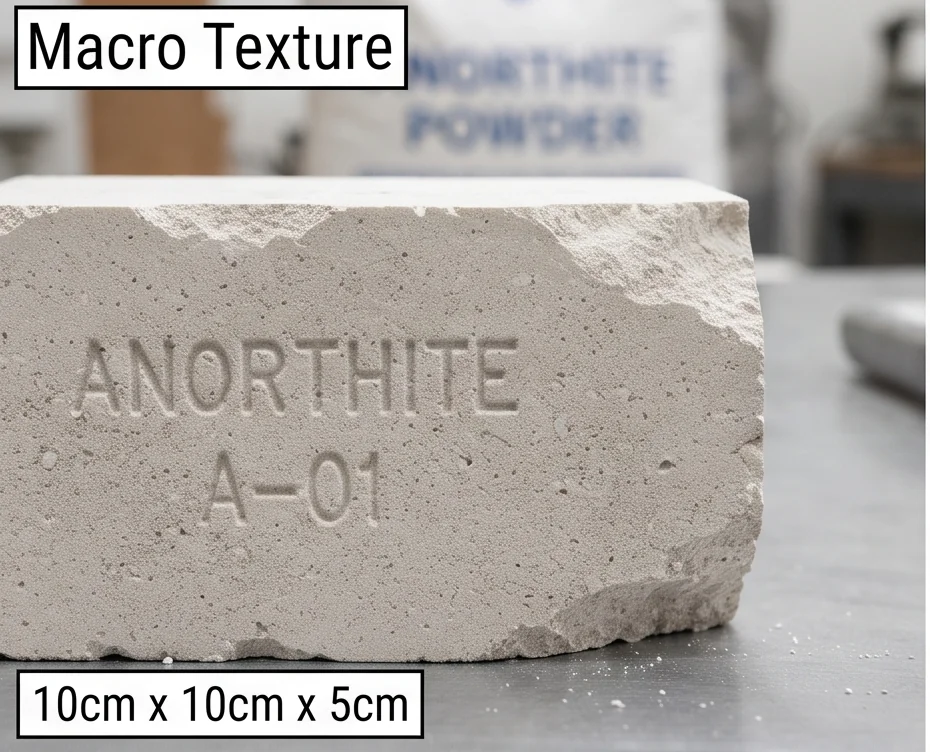

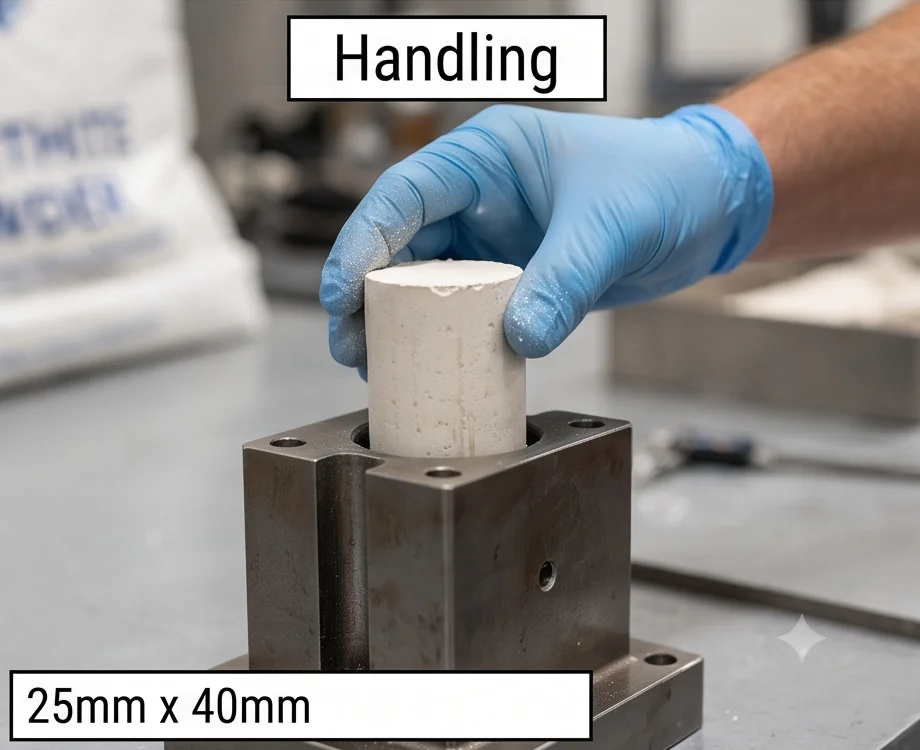

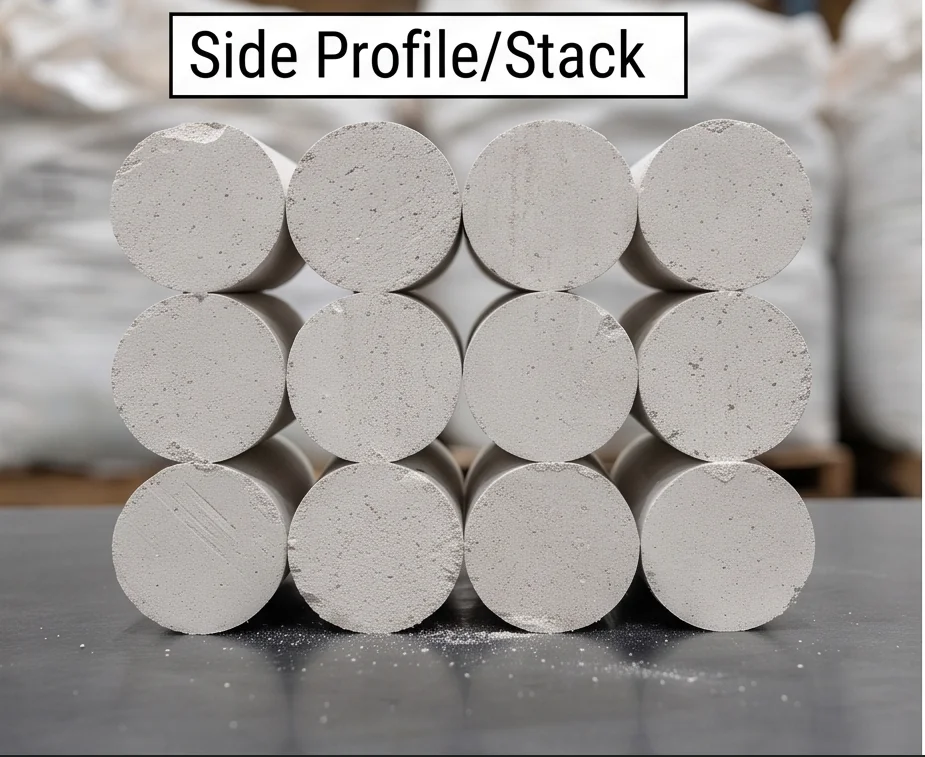

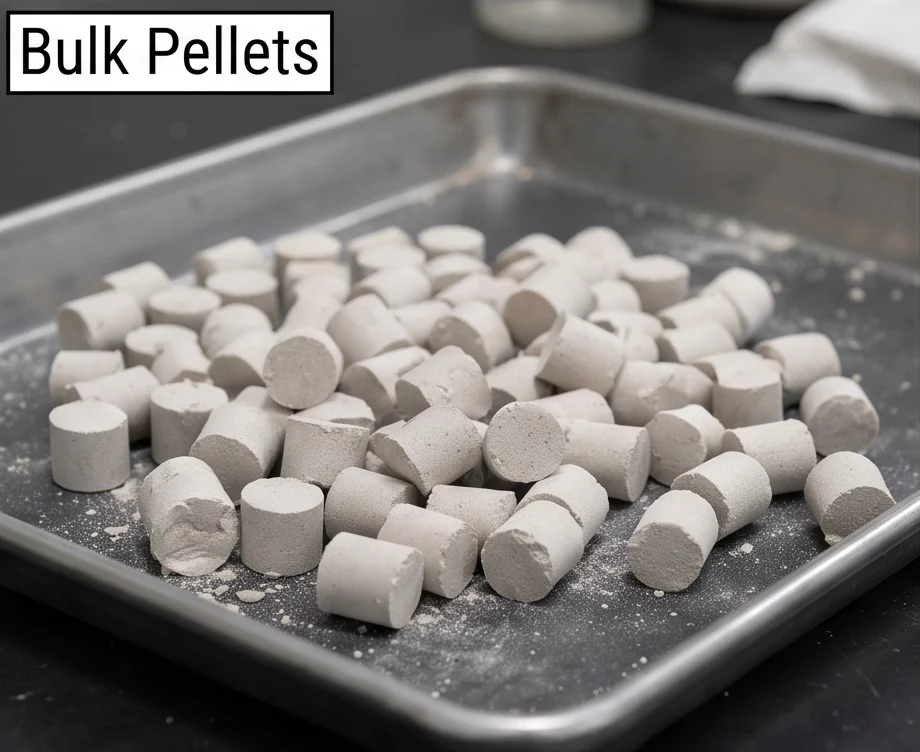

Finished Product Gallery
