1250T Plywood Boards Press press view 1
Sawdust Wood Chips Plywood Boards · Hydraulic Press Machine

1250 Ton Four Column Hydraulic Press for Saw Dust Wood Chips Compressed Plywood Boards

1250T Rated Capacity
180 mm/s Slider Down Speed
6–15 mm/s Slider Pressing Speed
200 mm/s Slider Return Speed

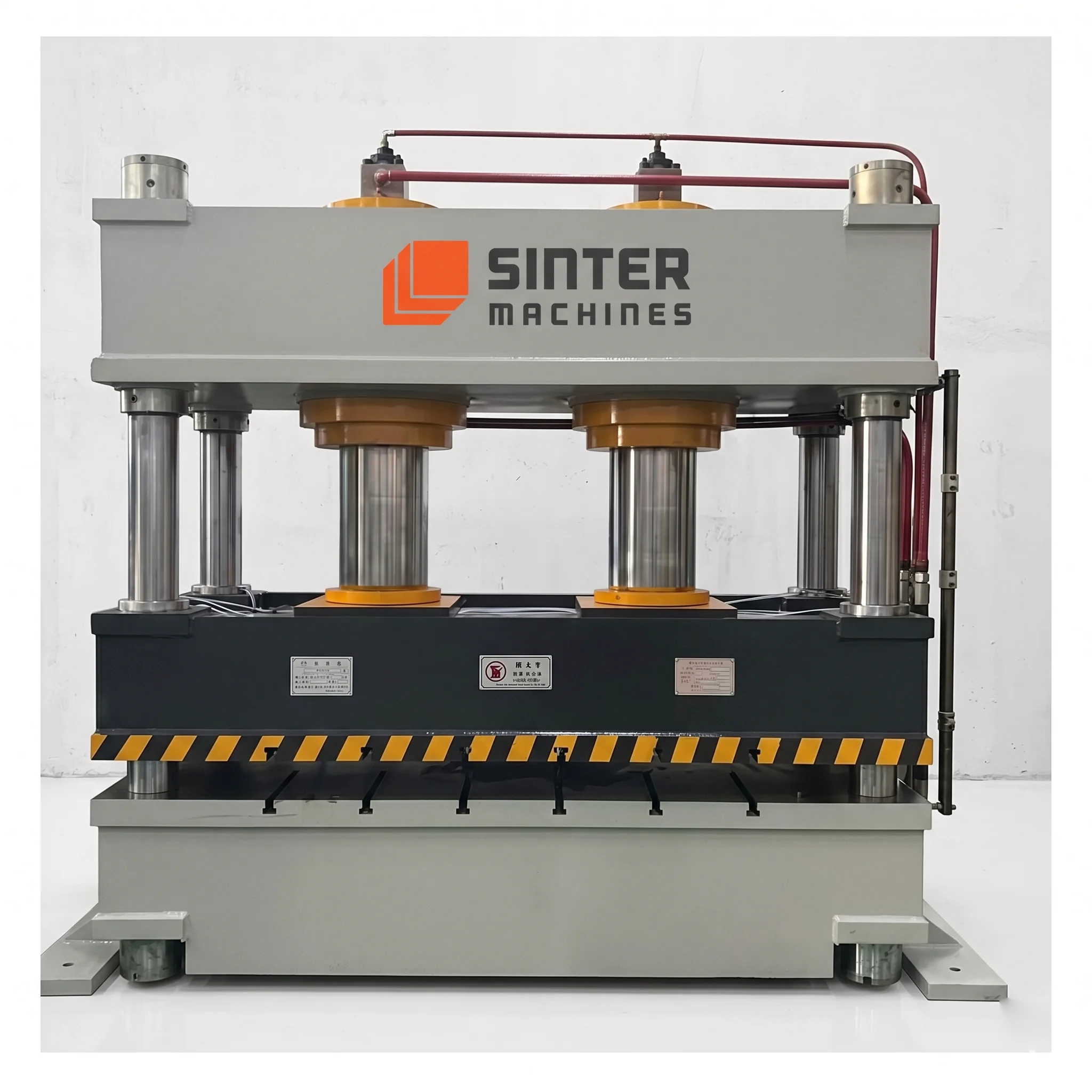

1250T Plywood Boards Press press view 1

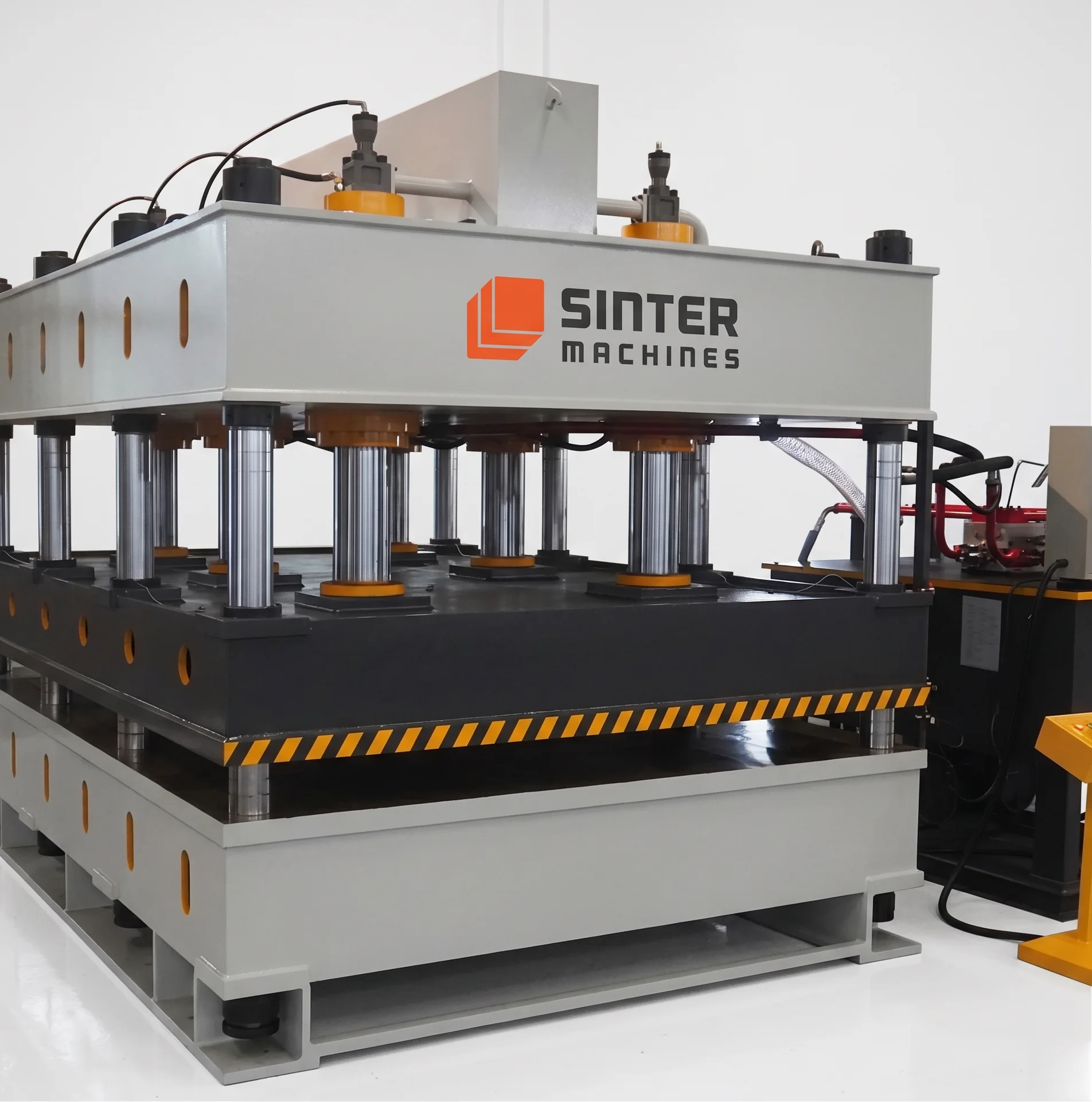

1250T Plywood Boards Press press view 2

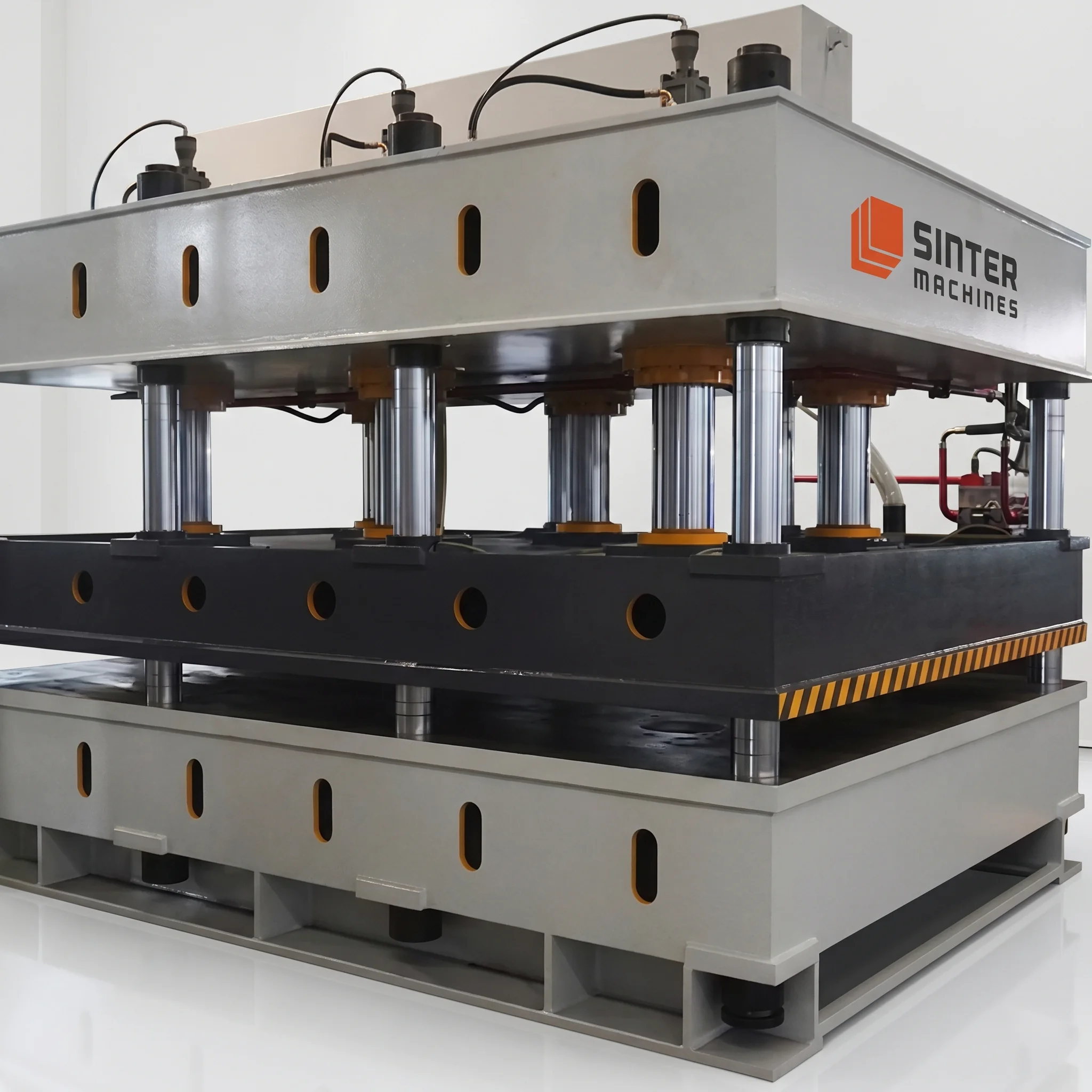

1250T Plywood Boards Press press view 3

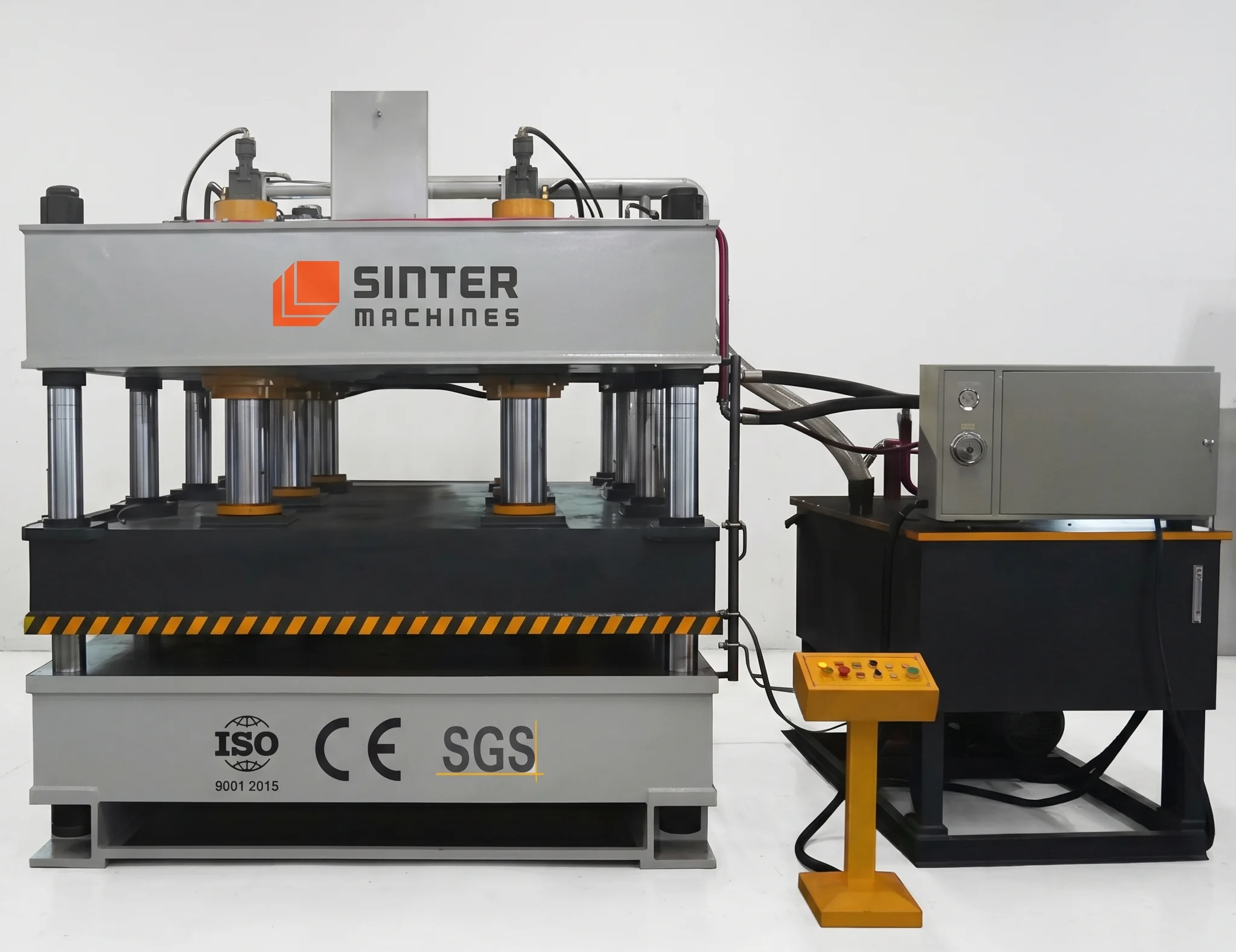

1250T Plywood Boards Press press view 4

01 — Press System

1250 Ton Four Column Hydraulic Press Machine

The 1250-ton four-pillar hydraulic hot press is a core production system for manufacturing compressed plywood and wood-composite boards from sawdust and wood chips, enabling high-strength, plywood-grade boards, efficient use of wood waste, cost-competitive engineered panels, and sustainable, industrial-scale production. This heavy-duty press delivers high thermal compression force and rigid platen guidance to consolidate loose wood particles and thermosetting binders into uniform, high-density wood panels.

Use Case

This 1250-ton four-pillar hydraulic hot press is designed for high-pressure, heated compression of wood-based composites, specifically sawdust and wood flour, screened wood chips, blended fiber furnishes, and synthetic or bio-based binders. The system combines continuous hydraulic force with multi-zone heating to cross-link resins, drive off moisture, and thermoform high-strength bio-composite boards.

Core Applications

  • High-tonnage hot compression molding of sawdust, wood chips, and timber offcut composite formulations
  • Continuous thermal pressing of dense wood-composite panels, high-density particleboards, and compressed plywood boards
  • Mass production of durable, moisture-resistant industrial structural panels, furniture boards, and building materials

Material

  • Screened sawdust, wood flour, pulverized wood chips, wood shavings, and blended timber fiber waste
  • Thermosetting synthetic and bio-binders including Urea-Formaldehyde, Phenol-Formaldehyde, MDI, and lignin adhesives
  • Water-repellent paraffin wax emulsions, moisture-proofing sizing agents, and flame-retardant chemical additives

Typical Products Processed

  • Compressed wood chip and sawdust boards for packaging containers, cargo boxes, and pallet decks
  • High-density structural particleboards and fiber-reinforced composite sheets for industrial construction
  • Engineered eco-friendly furniture boards, cabinet panels, and heavy-duty protective flooring underlayments

Key Functions

  • High-force multi-stage thermal squeezing to consolidate loose wood particles and eliminate internal air pockets
  • Multi-zone thermal oil platen heating to ensure complete, uniform resin cross-linking and binder curing across large board surfaces
  • Programmable pressure dwell-time holding to lock in precise panel thickness and ensure high structural rigidity
  • High-capacity hydraulic ejector and stripper mechanisms for smooth, non-destructive release of hot-molded boards

Why 1250 Ton Hydraulic Press?

  • Generates the intense compaction force required to compress thick wood chip mats into dense, heavy load-bearing structural boards
  • Four-pillar guide architecture maintains strict platen parallelism under thermal stress, ensuring uniform board thickness across large panel footprints

02 — Technical Specifications

SM 1250 HP – HYDRAULIC PRESS MACHINE COMPLETE TECHNICAL DATA

The SM 1250 HP hydraulic press delivers continuous high-tonnage thermal compression and precise temperature control engineered for manufacturing compressed plywood and wood chip composite boards. Its rigid four-column architecture and multi-stage pressure profiling ensure rapid moisture degassing, uniform binder cross-linking, and warp-free structural panels.

Capacity

  • Maximum continuous hot compression molding force capacity of 12500 kN
  • Dedicated hydraulic bottom ejector stripping force capacity of 800 kN

Structural Design

  • Heavy fatigue resistant pre stressed four column configuration built for continuous high temperature pressing
  • FEA stress relieved heavy steel plate welded bolster and upper moving slide structure

Frame Type

  • Precision aligned solid induction hardened pillar frame guide structure
  • Stress relieved heavy welded steel plate bolster and upper moving slide assembly

Hydraulic System

  • High output variable displacement axial piston pump fluid power assembly
  • Multi stage high capacity offline oil filtration loop with integrated oil coolers

Main Ram Stroke

  • Maximum vertical slide forming travel distance capability of 1000 mm
  • Electronic stroke length limitation positioning resolution accurate within 0.005 mm

Working Hydraulic Pressure

  • Maximum continuous operating main hydraulic system fluid pressure of 250 bar
  • Peak shock safety valve pressure relief calibration threshold limit of 280 bar

Daylight Gap

  • Maximum open vertical daylight window working clearance of 1400 mm
  • Minimum closed shut die height tool workspace space of 300 mm

Approach Speed

  • Accelerated downward advance slide rapid travel speed of 250 mm/Sec
  • Controlled raw material tool engagement deceleration velocity of 12 mm/Sec

Pressing / Drawing Speed

  • Dynamic high pressure thermal curing resin bonding speed of 3 to 15 mm/Sec
  • Maximum resistance continuous wood chip compaction velocity of 20 mm/Sec

Return Speed

  • High speed upward ram extraction retraction travel speed of 220 mm/Sec
  • Ultra fast automated hydraulic pre return system decompression cycle timing

Bed / Platen Size Platen

  • Total clear bolster bed width left to right of 2500 mm
  • Total clear bolster bed depth front to back of 1300 mm

Columns

  • Ultra high tensile forged alloy steel pillar diameter of 250 mm
  • Heavy duty wear resistant bronze guide bushings with automatic grease lubrication

Working Envelope

  • Total horizontal internal clear workspace area of 2500 by 1300 mm
  • Maximum permissible upper heated die tool assembly mass weight of 10000 kg

Control System

  • Industrial programmable logic controller linked with a graphical touchscreen station
  • Dual redundant non contact linear transducer position tracking systems accurate within 0.002 mm

Main Motor Power

  • High efficiency primary hydraulic pump electric drive motor power of 110 kW
  • Dedicated auxiliary cooling and continuous oil filtration motor power of 11 kW

Valves & Hydraulics

  • High dynamic response proportional servo flow control cartridge manifold block
  • Integrated fast acting overhead gravity pre fill oil valve unit assembly

Automation

  • Digital interface connection ports for synchronized automatic wood mat dosing units
  • Integrated thermal oil heating manifold controls and automated robotic board handling systems

Safety Features

  • Dual channel infrared light curtain barriers guarding operator workspace zones
  • Automated heavy duty dual fail safe mechanical anti drop ram safety locking blocks

SM 1250 HP — Model Specifications

  • Nominal Force: 12500 KN
  • Maximum Hydraulic Pressure: 25 MPa
  • Max Opening Height of the Slider: 1500 mm
  • Max Stroke of the Slider: 900 mm
  • Effective Bed Size: 1600 × 1600 mm
  • Slider Down Speed: 180 mm/s
  • Slider Pressing Speed: 6–15 mm/s
  • Slider Return Speed: 200 mm/s
  • Ejector Cylinder Nominal Force: 600 KN
  • Stroke of the Ejection Cylinder: 300 mm
Production Case Study

Saw Dust Wood Chips Compressed Plywood Boards Production Line

2440 x 1220 mmBoard Size
750 to 950 kg /Cu MBoard Density
180 to 300 SecCycle time
10 to 20 boardsOutput/Hour
High structural strength achieved
Uniform resin curing guaranteed
Zero panel warping observed
Smooth surface finish held
Exact board thickness maintained
Low production reject rates
Long mold life maintained

03 — Die / Mold System

Precision Saw Dust Wood Chips Compressed Plywood Boards Die Mold Engineering

This precision thermoforming panel compression mold features heavy-duty alloy tool steel construction, CNC-machined thermal oil heating channels, and micro-perforated steam venting networks. Engineered to withstand continuous 1250-ton clamping force, it ensures uniform heat distribution across large board surfaces, rapid moisture degassing, and warp-free panel forming.

Technical Specifications (Tooling)

Die Type

  • Heavy duty industrial heated multi cavity compression mold tool assembly for compressed wood composite boards
  • Precision matched flat metal matrix platen die set engineered for high tonnage wood panel thermoforming

Die Materials

  • Premium P20 pre hardened tool steel mold cores designed for superior thermal conductivity and compressive strength
  • High strength H13 hot work tool steel inserts installed in high wear perimeter frame zones

Tool Configuration & Construction

  • Precision gun drilled internal thermal oil circulation channels designed for uniform multi zone panel heating
  • Heavy duty stress relieved base plate construction ensuring zero flex under maximum tonnage loading

Key Tooling Features

  • Micro perforated steam venting channels engineered to evacuate moisture and gases during hot compression
  • Integrated hydraulic edge trimming bars combined with pneumatic assist ejector ports for smooth panel release

Alignment Accuracy

  • Upper core to lower cavity guide pillar alignment deviation kept strictly under a limit of 0.020 mm
  • Heated platen thermal expansion parallelism variance across the active workspace restricted within a tolerance of 0.015 mm

Process Materials

  • Screened sawdust wood flour pulverized wood chips wood shavings and blended timber fiber waste
  • Thermosetting Urea Formaldehyde Phenol Formaldehyde MDI bio binders and hydrophobic wax sizing agents

Surface Finish

  • Active mold cavity surfaces precision ground and mirror polished down to a surface roughness of Ra 0.40 microns
  • Hard chrome plating layer applied to a thickness of 0.030 mm for superior wear and scratch resistance

Tool Life

  • Expected operational span of 150000 compression cycles before requiring mandatory surface re polishing and seal inspection
  • Total structural mold base lifespan capacity reaching 1000000 production cycles before major cavity rebuilds

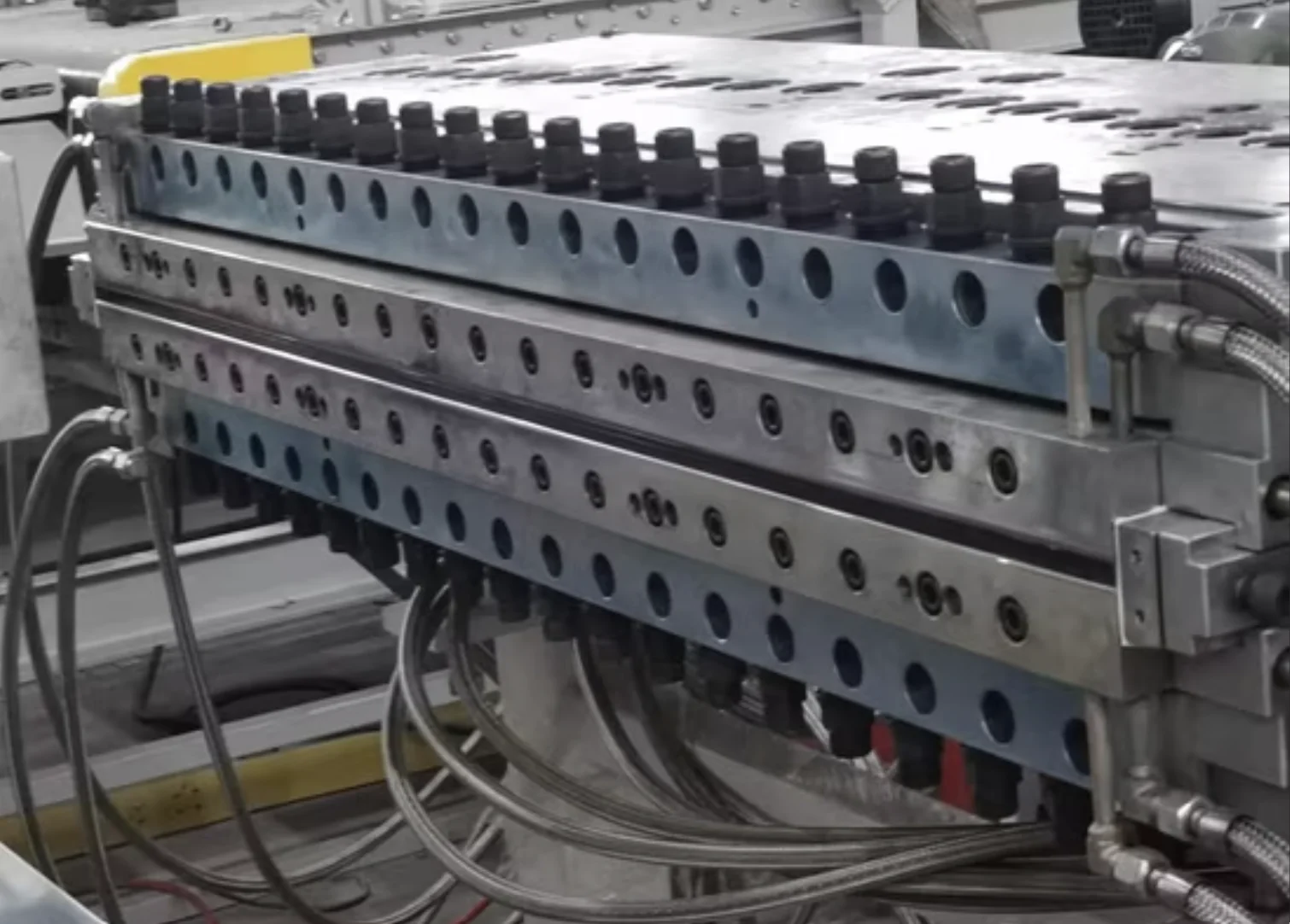

1250T Plywood Boards Press die mold
Case Study (Die Performance)

Precision Saw Dust Wood Chips Compressed Plywood Boards Die Mold

P20 Cr-M Alloy SteelDie Steel
58–62 HRCHardness
Vacuum HardeningHeat Treatment
Mold cavity sticking eliminated
Steam moisture evacuated rapidly
High structural strength achieved
Zero panel warping observed
Uniform thickness held consistently
Production reject rates minimized
Mold service life extended

04 — Product Application

Where Saw Dust Wood Chips Compressed Plywood Boards Are Used

Compressed plywood and wood chip boards serve as high-density, structural alternatives to traditional timber and plywood panels in industrial packaging, furniture, and construction. Their superior mechanical strength, uniform density, and smooth surface finish make them ideal for heavy-duty structural applications and eco-friendly manufacturing.

Industry Applications

Compressed wood chip and sawdust boards are widely used across industrial packaging, commercial furniture manufacturing, building construction, and logistics warehousing sectors. Converting low-cost timber offcuts and wood waste into high-density composite panels enables industries to eliminate solid timber consumption, reduce carbon footprints, prevent pest delays, and achieve sustainable structural manufacturing.

Heavy-Duty Packaging, Cargo Boxes, and Transport Crates

Provides high impact resistance and load-bearing strength necessary for protecting heavy industrial machinery, automotive parts, and bulk export goods. Resists structural cracking and warping under extreme environmental conditions, ensuring safe long-distance transit across global supply chains

Industrial Furniture, Commercial Cabinetry, and Modular Workstations

Offers a smooth, high-density surface ideal for laminating, veneering, or direct painting in office furniture and modular cabinetry production. Maintains excellent screw-holding power and edge stability, preventing joint loosening or panel sagging under heavy commercial use.

Building Construction, Concrete Formwork, and Wall Paneling

Delivers excellent moisture resistance and structural flatness required for temporary site hoarding, sub-flooring, and architectural interior paneling. Replaces expensive solid wood and standard plywood sheets, offering a fire-retardant and termite-resistant alternative for modern construction projects.

Warehouse Shelving, Heavy Pallet Decks, and Mezzanine Flooring

Provides extreme bending stiffness and flexural strength to support heavy stacked pallet loads on industrial racking systems. Features a uniform, nail-free, and splinter-free surface that protects handled goods and packaging materials from tears or punctures during storage.

Finished Product Gallery

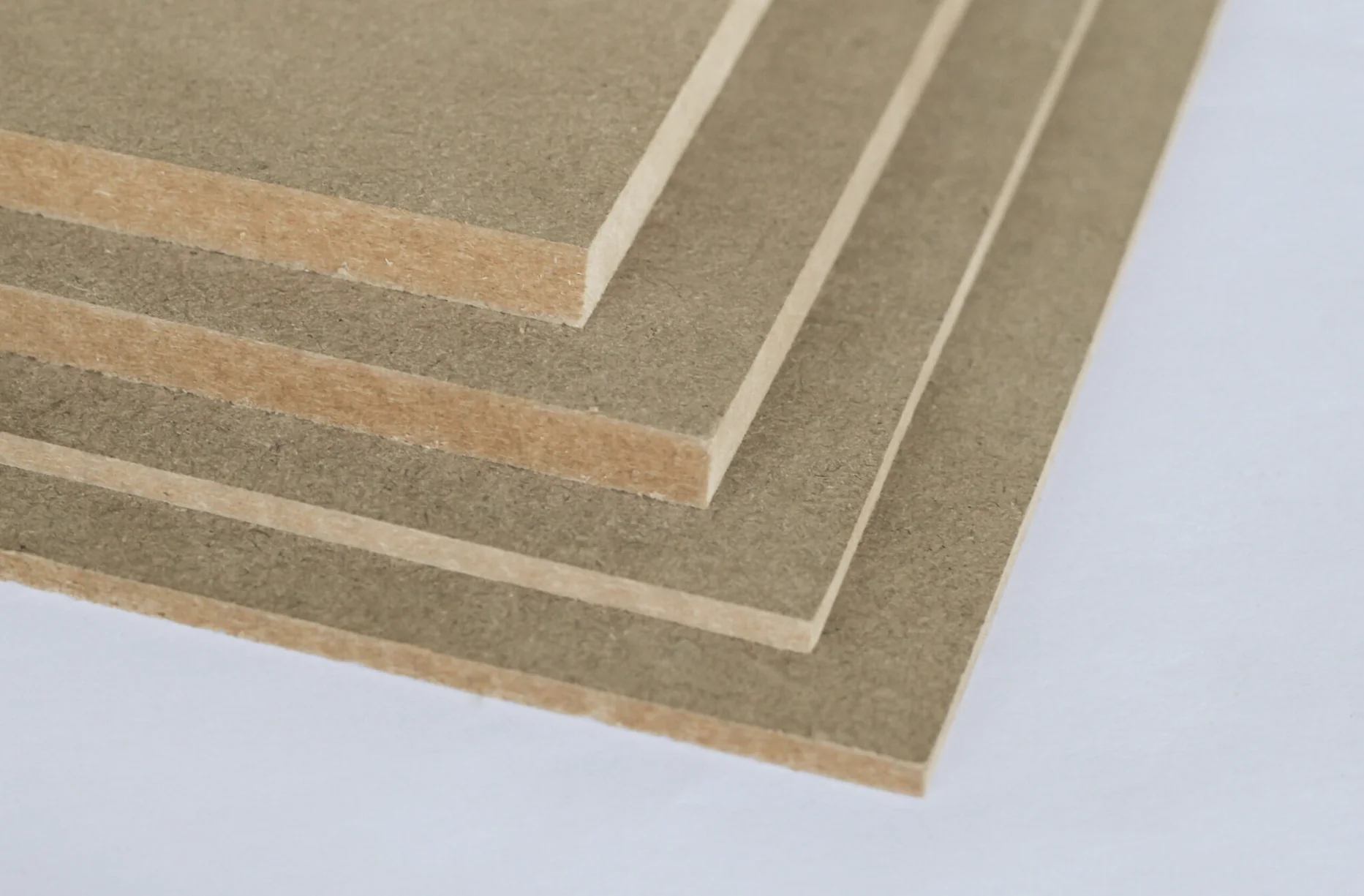

1250T Plywood Boards Press finished product 1

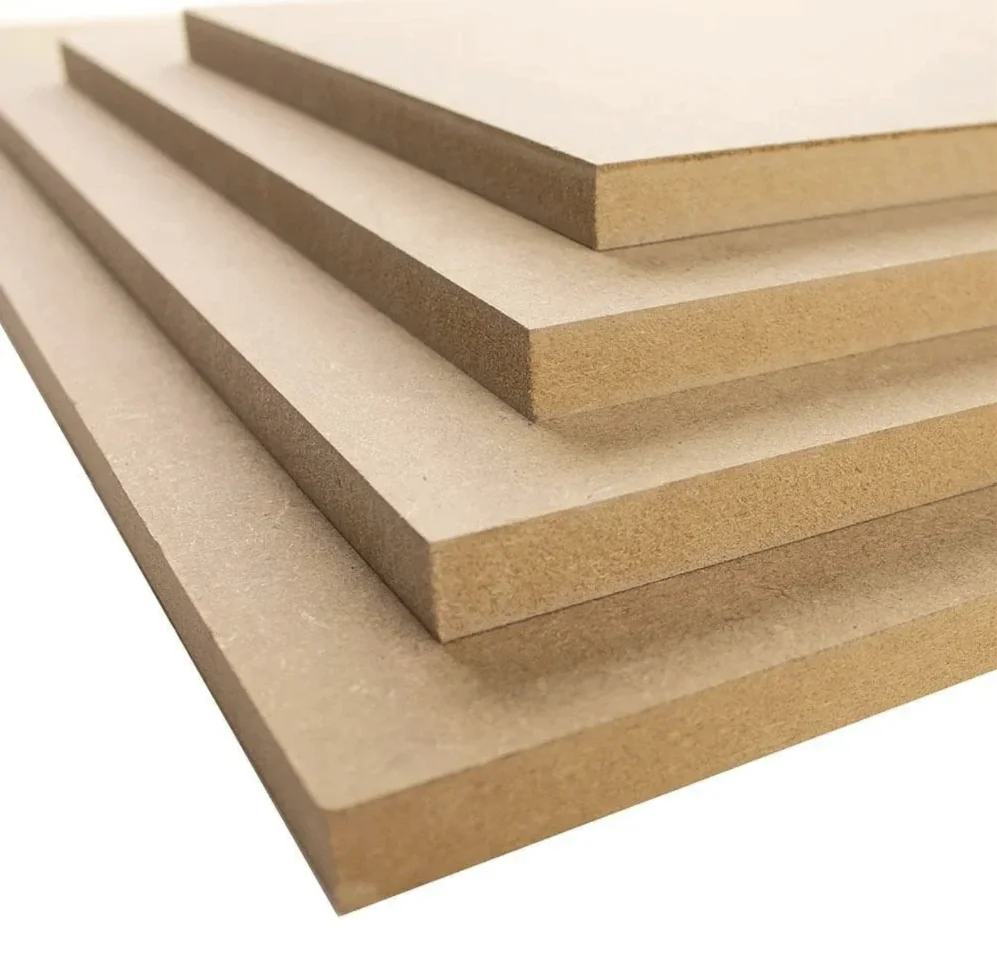

1250T Plywood Boards Press finished product 2

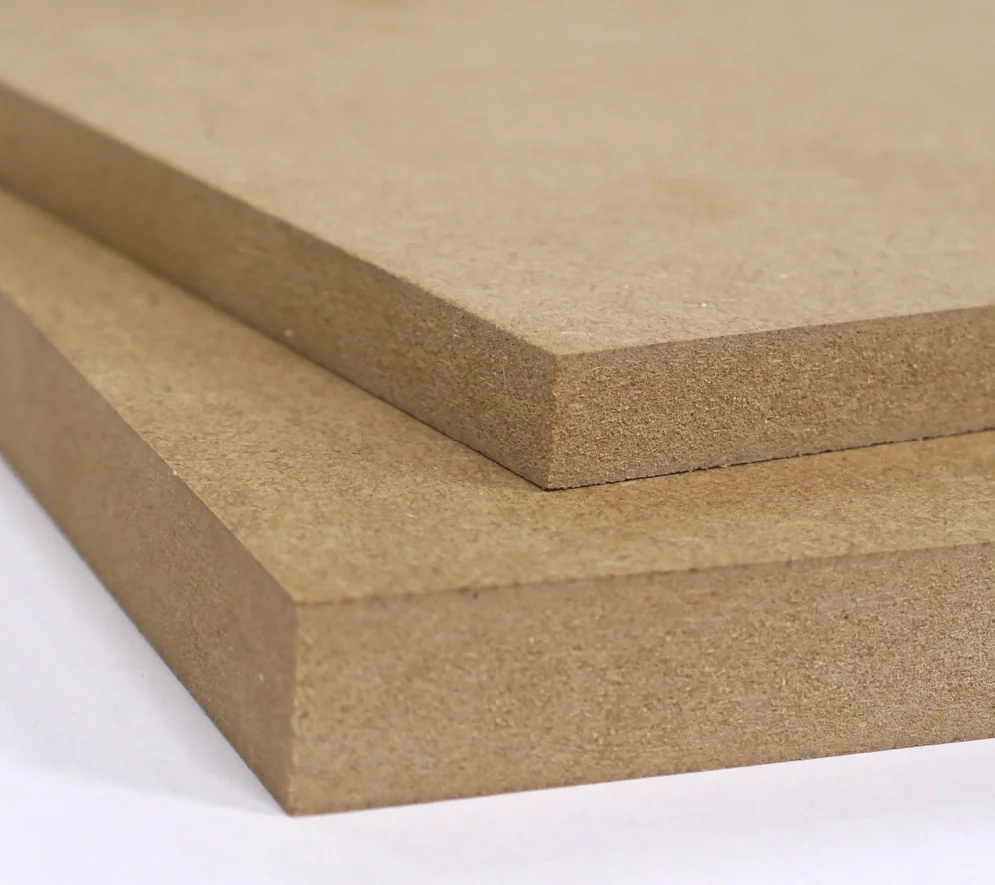

1250T Plywood Boards Press finished product 3

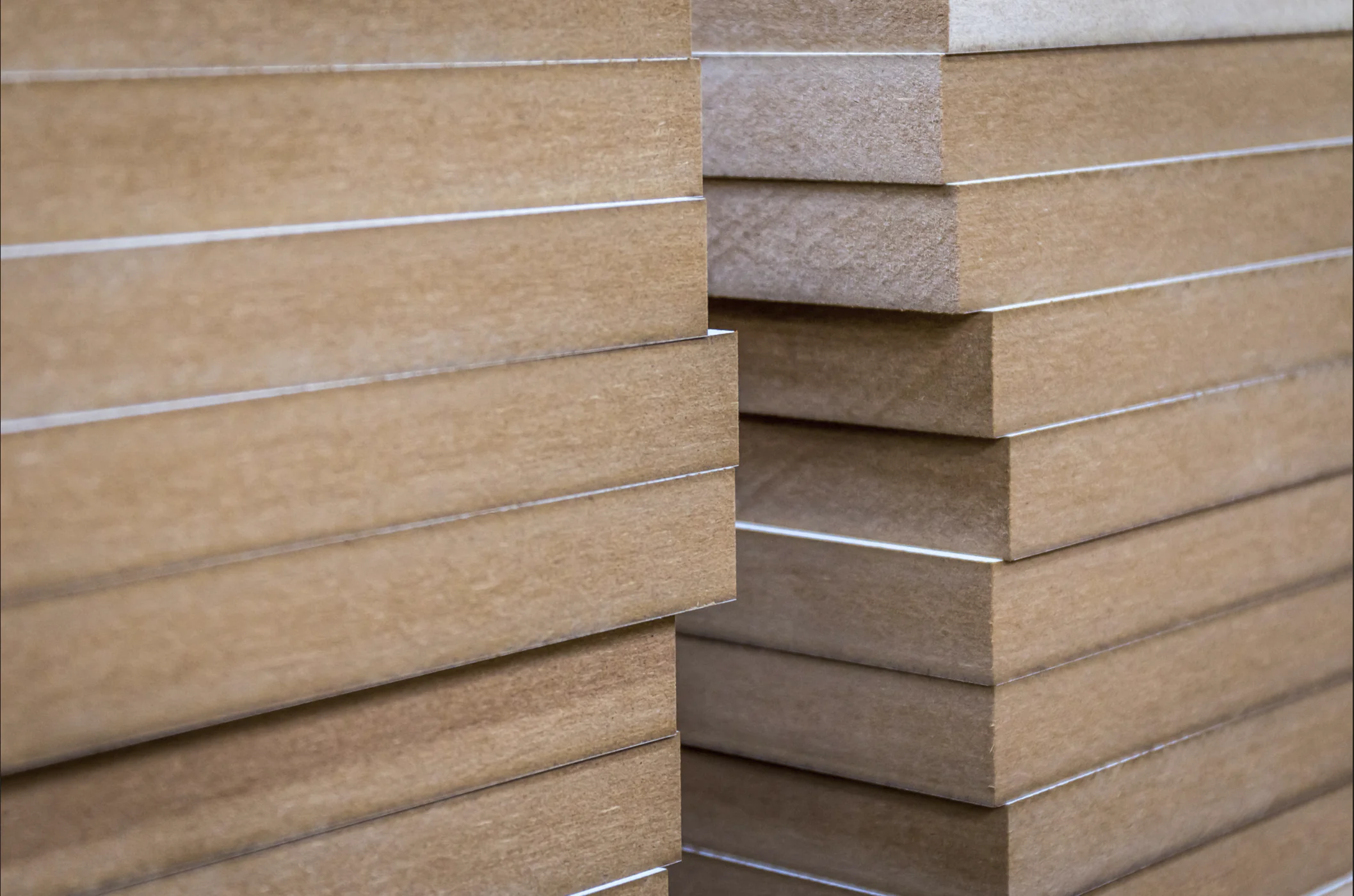

1250T Plywood Boards Press finished product 4

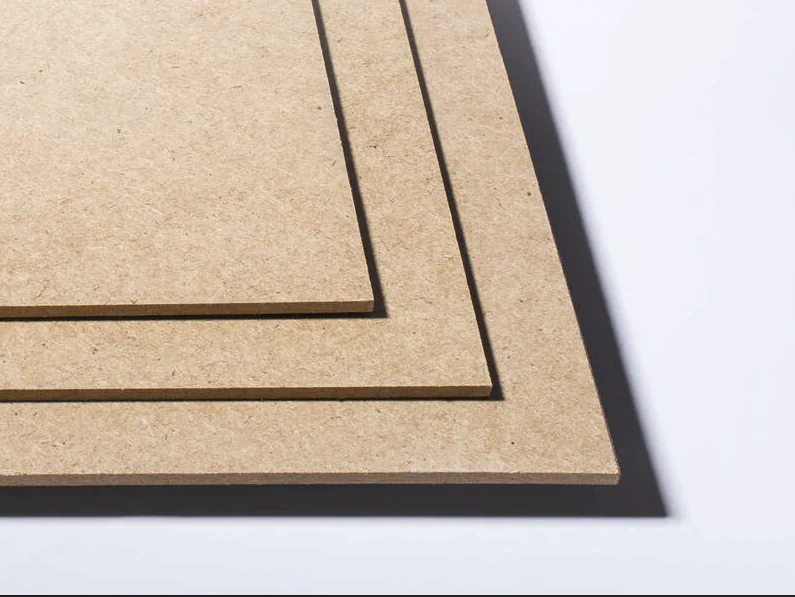

1250T Plywood Boards Press finished product 5

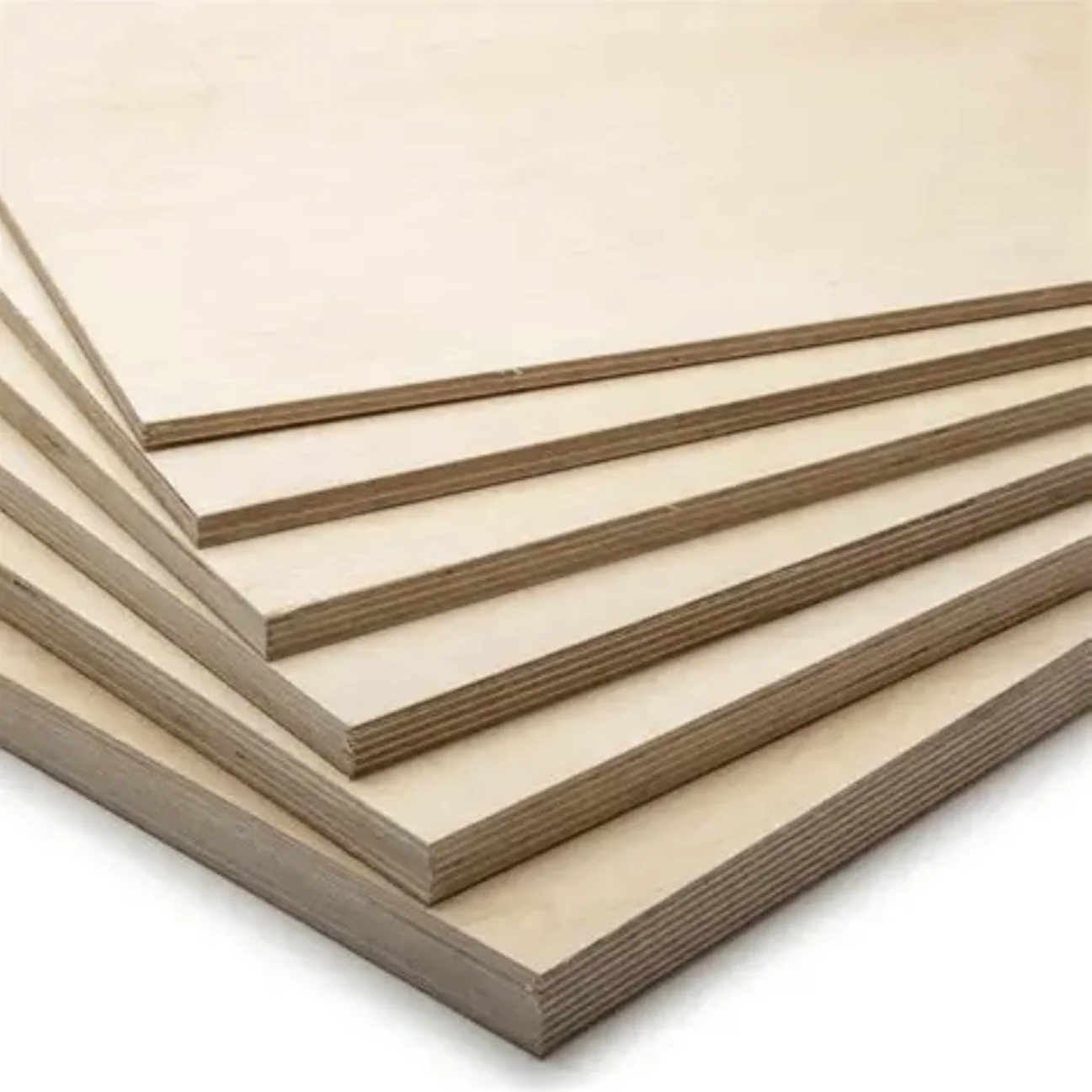

1250T Plywood Boards Press finished product 6

05 — Key Advantages

Why Choose the 1250-Ton Sinter Hydraulic Press

The 1250-Ton Sinter Hydraulic Press provides heavy thermal compression force and multi-zone temperature regulation engineered for manufacturing dense wood-composite panels. Its multi-stage steam degassing, rigid four-pillar guidance, and automated stripping system ensure flat, warp-free, high-strength boards with superior screw-holding capability.

Technical & Commercial Benefits

01

Massive 1250-Ton Tonnage Delivering High-Density Consolidation

Generates 1250 tons of continuous hydraulic pressure to consolidate loose sawdust and wood chip mats into dense, rigid structural boards. High compaction force eliminates internal air pockets, interlocking wood fibers to achieve high-strength, plywood-grade mechanical properties.

02

Precision Multi-Zone Thermal Oil Heating for Uniform Resin Curing

Transfers thermal energy evenly across the large 2500 x 1300 mm platen workspace to fully cure thermosetting synthetic and bio-binders. Balanced thermal distribution eliminates uncured core zones, preventing internal delamination, edge cracking, or surface defects in finished panels.

03

Multi-Stage Decompression Degassing System Preventing Internal Voids

Executes precise micro-decompression pauses during hot pressing to vent high-pressure steam and resin vapor trapped inside thick wood mats. Evacuating steam prevents internal blistering, surface blowing, and structural weakness, guaranteeing high panel integrity.

04

Rigid Pre-Stressed Four-Column Architecture Ensuring Parallelism

The heavy-duty four-column frame absorbs continuous high tonnage without structural deflection, maintaining precise platen parallelism under thermal stress. Absolute alignment guarantees uniform board thickness, consistent core density, and flat surfaces across large footprints.

05

Integrated High-Force Stripping System for Non-Destructive Demolding

Features an 800 kN bottom ejection and edge-stripping mechanism paired with pneumatic assist jets to smoothly lift hot, cured composite sheets. Synchronized extraction prevents panel cracking, corner chipping, and surface tearing during rapid automated material discharge cycles.

06

Low-Cost Waste Conversion Yielding High-Margin Composite Panels

Transforms low-value timber offcuts, sawdust, and screened wood chips into high-value engineered plywood and particleboard sheets. Utilizing abundant agricultural and forestry wood waste significantly lowers raw material expenses while producing sustainable, eco-friendly building materials.
