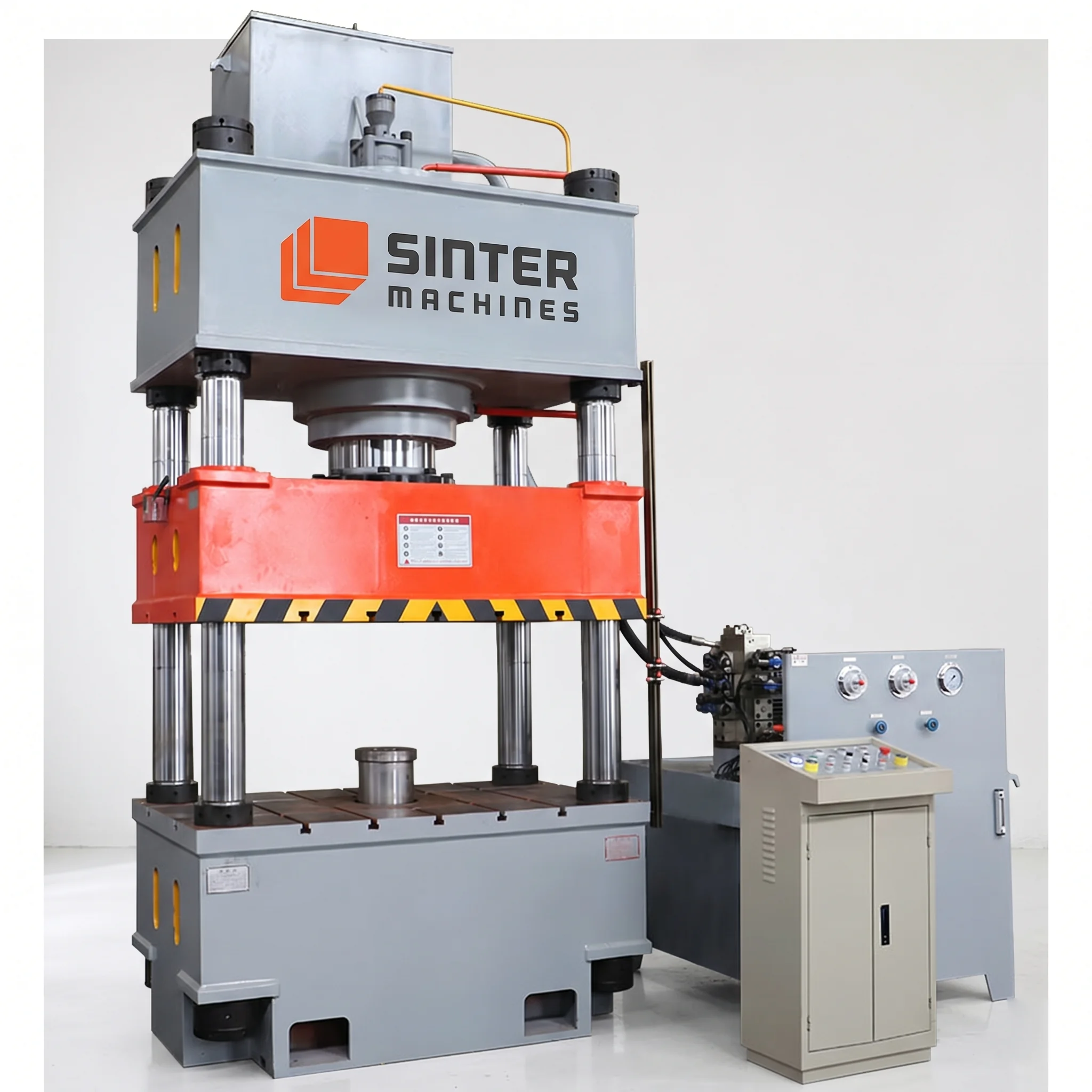

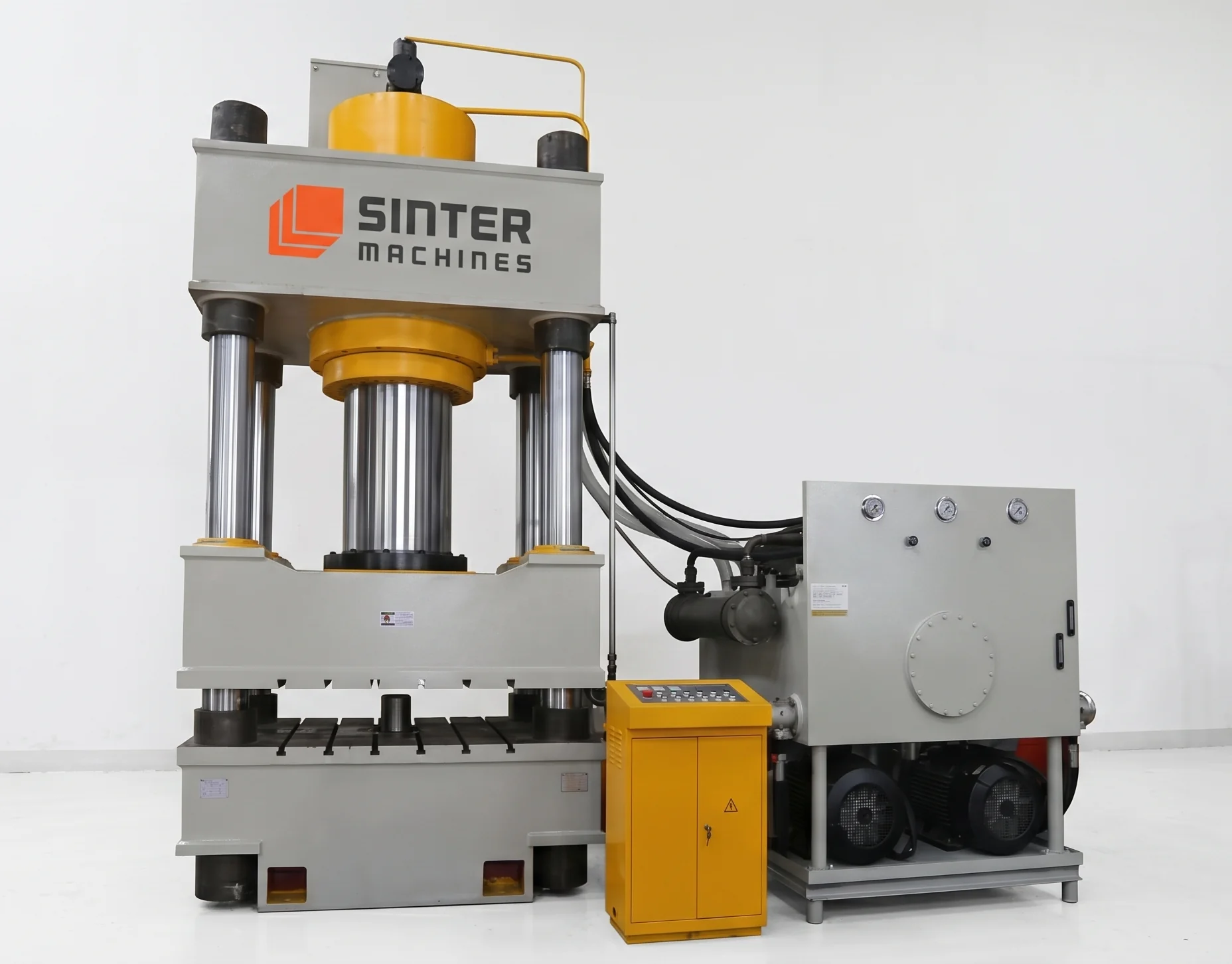

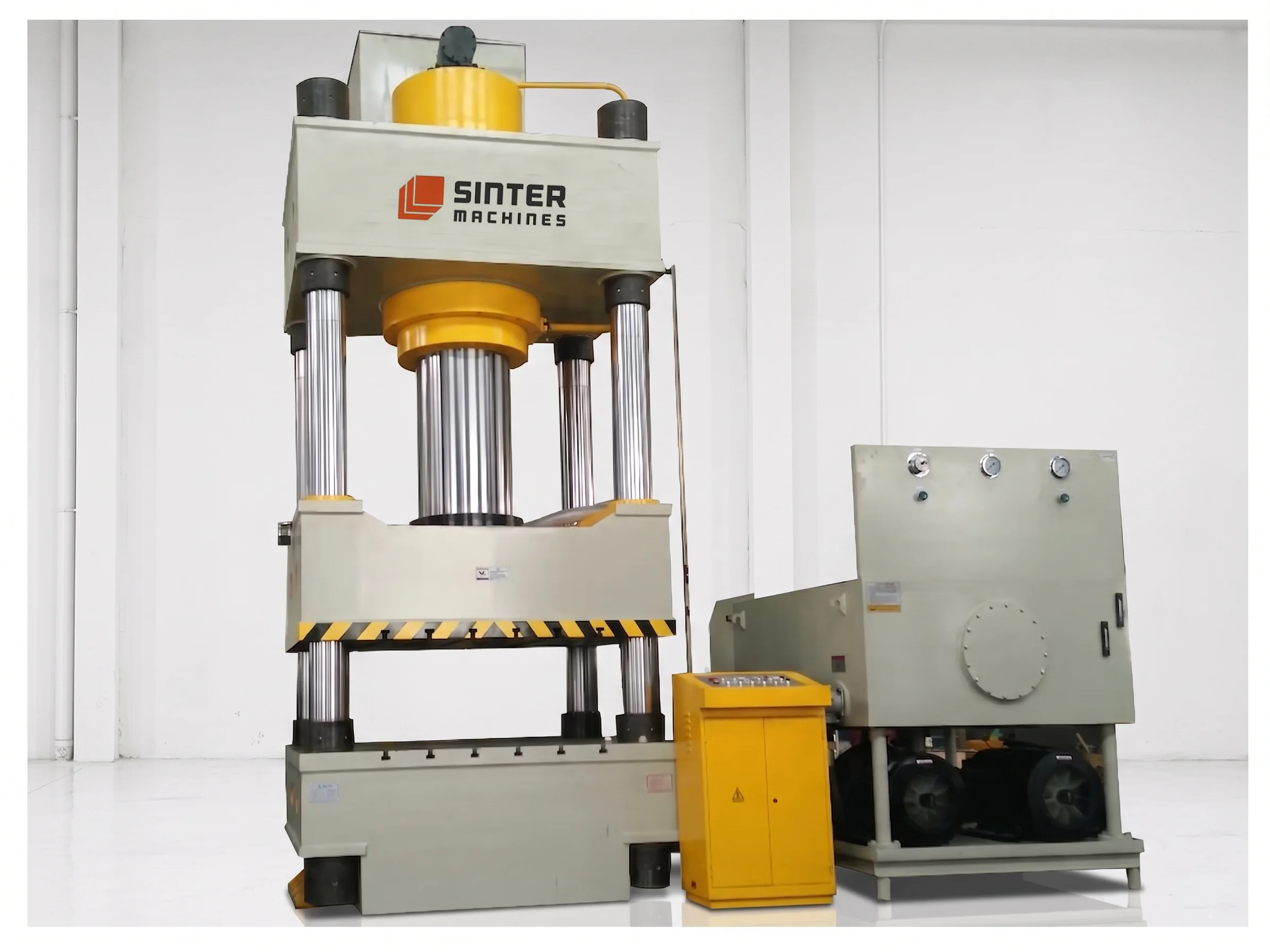

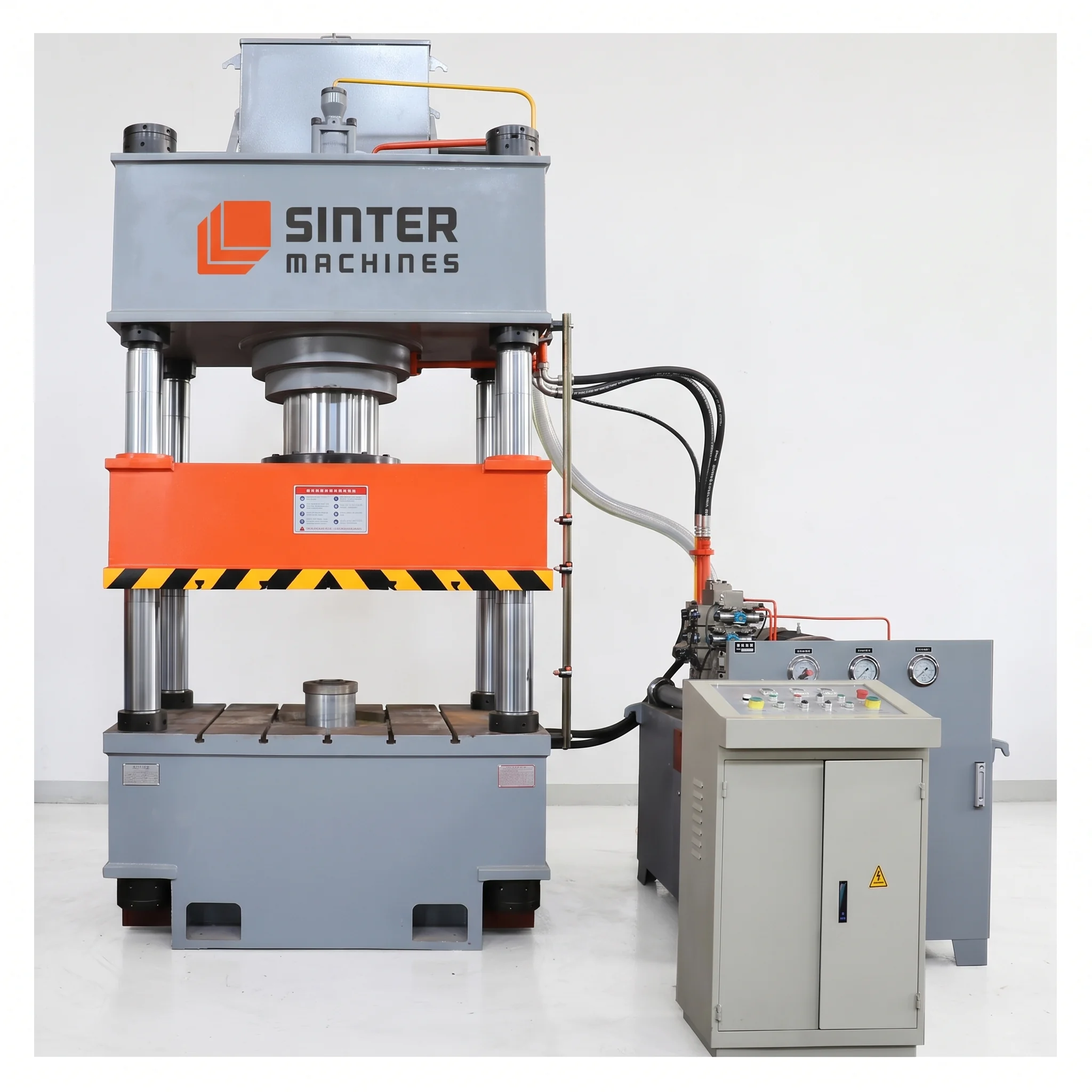

630T Four Column Hydraulic Press for Chromite Powder Block
Chromite Powder Block Compression 4-Column Hydraulic Press Machine is a heavy-duty industrial compaction system engineered to compress fine chromite powder (an iron chromium oxide mineral, FeCr2O4) into dense, uniform solid blocks, briquettes, or refractory preforms.
These machines are utilized in ferroalloy production, high-performance refractory manufacturing, and foundry applications, where loose mineral powders must be consolidated to minimize dusting, prevent material loss, and optimize furnace or smelter feed rates.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
High-Precision Guidance: Chromite mineral powders require strict control over compaction uniformity to prevent structural weak points or density gradients. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Rigid Load Distribution: Compacting dense, abrasive mineral powders requires continuous high tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity.
Abrasion Resistance: Because chromite is a hard and abrasive mineral, press tooling, die walls, and punches are engineered with high-grade tungsten carbide inserts or specialized abrasion-resistant alloy steels to prevent premature wear and material contamination.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 100 Tons to 600+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | High-grade tungsten carbide inserts or specialized abrasion-resistant alloy tool steel to withstand extreme wear |
Hydraulic Drive | Servo-hydraulic or variable displacement piston pumps with smooth proportional pressure control |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Enclosed Volumetric Feeding: An automated, sealed feed shoe slides precisely over the die cavity to deposit a measured volume of loose chromite powder, minimizing airborne dust and ensuring uniform fill density.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate and the dense mineral particles to firmly settle, minimizing internal stress or cracking.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent surface cracking from elastic springback. A bottom ejection cylinder then cleanly pushes the solid chromite block out of the die cavity for downstream smelting, sintering, or processing.
Finished Product Gallery
