02 — Technical Specifications

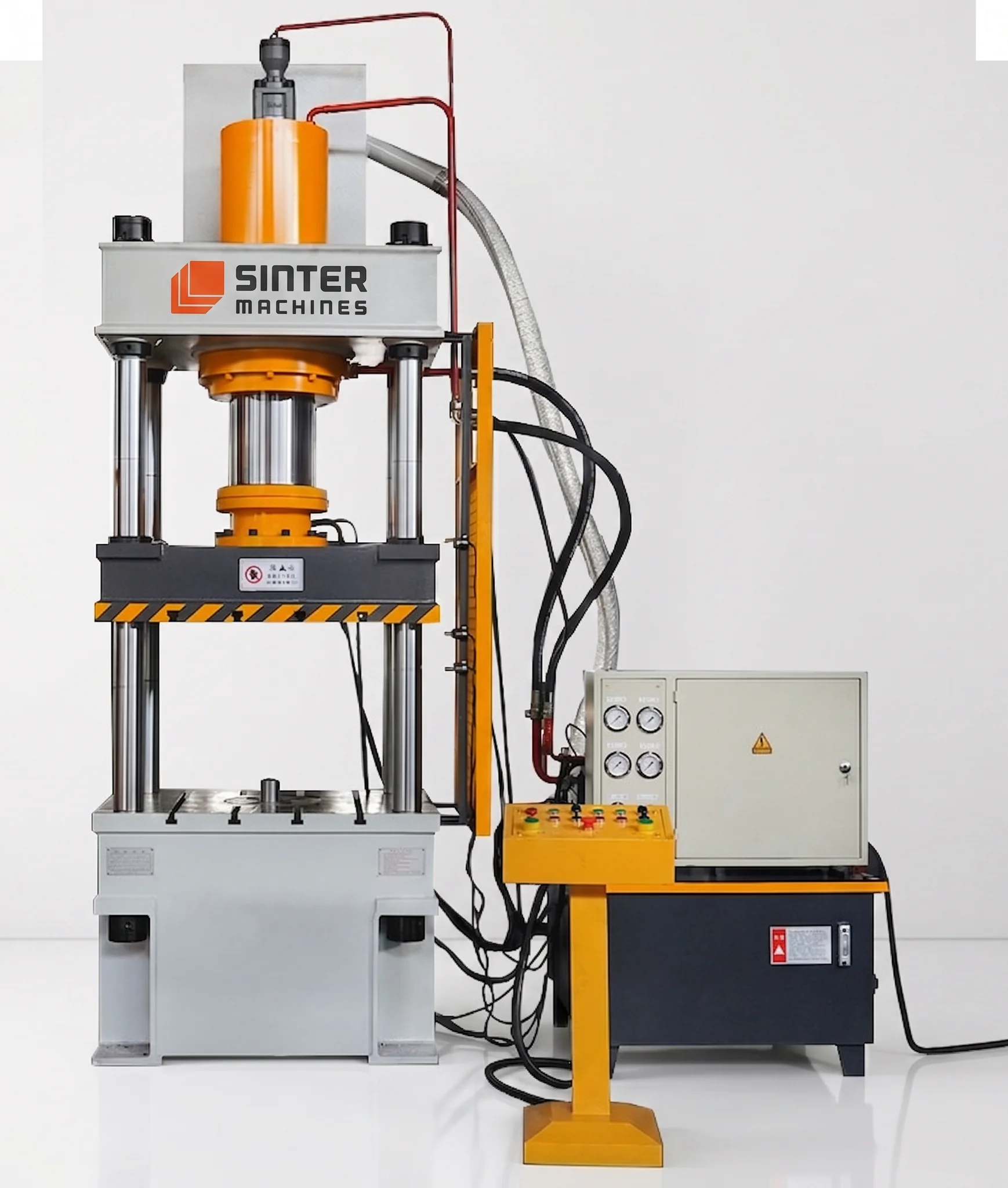

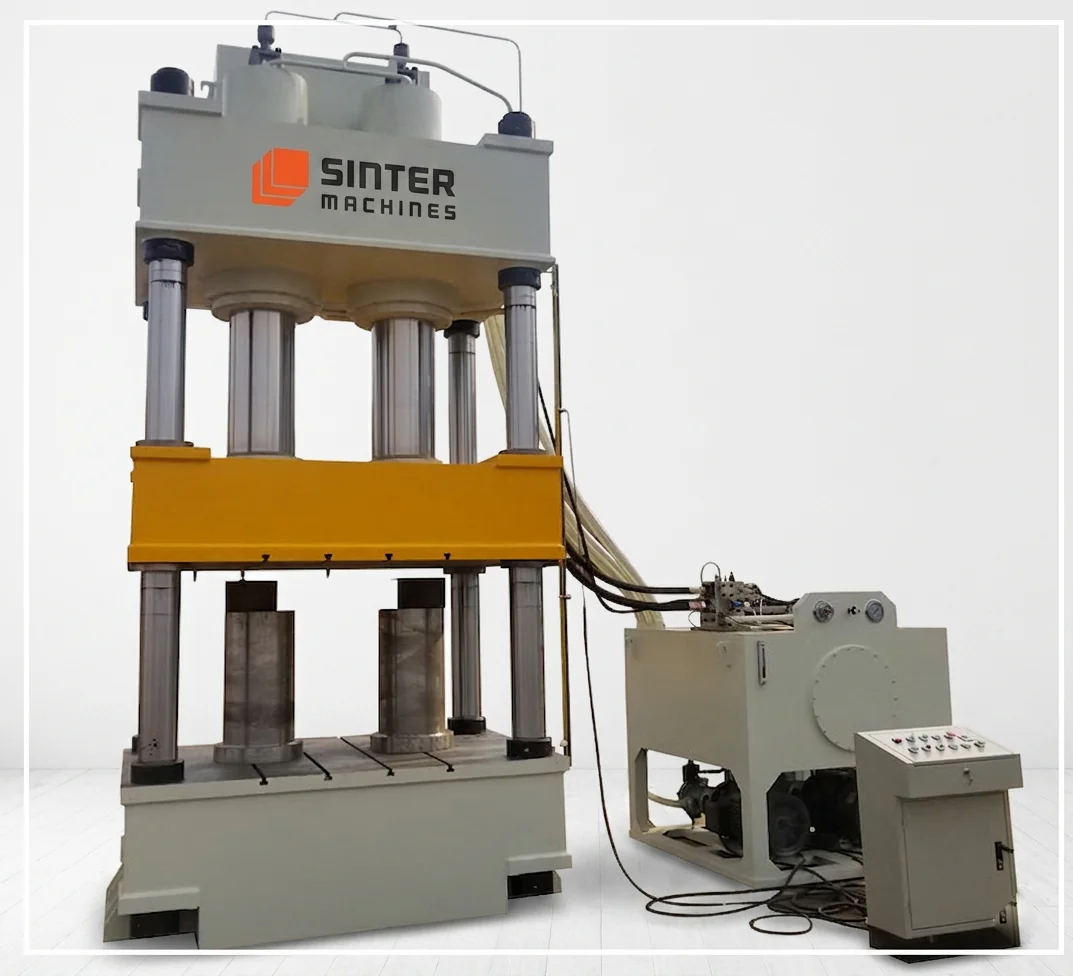

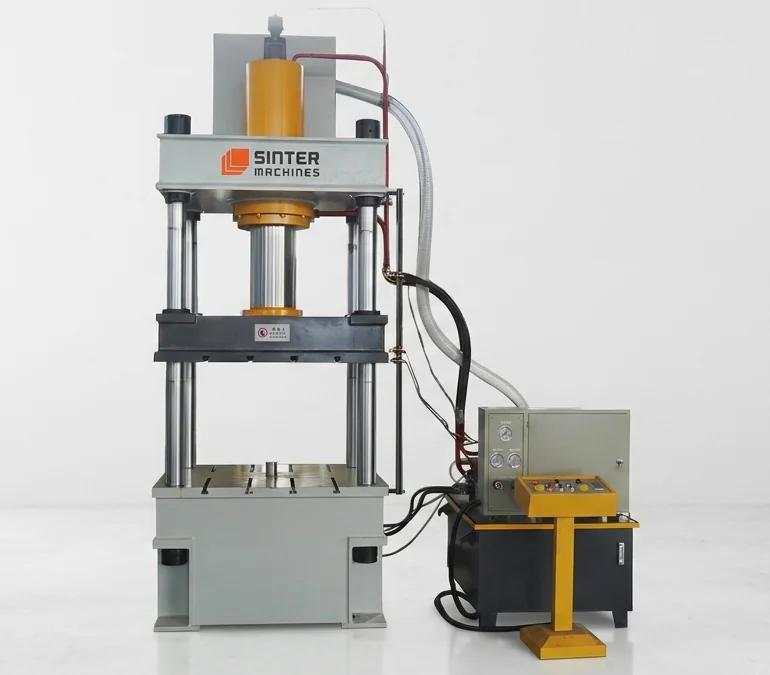

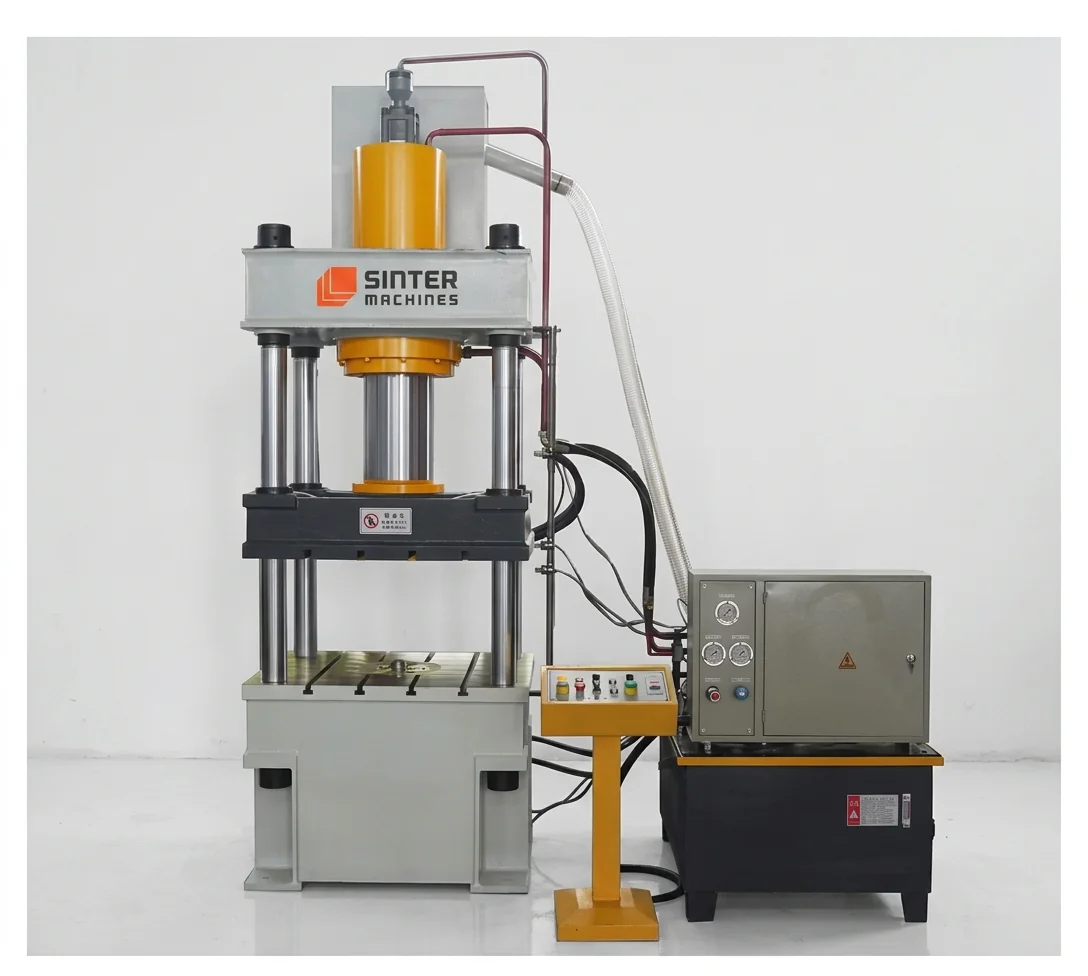

SM 200 HP – HYDRAULIC PRESS MACHINE COMPLETE TECHNICAL DATA

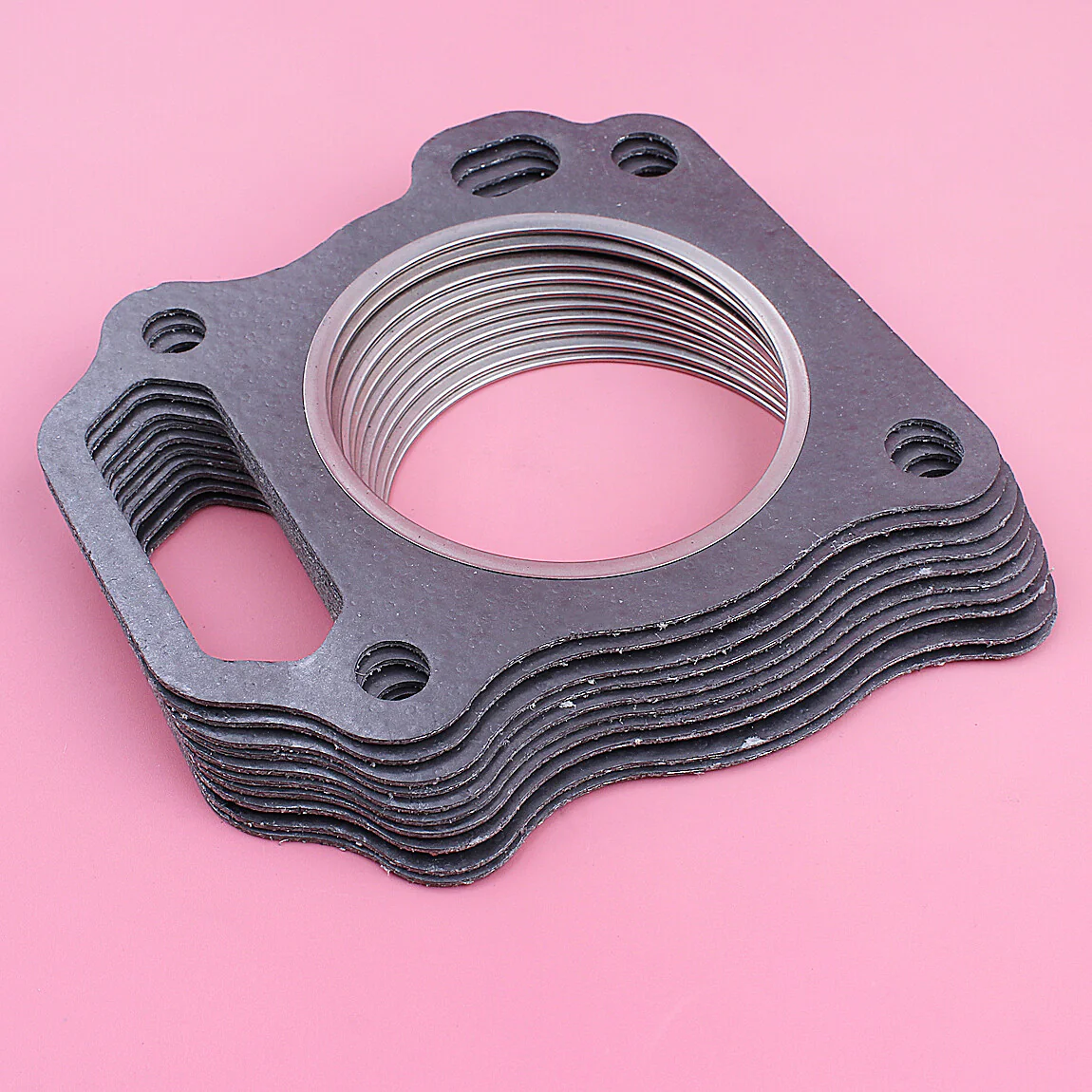

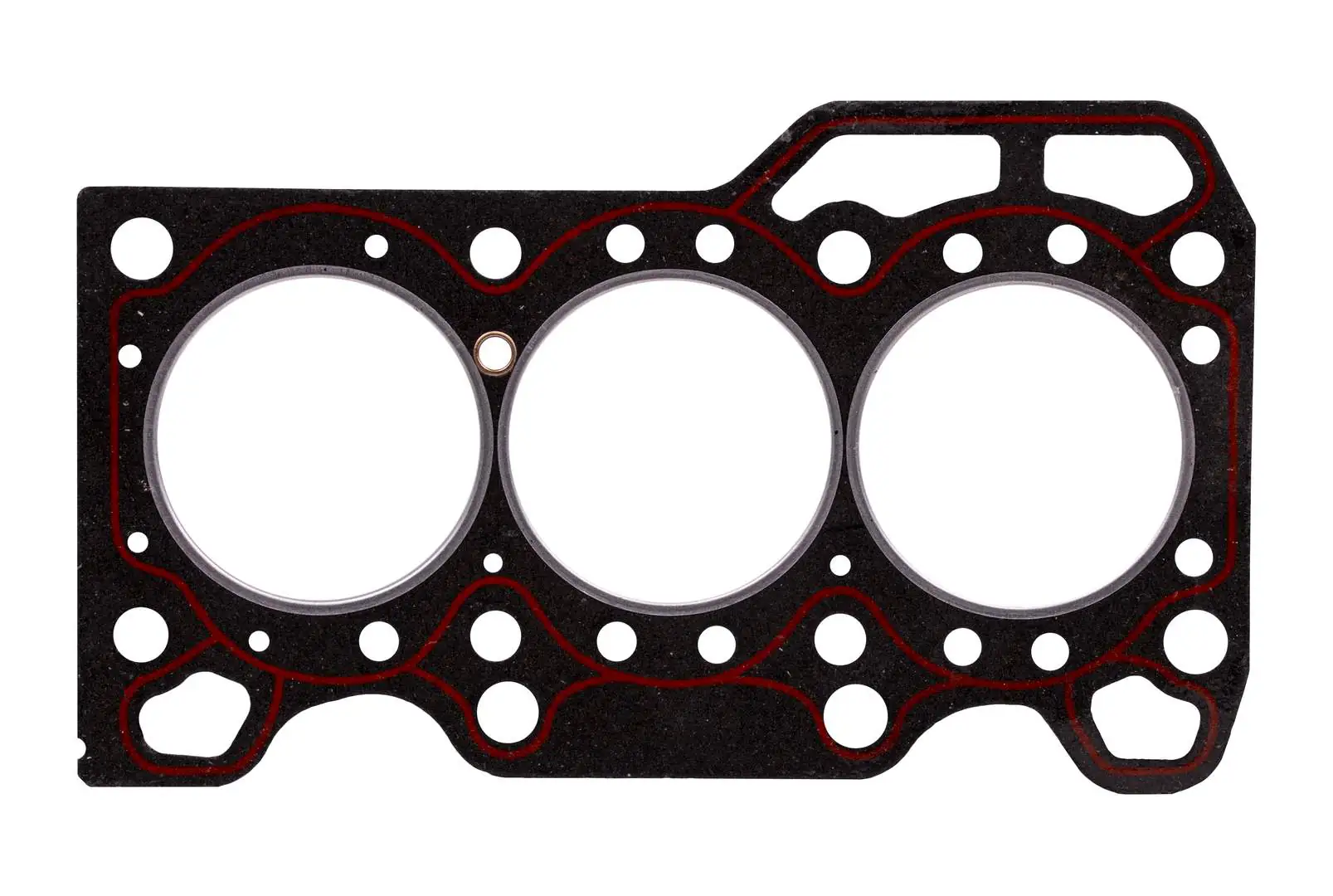

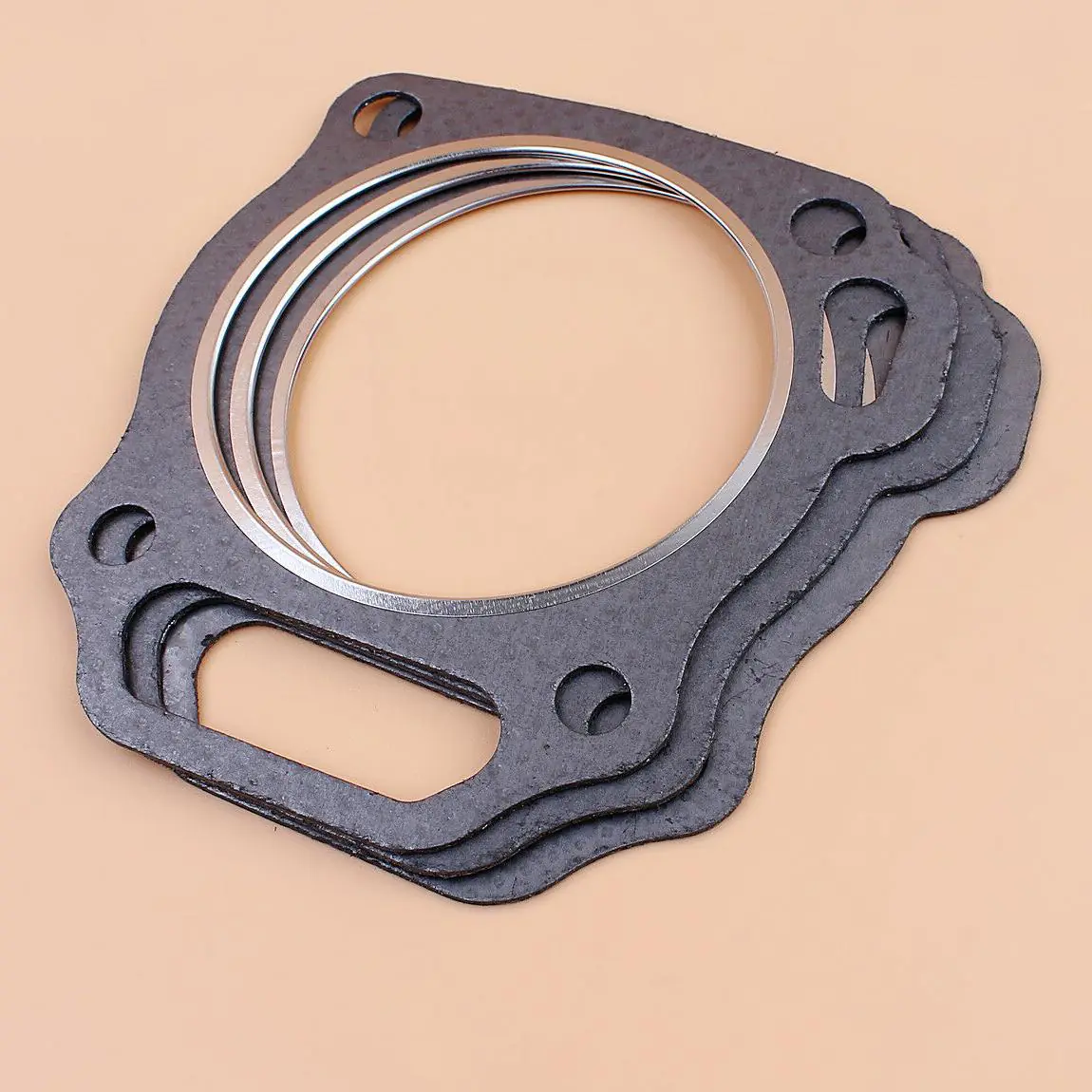

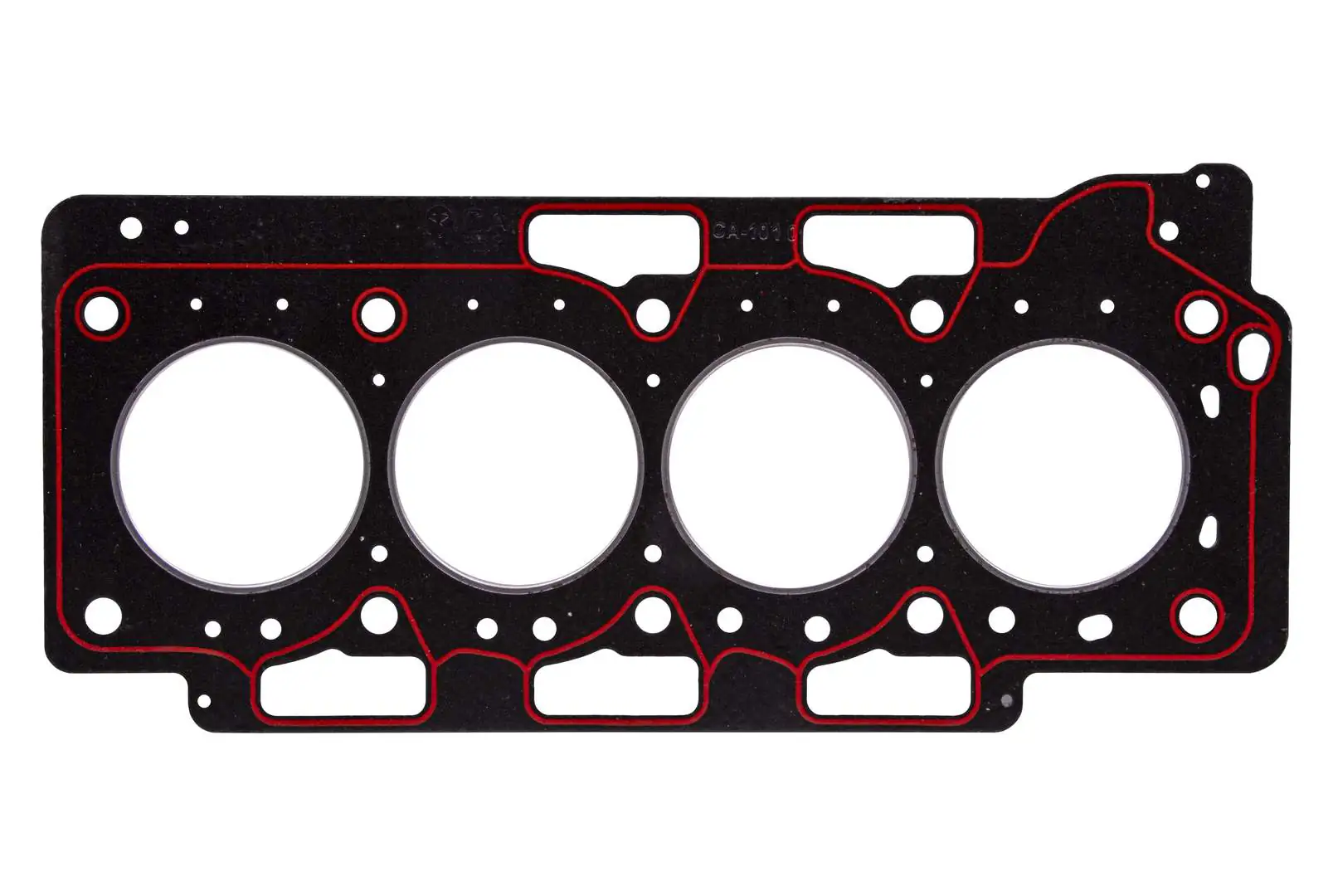

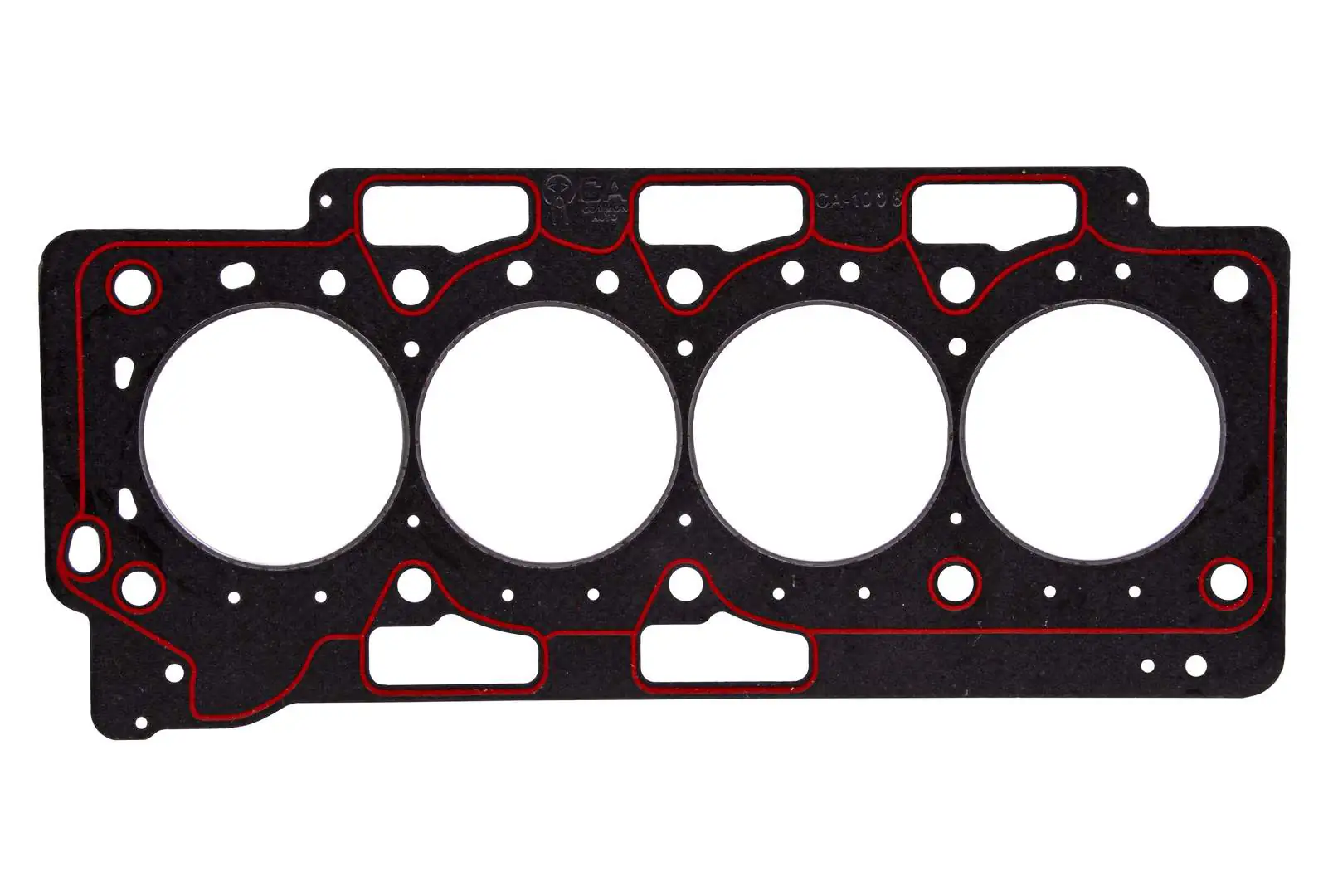

The SM 200 HP hydraulic press delivers highly stable force distribution and exceptional platen parallelism tailored for precision gasket die-cutting. Its specialized speed regulation and low-deflection column setup ensure clean, burr-free compound contours across multi-material matrices.
Capacity
- Maximum continuous cutting force capacity of 2000 kN
- Minimum adjustable stripping force capacity of 300 kN
Structural Design
- Four column high tensile solid steel plate assembly optimized for uniform load distribution
- Finite element analysis engineered frame for minimum vibration and maximum stability
Frame Type
- Precision aligned pre stressed guide pillar frame architecture
- Heavy duty stress relieved welded steel bolster plate and top slider structure
Hydraulic System
- High pressure variable displacement axial piston pump assembly
- Continuous oil filtration loop with integrated forced air cooling circuits
Main Ram Stroke
- Maximum slide vertical travel distance capability of 400 mm
- Electronic depth control setting resolution accurate down to 0.01 mm
Working Hydraulic Pressure
- Maximum continuous operating system fluid pressure of 210 bar
- Peak safety valve pressure relief calibration limit of 240 bar
Daylight Gap
- Maximum open vertical daylight window clearance of 600 mm
- Minimum closed shut die height workspace space of 200 mm
Approach Speed
- Fast downward advance slide rapid travel speed of 250 mm/Sec
- Soft touch tool engagement deceleration velocity of 10 mm/Sec
Pressing / Drawing Speed
- Precision micro adjustable die cutting speed of 5 to 25 mm/Sec
- Rapid high pressure material shearing velocity of 40 mm/Sec
Return Speed
- Rapid upward ram ascent extraction travel speed of 200 mm/Sec
- High speed automated pre return oil decompression cycle timing
Bed / Platen Size Platen
- Total clear bolster bed width left to right of 1000 mm
- Total clear bolster bed depth front to back of 800 mm
Columns
- Induction hardened hard chrome plated solid steel pillar diameter of 140 mm
- Extra long guide bushings featuring a centralized automatic lubrication setup
Working Envelope
- Total horizontal internal clear workspace area of 1000 by 800 mm
- Maximum permissible upper tool assembly mass weight of 3000 kg
Control System
- Central programmable logic controller paired with a digital touchscreen panel
- Dual linear transducer position tracking systems accurate within 0.01 mm
Main Motor Power
- Primary high efficiency electrical drive motor power of 22 kW
- Secondary auxiliary hydraulic cooling loop motor power of 3 kW
Valves & Hydraulics
- High response proportional flow control cartridge manifold block assembly
- Specialized fast acting main cylinder gravity oil pre fill valve unit
Automation
- Integrated digital interface ports for continuous automatic roll strip feed mechanisms
- Pneumatic quick action tool die clamping circuit connection lines
Safety Features
- Front and rear dual channel infrared safety light curtain barriers
- Automated fail safe mechanical anti drop safety ram locking lock block
SM 200 HP — Model Specifications
- Nominal Force: 2000 KN
- Maximum Hydraulic Pressure: 25 MPa
- Max Opening Height of the Slider: 1100 mm
- Max Stroke of the Slider: 700 mm
- Effective Bed Size: 1000 × 1000 mm
- Slider Down Speed: 100 mm/s
- Slider Pressing Speed: 7–18 mm/s
- Slider Return Speed: 90 mm/s
- Ejector Cylinder Nominal Force: 200 KN
- Stroke of the Ejection Cylinder: 200 mm
