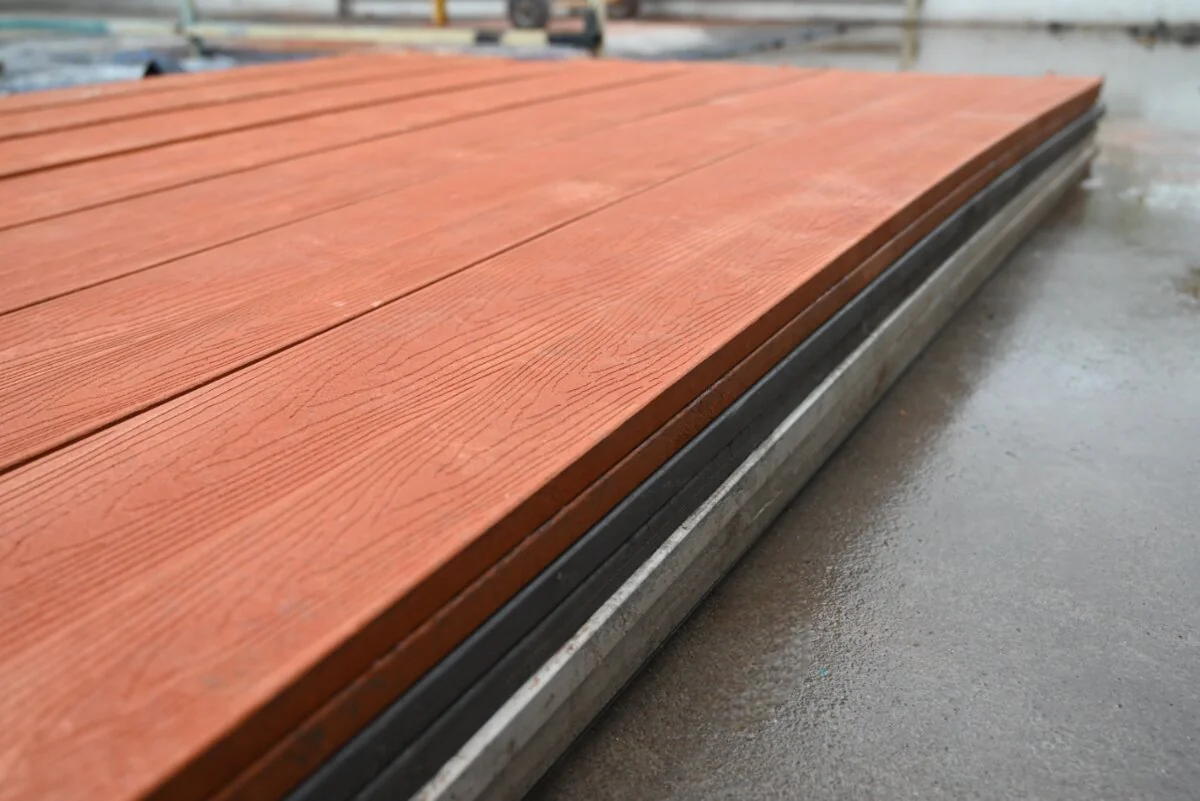

Plastics & Sand Composite
- Compression molding of plastics
- SMC / DMC composite molding
- Resin-based product forming
- FRP (Fiber Reinforced Plastic) parts
Press Range

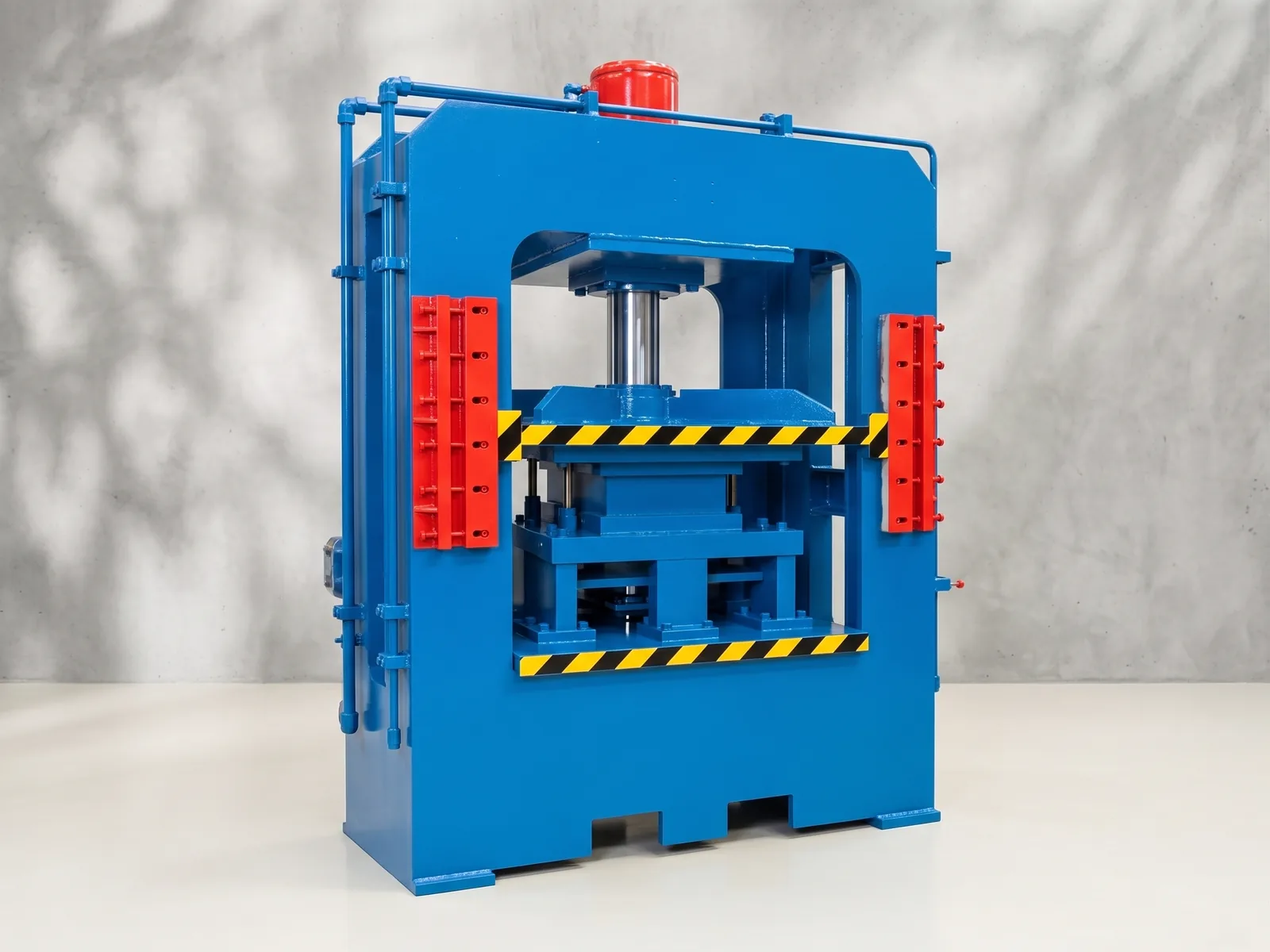

100-Ton Four Column
Hydraulic Press Machine
100 Ton Four Column Hydraulic Press is a versatile, reliable, and precision-oriented machine widely used for forming, molding, cutting, and shaping materials across industries such as automotive, plastics, and fabrication. Its balanced structure and controllable force application make it ideal for both heavy-duty and precision applications.
100T
Rated Capacity
300 – 600 mm
Stroke Length
600 – 900 mm
Daylight Opening
Up to 250 bar
Hydraulic Pressure
01 — Press System Overview
100-Ton Four Column Hydraulic Press
A four-column hydraulic press is designed for uniform load distribution, high precision, and stability. It uses hydraulic cylinders to apply controlled pressure over a wide working area.
Core Components
- Hydraulic CylinderGenerates pressing force (100 tons ≈ 1000 kN)
- Four Guide ColumnsEnsure alignment and parallelism
- Moving Ram/SlideApplies pressure to the workpiece
- Hydraulic Power PackIncludes pump, motor, valves
- Control SystemPLC / HMI operated
- Die/Tooling SystemCustomized for application
- Ejector System (optional)For part removal
02 — Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 100 Tons (1000 kN) |
| Structure | 4-Column Type |
| Stroke Length | 300 – 600 mm |
| Table Size | 600 × 600 mm to 1000 × 1000 mm |
| Daylight Opening | 600 – 900 mm |
| Ram Speed (No Load) | 80 – 150 mm/sec |
| Pressing Speed | 5 – 15 mm/sec |
| Return Speed | 70 – 120 mm/sec |
| Power Requirement | 7.5 – 15 kW |
| Control | PLC / Semi-automatic / Manual |
| Hydraulic Pressure | Up to 250 bar |
| Accuracy | ±0.01 to ±0.05 mm |
| Material of Construction | Mild Steel / Fabricated Steel |
Note: Specifications can vary depending on manufacturer and application.
03 — Applications
Deep Drawing & Stamping
- Sheet metal deep drawing
- Automotive components (panels, housings)
- Kitchen sinks, utensils
- Metal forming of mild steel, aluminum, copper

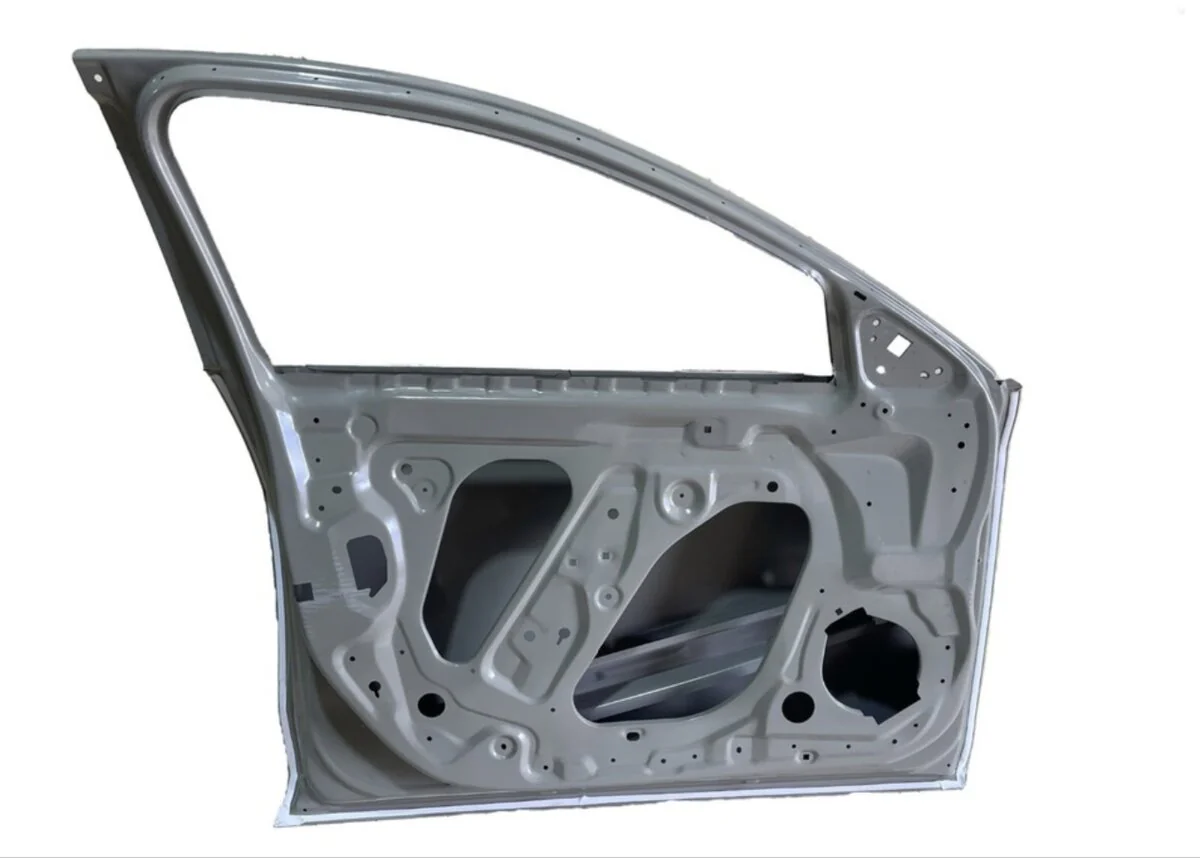

Punching, Trimming, and Cutting
- Sheet metal punching
- Excess material trimming
- Blanking & cutting operations
- Rubber cutting and gasket production
04 — Key Advantages
01
High Precision & Uniform Pressure
- Four-column design ensures even load distribution
- Reduced material stress and defects
02
Versatility
- Suitable for multiple industries
- Can handle plastics, rubber, metals, and composites
03
Customizable Operations
- Adjustable stroke, pressure, and speed
- Programmable controls (PLC)
04
Robust Construction
- Heavy-duty frame ensures long service life
- High resistance to deformation
05
Smooth & Controlled Operation
- Hydraulic system provides consistent pressure
- Ideal for delicate as well as heavy-duty jobs
06
Low Maintenance
- Fewer moving parts compared to mechanical presses
- Easy servicing of hydraulic components
07
Energy Efficient (with advanced systems)
- Option for servo hydraulic systems
- Reduced power consumption
