02 — Technical Specifications

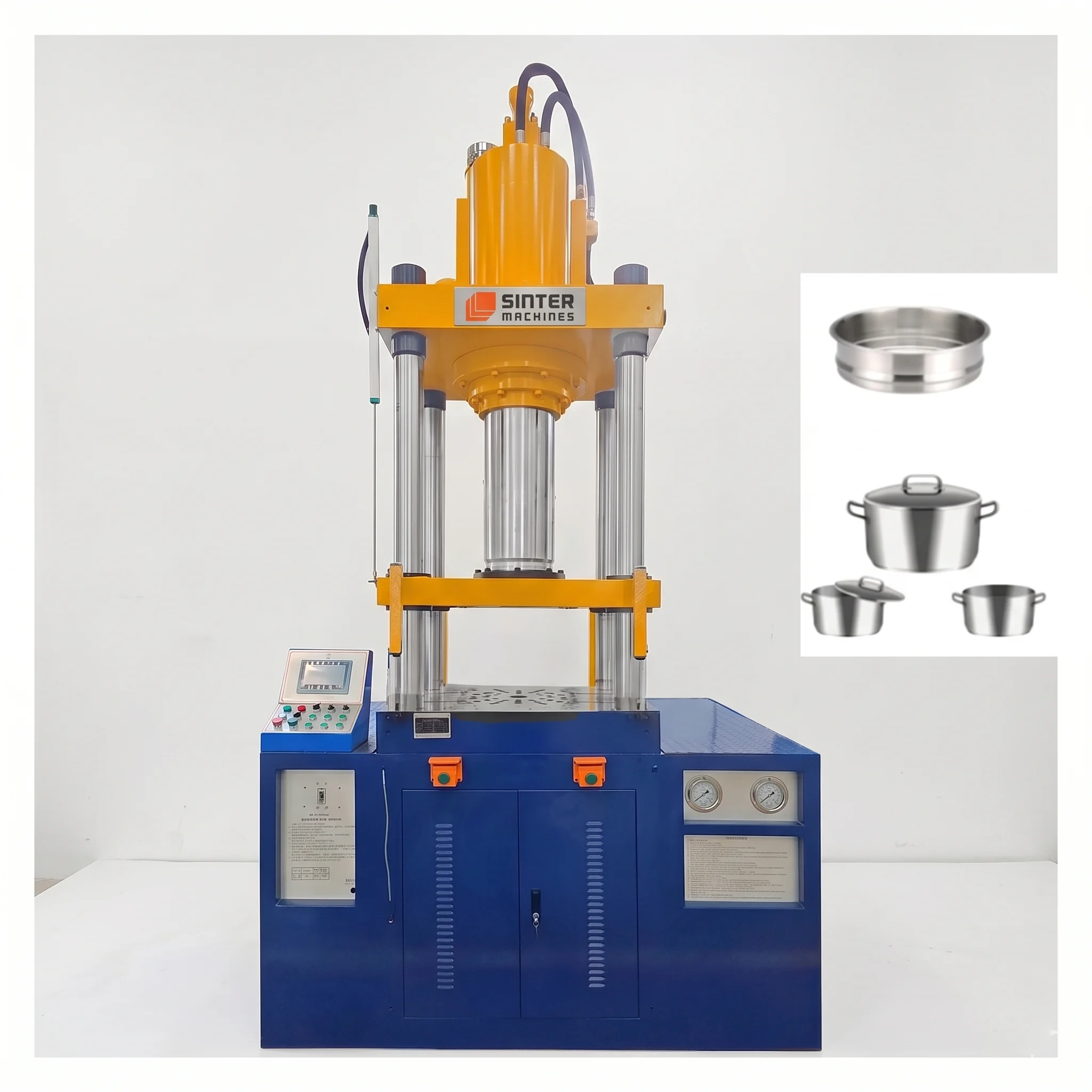

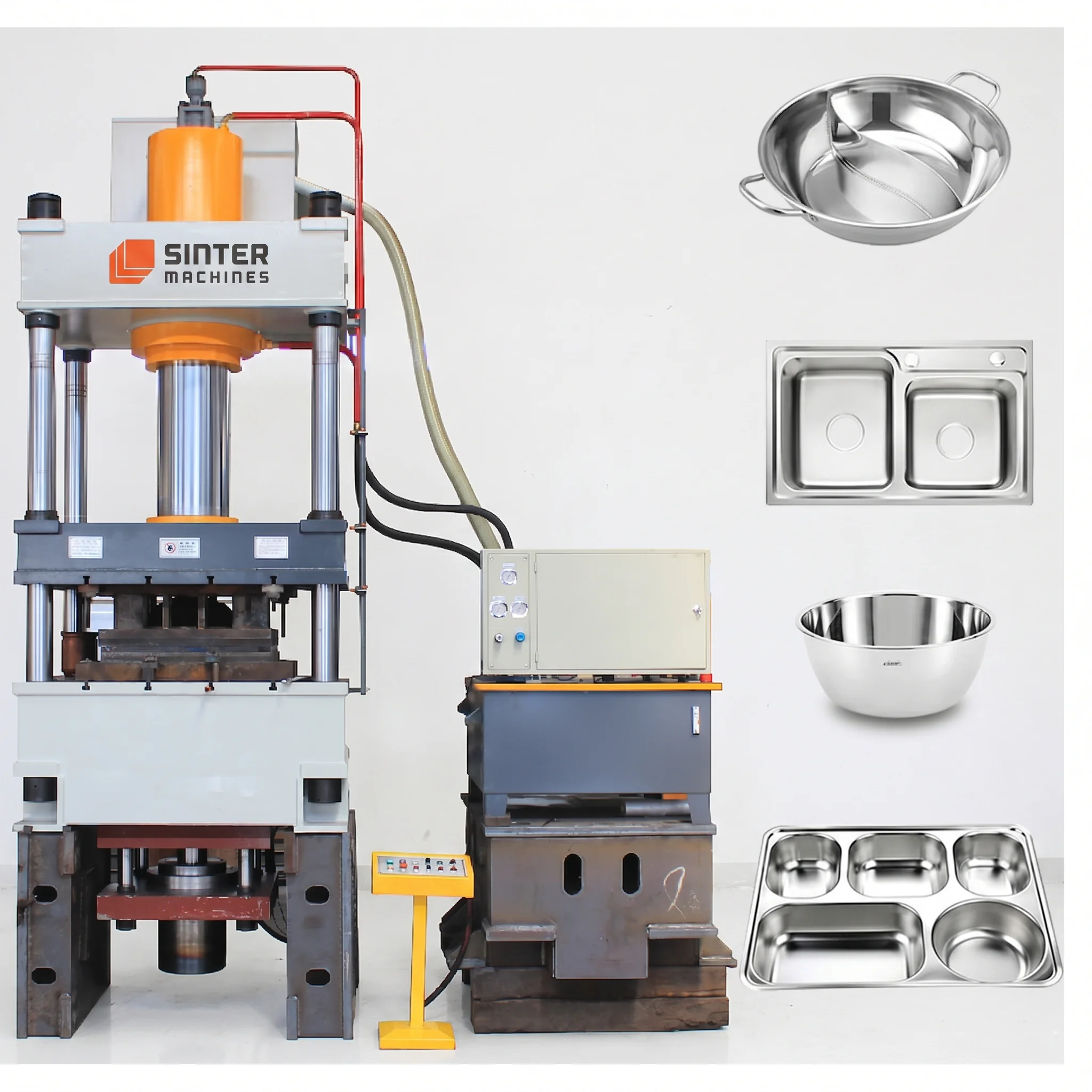

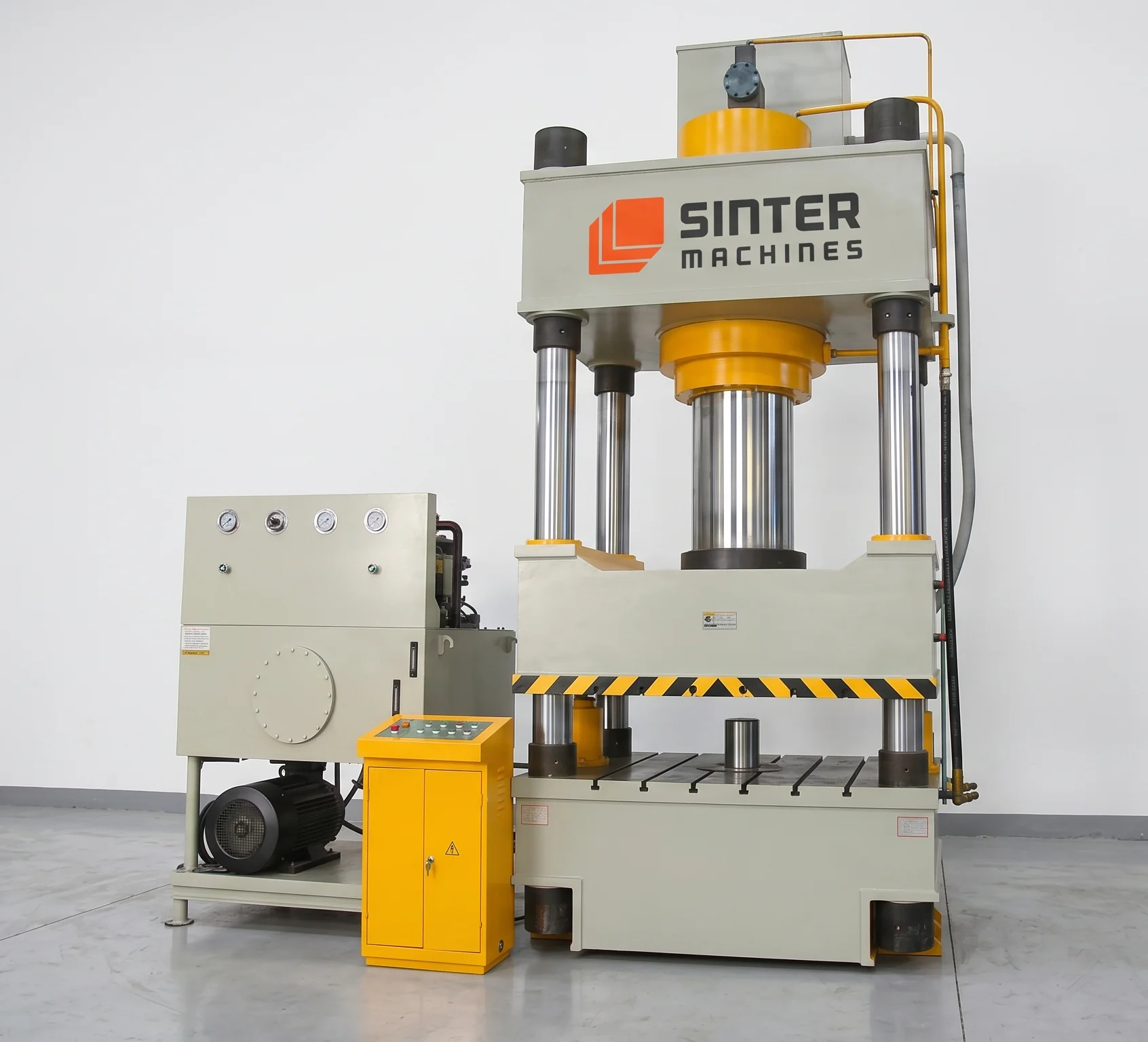

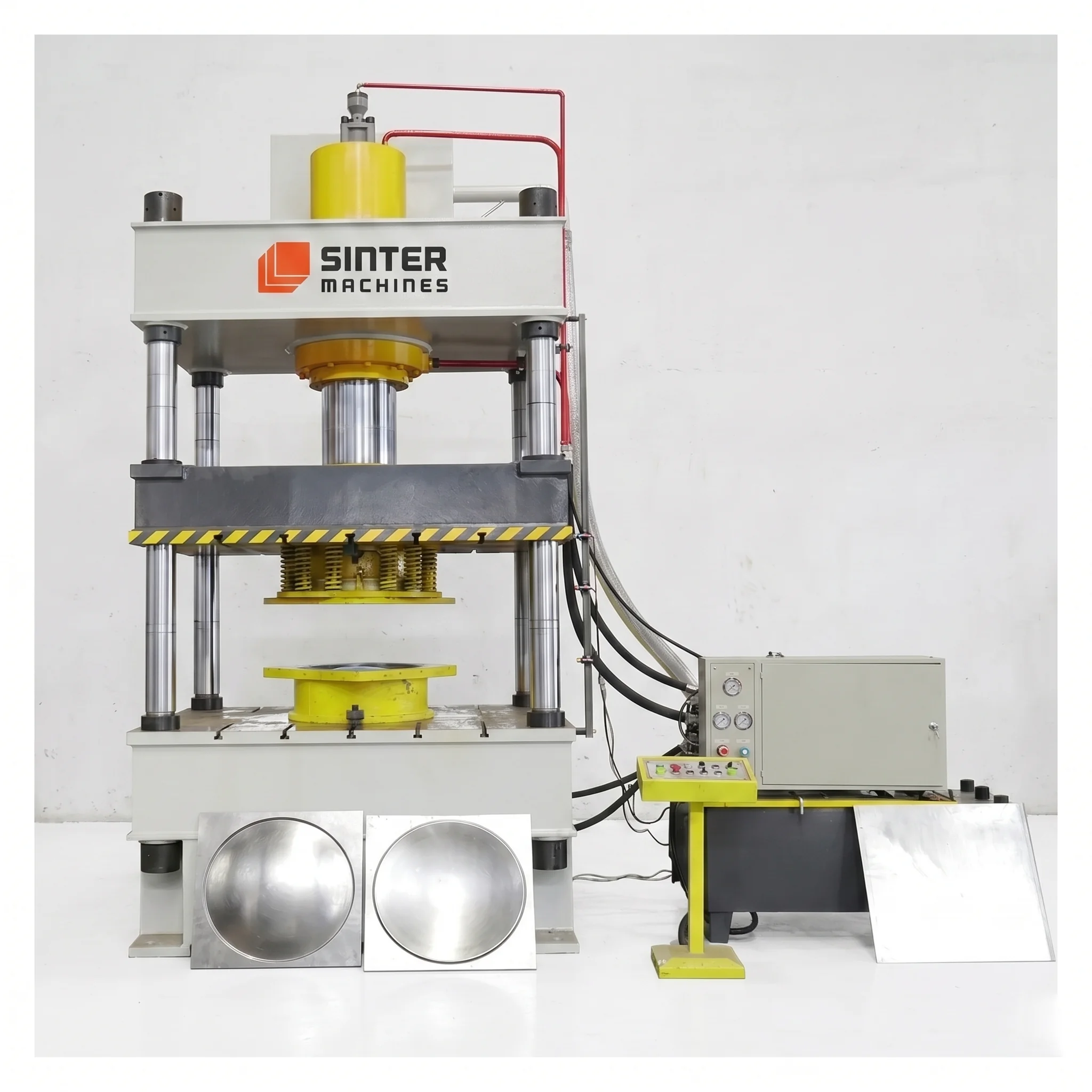

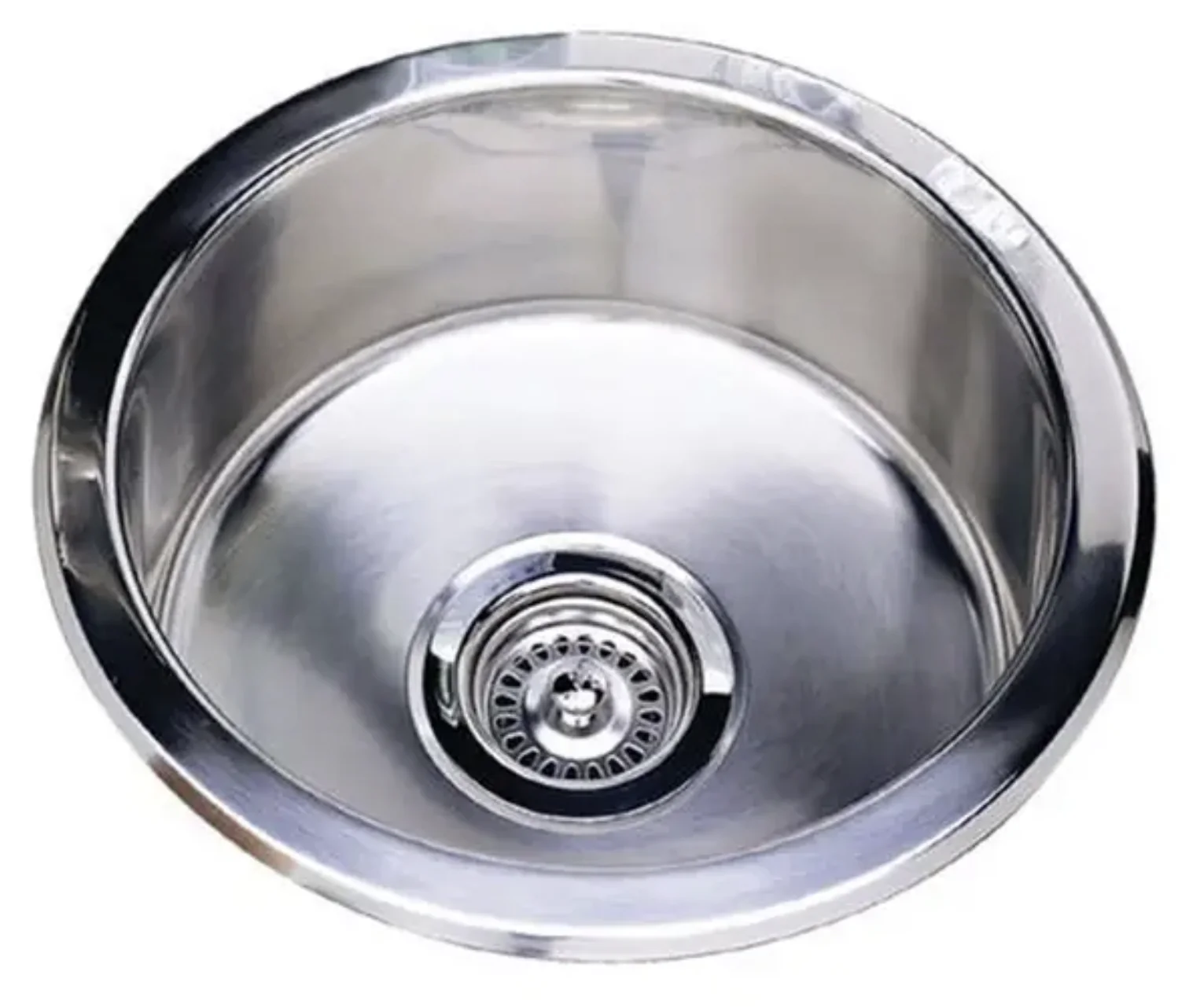

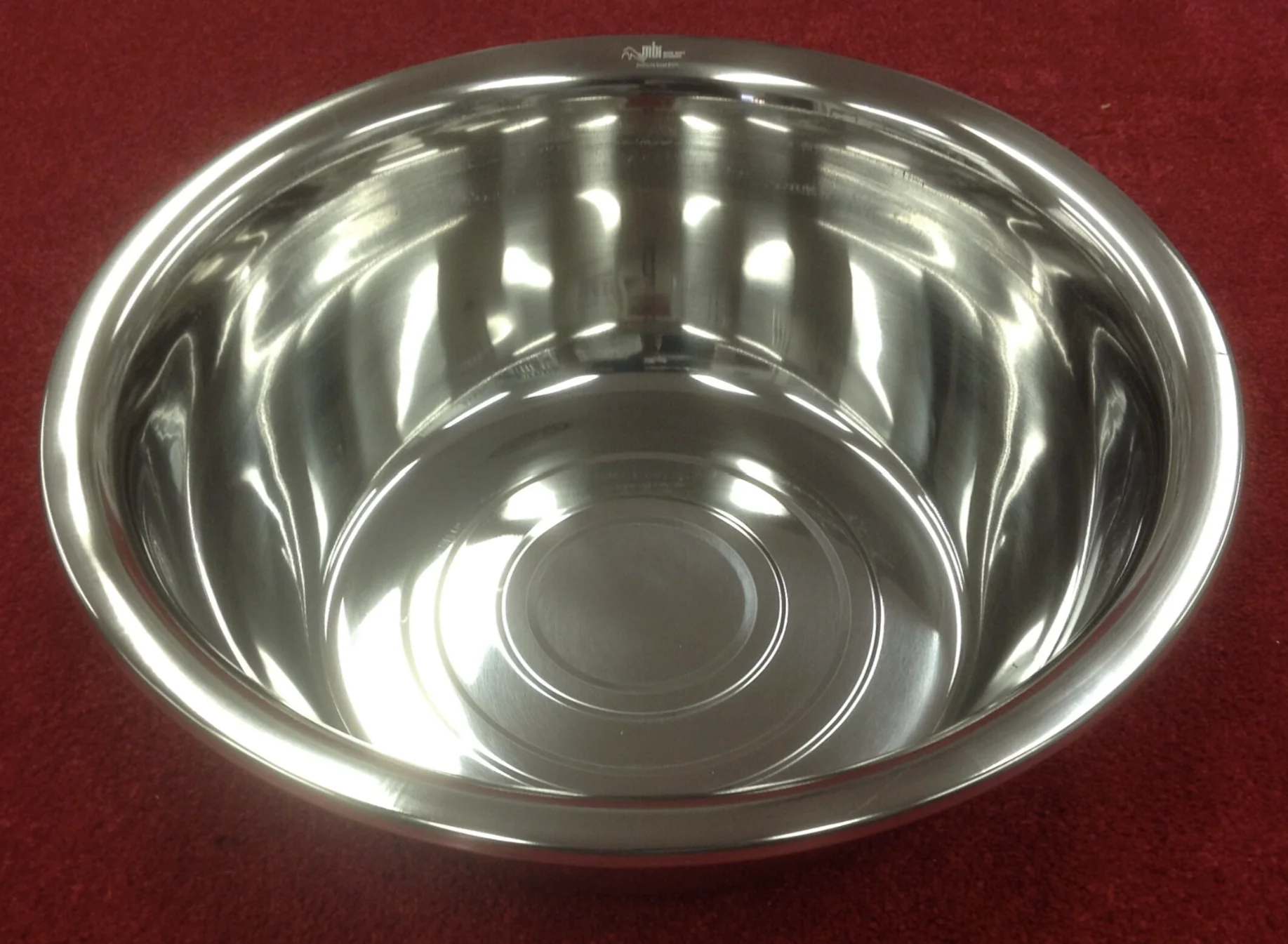

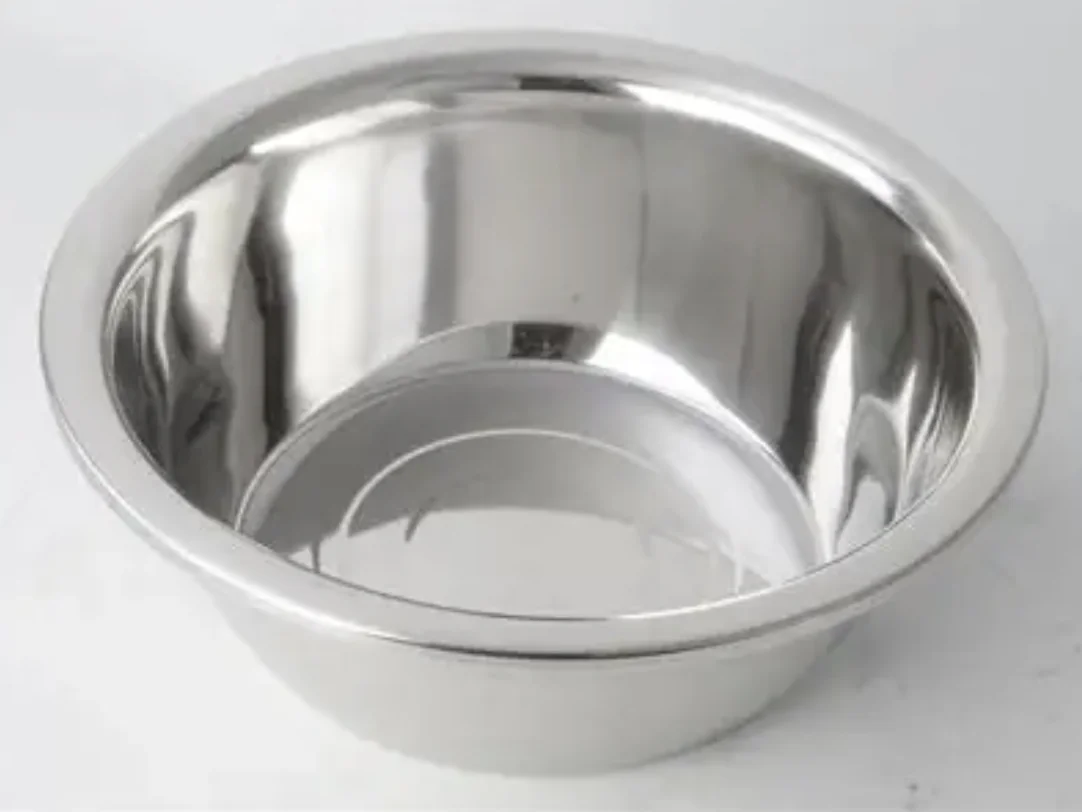

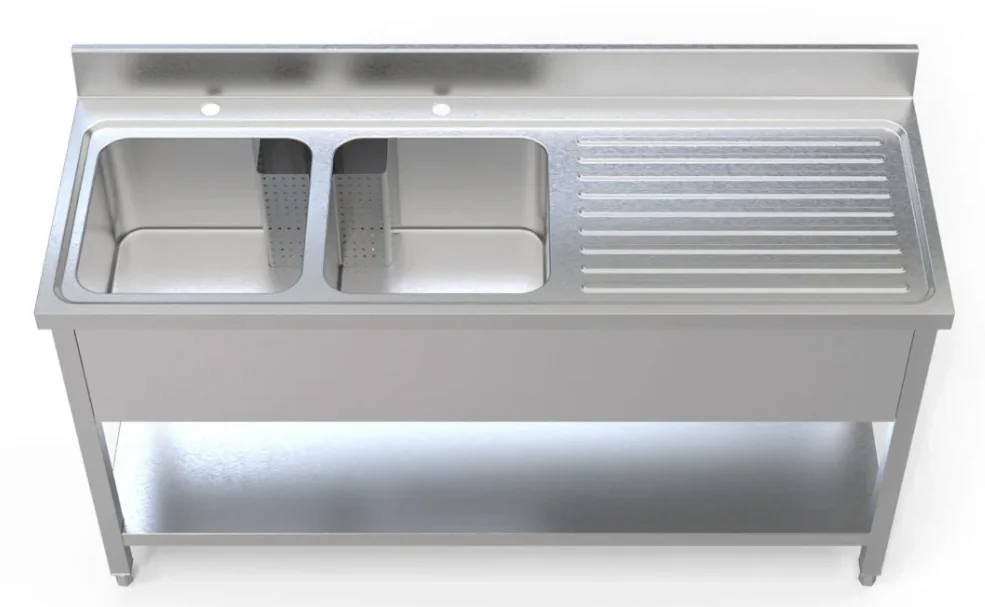

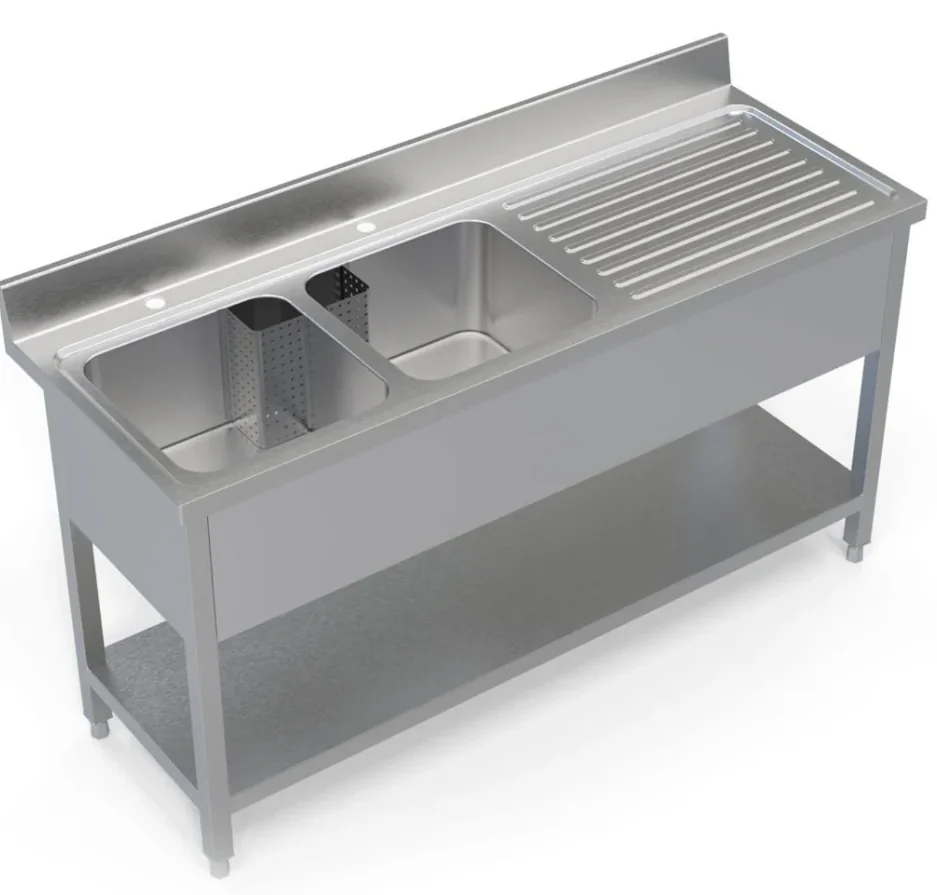

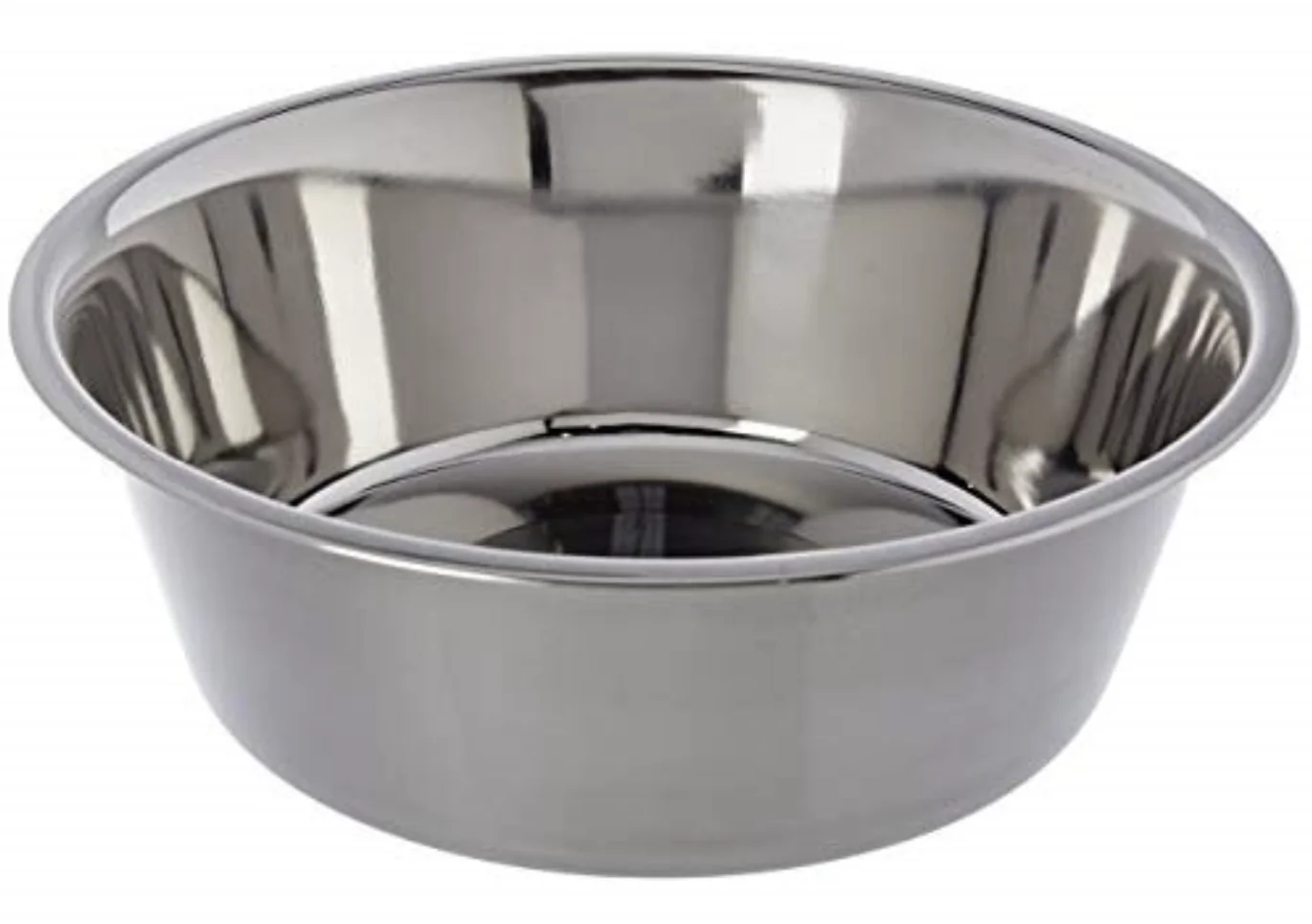

SM 500 HP – HYDRAULIC PRESS MACHINE COMPLETE TECHNICAL DATA
The SM 500 HP hydraulic press machine features a high-capacity, heavy-duty structural layout optimized for severe deep drawing and metal stretching cycles. This specialized technical configuration provides the extreme frame rigidity and high-volume fluid dynamics necessary to shape tough, work-hardening stainless steel sheets.
Technical Data
Capacity: Nominal press force rating of 500 ton
Structural Design: Heavy duty stress relieved four pillar construction
Frame Type: Rigid upright pillar structural geometry
Hydraulic System: High flow variable displacement axial piston pump architecture
Main Ram Stroke: Maximum linear travel distance of 700 mm
Working Hydraulic Pressure: Continuous operational fluid limit of 250 bar
Daylight Gap: Maximum vertical open window height of 1100 mm
Approach Speed: Rapid downward advance rate of 160 mm/Sec
Pressing / Drawing Speed: Highly controlled precision stretching velocity from 5 to 10 mm/Sec
Return Speed: Accelerated upward retract velocity of 120 mm/Sec
Bed / Platen Size Platen: Total structural table footprint of 1400 mm by 1300 mm
Columns: Four solid induction hardened steel pillars measuring 180 mm diameter
Working Envelope: Total internal processing volumetric clearance area of 1400 mm by 1300 mm by 1100 mm
Control System: Central programmable logic controller integrated with intelligent touchscreen human machine interface
Main Motor Power: Heavy duty high torque electric drive rated at 45 kW
Valves & Hydraulics: Manifold block assembly with fast acting proportional flow and pressure control valves
Automation: Heavy duty pneumatic sheet lifters and automated robotic unloading integration interface
Safety Features: Dual hand touch control buttons, digital safety light curtains, and automatic hydraulic pressure relief protection valves
SM 500 HP — Model Specifications
- Nominal Force: 5000 KN
- Maximum Hydraulic Pressure: 25 MPa
- Max Opening Height of the Slider: 1500 mm
- Max Stroke of the Slider: 900 mm
- Effective Bed Size: 1400 × 1400 mm
- Slider Down Speed: 150 mm/s
- Slider Pressing Speed: 10–18 mm/s
- Slider Return Speed: 180 mm/s
- Ejector Cylinder Nominal Force: 200 KN
- Stroke of the Ejection Cylinder: 300 mm
