Plastics & Sand Composite
- High-pressure compression molding
- Sand-resin structural components
- Large industrial molded parts
Press Range
315-Ton Four Pillar
Hydraulic Press Machine
315 Ton Four Pillar Hydraulic Press Machine is a heavy-duty, high-performance industrial solution designed for large-scale forming, molding, forging, and composite applications. Its robust construction, precision control, and wide versatility make it a preferred choice in industries such as:
315T
Rated Capacity
500 – 1000 mm
Stroke Length
900 – 1500 mm
Daylight Opening
Up to 300 bar
Hydraulic Pressure
01 — Press System Overview
315-Ton Four Pillar Hydraulic Press
A 315-ton four-pillar (four-column) hydraulic press is a heavy-duty machine designed for high-force applications, deep forming, and large component processing. Its four-pillar construction ensures excellent rigidity, parallelism, and load distribution, making it ideal for demanding industrial operations.
Core Components
- Main Hydraulic CylinderDelivers 315 tons (~3150 kN) force
- Four Hard-Chrome Plated PillarsEnsure precise guidance and alignment
- Moving Ram/SlideApplies uniform pressure on tooling
- Hydraulic Power PackIncludes motor, pumps, oil tank, valves
- Control SystemPLC + HMI (auto, semi-auto, manual modes)
- Die Cushion (Optional)Essential for deep drawing applications
- Ejector System (Optional)Hydraulic ejector for part removal
- Safety SystemLight curtains, overload protection, emergency stops
02 — Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 315 Tons (3150 kN) |
| Structure | Four Pillar / Four Column |
| Stroke Length | 500 – 1000 mm |
| Daylight Opening | 900 – 1500 mm |
| Table Size | 1000 × 1000 mm to 1800 × 1800 mm |
| Hydraulic Pressure | Up to 300 bar |
| Approach Speed | 120 – 200 mm/sec |
| Working Speed | 5 – 25 mm/sec |
| Return Speed | 100 – 180 mm/sec |
| Power Pack | 22 – 45 kW |
| Control System | PLC + HMI (CNC optional) |
| Parallelism Accuracy | ±0.02 – ±0.05 mm |
| Ejector Capacity (Optional) | 30 – 80 Tons |
| Frame | Heavy fabricated / stress-relieved steel |
Specifications can be customized based on application and tooling requirements.
03 — Applications
SMC / BMC / FRP Composite
- Automotive panels (doors, hoods)
- Electrical enclosures
- Structural composite components
- Insulation & housing systems
Plastic Pallets & Basins
- Heavy-duty pallets
- Large plastic containers and tanks
- Industrial bins and basins
Cattle Slat Blocks
- Concrete cattle slats forming
- Heavy block compression
- Uniform density production
Powder Metallurgy
- High-density metal powder compaction
- Pre-sintering compact formation
- Precision engineering components
Deep Drawing & Stamping
- Large and deep-drawn metal parts
- Fuel tanks, sinks, panels
- Thick sheet metal forming
Punching, Trimming & Cutting
- Sheet metal blanking and punching
- Flash trimming of castings
- Rubber and plastic cutting
Hot & Cold Forging
- Forging of steel, aluminum components
- Hot forming heavy parts
- Cold forging precision components

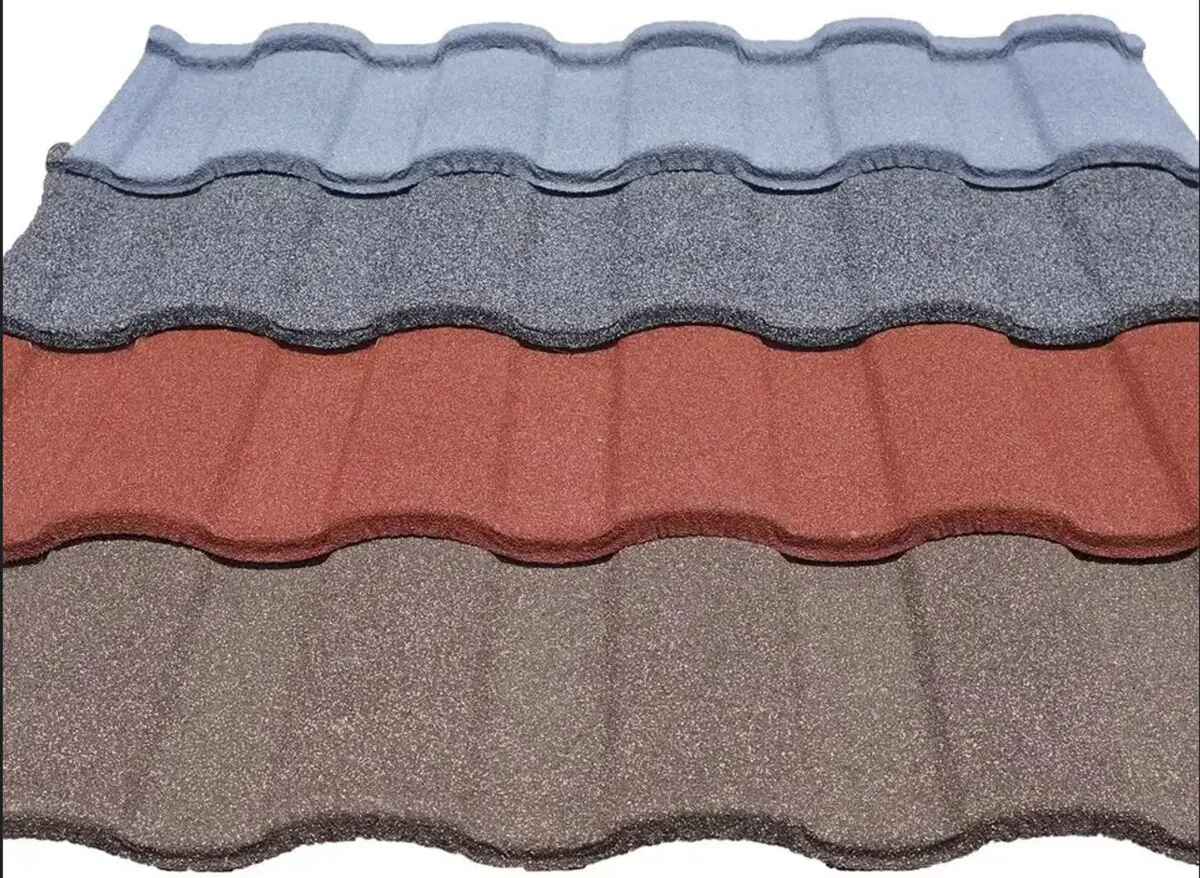

Metal Colour Roof Tiles
- Metal tile pressing
- Roofing sheets forming
- Pattern stamping

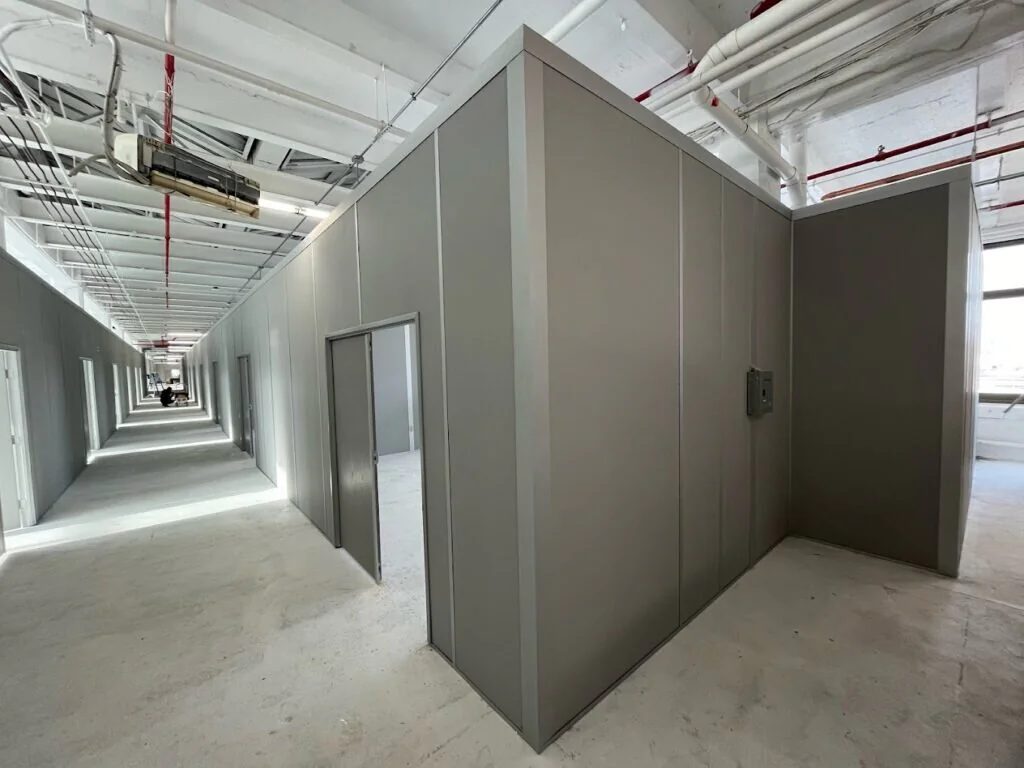

Ceiling Tiles & Dry Walls
- Decorative ceiling panel pressing
- Drywall board compression
- Acoustic panel manufacturing
04 — Key Advantages
01
Extremely High Force Capability
- 315-ton capacity enables handling of:
- Thick materials
- Large components
- High-density applications
02
Superior Structural Stability
- Four-pillar design ensures:
- Excellent rigidity
- Minimal deflection
- Long machine lifespan
03
High Precision & Parallelism
- Maintains uniform pressure across large surfaces
- Ideal for precision forming and composites
04
Wide Application Versatility
- Supports:
- Plastics
- Rubber
- Composites (SMC/BMC/FRP)
- Metals and concrete
05
Customizable Operation
- Fully adjustable:
- Pressure
- Stroke
- Speed
- Programmable cycles via PLC/HMI
06
Smooth & Controlled Operation
- Hydraulic system provides:
- Gradual pressure buildup
- Reduced shock and vibration
07
High Productivity
- Faster cycle times
- Lower rejection rates
- Consistent product quality
08
Energy Efficiency Options
- Servo-hydraulic systems available
- Reduced power consumption
09
Enhanced Operator Safety
- Integrated safety systems
- Automation-ready
- Reduced manual handling risks
