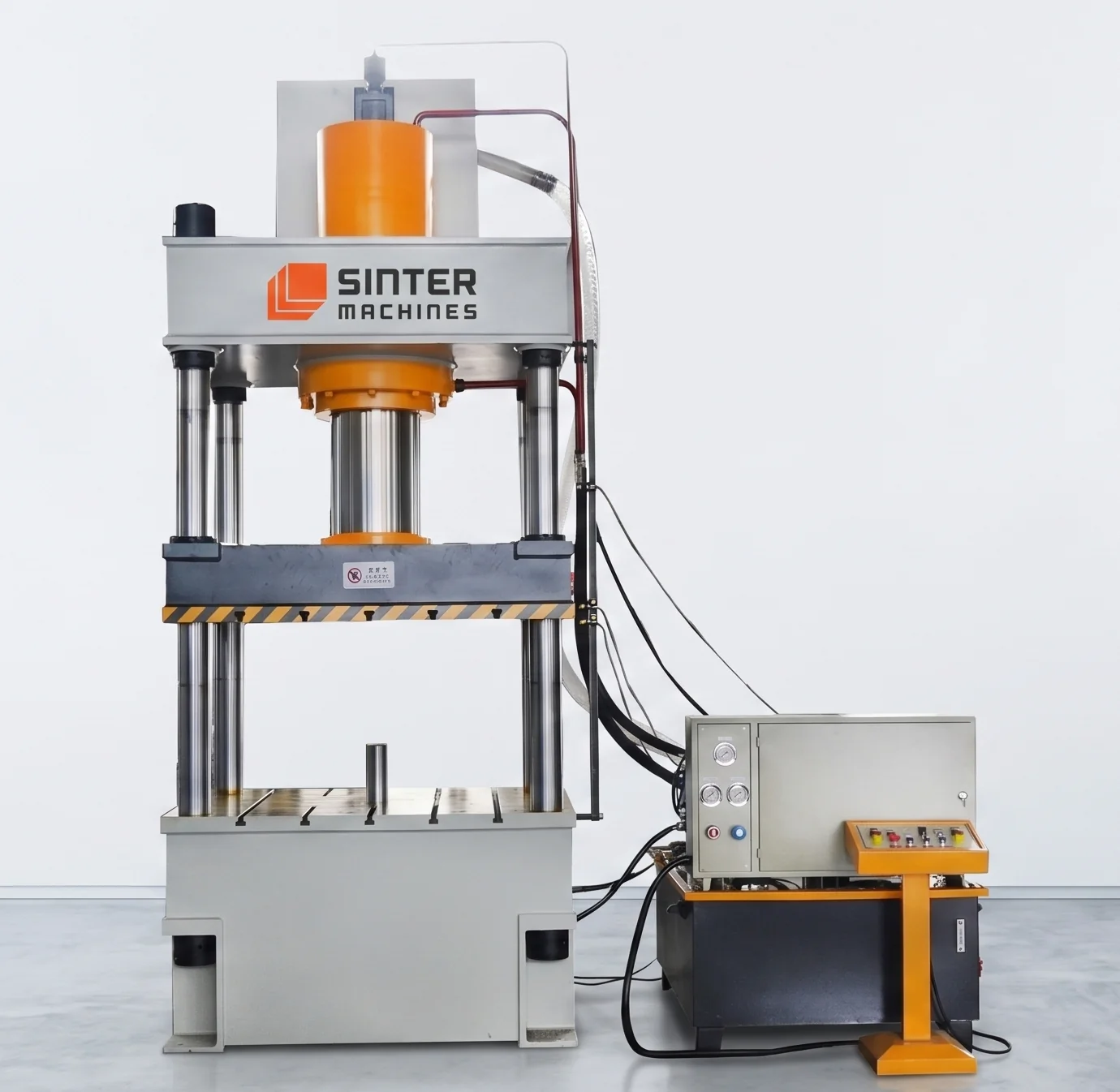

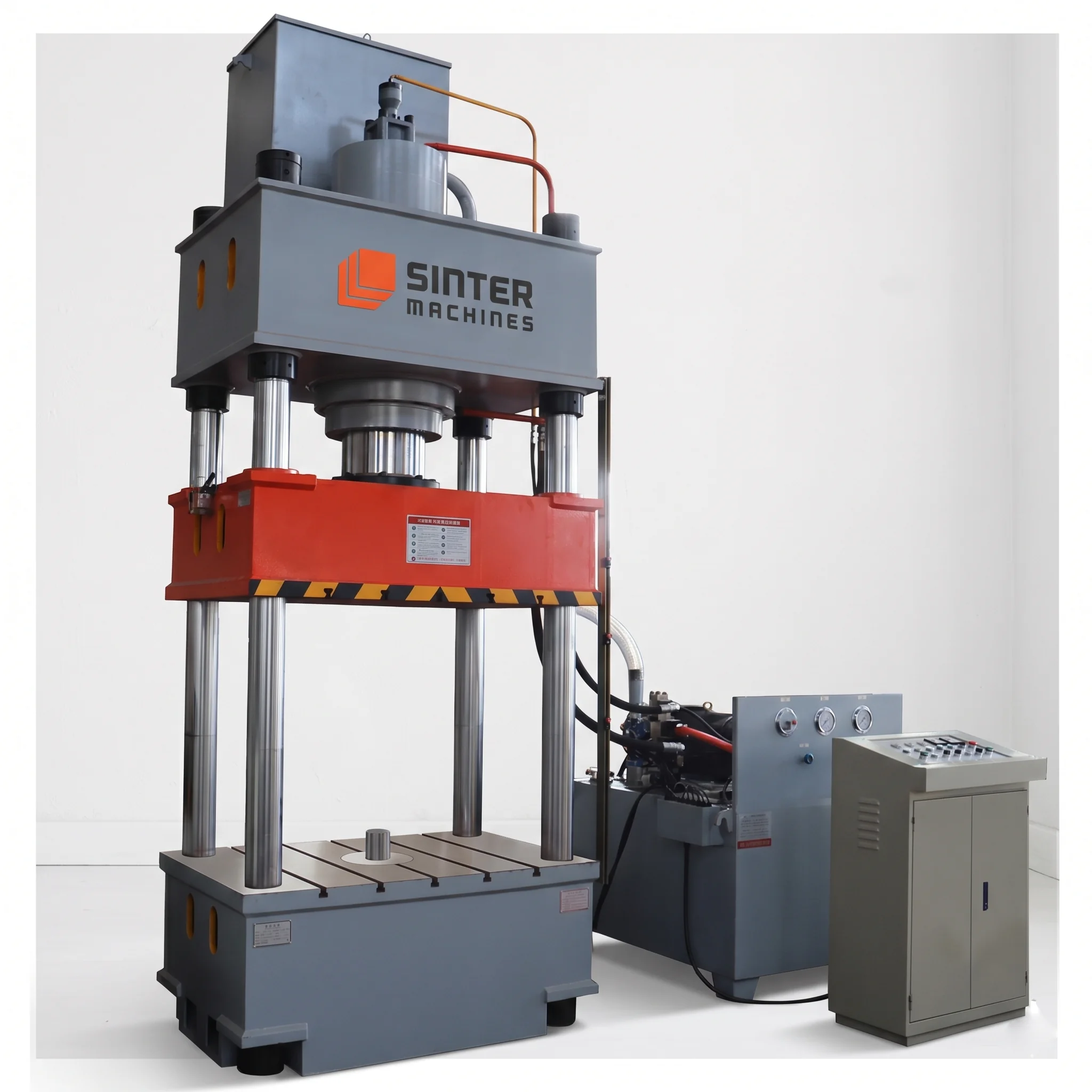

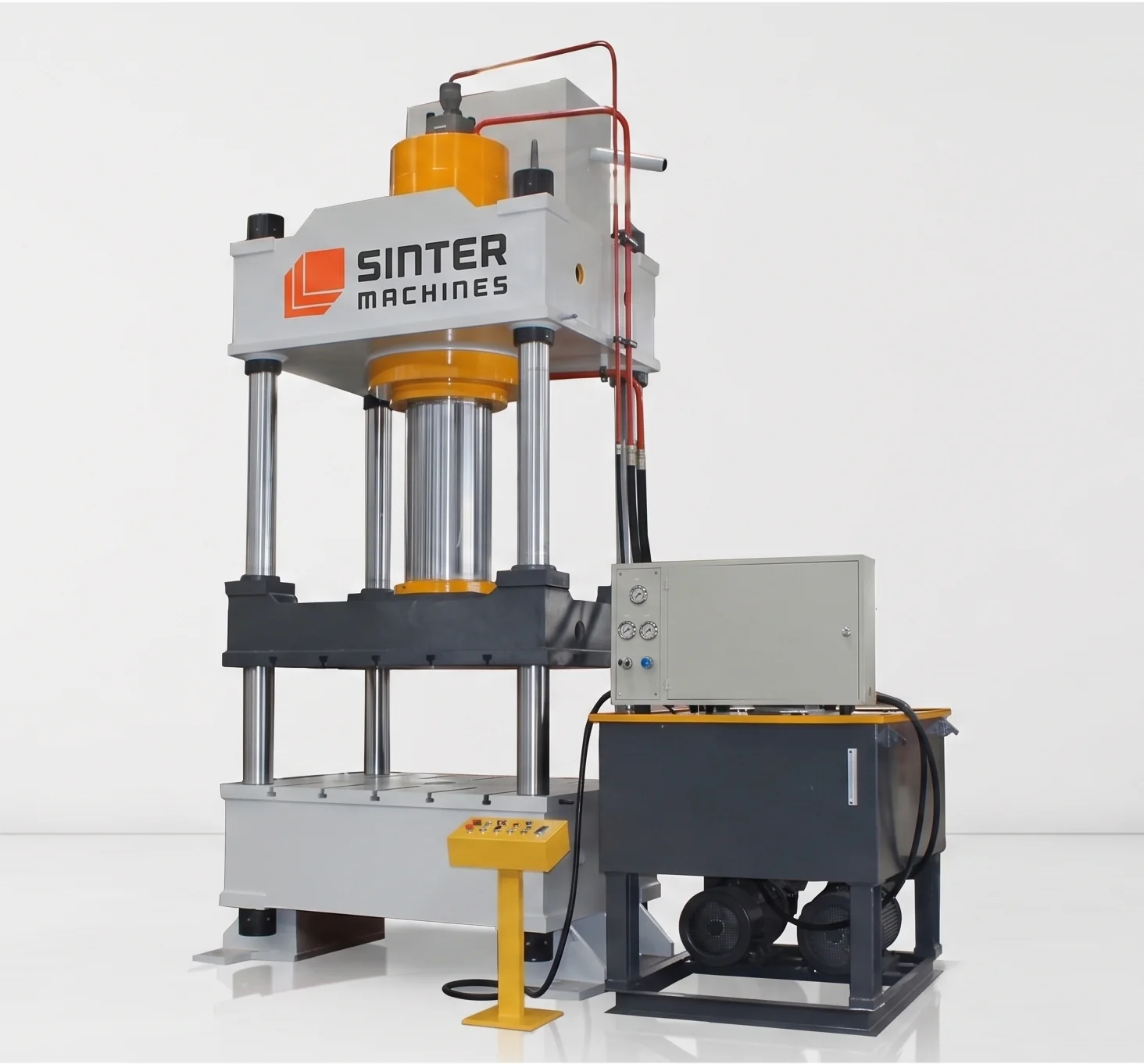

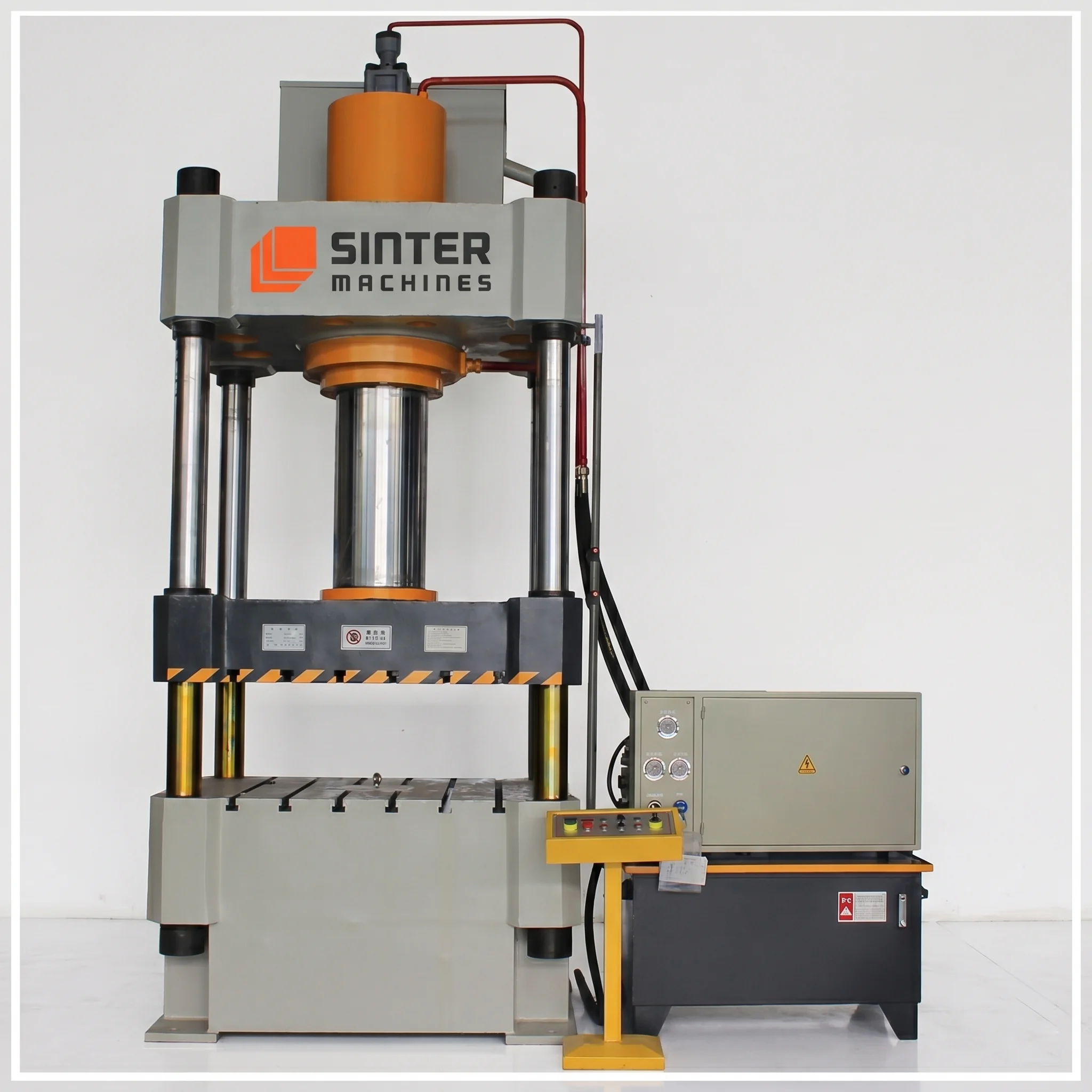

315T Four Column Hydraulic Press for Muscovite Powder Block
A Muscovite Powder Block Compression 4-Column Hydraulic Press Machine is a specialized industrial compaction system engineered to compress fine muscovite powder (a hydrous potassium aluminum silicate mica mineral) into dense, uniform solid blocks, electrical insulation plates, or preforms.
These machines are utilized in electrical insulation manufacturing, high-temperature refractory production, and advanced composite fabrication, where fine, platy mica powders must be consolidated to minimize airborne dusting, reduce storage volume, and optimize handling or thermal processing.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
High-Precision Guidance & Parallelism: Muscovite features a distinct platy, layered crystal structure that requires strict control over compaction uniformity to prevent structural weak points, delamination, or density gradients. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Rigid Load Distribution: Compacting platy mineral powders into high-strength blocks requires continuous, balanced tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity over long operational lifespans.
Air Evacuation & Lamination Prevention: Because the layered morphology of muscovite traps significant amounts of air during filling, the hydraulic system is programmed with multi-stage compression profiles and extended dwell times to allow trapped air to evacuate safely without causing internal splitting or blistering.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 40 Tons to 400+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | Hardened alloy tool steel or specialized wear-resistant inserts designed to handle platy mineral powders |
Hydraulic Drive | Variable displacement piston pumps or servo-hydraulic systems with smooth proportional pressure control |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Enclosed Volumetric Feeding: An automated, sealed feed shoe slides precisely over the die cavity to deposit a measured volume of loose muscovite powder, minimizing airborne dust and ensuring uniform fill density.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate from the layered structure and the mineral particles to firmly settle, minimizing internal stress or cracking.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent surface cracking from elastic springback. A bottom ejection cylinder then cleanly pushes the solid muscovite block out of the die cavity for downstream drying, curing, or thermal processing.

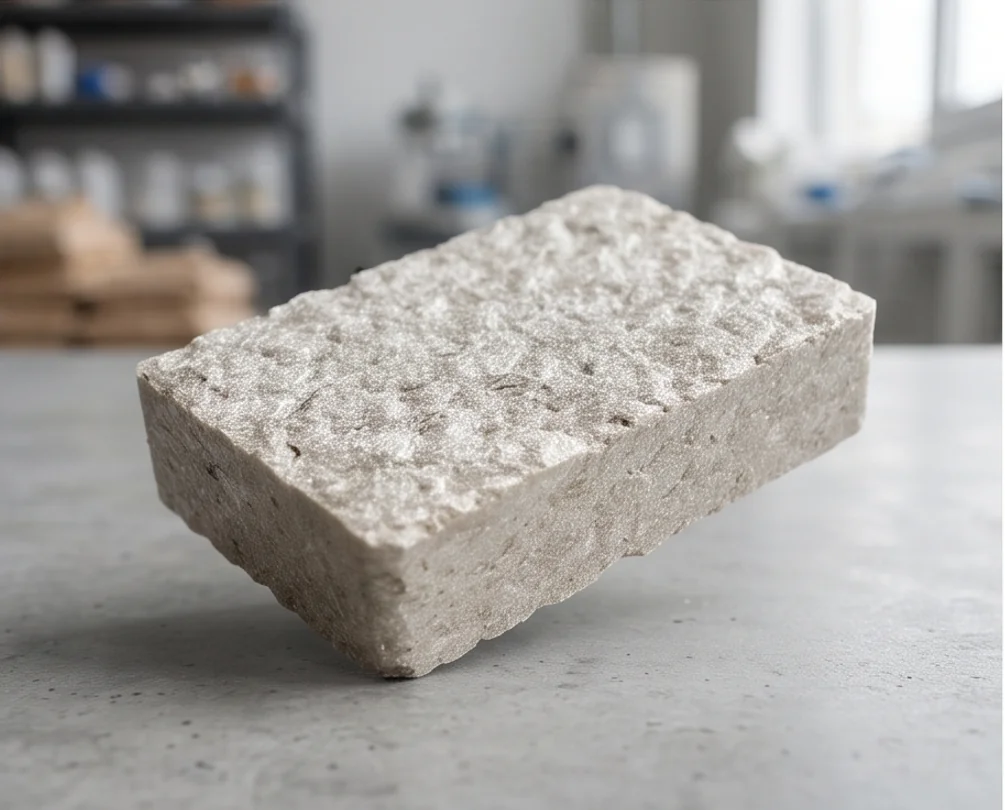

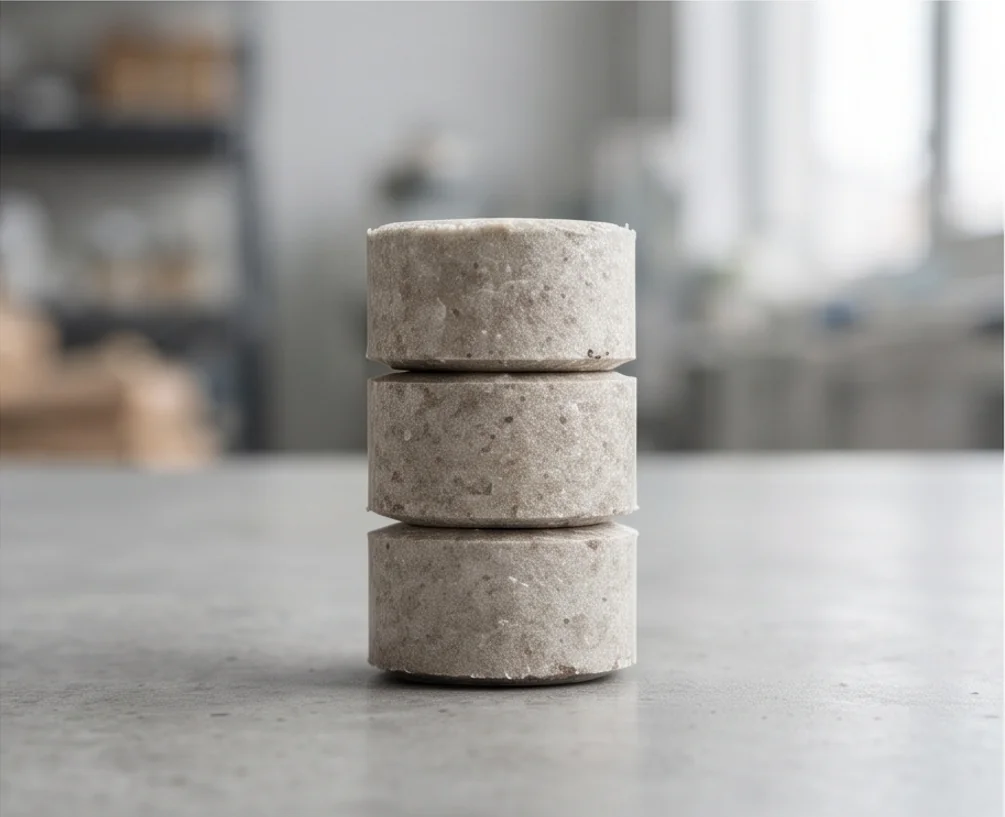

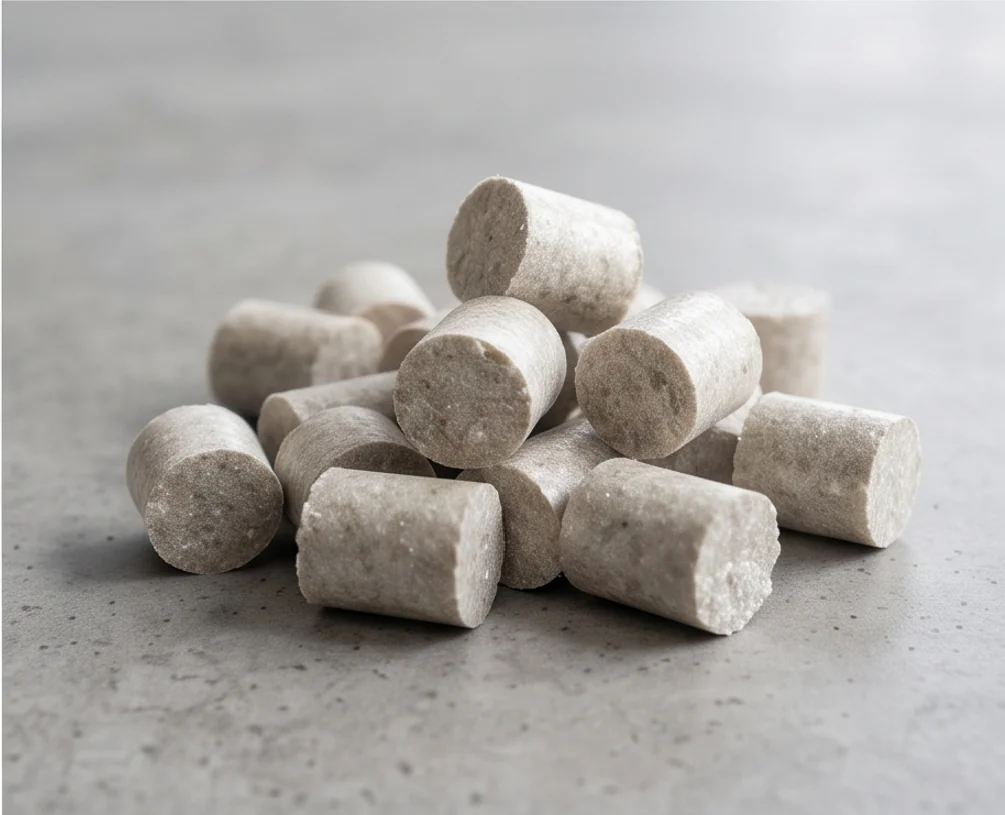

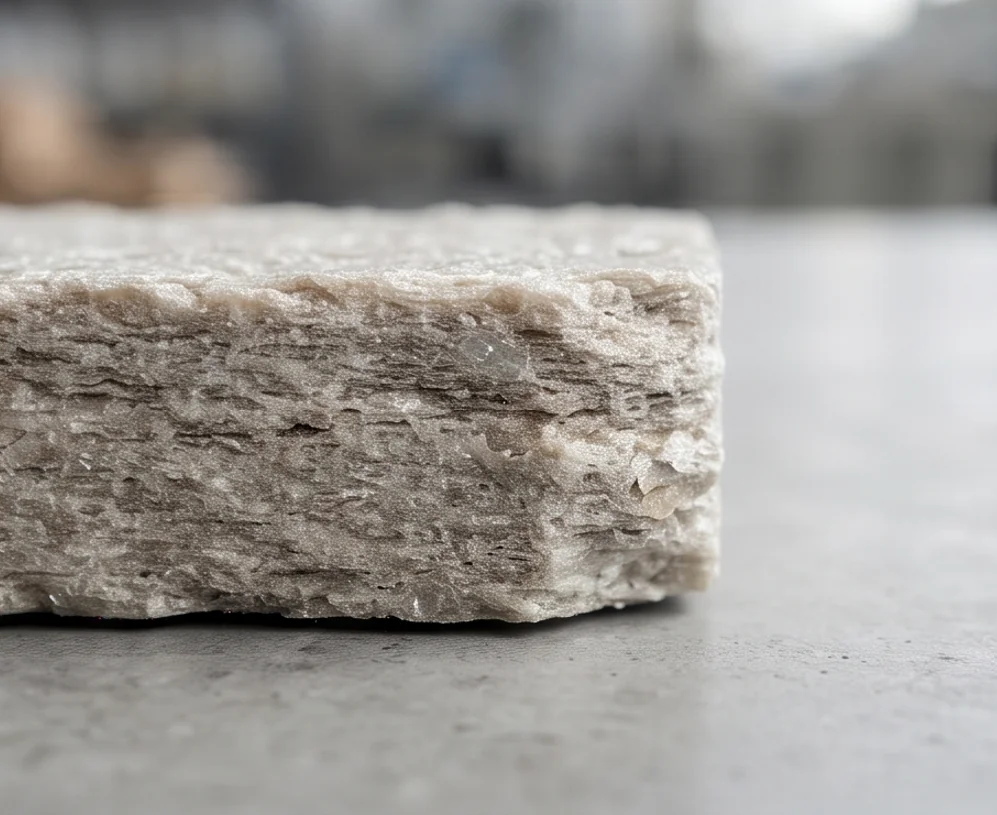

Finished Product Gallery
