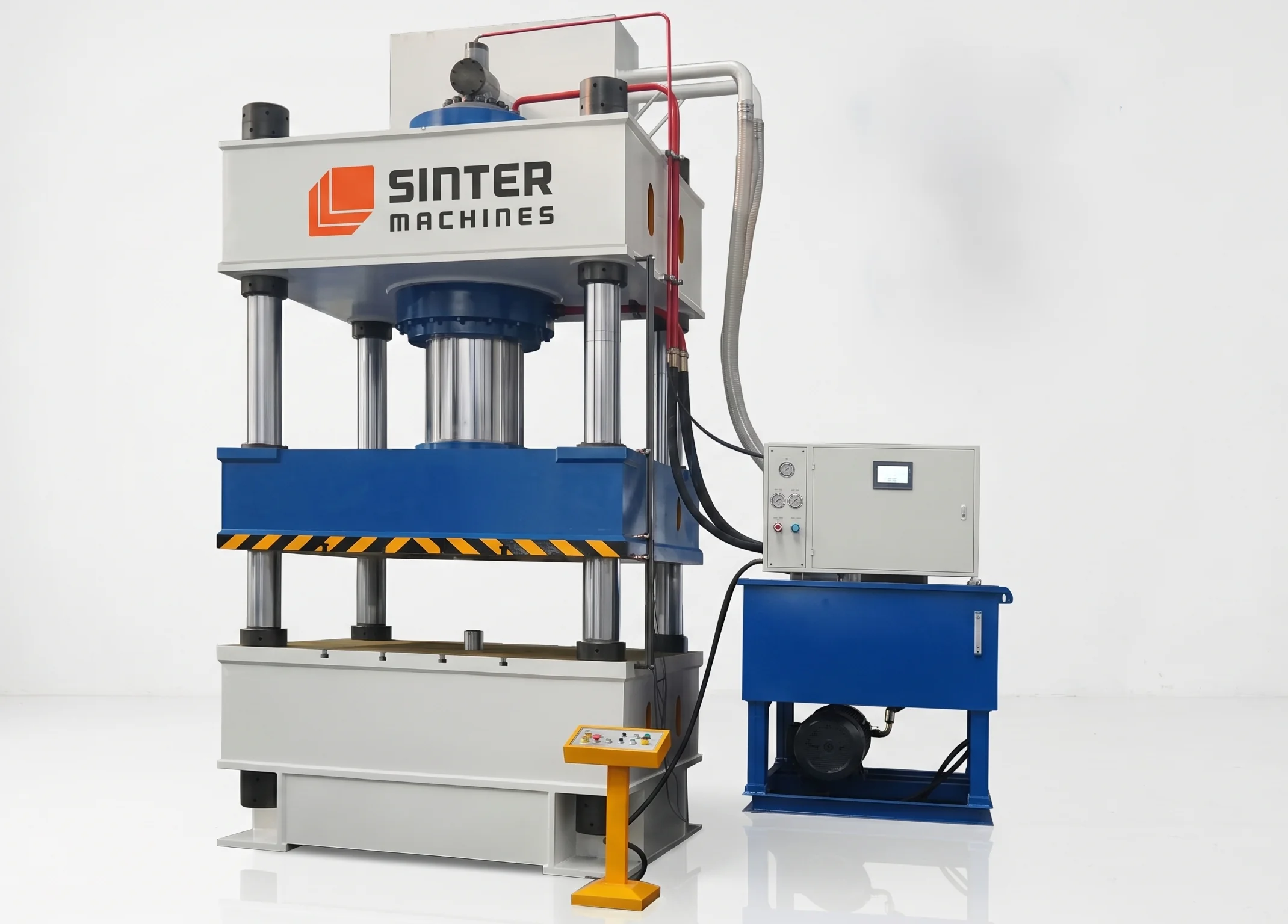

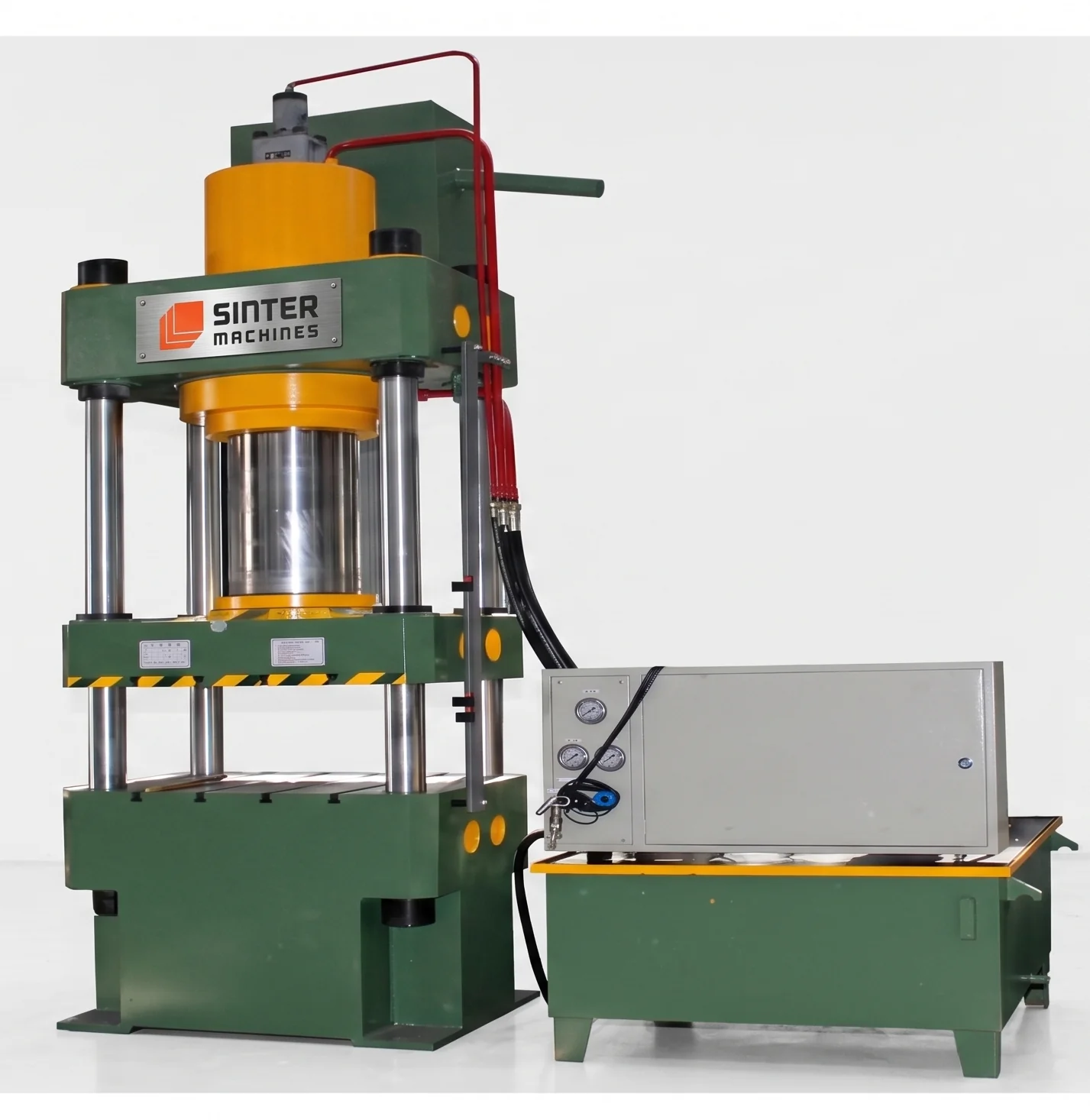

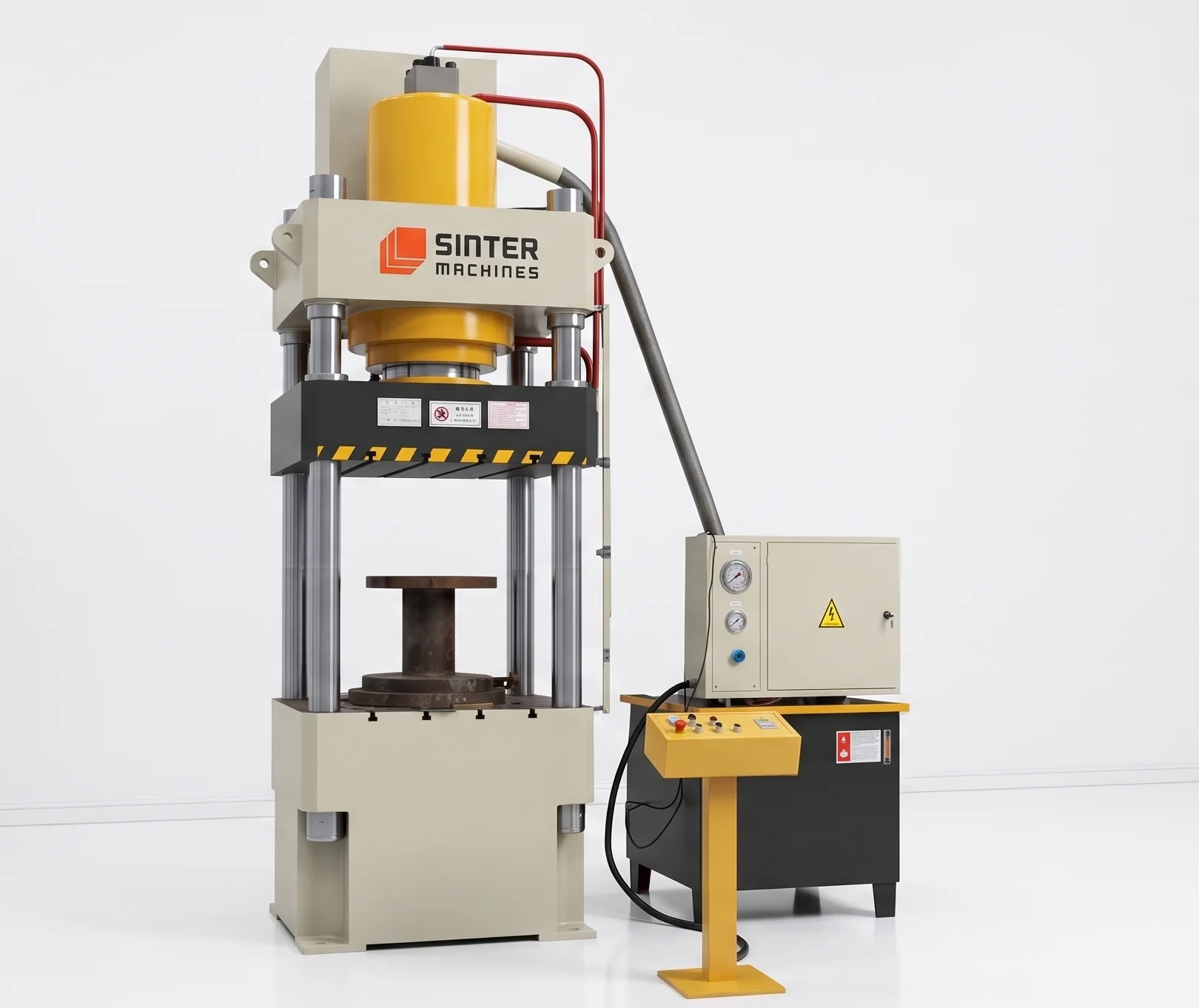

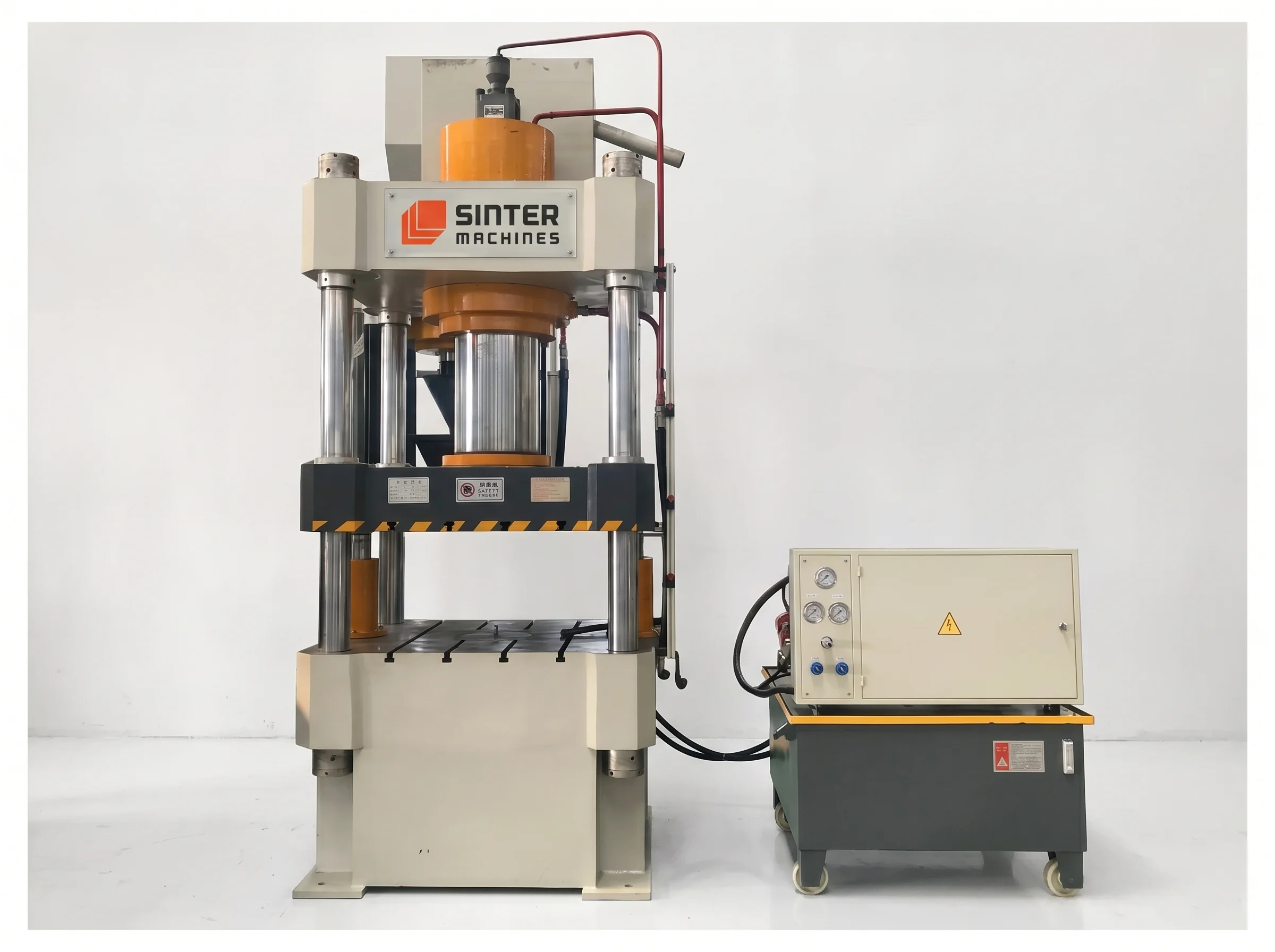

800T Four Column Hydraulic Press for Corundum Powder Block
Corundum Powder Block Compression 4-Column Hydraulic Press Machine is a heavy-duty industrial compaction system engineered to compress fine corundum powder (aluminum oxide, Al2O3) into dense, uniform solid blocks, refractory bricks, or advanced ceramic preforms.
These machines are utilized in high-performance refractory manufacturing, abrasive tool production, and advanced technical ceramic processing, where loose, ultra-hard mineral powders must be consolidated to minimize dusting, prevent material loss, and ensure high structural integrity prior to high-temperature sintering.
01 — Engineering Considerations
Structural Design and Engineering Considerations (4-Column Architecture)
High-Precision Guidance and Parallelism: Corundum is an extremely hard and abrasive material that requires strict control over compaction uniformity to prevent structural weak points or density gradients. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Rigid Load Distribution: Compacting ultra-hard mineral powders into high-strength blocks requires continuous high tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity over long operational lifespans.
Extreme Abrasion Resistance: Because corundum particles rank just below diamond in hardness, press tooling, die walls, and punches are engineered with high-grade tungsten carbide inserts or specialized wear-resistant alloy steels to prevent rapid tooling degradation and material contamination.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 100 Tons to 800+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die and Punch Assembly | High-grade tungsten carbide inserts or specialized abrasion-resistant alloy tool steel to withstand extreme wear |
Hydraulic Drive | Servo-hydraulic or variable displacement piston pumps with closed-loop proportional pressure and displacement control |
Control Unit | Advanced PLC system with HMI touchscreen interface for programming multi-stage pressing profiles, fill depth, dwell times, and automatic extraction |
03 — Operational Workflow
Operational Workflow
- Precision Volumetric Feeding: An automated, calibrated powder-feed shoe slides across the high-tolerance die cavity to evenly deposit a measured quantity of loose corundum powder and binder mix, ensuring uniform fill density and minimizing air entrapment.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers rapidly to the material surface.
- High-Pressure Compaction: The system applies controlled, heavy tonnage. A multi-action or dual-punch configuration (top and bottom movement) ensures even particle rearrangement and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate and the dense mineral particles to fully settle, minimizing internal stress or lamination defects.
- Controlled Decompression and Ejection: Hydraulic pressure is gradually bled off to prevent elastic springback cracking. A bottom ejection cylinder then cleanly pushes the solid green corundum block out of the die cavity for transfer to a high-temperature tunnel or shuttle kiln.

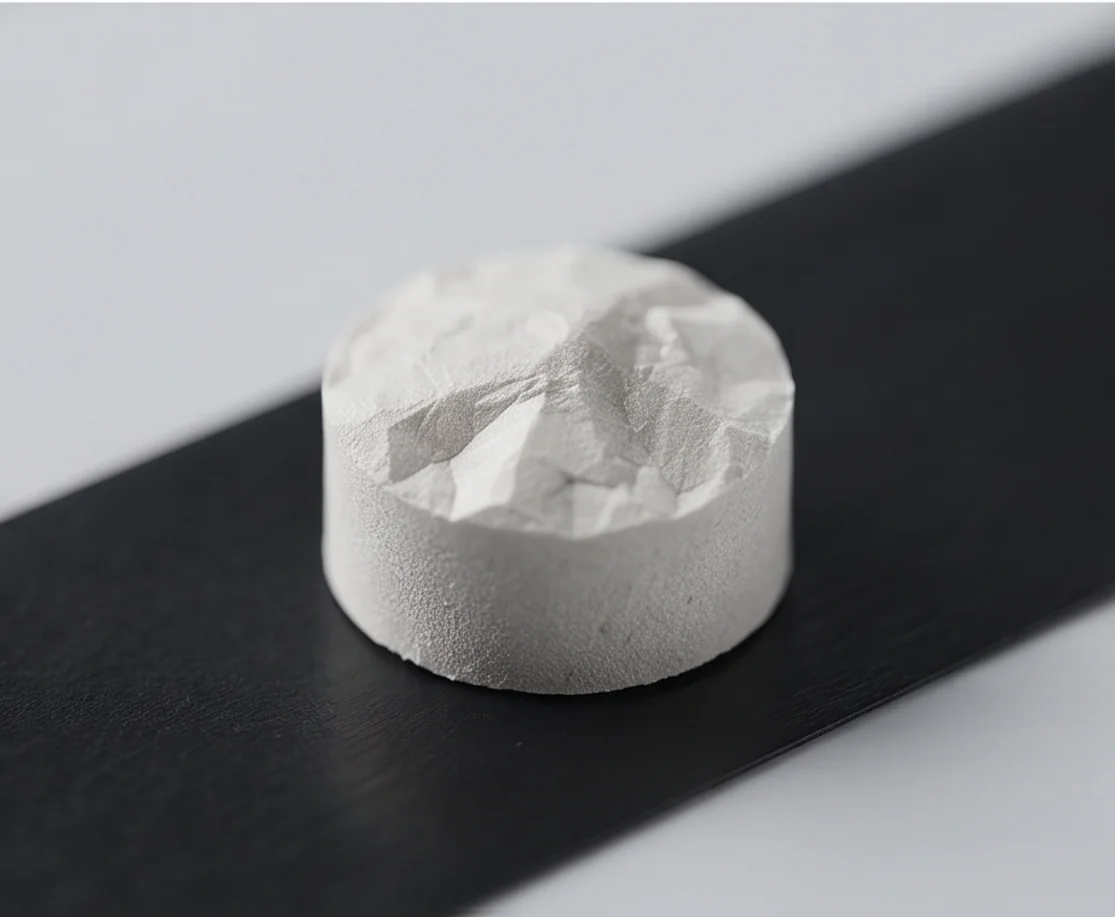

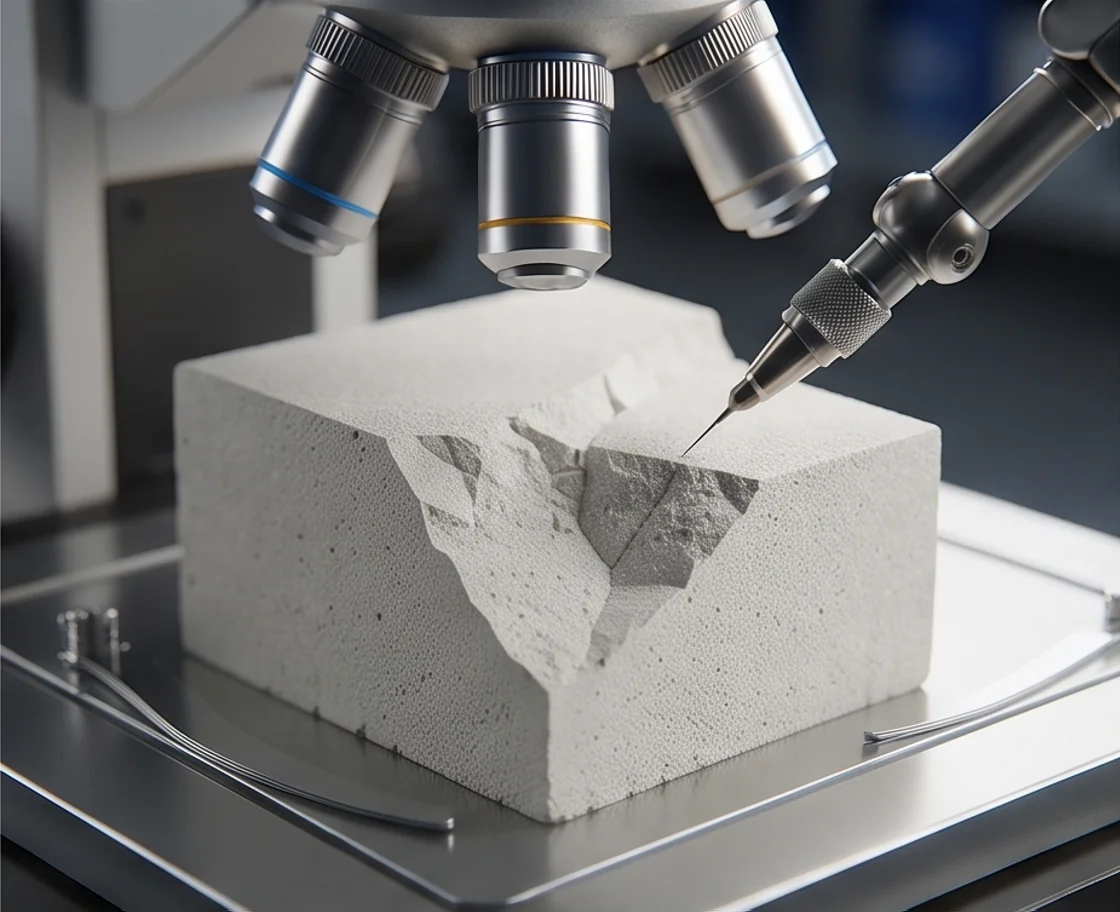

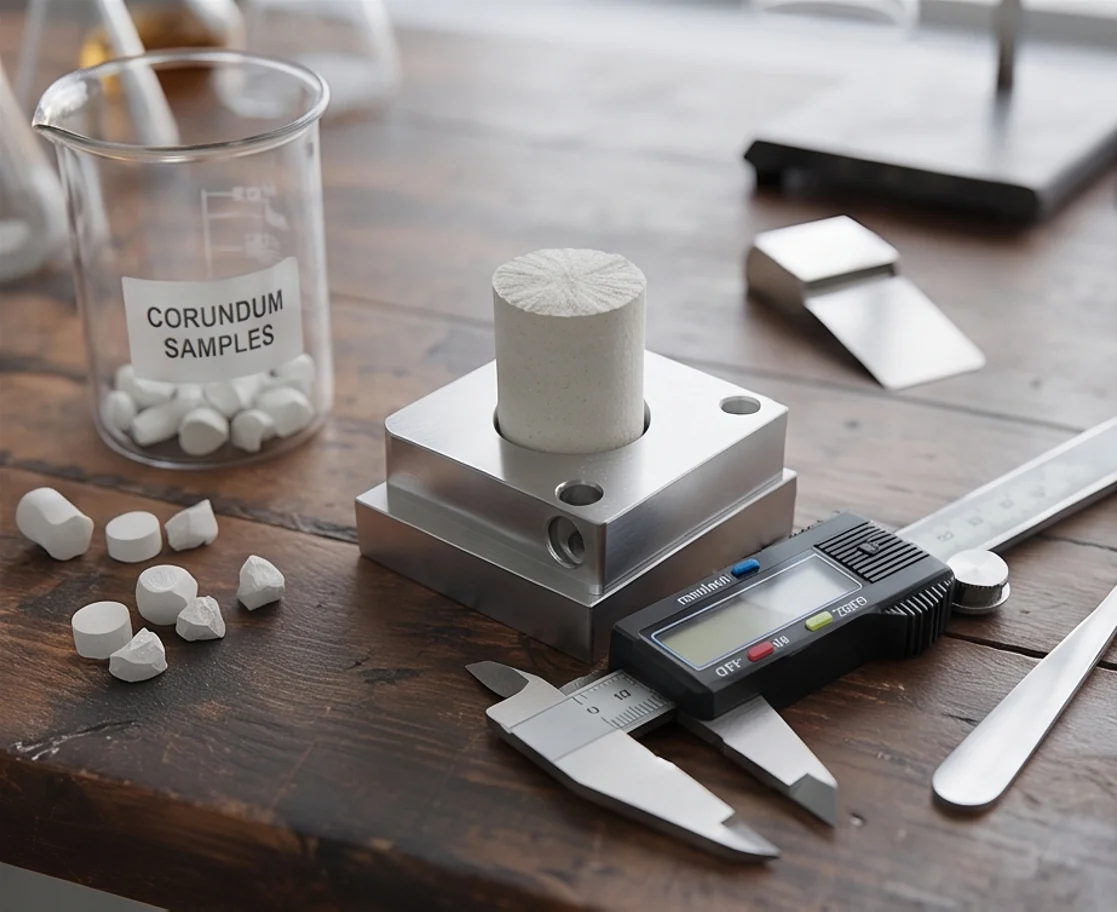

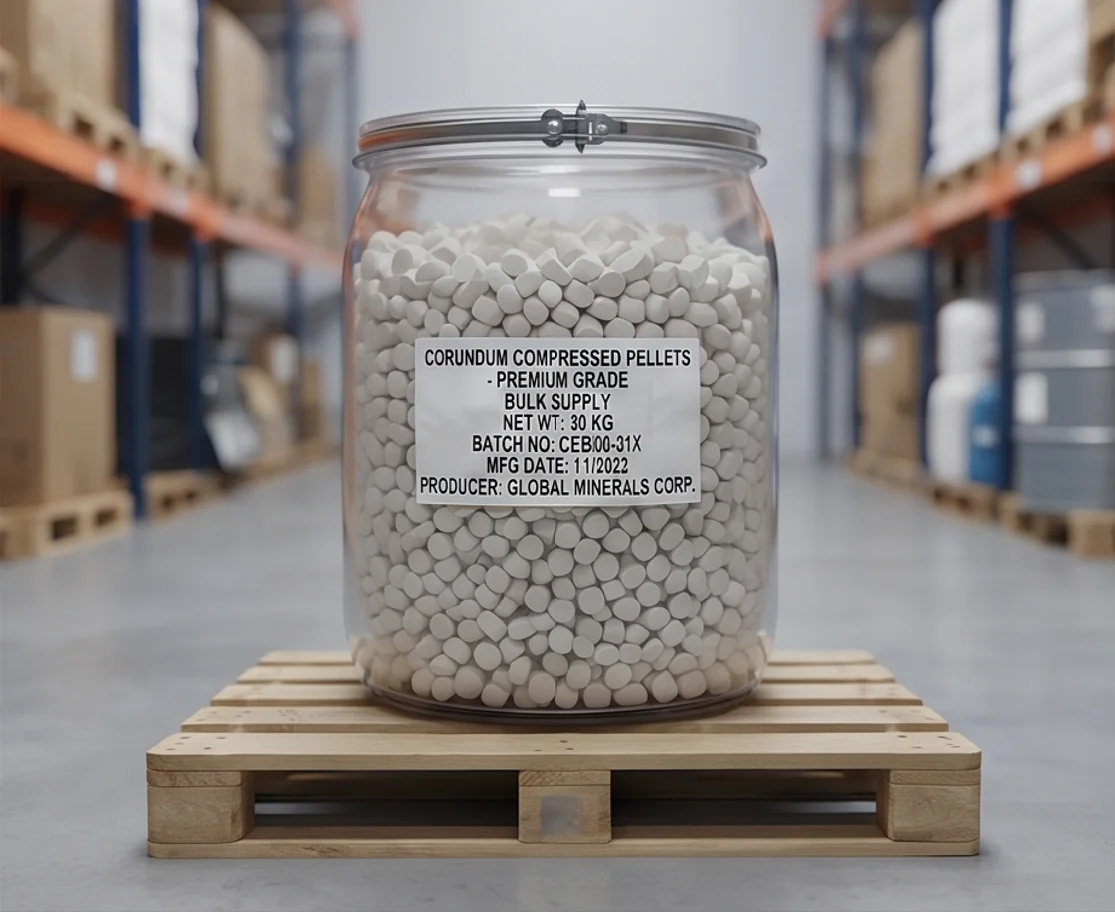

Finished Product Gallery
