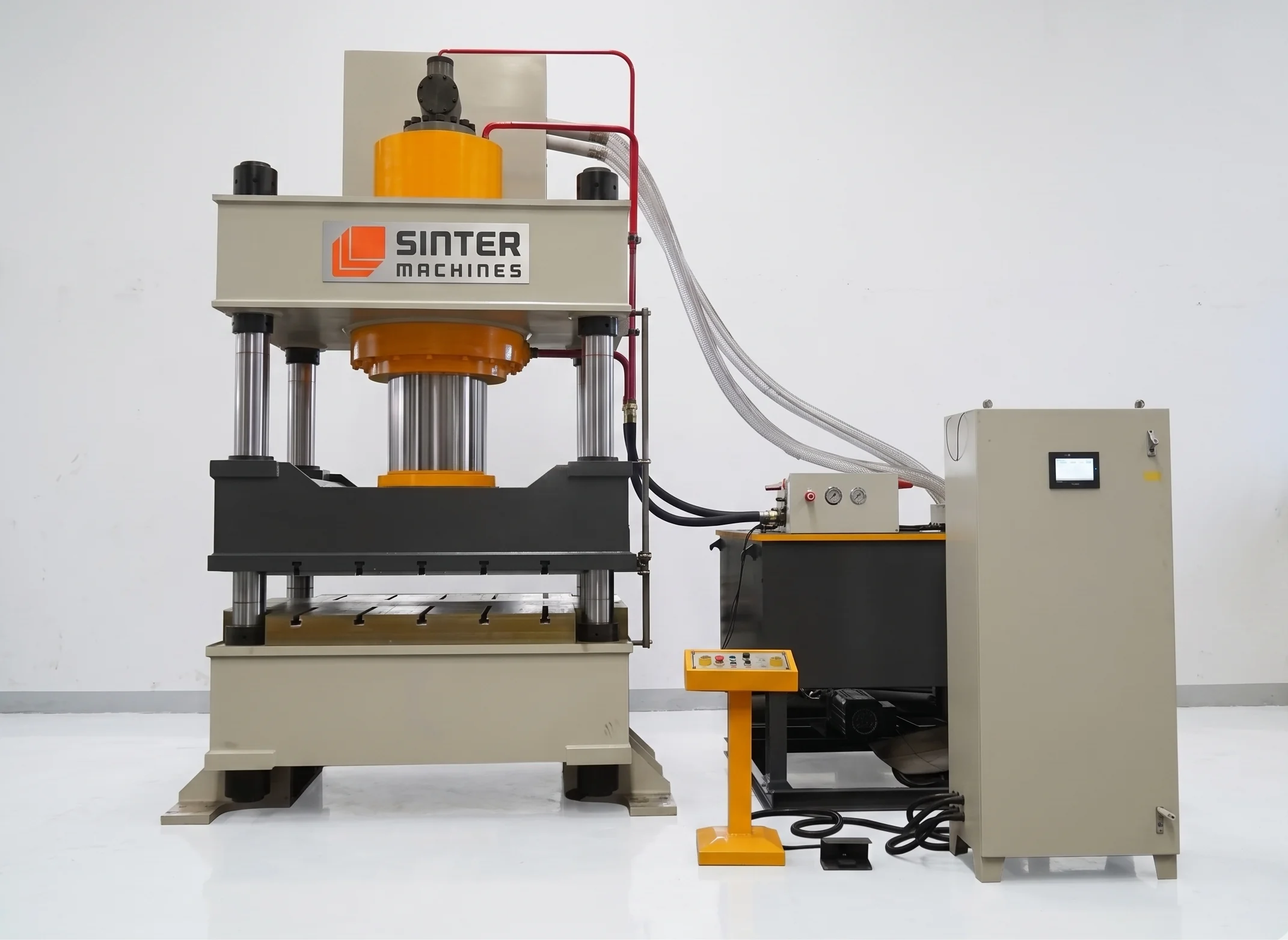

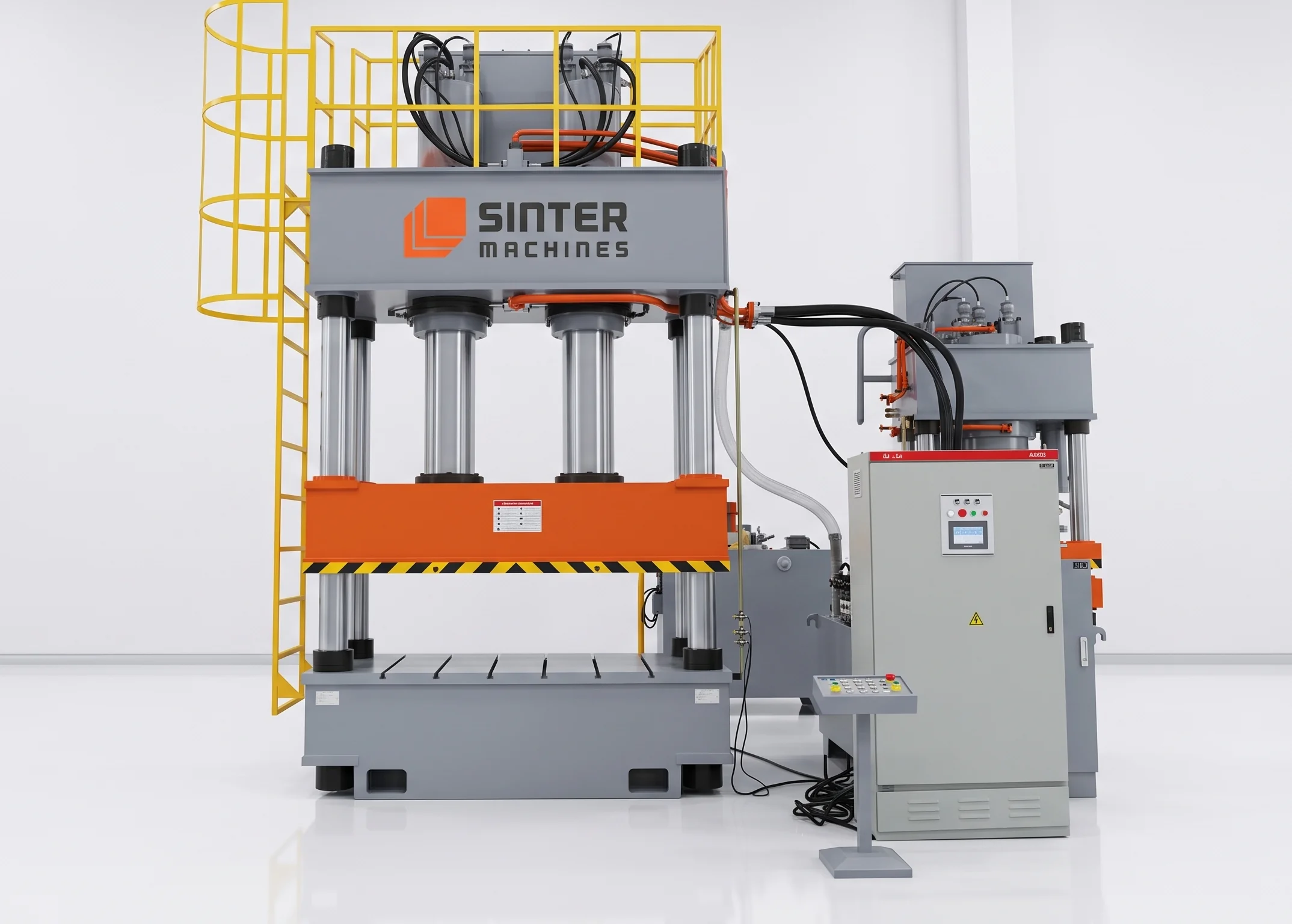

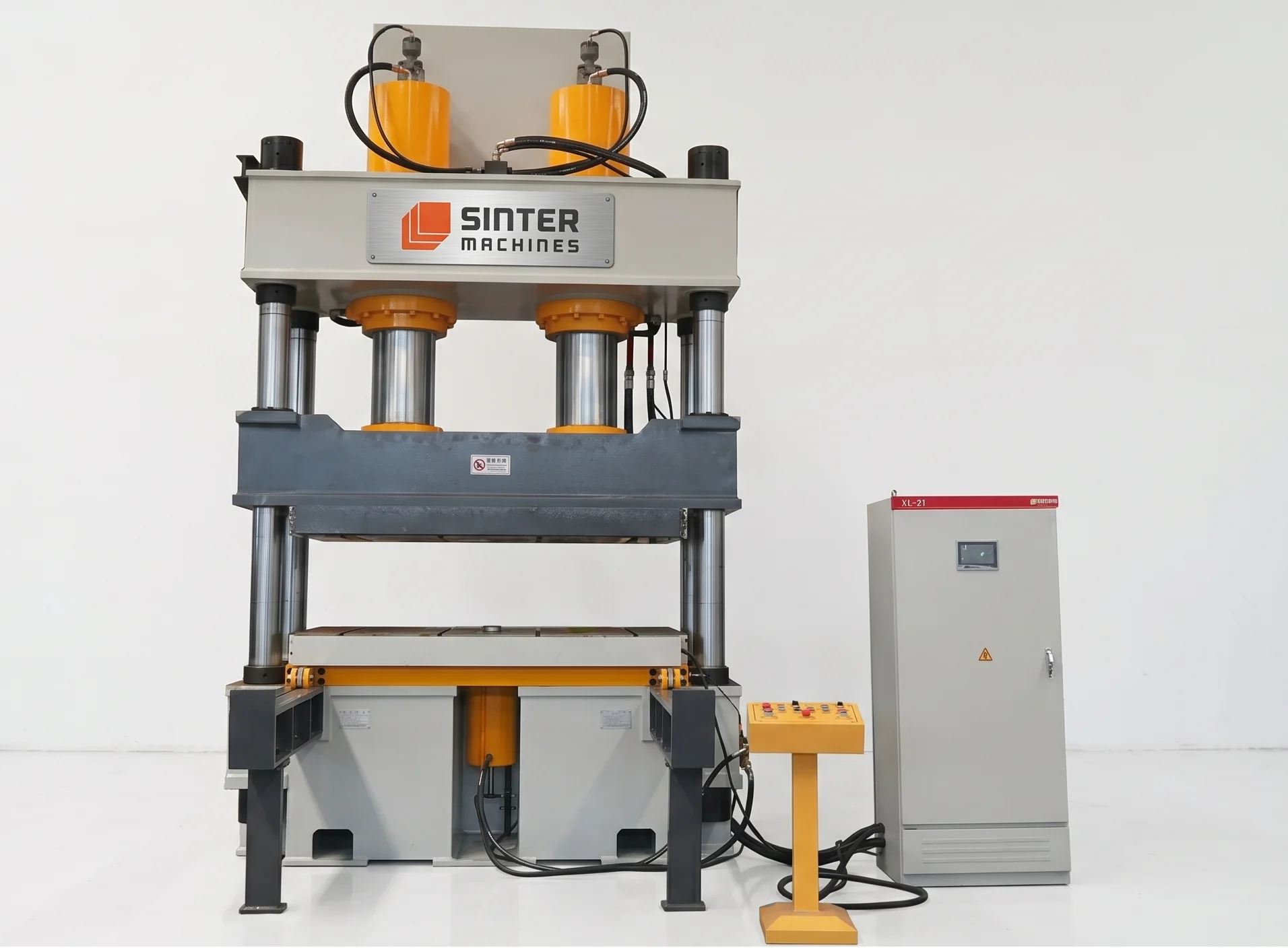

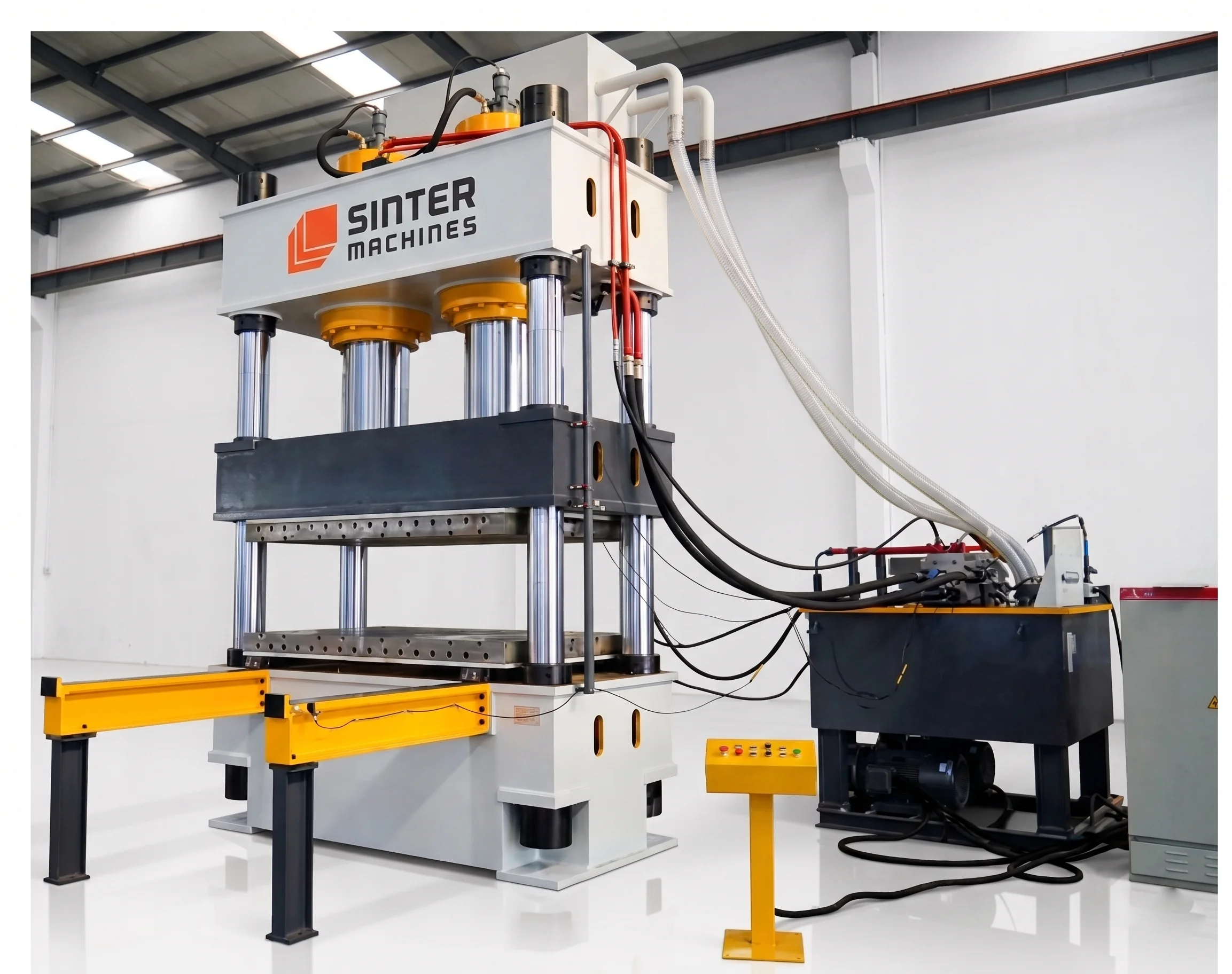

500T Four Column Hydraulic Press for Coal Powder Block
A Coal Powder Block Forming 4-Column Hydraulic Press Machine is a heavy-duty industrial compaction system engineered to compress fine coal dust, charcoal powder, or carbon black into dense, uniform solid blocks, fuel briquettes, or metallurgical coke preforms.
These machines are utilized in fuel processing, metallurgical manufacturing, activated carbon production, and power generation sectors, where loose carbonaceous powders must be consolidated to minimize airborne dusting, reduce storage volume, improve combustion efficiency, and optimize handling or transportation.
01 — Engineering Considerations
Structural Design & Engineering Considerations (4-Column Architecture)
High-Precision Guidance & Parallelism: Fine carbon and coal powders require strict control over compaction uniformity to prevent structural weak points or density gradients that can cause crumbling during handling or combustion. The four-pillar precision-ground column architecture ensures absolute platen parallelism and eliminates lateral play, preventing uneven wall pressures and ensuring consistent block density.
Rigid Load Distribution: Compacting fine coal powders into high-strength blocks requires continuous high tonnage. The 4-column frame withstands heavy cyclic loads without structural flexing, maintaining exact micro-tolerances between the punches and the die cavity over long operational lifespans.
Combustible Dust Safety & Containment: Because fine coal powder creates flammable dust hazards, the press is heavily integrated with explosion-proof electrical components, sealed feeding hoppers, local exhaust ventilation ports, and dust collection interfaces to protect operators and ensure a safe working environment.
02 — Technical Specifications
Key Technical Specifications
Feature | Industrial Specification Range |
Nominal Compaction Force | 40 Tons to 600+ Tons (tailored to block cross-sectional area and target density) |
Guide Structure | 4 Hard-Chromed, Precision-Ground Steel Pillars with heavy-duty, low-friction bushings |
Die & Punch Assembly | Hardened alloy tool steel or specialized wear-resistant inserts designed to handle carbon powders |
Hydraulic Drive | Variable displacement piston pumps or servo-hydraulic systems with smooth proportional pressure control |
Control Unit | PLC system with HMI touchscreen interface for programming fill depth, pressing tonnage, dwell time, and automated extraction |
03 — Operational Workflow
Operational Workflow
- Enclosed Volumetric Feeding: An automated, sealed feed shoe slides precisely over the die cavity to deposit a measured volume of loose coal powder, minimizing airborne dust and ensuring uniform fill density.
- Multi-Stage Compression:
- Fast Approach: The top ram lowers quickly to the material surface.
- High-Pressure Compaction: The system applies controlled tonnage. A multi-action or dual-punch configuration ensures even particle interlocking and density distribution throughout the depth of the block.
- Dwell Phase: Peak pressure is held for a set duration to allow trapped air to evacuate and the carbon particles to firmly settle, minimizing internal stress or cracking.
- Controlled Decompression & Ejection: Hydraulic pressure is gradually bled off to prevent surface cracking from elastic springback. A bottom ejection cylinder then cleanly pushes the solid coal block out of the die cavity for downstream drying, curing, or packaging.

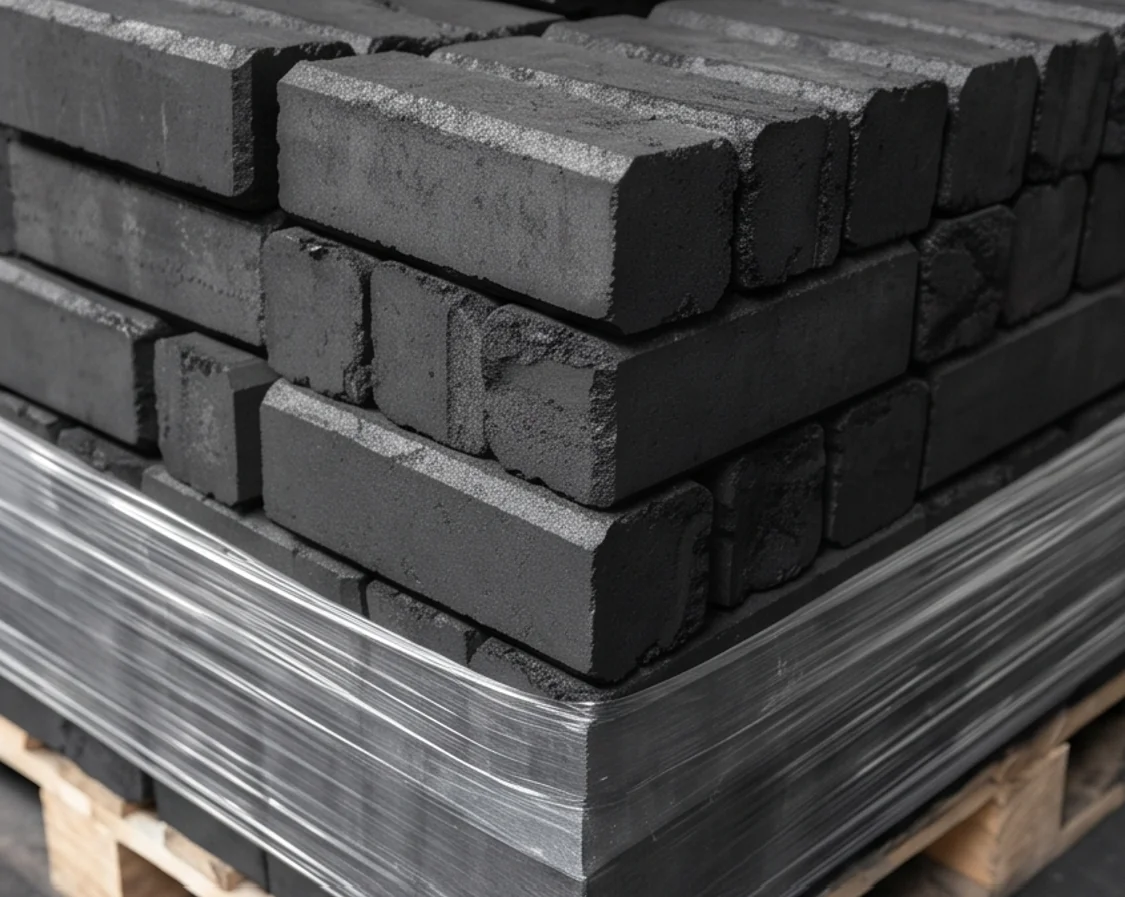

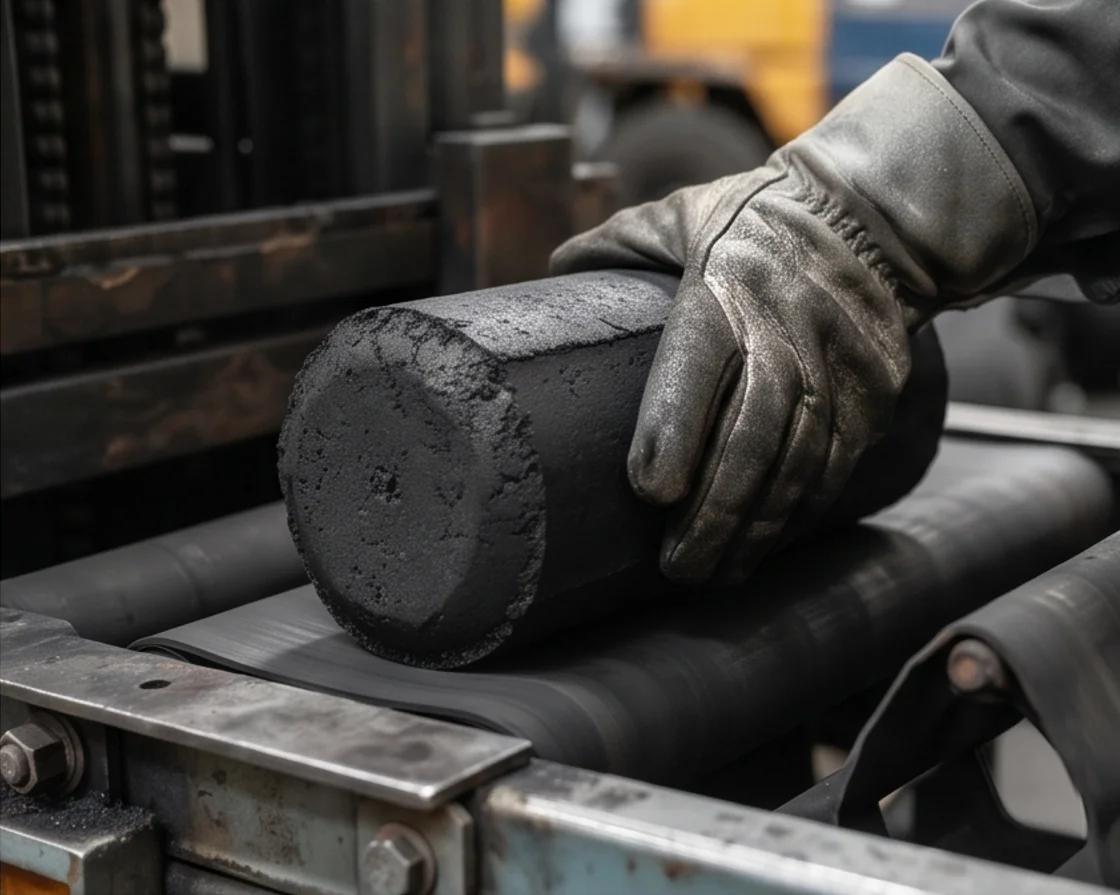

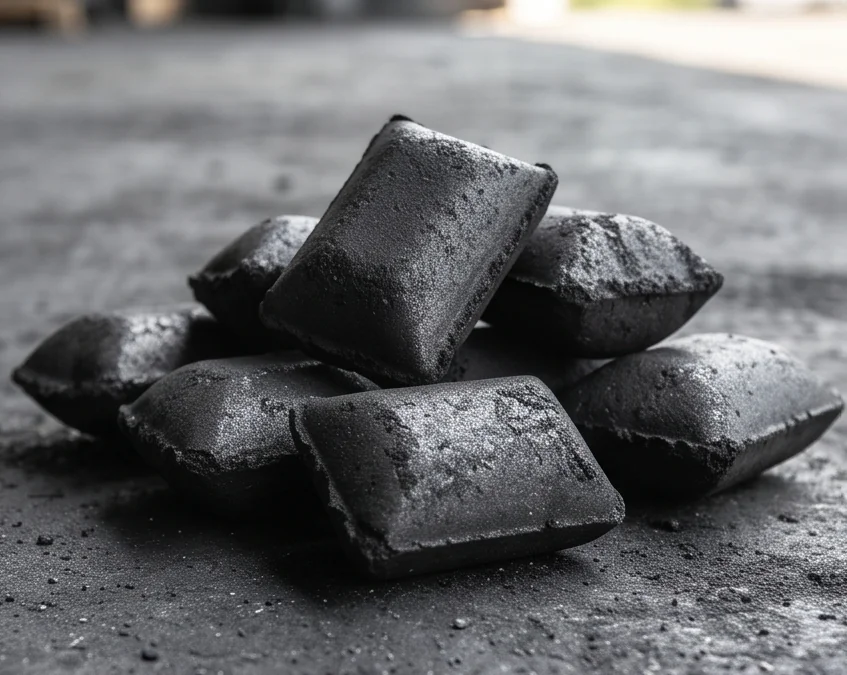

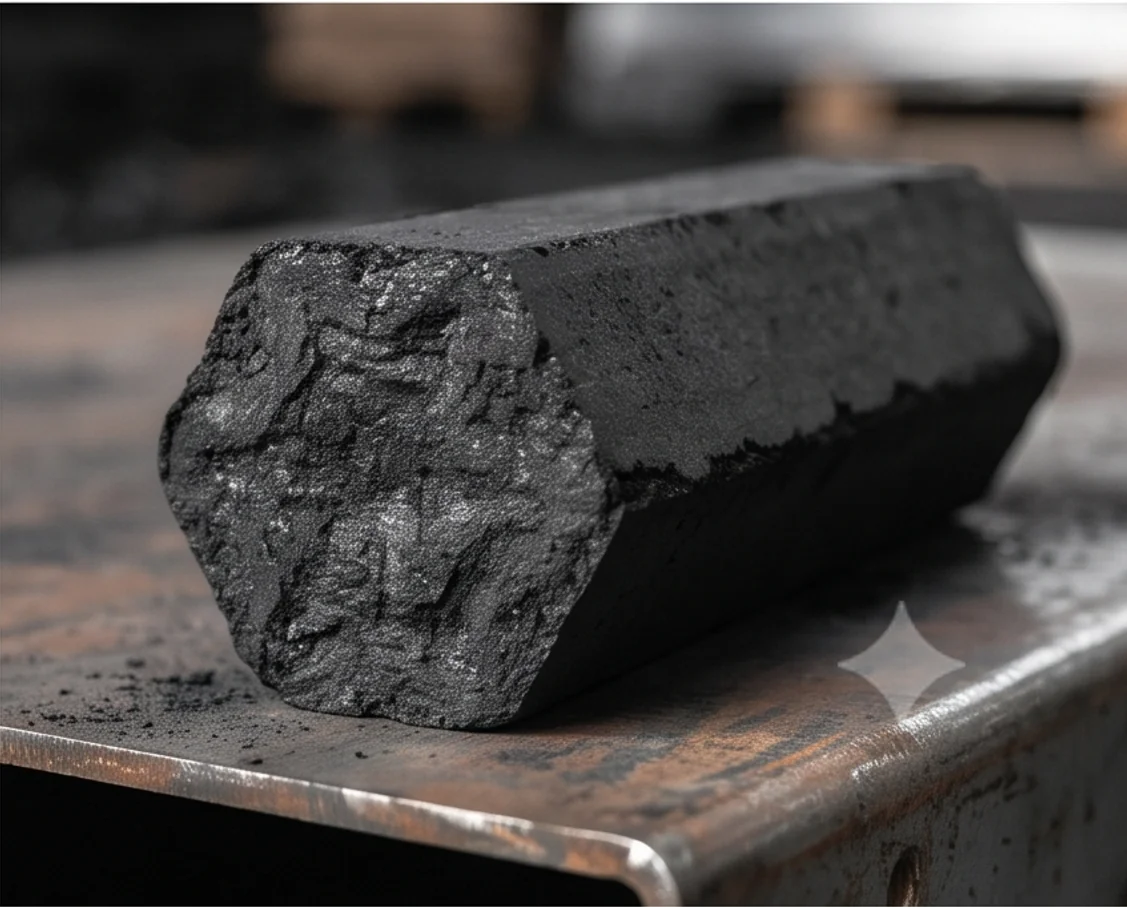

Finished Product Gallery
