Press Range

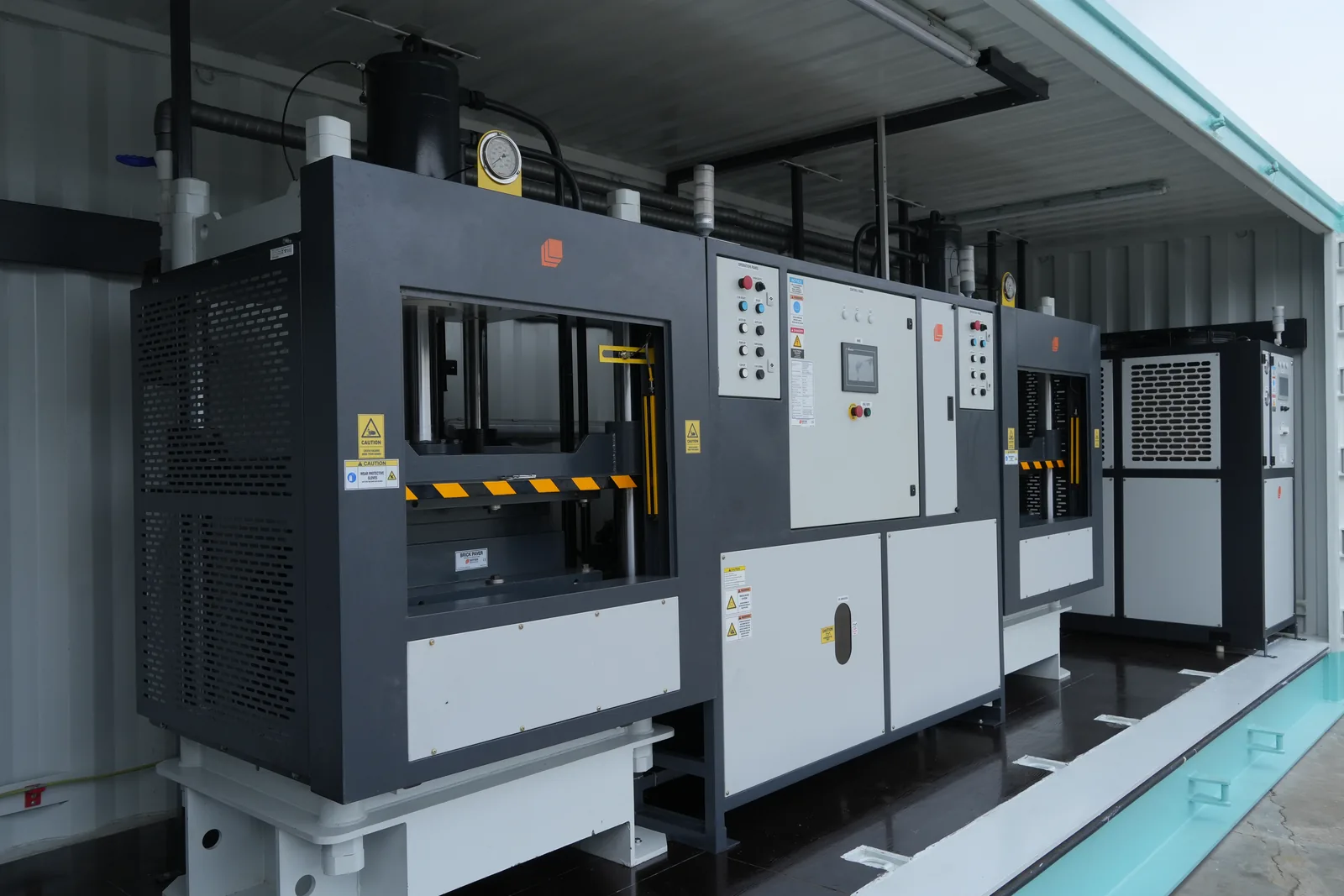

200-Ton Four Column
Hydraulic Press Machine
200 Ton Four Column Hydraulic Press Machine is a high-performance, heavy-duty solution designed for precision forming, molding, and metalworking tasks. Its robust construction, flexibility, and wide application capability make it ideal for industries such as:
200T
Rated Capacity
400 – 800 mm
Stroke Length
800 – 1200 mm
Daylight Opening
Up to 300 bar
Hydraulic Pressure
01 — Press System Overview
200-Ton Four Column Hydraulic Press
A 200-ton four-column hydraulic press is engineered for high-load applications, precision forming, and uniform force distribution across large work areas. The four-column structure ensures maximum rigidity and alignment accuracy.
Core Components
- Main Hydraulic CylinderGenerates 200 tons (~2000 kN) pressing force
- Four Precision Guide ColumnsChrome-plated for smooth, accurate movement
- Moving Ram (Slide)Applies pressure evenly on tooling
- Hydraulic Power PackMotor, pump, oil tank, valves
- Control SystemPLC with HMI (manual/semi/auto modes)
- Ejector System (Optional)Bottom or top ejector for part removal
- Die Cushion (Optional)Essential for deep drawing processes
- Safety SystemsLight curtains, pressure relief valves, emergency stops
02 — Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 200 Tons (2000 kN) |
| Structure | Four Column Type |
| Stroke Length | 400 – 800 mm |
| Daylight Opening | 800 – 1200 mm |
| Table Size | 800 × 800 mm to 1500 × 1500 mm |
| Main Cylinder Pressure | Up to 300 bar |
| Ram Speed (Approach) | 100 – 180 mm/sec |
| Working Speed | 5 – 20 mm/sec |
| Return Speed | 80 – 150 mm/sec |
| Power Pack | 15 – 30 kW |
| Control System | PLC + HMI / CNC Optional |
| Parallelism Accuracy | ±0.02 to ±0.05 mm |
| Ejector Capacity (Optional) | 20 – 50 Tons |
| Construction | Heavy-duty welded steel |
Specifications vary based on tooling, application, and customization.
03 — Applications

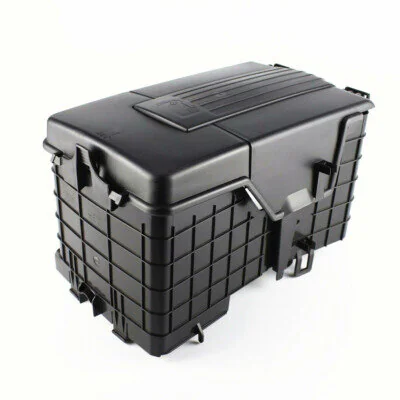

SMC / BMC / FRP Composite
- Sheet Molding Compound (SMC) panels
- Bulk Molding Compound (BMC) components
- FRP automotive and electrical enclosures
- Insulation panels, structural composite parts

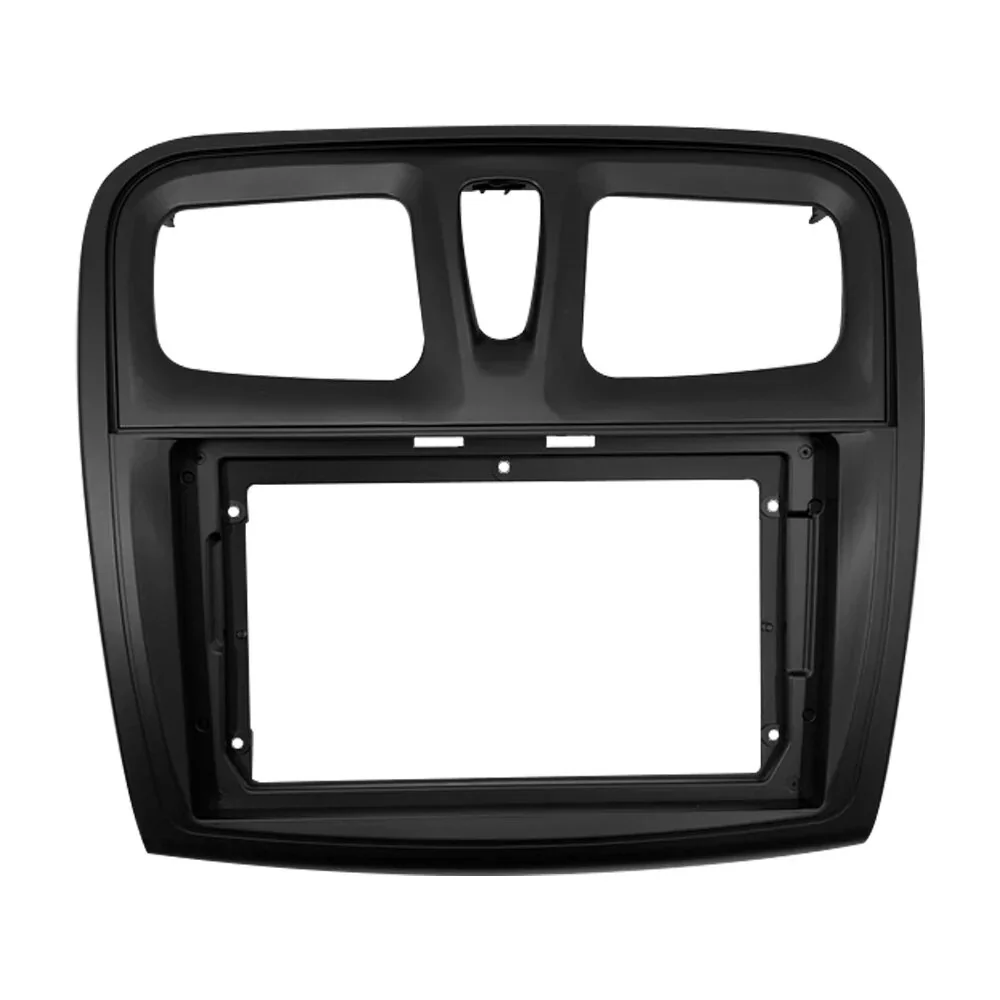

TPE & Rubber Pads / Mats
- Rubber mat compression molding
- TPE elastomer forming
- Floor mats, anti-vibration pads

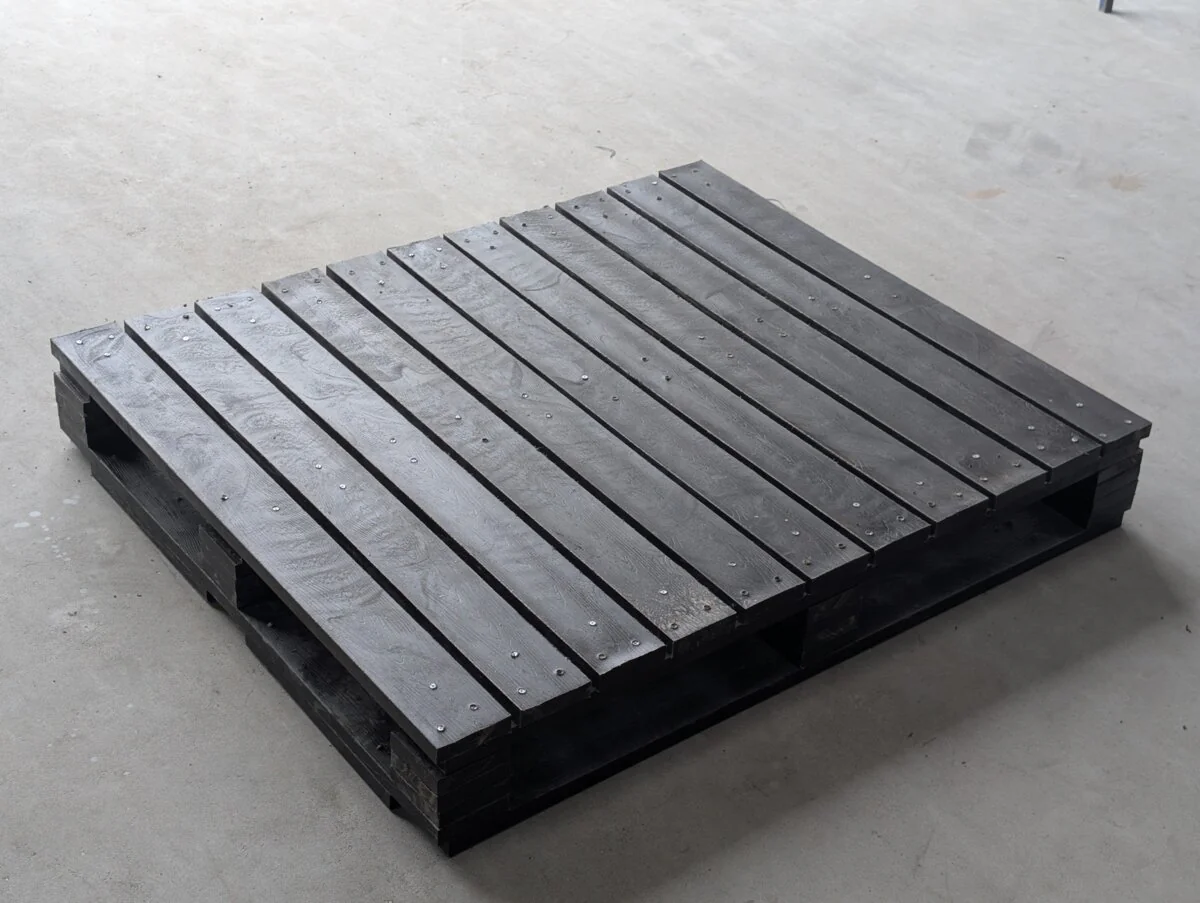

Plastic Pallets & Basins
- Injection-assisted compression molding
- Large-size pallets and bins
- Industrial storage products

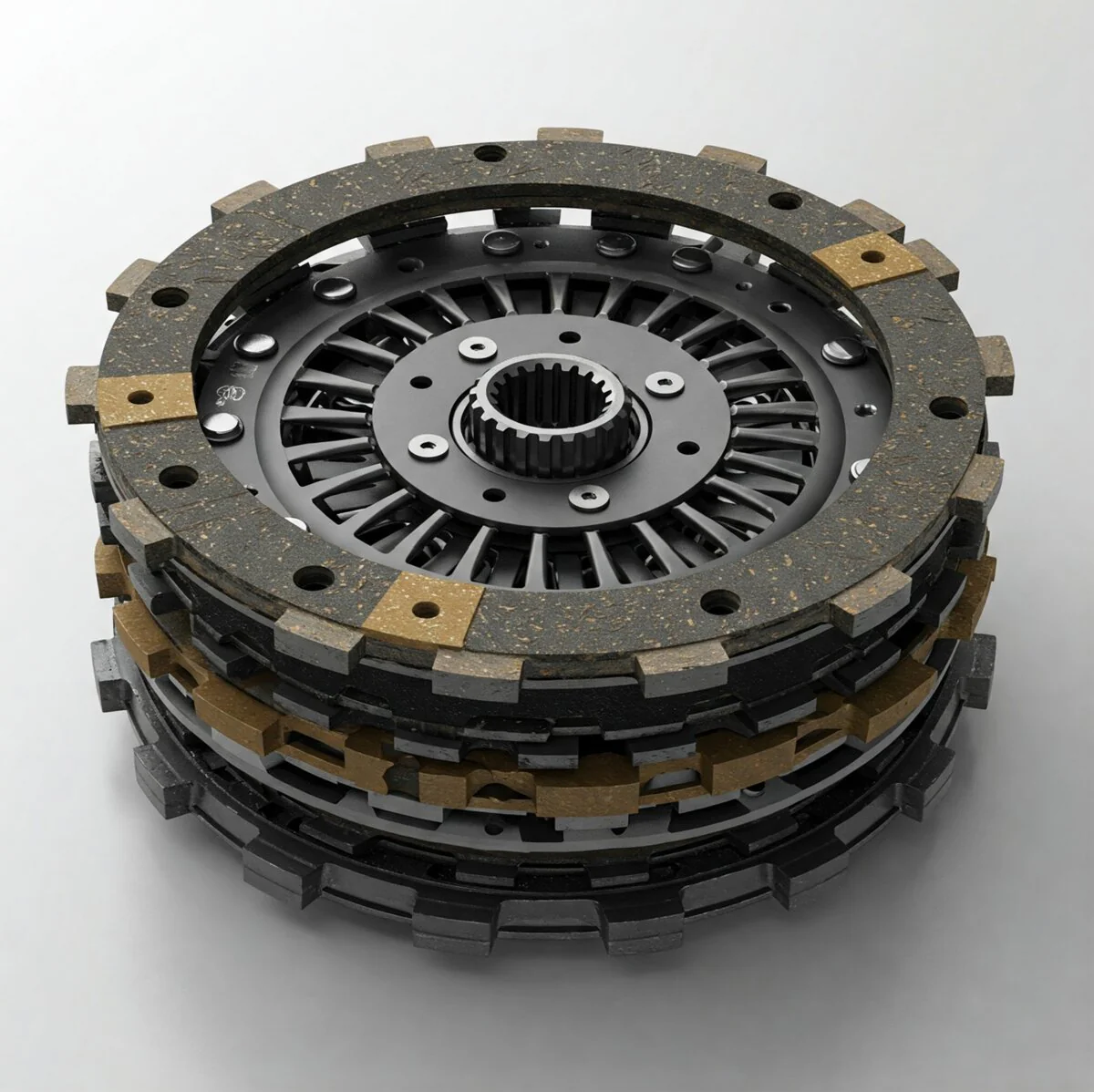

Powder Metallurgy
- Metal powder compaction
- Sintering preparation
- High-density precision components
Deep Drawing & Stamping
- Automotive components (fuel tanks, panels)
- Stainless steel utensils, sinks
- Heavy gauge sheet metal forming
Punching, Trimming & Cutting
- Sheet metal punching and blanking
- Flash trimming in cast parts
- Rubber and gasket cutting

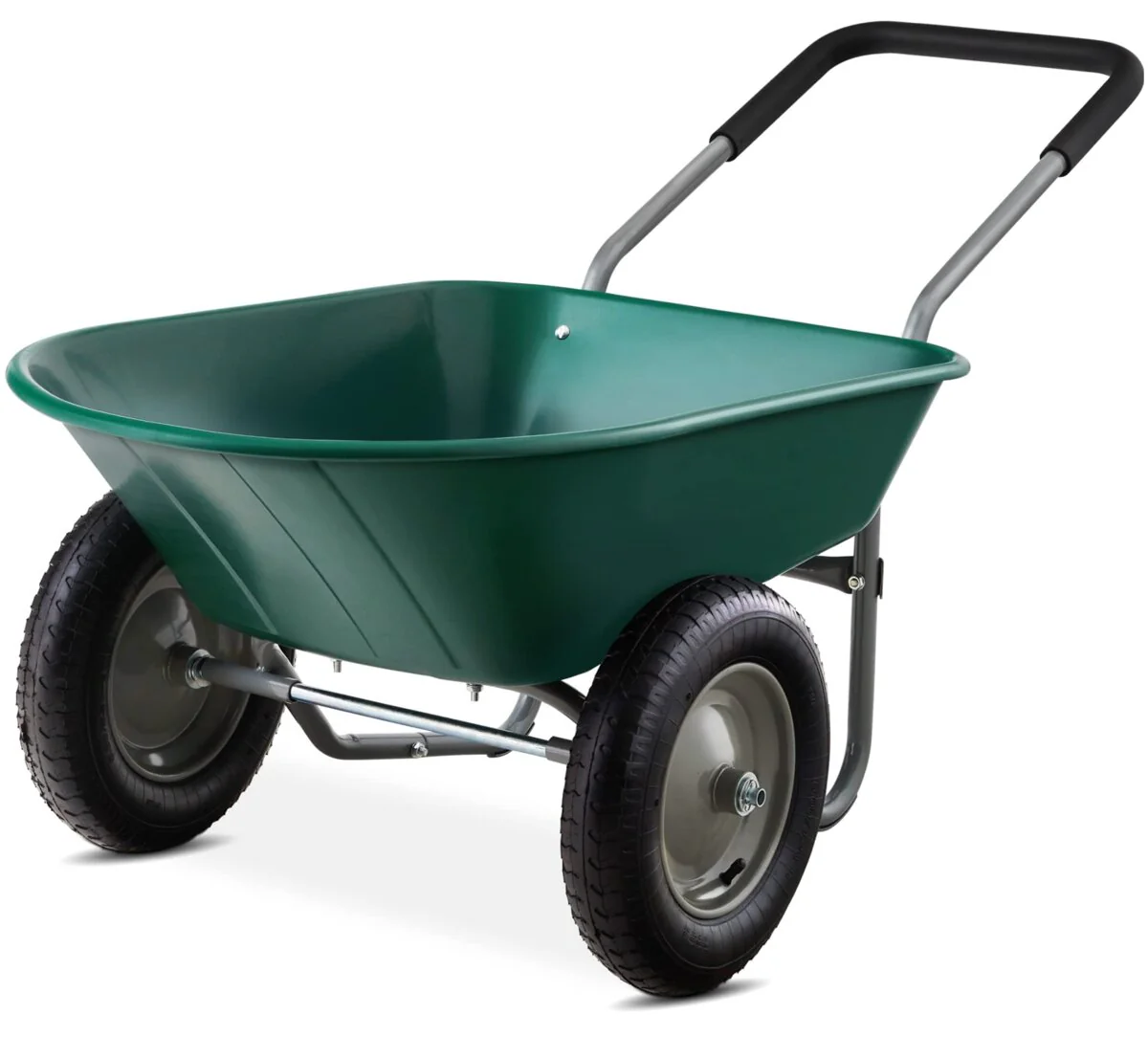

Trolley & Wheelbarrow Manufacturing
- Tray forming and shaping
- Structural pressing of metal bodies
- Heavy-duty product fabrication
04 — Key Advantages
01
High Load Capability
- Handles heavy-duty industrial applications with 200-ton force
- Suitable for large and thick materials
02
Excellent Parallelism & Accuracy
- Four-column design ensures precise alignment and minimal deflection
03
Wide Application Range
- Supports plastics, rubber, composites, and metals
- Ideal for multi-industry manufacturing
04
Customizable Operation
- Adjustable:
- Pressure
- Stroke
- Speed
- Programmable cycles via PLC
05
Superior Structural Stability
- Heavy fabricated steel frame
- High resistance to stress and deformation
06
Smooth & Controlled Performance
- Hydraulic system allows:
- Gradual force buildup
- Reduced shock and vibration
07
Enhanced Productivity
- Faster cycles with optimized speeds
- Reduced rejection rates
08
Low Maintenance
- Durable hydraulic components
- Easy serviceability
09
Operator Safety
- Safety interlocks and protections
- Optional automation reduces manual handling
