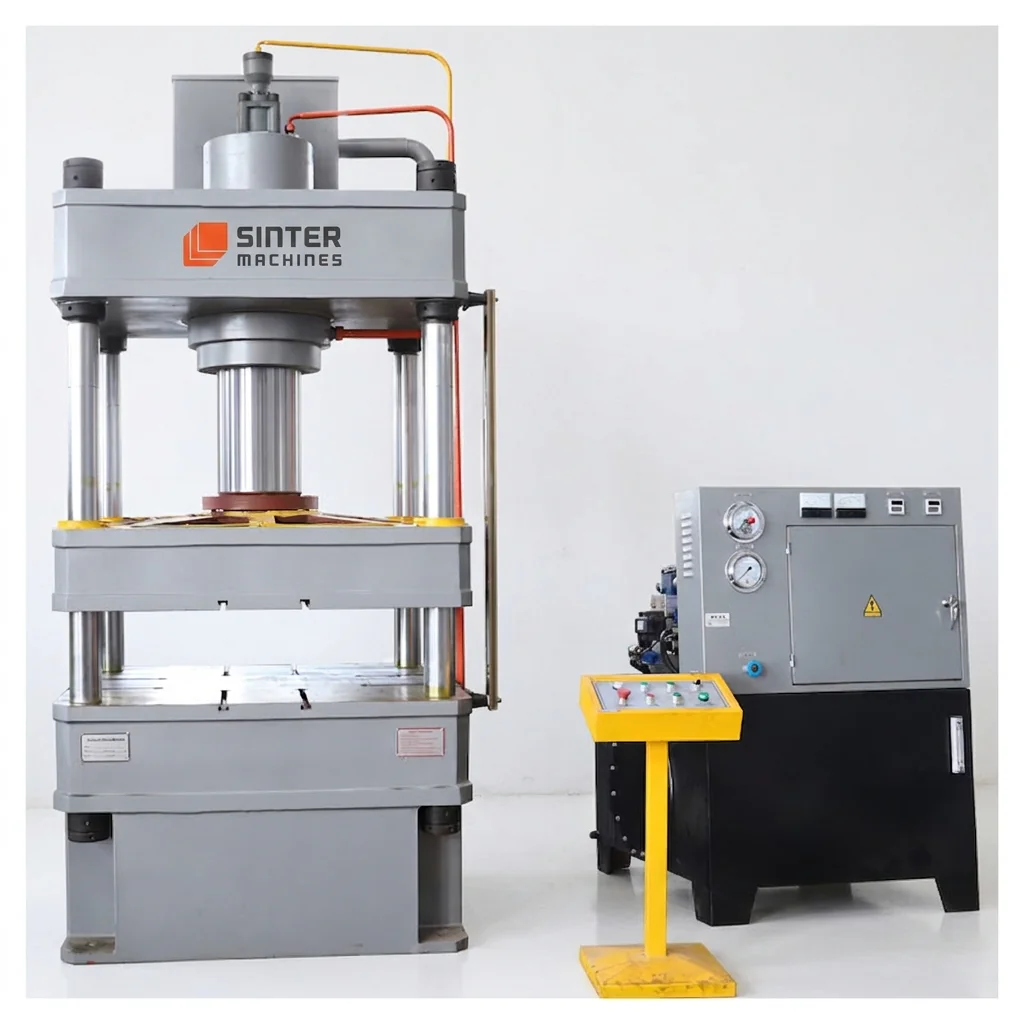

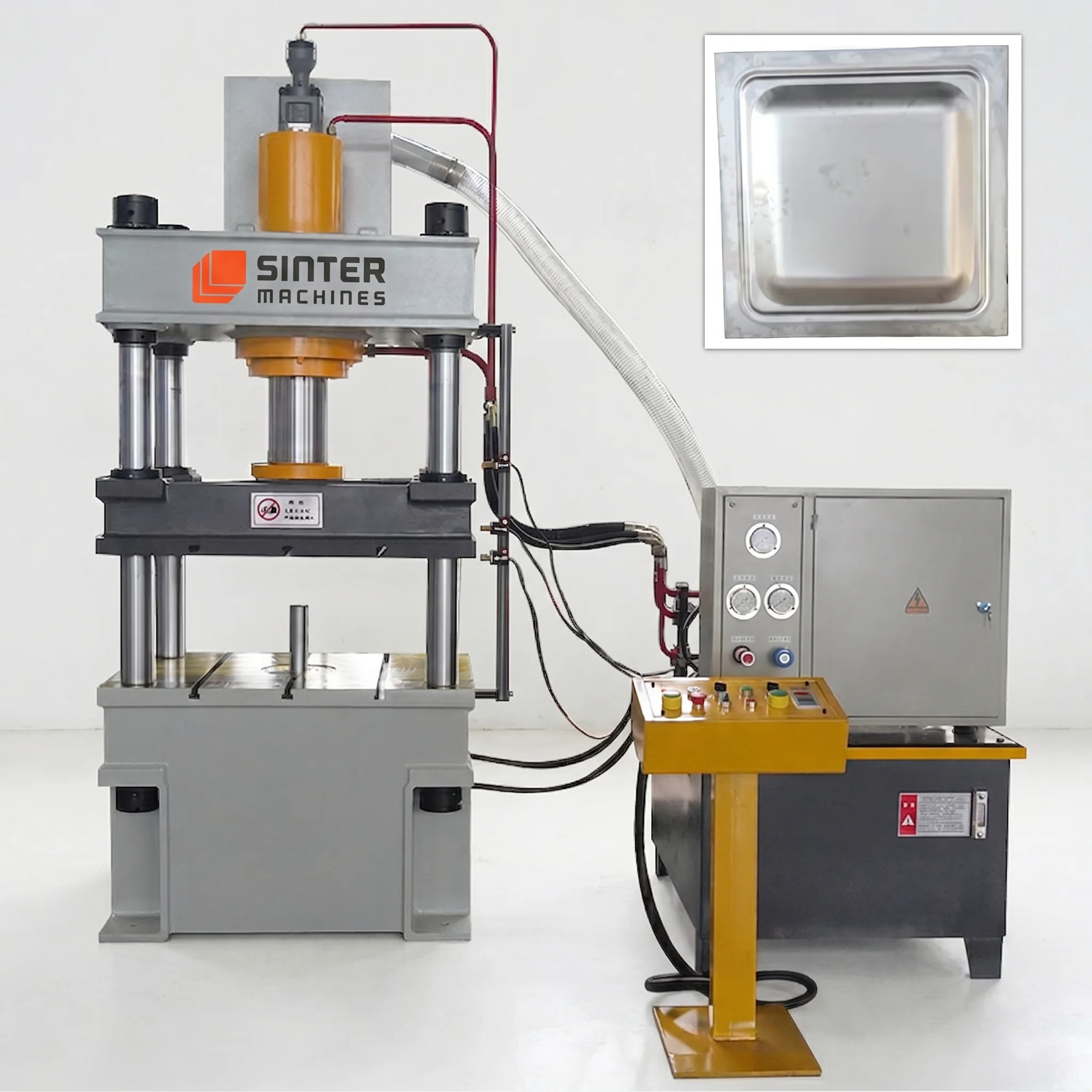

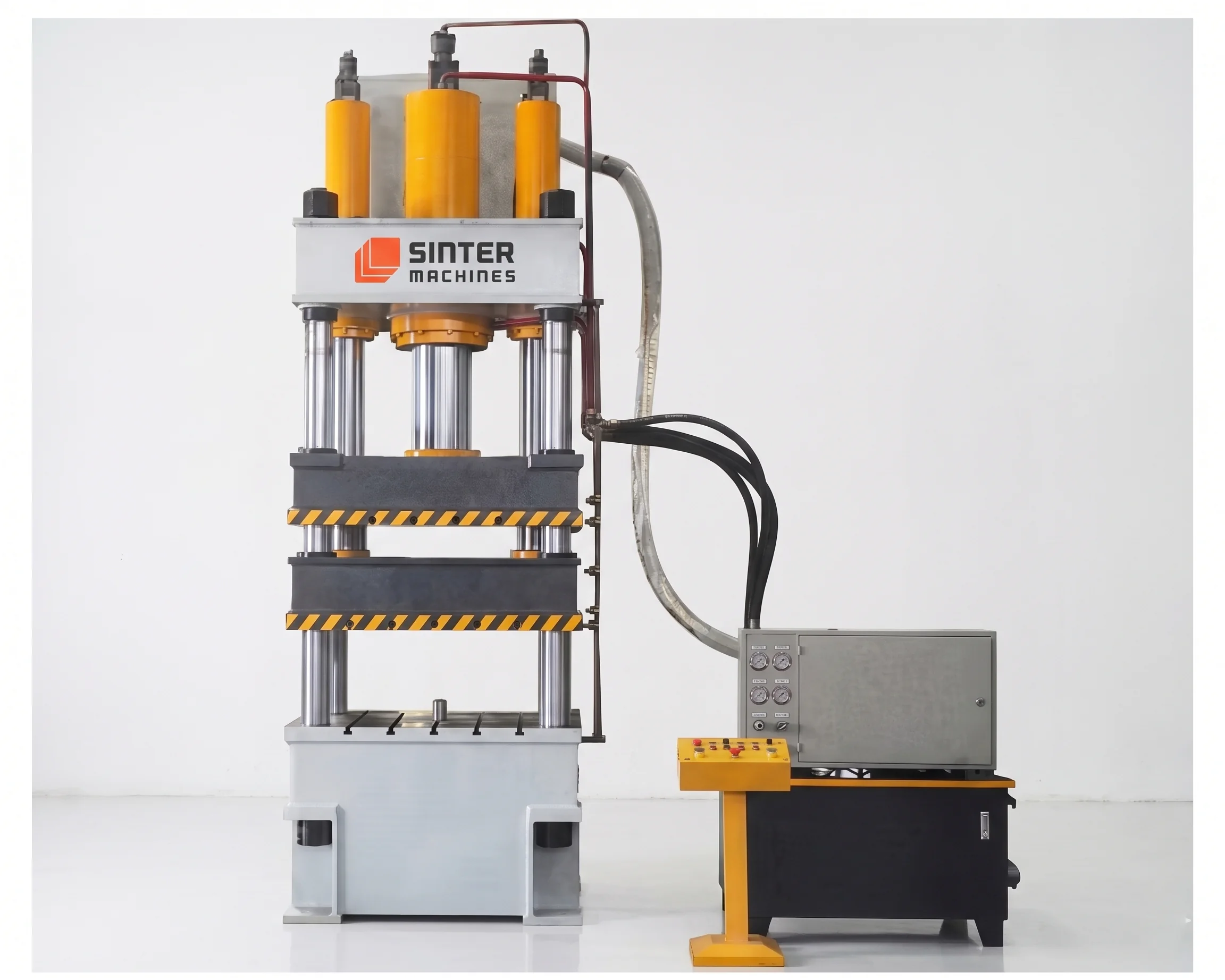

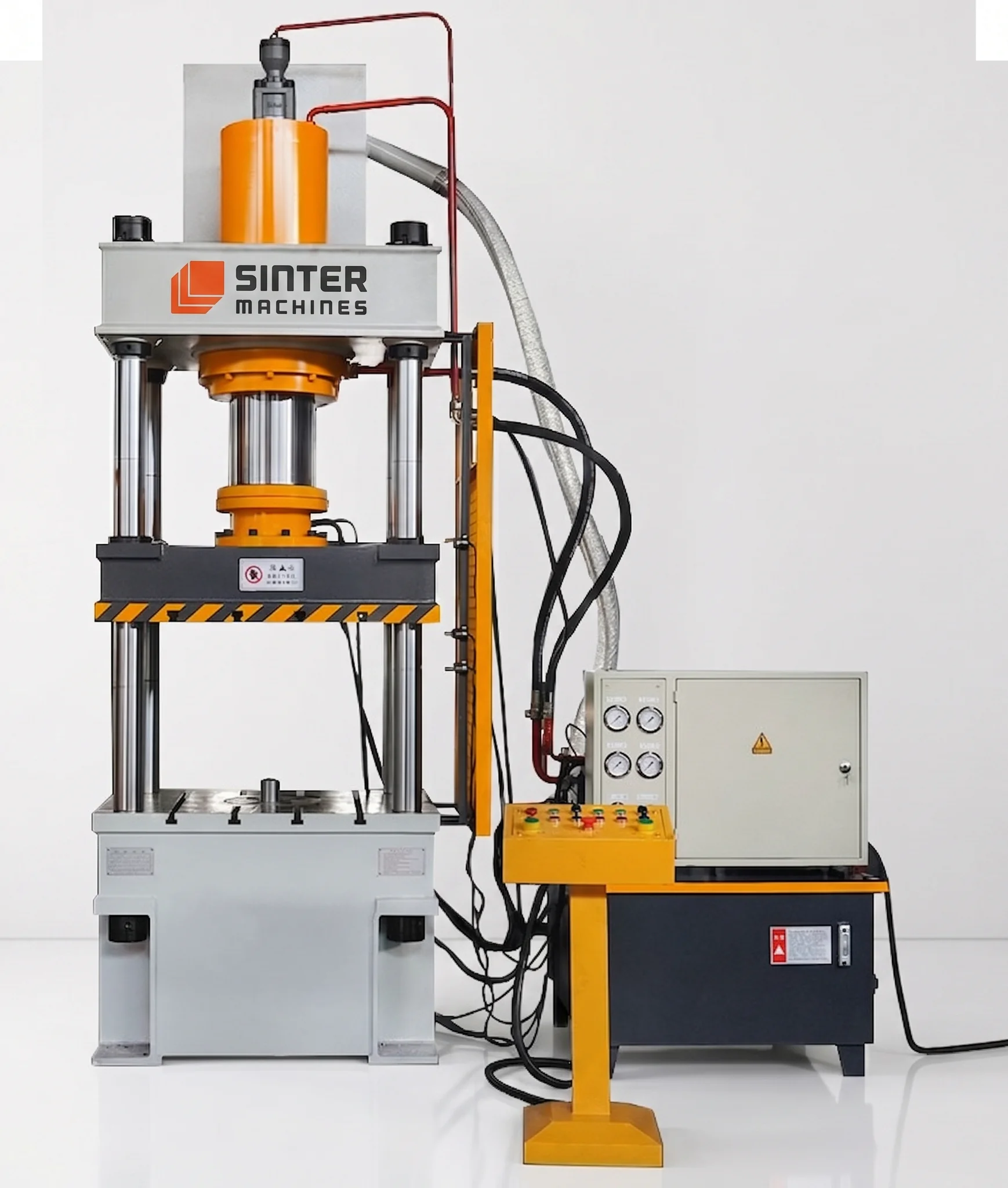

200 Ton Four Pillar Hydraulic Press for Deep Drawing Automotive Filter Steel Housing

Technical Data

Capacity: Nominal press force rating of 200 ton

Structural Design: Heavy duty stress relieved four pillar construction

Frame Type: Rigid upright pillar structural geometry

Hydraulic System: High precision variable displacement axial piston pump architecture

Main Ram Stroke: Maximum linear travel distance of 450 mm

Working Hydraulic Pressure: Continuous operational fluid limit of 220 bar

Daylight Gap: Maximum vertical open window height of 700 mm

Approach Speed: Rapid downward advance rate of 180 mm/Sec

Pressing / Drawing Speed: Highly controlled precision drawing velocity from 6 to 12 mm/Sec

Return Speed: Accelerated upward retract velocity of 150 mm/Sec

Bed / Platen Size Platen: Total structural table footprint of 800 mm by 750 mm

Columns: Four solid induction hardened steel pillars measuring 110 mm diameter

Working Envelope: Total internal processing volumetric clearance area of 800 mm by 750 mm by 700 mm

Control System: Central programmable logic controller integrated with real time touchscreen human machine interface

Main Motor Power: Energy efficient high torque electric drive rated at 22 kW

Valves & Hydraulics: Manifold block assembly with fast acting proportional flow and pressure control valves

Automation: Integrated pneumatic parts ejector mechanism and multi axis robotic pick and place interface

Safety Features: Dual hand touch control buttons, digital safety light curtains, and automatic hydraulic pressure relief protection valves

SM 200 HP — Model Specifications

• Nominal Force: 2000 KN
• Maximum Hydraulic Pressure: 25 MPa
• Max Opening Height of the Slider: 1100 mm
• Max Stroke of the Slider: 700 mm
• Effective Bed Size: 1000 × 1000 mm
• Slider Down Speed: 100 mm/s
• Slider Pressing Speed: 7–18 mm/s
• Slider Return Speed: 90 mm/s
• Ejector Cylinder Nominal Force: 200 KN
• Stroke of the Ejection Cylinder: 300 mm
