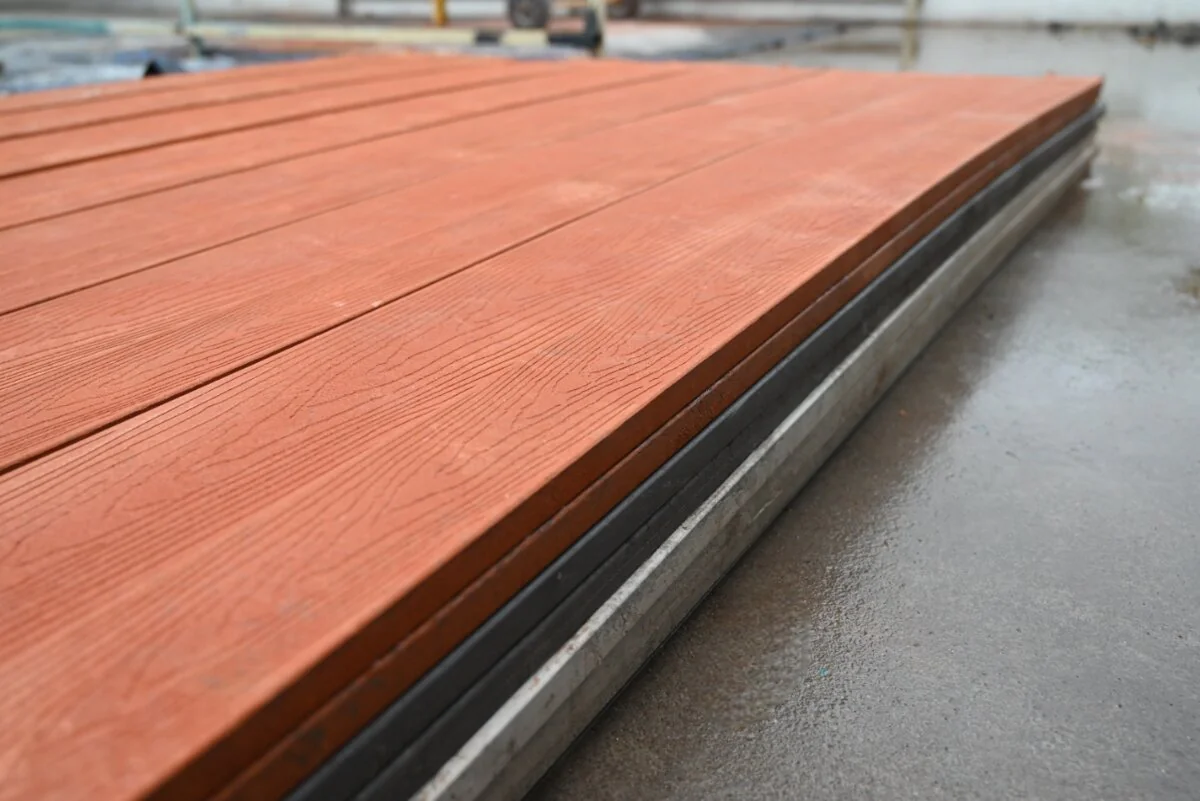

Plastics & Sand Composite
- Large plastic component molding
- Sand-resin composite blocks
- Heavy industrial molded products
Press Range

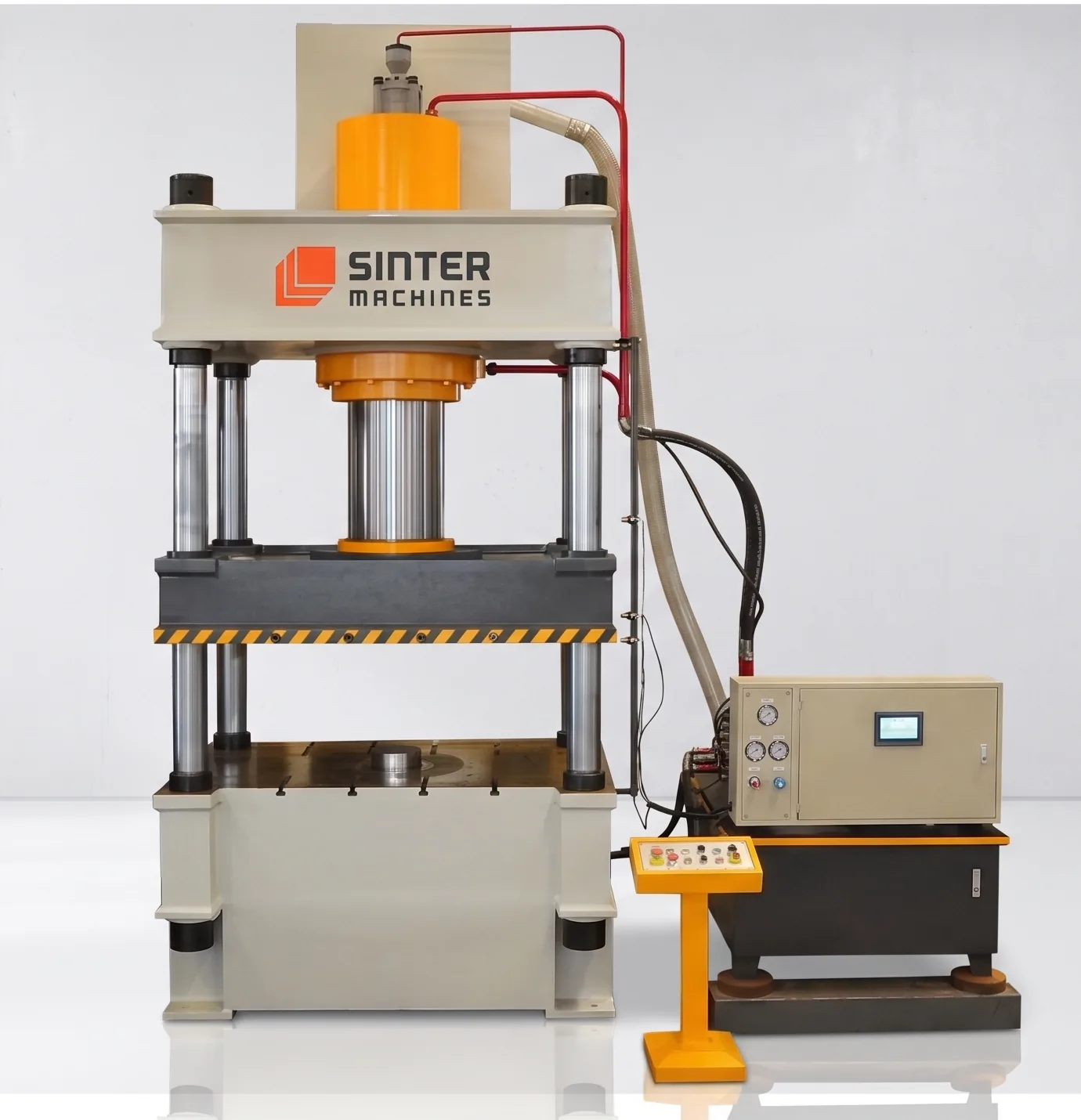

400-Ton Four Column
Hydraulic Press Machine
400 Ton Four Column Hydraulic Press Machine is a high-performance, industrial-grade solution ideal for large-scale, high-pressure manufacturing processes. Its robust structure, precision operation, and versatility make it highly suitable for:
400T
Rated Capacity
600 – 1200 mm
Stroke Length
1200 – 1800 mm
Daylight Opening
Up to 300 bar
Hydraulic Pressure
01 — Press System Overview
400-Ton Four Column Hydraulic Press
A 400-ton four-column hydraulic press is a heavy-duty, high-capacity machine built for large-scale forming, high-pressure applications, and precision manufacturing. The four-column design ensures optimal load distribution, superior rigidity, and high alignment accuracy, making it suitable for advanced industrial processes.
Core Components
- Main Hydraulic CylinderGenerates 400 tons (~4000 kN) force
- Four Precision ColumnsHard chrome plated for smooth guidance
- Moving Ram/SlideEnsures uniform pressure distribution
- Hydraulic Power PackMotor, pump, manifold block, oil reservoir
- Control SystemPLC + HMI (Auto / Semi-auto / Manual modes)
- Die Cushion (Optional)Required for deep drawing operations
- Ejector System (Optional)Hydraulic ejection of formed parts
- Safety FeaturesLight curtains, overload protection, emergency stop
02 — Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 400 Tons (4000 kN) |
| Structure | Four Column Type |
| Stroke Length | 600 – 1200 mm |
| Daylight Opening | 1200 – 1800 mm |
| Table Size | 1200 × 1200 mm to 2000 × 2000 mm |
| Hydraulic Pressure | Up to 300 bar |
| Approach Speed | 120 – 220 mm/sec |
| Working Speed | 5 – 25 mm/sec |
| Return Speed | 120 – 200 mm/sec |
| Power Pack | 30 – 75 kW |
| Control System | PLC + HMI (CNC optional) |
| Parallelism Accuracy | ±0.02 – ±0.05 mm |
| Ejector Capacity | 40 – 100 Tons (Optional) |
| Frame | Heavy-duty fabricated & stress-relieved steel |
Specifications can be customized depending on application.
03 — Applications

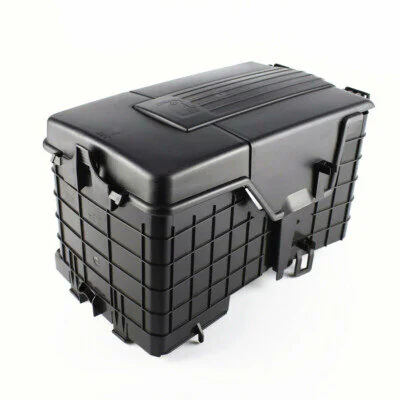

SMC / BMC / FRP Composite
- Automotive structural panels
- Electrical housings and enclosures
- High-strength composite parts
- Industrial FRP components

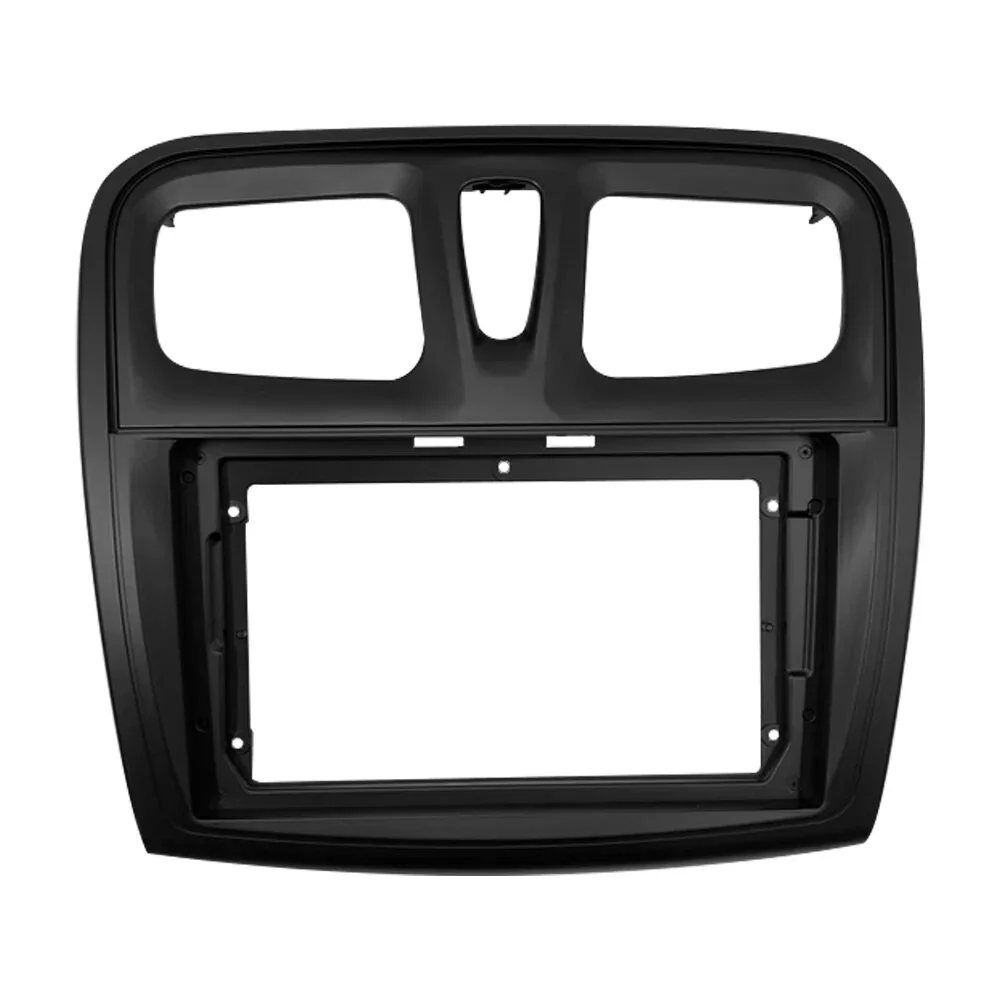

TPE & Rubber Pads / Mats
- Rubber mat compression molding
- TPE products (anti-vibration pads, industrial flooring)
- Large elastomer components
Powder Metallurgy
- High-density metal powder compaction
- Precision components for automotive and engineering industries
- Uniform compaction for mass production
Deep Drawing & Stamping
- Large and deep-drawn sheet metal components
- Automotive body parts
- Stainless steel sinks and tanks
Hot & Cold Forging
- Forging heavy steel and alloy parts
- Hot forging of structural components
- Cold forging precision parts

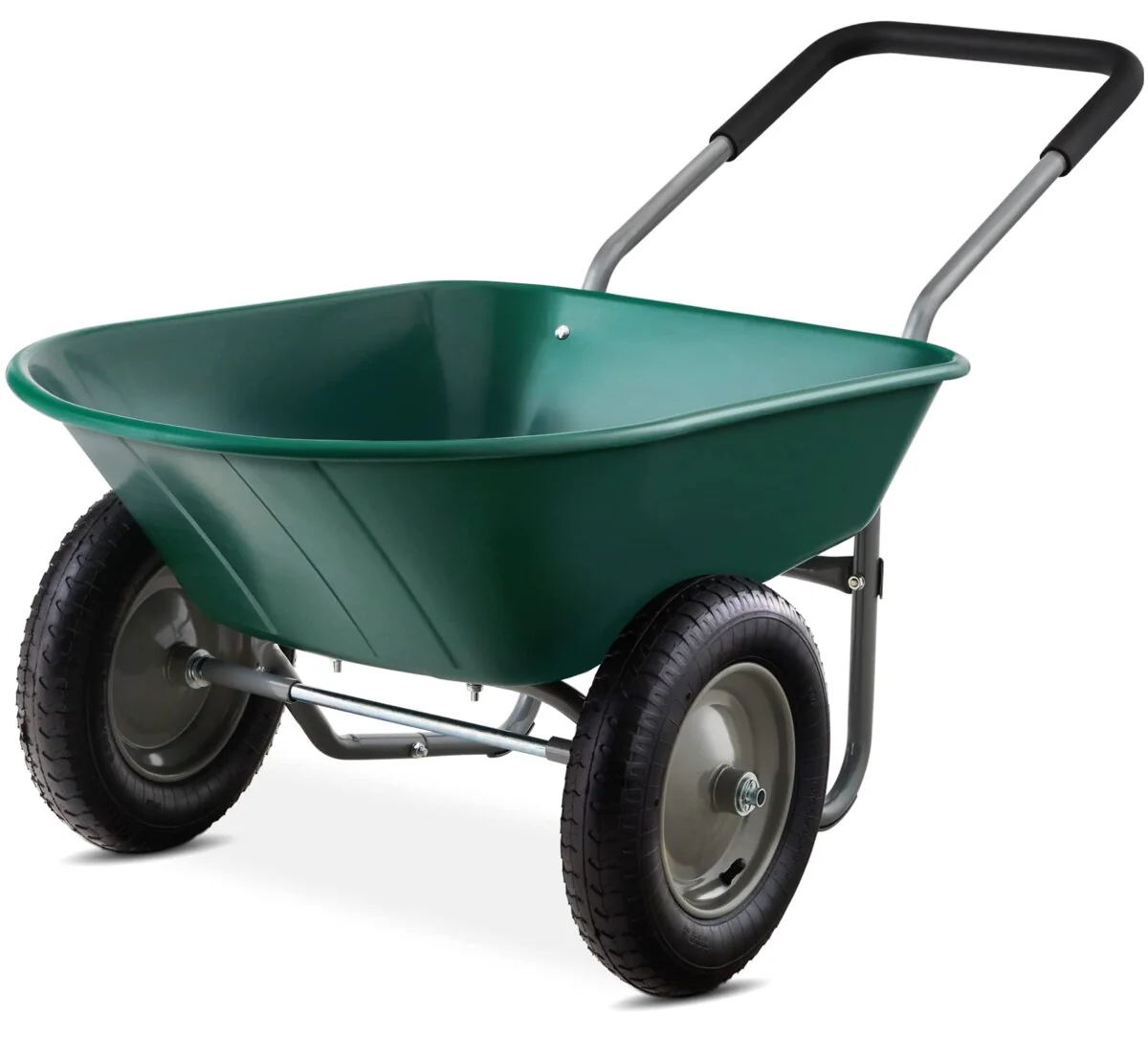

Trolley & Wheelbarrow Manufacturing
- Tray forming
- Structural shaping of heavy-duty products
- Agricultural and industrial equipment components

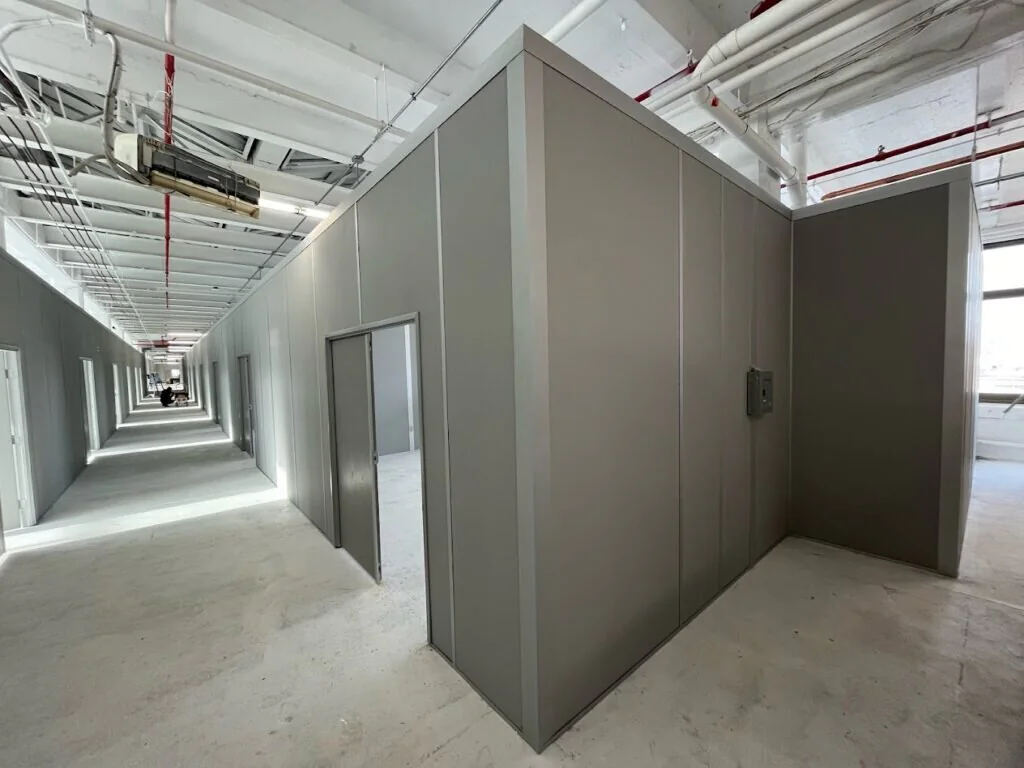

Ceiling Tiles & Dry Walls
- Decorative panel pressing
- False ceiling boards
- Acoustic and insulation panels

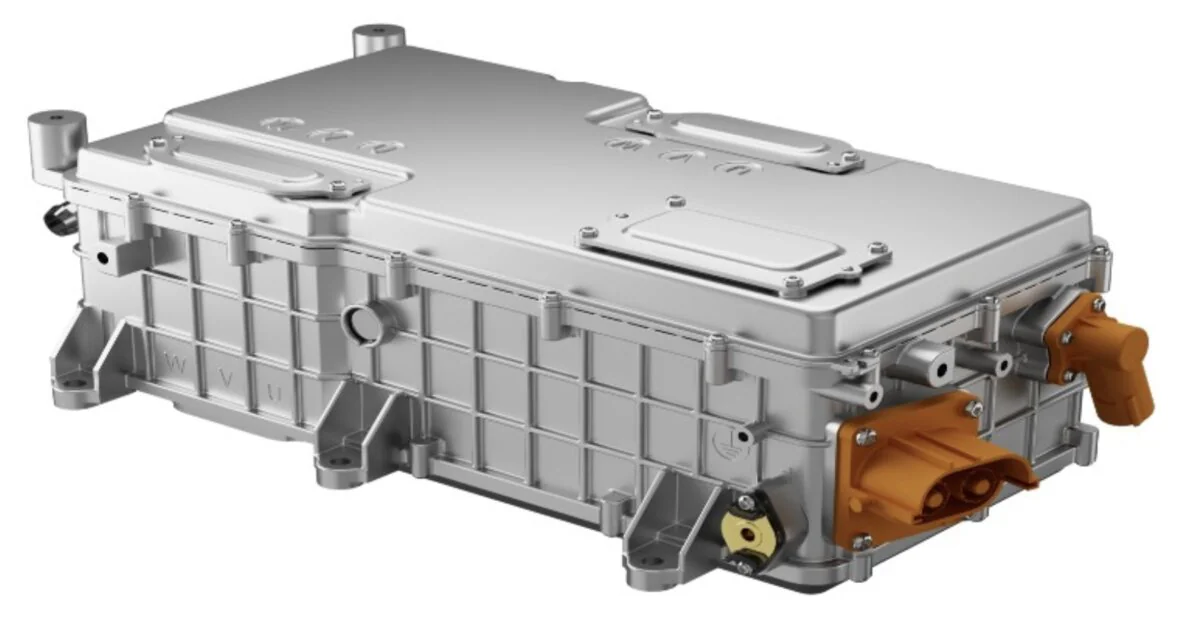

EV Battery Housing
- Battery enclosure forming
- Aluminum and steel casing
- High-precision safety components for EV sector
04 — Key Advantages
01
Ultra High Force Capability
- 400-ton capacity supports:
- Large components
- Thick materials
- Heavy-duty applications
02
Superior Structural Strength
- Four-column design ensures:
- Maximum rigidity
- Long machine life
- Minimal deformation
03
High Precision & Uniform Pressure
- Maintains excellent parallelism across large working surfaces
- Ensures consistent product quality
04
Wide Industrial Versatility
- Suitable for:
- Plastics & rubber
- Metals & forging
- Composites & EV components
- Multi-purpose production capability
05
Customizable & Programmable
- Adjustable:
- Pressure
- Stroke
- Speed
- PLC-based programmable control
06
Smooth & Shock-Free Operation
- Controlled hydraulic force reduces:
- Vibration
- Tool wear
- Material defects
07
High Productivity & Efficiency
- Faster cycle times
- Reduced scrap rate
- Consistent output quality
08
Energy Efficient Options
- Servo-hydraulic systems available
- Optimized power consumption
09
Enhanced Operator Safety
- Advanced safety interlocks
- Automation-ready system
- Reduced manual intervention
